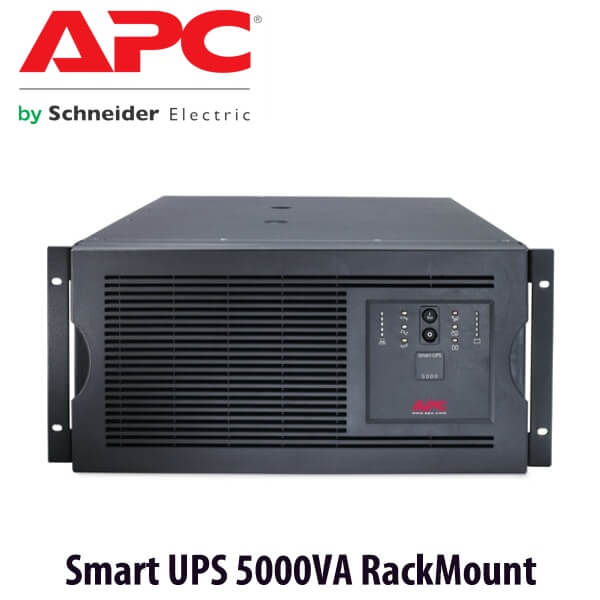

APC Smart UPS 5000VA RackMount Ghana



APC Smart UPS 5000VA RackMount Ghana

APC Smart UPS 5000VA RackMount Ghana is an ultra-efficient device that is designed to keep you working without any interruptions caused by electrical power outages.

Category:

Description

APC Smart UPS 5000VA RackMount Ghana

APC Smart UPS 5000VA RackMount Ghana is an ultra-efficient device that is designed to keep you working without any interruptions caused by electrical power outages. It specifically delivers power to your essential computer peripherals, keeping you productive and ensuring important data is secured during power outage. APC Smart UPS 5000VA provides professional power protection and battery backup for computer systems ensuring safe system shutdown and advanced power management capabilities keep systems and data safe. The UPS can communicate with a computer via serial for automatic shutdown in the event of a power failure. The award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATMs. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.

Key Features

Tailored to meet specific needs

APC Smart UPS 5000VA RackMount Ghana boasts of LCD interface that provides clear information allowing users to configure the UPS locally. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

Safety Approved

APC Smart UPS 5000VA provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards and is UL1778 Listed

Boost and Trim Automatic Voltage Regulation (AVR)

APC Smart UPS 5000VA RackMount Ghana has automatic solid state volt that gives higher application availability by correcting low and high voltage conditions without using the battery. and boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems

Remote Accessibility

APC Smart UPS 5000VA is network manageable via serial, USB or optional Ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Intelligent battery management

APC Smart UPS 5000VA maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning

APC Smart UPS 5000VA protects connected loads from surges, spikes, lightning, and other power disturbances.

Temperature-compensated battery charging

APC Smart UPS 5000VA prolongs battery life by regulating the charge voltage according to battery temperature

Audible alarms

Provides notification of changing utility power and UPS power conditions

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Cold-start capable

APC Smart UPS 5000VA RackMount Ghana provides temporary battery power when the utility power is out.

Disconnected battery notification

APC Smart UPS 5000VA RackMount Ghana warns when a battery is not available to provide backup power.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Intelligent Card Slot

Customize UPS capabilities with management cards.

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Resettable circuit breakers

APC Smart UPS 5000VA RackMount Ghana enables a quick recovery from overload events.

Serial connectivity

Provides management of the UPS via a serial port.

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Resettable circuit breakers

Enables a quick recovery from overload events.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

User-replaceable batteries

APC Smart UPS 5000VA RackMount Ghana increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Technical Specifications

Product Description APC Smart-UPS 5000VA 230V Rackmount/Tower
Form Factor External 2 U
Device Type UPS – external
Dimensions (WxDxH) 483 mm x660 mm x 222 mm
Weight 97.7 kg

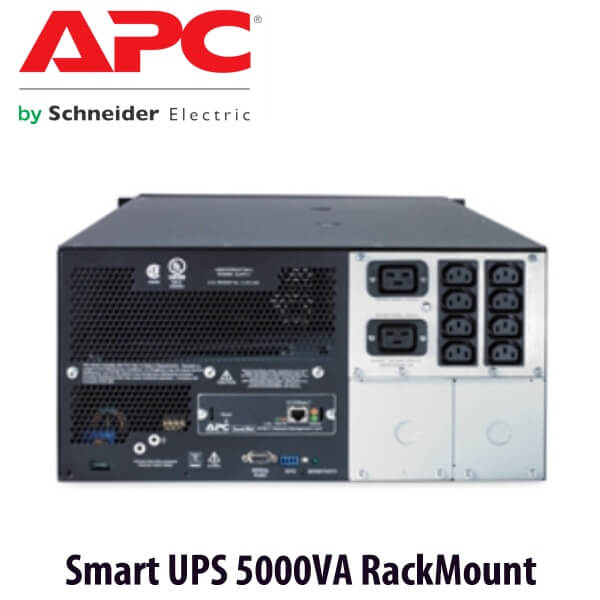

Power Output Connectors Details 8 x power IEC 320 EN 60320 C13
2 x power IEC 320 EN 60320 C19
Output Waveform Sinewave
Surge Energy Rating 480 Joules
UPS Technology Line interactive
Height (Rack Units) 5U
Surge Energy Rating 480 Joules
Typical Backup Time at Half Load 26.7 minutes (2000 Watts)
Typical Backup Time at Full Load 9.4 minutes (4000 Watts
Battery Enclosure Type Internal
Input Voltage AC 230 V
Output Voltage AC 230 V ± 5% ( 50/60 Hz )
Power Provided 5000 VA
Output Connector(s) 4 x power IEC 320 EN 60320 C13
Manufacturer Warranty 2 years warranty
Battery Form Factor Internal

Datasheet Download
