APC SMC1500 IC Ghana



APC SMC1500 IC Ghana

APC SMC1500 IC Ghana features intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging.

Category:

Description

APC SMC1500 IC Smart-UPS Ghana

APC SMC1500 IC Ghana features intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self-tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. APC SMC1500 IC provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

APC SMC1500 IC Ghana avoids costly power problems by keeping your IT equipment and data safe and available. Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems. Patented green operating mode achieves efficiencies over 97%.

Smarter productivity with ability to tailor to your specific application needs. APC SMC1500 IC packs intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications. Save time with easy and convenient remote accessibility. APC SMC1500 IC is network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Key Features

Cold-start capable

Provides temporary battery power when the utility power is out.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High online efficiency

APC SMC1500 IC Ghana reduces utility costs, generates less heat.

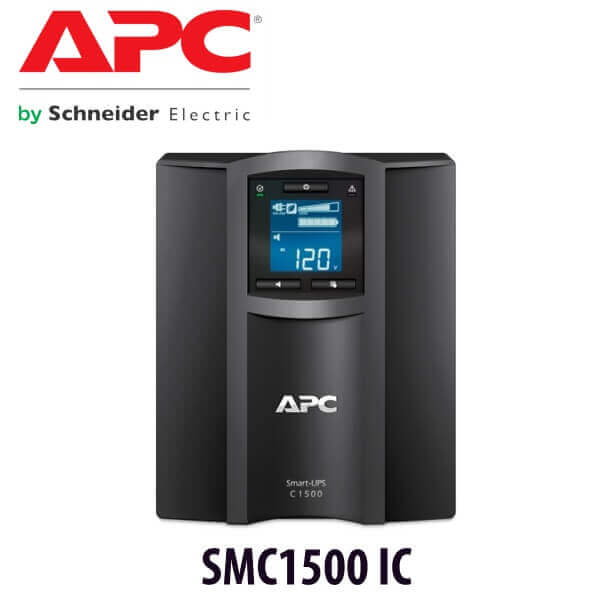

LCD Status Display

APC SMC1500 IC Ghana provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

SmartConnect

Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.

Temperature-compensated battery charging

APC SMC1500 IC Ghana prolongs battery life by regulating the charge voltage according to battery temperature.

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Battery failure notification

APC SMC1500 IC Ghana provides early-warning fault analysis on batteries enabling timely preventive maintenance

Resettable circuit breakers

Enables a quick recovery from overload events.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Serial connectivity

Provides management of the UPS via a serial port.

USB connectivity

APC SMC1500 IC Ghana provides management of the UPS via a USB port (not available on all models).

LED status indicators

Quickly understand unit and power status with visual indicators.

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Audible alarms

Provides notification of changing utility power and UPS conditions.

Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Disconnected battery notification

APC SMC1500 IC Ghana warns when a battery is not available to provide backup power.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Technical Specifications

Rated power in W 900 W
Rated power in VA 1500 VA

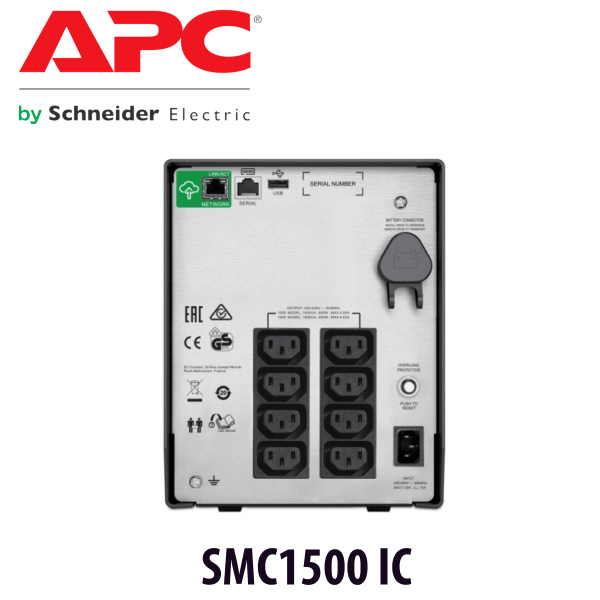

nb of power socket outlets 8 IEC 320 C13
2 IEC Jumpers
Main Output Voltage 230 V
Other Output Voltage 220 V
240 V
Other Input Voltage 220 V
240 V
Main Input Voltage 230 V
Plugstandard IEC 320 C14
General
Number of power module filled slots 0
Number of power module free slots 0
Product web sub-family Cloud-enabled monitoring
Redundant No
Provided equipment USB cable
Physical
Mounting location Front
Mounting mode Not rack-mountable
Mounting preference No preference
Depth 43.9 cm
Height 21.9 cm
Net weight 20.1 kg
Width 17.1 cm
Two post mountable 0
USB compatible Yes
Color Black
Input
Input voltage limits 170…300 V adjustable
180…287 V
Network frequency 50/60 Hz +/- 3 Hz auto-sensing
Output
Harmonic distortion Less than 5 %
Maximum configurable power in VA 1500 VA
Maximum configurable power in W 900 W
Transfer time 6 ms typical : 10 ms maximum
UPS type Line interactive
Wave type Sine wave
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Conformance
Product certifications C-Tick
CE
GOST
VDE
Standards UL 1778
Environmental
Acoustic level 45 dBA
Heat dissipation 135 Btu/h
Operating altitude 0…10000 ft
Ambient air temperature for operation 0…40 °C
Ambient air temperature for storage -15…45 °C
Storage altitude 0.00…15240.00 m
Relative humidity 0…95 %
Storage Relative Humidity 0…95 %
Battery type Lead-acid battery
Extended runtime 0
Number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 3 h
Number of battery replacement quantity 1
Battery life 3…5 year(s)
Battery power in VAH 288 VAh runtime
Battery charger power 96 W rated
Communications & Management
Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Control panel Multifunction LCD status and control console
Free slots 0
Surge Protection and Filtering
Surge energy rate 459 J
Noise suppression Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Packing Units
Package 1 Weight 22.64 kg
Package 1 Height 33 cm
Package 1 width 33 cm
Package 1 Length 59 cm
Number of Units in Package 2 1
Number of Units in Package 3 18
Contractual warranty
Warranty 2 years repair or replace

Datasheet Download
