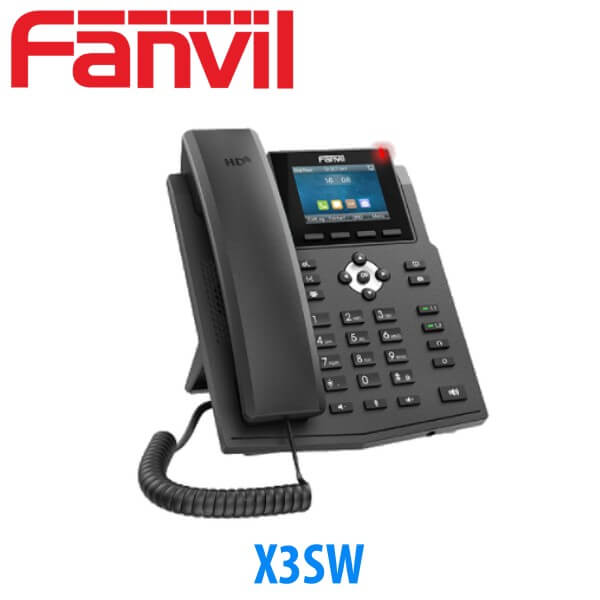

Fanvil X3SW Ghana



Fanvil X3SW Ghana

The Fanvil X3SW WiFi Phone Ghana features built-in 2.4-inch color screen WiFi phone. With 2.4-inch color screen display intuitive and user-friendly UI the X3SW is easy to operate providing flexible deployment for efficiency of collaboration

Description

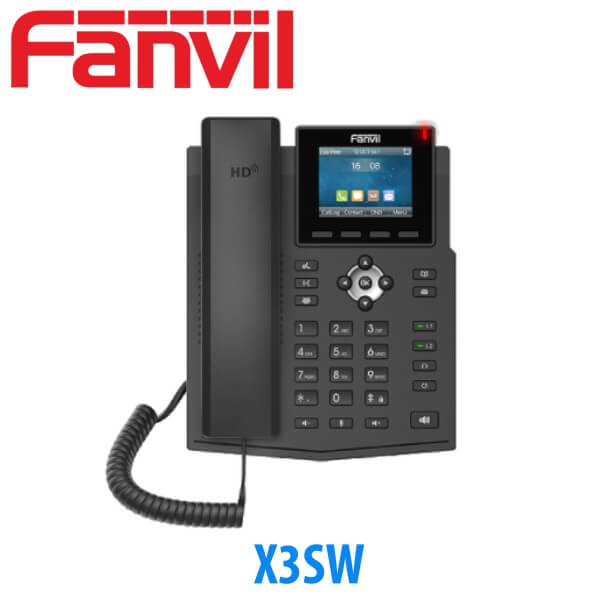

Fanvil X3SW WiFi Phone Ghana

The Fanvil X3SW WiFi Phone Ghana features built-in 2.4G WiFi creating optional ways of connecting to the network, with fewer wires for easy and flexible deployment. The 2.4-inch color screen WiFi phone, realizing the wireless business and improving the efficiency of collaboration. With HD audio, built-in 2.4G WiFi, 6-way audio conference, it is suitable for multiple enterprise scenarios, providing the high-quality and easy-to-use experience for users. X3SW provides a robust set of VoIP phone features; including support for 4 SIP lines and 6-way local conferencing. Interact also with X3SW has a familiar color display with four soft keys is configurable for simple use. The HD audio quality with a built in 3W speaker and noise reduction feature makes conversations clear and easy to understand. If you want to use a headset, it has a dedicated RJ9 port with support EHS adapters.

Key Features

  • 4 SIP lines
  • Built-in 2.4GHz WiFi
  • 4” main color display
  • HD audio on speakerphone and handset
  • Support EHS wireless headset
  • Support 6-way audio conference
  • Stand with 2 adjustable angles of 45 and 50 degrees
Fanvil X3sw Wifi Ip Phone Accra

Fanvil X3sw Wifi Ip Phone Accra

Built-in 2.4G WiFi

Fanvil X3SW WiFi Phone supports 2.4G WiFi, enabling users to have more choices to connect the network and building the wireless office. Less wiring makes the office environment more concise, and the device deployment more flexible.

Simple to Use, Stylish Design

The Fanvil X3SW boasts of elegant stylish appearance. The intuitive and user-friendly UI makes navigation easier without need of an IT assistant to operate.

Support 6-way Audio Conference

The Fanvil X3SW WiFi Phone connects up to 5 participants to join in the conference for efficient internal and external collaboration of enterprise workers greatly improving the communication efficiency.

HD Audio Call with Excellent Noise Reduction

Fanvil X3SW features HD audio handset, built-in HD speakers, and supports the wideband audio codec protocol G.722 and Opus. It provides users with ideal HD audio communication experience with excellent noise reduction technique for clear conversation.

High Scalability with DSS Keys

With the WiFi Phone, two line keys can be set as DSS keys according to the requirements to achieve application functions. Each DSS key can be set as Line/BLF/ Speed Dial Key, which enables the users to directly achieve the functionalities by one click.

Flexible Office Collaboration

Fanvil X3SW supports to connect the EHS wireless earphone via the EHS adapter. Users can multitask while having the audio communication, greatly improving the work efficiency.

Fanvil X3sw Wifi Ip Phone Ghana

Fanvil X3sw Wifi Ip Phone Ghana

Technical Specifications

General

  • 4 SIP lines
  • Built-in 2.4GHz WiFi
  • 4” main color display
  • HD audio on speakerphone and handset
  • Support EHS wireless headset
  • Support 6-way audio conference
  • Stand with 2 adjustable angles of 45 and 50 degrees

Phone functions

  • Local Phonebook (1000 entries)
  • Remote Phonebook (XML/LDAP, 1000 entries)
  • Call logs (In/Out/Missed, 600 entries)
  • Black/White List Call Filter
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Built-in 2.4GHz Wi-Fi
  • Network standard: IEEE 802.11b/g/n
  • Transmission rate: Up to 150Mbps (dynamic)
  • Support Plantronics wireless headset (Through Plantronics
  • APD-80 EHS Cable)
  • Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
  • Support Recording (Through Server)
  • Action URL / Active URI
  • uaCSTA

Call functions

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forward (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (With server)
  • 6-way Conference
  • Hot Line
  • Hot desking

Audio

  • HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
  • HAC handset
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
  • Wideband Codec: G.722, Opus
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR) /Automatic Gain Control (AGC)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
  • VQM voice quality monitoring

Networking

  • Physical : 10/100 Mbps Ethernet, dual bridged port for PC bypass
  • IP Mode : IPv4/IPv6/IPv4&IPv6
  • IP Configuration : Static IP / DHCP / PPPoE
  • Network Access Control : 802.1x
  • VPN : L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

  • 0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPv6
  • LLDP
  • PPPoE
  • 1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069
  • AES128 & AES256

Deployment & Management

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP/PNP/TR-069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Export / Import
  • Phonebook Import/Export
  • Firmware Upgrade
  • Syslog
Fanvil X3sw Wifi Ip Phone Kumasi

Fanvil X3sw Wifi Ip Phone Kumasi

Physical Specifications

  • LCD: 2.4-inch (320×240) Color Screen
  • Keypad: 34 keys, including
    • 4 Soft-keys
    • 7 Function keys (Hold/Transfer/Conference/Phonebook/MWI/Headset/Redial)
    • 2 Line keys (With LED Indicator Light)
    • 4 Navigation keys
    • 1 OK key
    • 12 Standard Phone Digits keys
    • 3 Volume Control keys (Up/Down/Mute (Microphone))
    • 1 Hands-free key
  • HD Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
  • 5M CAT.5E Ethernet Cable x1
  • Back Rack x1
  • Power adapter x1
  • Status Indicator Light x1 (Red)
  • RJ9 Port x2 : Handset x1, Headset x1
  • RJ45 Port x2 : Network x1, PC x1 (Bridged to Network)
  • Safety Keyhole x1
  • DC Power Input : DC5V / 1A
  • Power Consumption : Idle 0.9~1.3W, Peak 2.98~3.52W
  • Working Temperature : 0~45°C
  • Working Humidity : 10~95%

Datasheet Download
