Avaya HC020 Ghana



Avaya HC020 Ghana

The Avaya IX Huddle Camera HC020 Ghana is suitable as the first or second camera of all the products of XT Series, or as laptop camera for the Avaya Equinox Client.

Category:

Description

Avaya IX Huddle Video Conference Camera HC020 Ghana

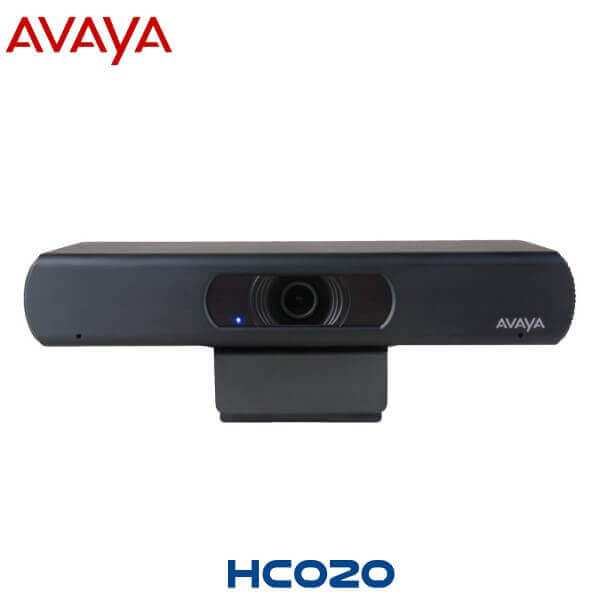

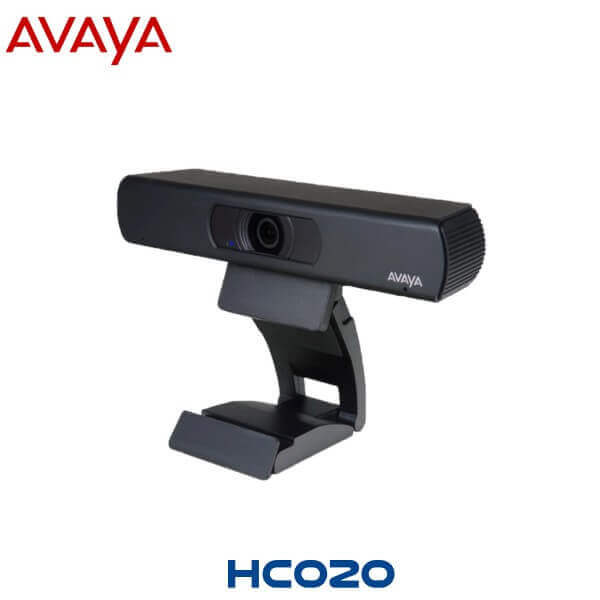

The Avaya IX Huddle Camera HC020 Ghana is a full HD USB camera that leverages the quality of UltraHD 4K sensor to provide a high-quality 1080p30 video signal, with a digital Pan Tilt Zoom (1080p resolution up to 2x zoom, 720p @3x zoom). You can even send an uncompressed signal through HDMI. In Avaya HC020 Ghana there is an option to include a 1-way POD microphone for small rooms. The ease of installation and use make this camera ideal for individual workgroups, small to mid-size businesses, or complementing an enterprise collaboration deployment.

Avaya IX Huddle Cameras HC020 Ghana is the latest additions of cameras for Huddle Rooms that can be used on XT as first or additional cameras. Users can enjoy full control directly from the XT Room System through Remote Control, Scopia Control, Web Interface, APIs, and so on. Avaya HC020 Ghana is the Best solution from Video Conference Ghana. Avaya IX Huddle Camera HC020 Ghana is perfect for small to medium-sized meeting spaces, delivering an exceptional experience for training, brainstorming, team collaboration, and meetings with a personal connection.

The huddle cameras are great for enabling all of your small to medium meeting rooms and spaces, delivering utility, security, and an exceptional experience for training, brainstorming, team and customer meetings with a private connection. the benefit of installation and use make them ideal for individual workgroups, small to mid-size businesses, or complementing an enterprise collaboration deployment. Make collaboration and video conferencing easy with the Avaya HC020 Ghana Full HD Web and Video Conference Camera from Avaya. Designed to be used with Avaya XT hardware or the Equinox client, this camera delivers full HD video for little group conferences or individual users. Featuring 8x digital zoom and USB 3.1 Gen 1 and HDMI interfaces, the HC020 is clipped to a laptop or monitor or mounted to a tripod or ceiling. This camera also features an integrated microphone boasting omnidirectional pickup with a 3m radius and 360° coverage.

Avaya IX Huddle Camera HC020 features.

  • Easy to use and deploy
  • 1080p30 resolution
  • 8x digital zoom
  • Perfect for small, medium and large meeting spaces
  • Camera mount: Tripod screw hole (1/4-20 UNC)
  • Camera output: USB-HDMI

Avaya IX Huddle Camera HC020 Specifications.

  • Camera Model: HC020 1080p@30
  • Image device :  4K@30/25 CMOS 1/2.5’’
  • Video Formats with laptop : 4K@30/25 1080p60/50/30/25
  • Video Formats with XT : 1080p30 / 720p30
  • Video signal : Compressed (H.264) on USB or uncompressed on HDMI
  • Focal Length : f=2.8mm
  • Min object distance (wide) : 500mm
  • Min illumination : 0.5 Lux @ (F1.8, AGC ON)
  • HFoV : 104° (up to 123°)
  • VFoV : 68°
  • Optical Zoom (*) :  NA
  • Digital Zoom (*) : 8x
  • Pan Range : ePTZ (**)
  • Tilt Range :  ePTZ (**)
  • Serial Control : Via USB
  • Ceiling Mount :  Supported
  • Camera mount : Tripod screw hole (1/4-20 UNC)
  • Weight :  0.34Kg
  • Dimensions (w/h/d):  194mm x 34mm x 42mm (without bracket)
  • Current consumption (max): 0.6A
  • Video configurations :  White balance (auto/manual); Focus Mode (auto/manual); Sharpness; Backlight; Exposure Compensation; Picture (auto/manual) and WDR level
  • Voltage Range : 5V(USB)
  • IR repeater as TTL signal :  Not available
  • Camera Output : USB 3.0 – HDMI
  • Microphone : Included, frequency response 50Hz – 8KHz, 3m radius omni (6m diameter), coverage 360°
  • Presets : 122 (for all connected cameras, directly on XT codec)
  • Far end camera control : Through XT codec (H.224, H.281)
  • Interoperability : The Avaya HC020 camera is  compatible with Avaya Conferencing clients such as Spaces and Avaya IX Workplace and with third-party conferencing clients such as Microsoft© Skype for Business, Microsoft© Teams, Zoom©, BlueJeans©, Google Hangouts, Pexip, Cisco WebEx, StarLeaf, Rainbow, Ring Central, Ring Central Meetings
