Blackmagic AtemMini ProISO Ghana



Blackmagic Atem Mini Pro ISO Ghana

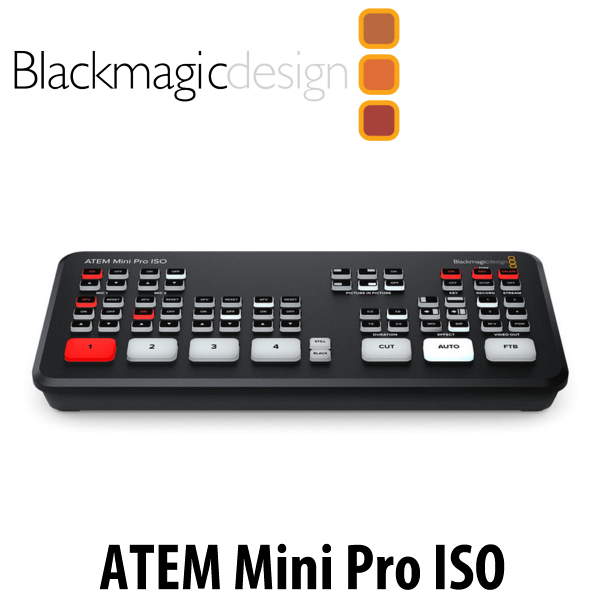

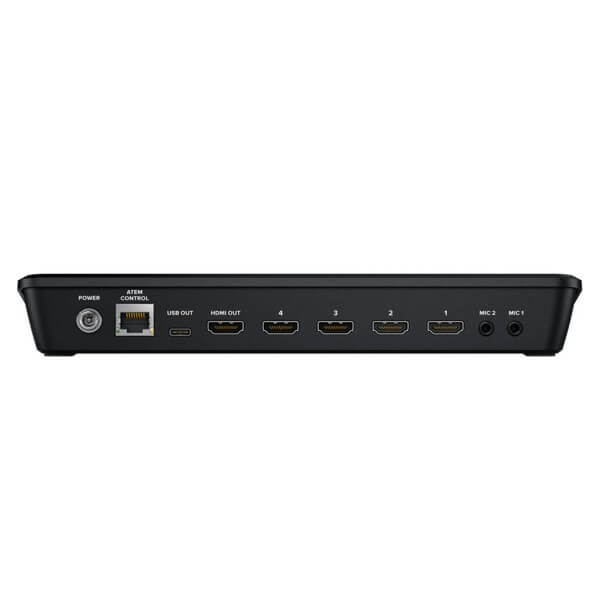

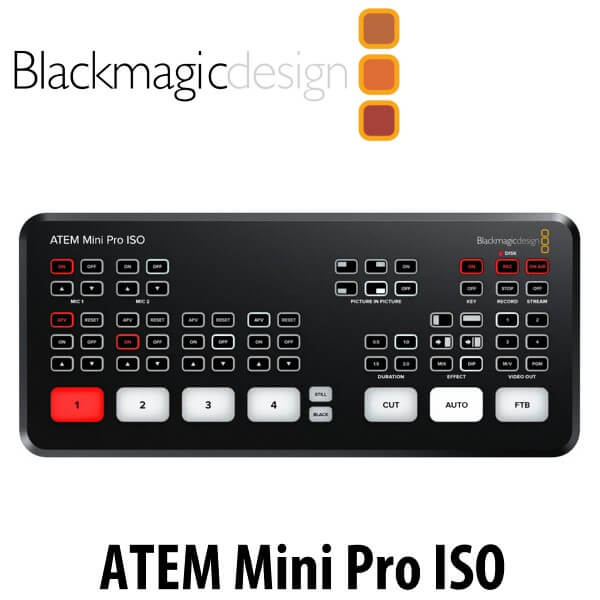

The Blackmagic Atem Mini Pro ISO Ghana retains the same size, button layout, and rear panel interface connections as the ATEM Mini Pro, with new electronics that allow for the ISO recording and generation of the DaVinci project file.

Description

Blackmagic Atem Mini Pro ISO HDMI Live Streamer Switcher Ghana

The Blackmagic Atem Mini Pro ISO Ghana is a modern HDMI Live Streamer Switcher that is integrated with a 4-input function and is fitted with a control panel designed for multicamera live streaming up to HD video to the internet via Ethernet output. It features a USB output that allows you to record the program output as well as record the individual HDMI inputs to an external USB drive (not included). In addition to recording the program stream and individual inputs, the ATEM Mini Pro ISO also records the embedded audio and analog audio inputs, generating a DaVinci Resolve project file of your live stream. This allows you to take your live production into DaVinci Resolve to make tweaks or adjustments using the source material that is already on your USB drive.

The Blackmagic Atem Mini Pro ISO Ghana retains the same size, button layout, and rear panel interface connections as the ATEM Mini Pro, with new electronics that allow for the ISO recording and generation of the DaVinci project file. The ATEM Mini Pro ISO supports all the same features as the ATEM Mini Pro including upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and color generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats. The ATEM Software Control Panel is used for control and configuration, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed. And you can use the panel to set up streaming to an optional Blackmagic Design Streaming Bridge anywhere in the world, as long as it is connected to the internet.

Key Features

  • Connecting a USB drive to the Blackmagic Atem Mini Pro ISO Ghana’s USB port enables capturing the switched program stream, as well as up to four isolated (ISO) recordings of input video, as well as embedded audio, analog input audio, graphics, and a DaVinci Resolve project file of your switched program
  • The device has the same footprint, layout, and connections of the ATEM Mini Pro
  • Stream video up to 1080p HD
  • Quick stream, on-air, and record buttons
  • Hardware encoder so there’s no need for additional streaming software
  • Control and configure timecode, stream status
  • Full support and control features for BMPCC 6K/4K cameras
  • Simultaneous USB recording
  • Integration with MultiDock for live hard drive switching
  • Customize advanced settings with XML files
  • Software multiview with program previews, graphics, record status, on-air status, and audio meters
  • Program preview input and output buttons
  • Tally light control for BMPCC 6K/4K cameras
  • Automatic timecode sync for all cameras
Downstream Keyers
The ATEM Mini switcher includes one downstream keyer, so you can add high-quality graphics like logos, bugs, and titles from the built-in media player over the live stream program output. Downstream keyers are the last layers of keying, so they overlay all video switched to the main program output.
Audio Mixer
The built-in audio mixer lets you control both camera and external audio with precision level and balance adjustments on all six available audio inputs and two channels. The mixer features selectable on/off and audio-follow-video per channel, plus it has separate gain control per channel, level and peak metering, and new Fairlight audio enhancements such as compressor, gate, limiter, six bands of parametric EQ, and master gain control.
Monitor Output
The HDMI monitor output allows you to see your sources, graphics, preview, and program output on a single screen.
Media Player
Eliminate external character generators by storing up to 20 broadcast-quality RGBA graphic files in the media pool. The one media player appears as input sources to your switcher. You can transition to graphics as full-frame video, or feed them to the keyers for overlaying video. Popular image formats such as PNG, TGA, BMP, GIF, JPEG, and TIFF are supported.

Technical Specs

Available M/E Layers 5 M/E
Effect Types 1 x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Downstream Keys
  • 1 x Chroma, DVE
  • 2 x Luma
Generators
  • 1 x Pattern
  • 2 x Color
Audio Mixing 2-Channel Mixing
Processing
Switching Type Pushbutton
Color Processing 10-Bit 4 : 2 : 2 YUV
Input
Number of Video Input Sources 4
Video Input Connectors 4 x HDMI Female
Input Video Format HDMI (10-Bit 4 : 2 : 2 YUV)

  • 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
  • 1080i 50/59.94/60 fps
  • 720p 50/59.94/60 fps
Audio Input Connectors 2 x 1/8″ / 3.5 mm TRS Stereo Analog Female
Input Audio Format Analog
Embedded Audio Input HDMI : 2-Channel (per Input)
Output
Video Output Channels 1
Video Output Connectors 1 x HDMI
Output Video Format HDMI / RJ45 (10-Bit 4 : 2 : 2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio Output HDMI : 2-Channel (per Output)
Multiview Output Yes
Monitor Output 1 x HDMI
Connectivity
Other I/O
  • 1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output
  • 1 x USB Type-C Firmware, Control Input/Output
IP Video H.264 :
1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
Transport Protocols RTMP
Simultaneous Streams 1 Streams
Hardware
OS Compatibility
  • macOS 10.14 or Later
  • Windows 10
Power Connector 1 x Barrel (12 VDC) Input
Power Consumption 36 W
Environmental
General
Dimensions 9.35 x 4.07 x 1.38″ / 23.75 x 10.34 x 3.51 cm
Weight 19.4 oz / 550 g
Packaging Info
Package Weight 2.315 lb
Box Dimensions (LxWxH) 11.05 x 5.7 x 4.55″
