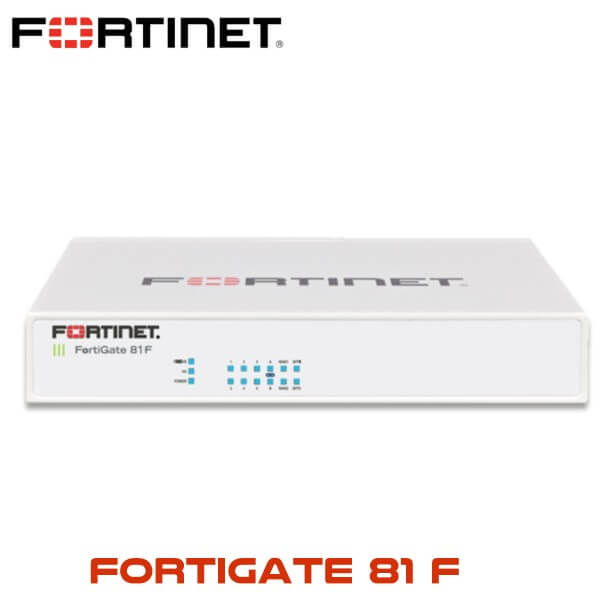

Fortigate81F Ghana



Fortigate81F Ghana

The Fortigate81F Ghana Next-Generation Firewall is the ideal choice for establishing secure networks in distributed enterprise locations and modernizing WAN architecture at all levels.

Category:

Description

Fortigate81F Firewall Ghana

The Fortigate81F Ghana Next-Generation Firewall is the ideal choice for establishing secure networks in distributed enterprise locations and modernizing WAN architecture at all levels. Equipped with a wide array of AI/ML-driven security services from FortiGuard and our integrated Security Fabric platform, the Fortigate81F Ghana provides synchronized, automated, and comprehensive protection against threats in any scenario. FortiGate sets itself apart in the industry as the pioneering NGFW solution that combines SD-WAN and zero-trust network access (ZTNA) enforcement, all powered by a unified operating system. The Fortigate81F Ghana efficiently manages, verifies, and streamlines user access to applications, ensuring a consistent, smooth, and optimized user experience.

Fortigate81F Ghana Highlights

  • Gartner Magic Quadrant Leader for both Network Firewalls and SD-WAN.
  • Security-Driven Networking with FortiOS delivers converged networking and security.
  • Unparalleled Performance with Fortinet’s patented SoC processors.
  • Enterprise Security with consolidated AI / ML-powered FortiGuard Services.
  • Simplified Operations with centralized management for networking and security, automation, deep analytics, and self-healing.

Hardware Features

Superior Wireless Coverage

A built-in dual-band, dual-stream access point is integrated on the Fortigate81F Ghana which provides the industry’s latest high-speed WiFi-6 (802.11ax) wireless access.

Trusted Platform Module (TPM)

The Fortigate81F Ghana features a dedicated module that hardens physical networking appliances by generating, storing, and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.

Bypass WAN/LAN Mode

The Fortigate81F Ghana offers a pair of bypass ports that help organizations avoid network communication interruption due to device faults and improve network reliability.

Access Layer Security

FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.

Specifications

Interfaces and Modules
GE RJ45/SFP Shared Media Pairs 2
GE RJ45 Internal Ports 6
GE RJ45 FortiLink Ports (Default) 2
GE RJ45 PoE/+ Ports
GE RJ45 PoE/+ FortiLink Ports (Default)
Bypass GE RJ45 Port Pair (WAN1 & Port1, default configuration)
Wireless Interface
USB Ports 3.0 1
Console (RJ45) 1
Internal Storage 1x 128 GB SSD
Trusted Platform Module (TPM) Yes
Bluetooth Low Energy (BLE) Yes
System Performance — Enterprise Traffic Mix
IPS Throughput 2 1.4 Gbps
NGFW Throughput 2, 4 1 Gbps
Threat Protection Throughput 2, 5 900 Mbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 10 / 10 / 7 Gbps
Firewall Latency (64 byte, UDP) 3.23 μs
Firewall Throughput (Packet per Second) 10.5 Mpps
Concurrent Sessions (TCP) 1.5 Million
New Sessions/Second (TCP) 45 000
Firewall Policies 5000
IPsec VPN Throughput (512 byte)1 6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 2500
SSL-VPN Throughput 950 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200
SSL Inspection Throughput (IPS, avg HTTPS)3 715 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)3 700
SSL Inspection Concurrent Session (IPS, avg HTTPS)3 100 000
Application Control Throughput (HTTP 64K)2 1.8 Gbps
CAPWAP Throughput (HTTP 64K) 9 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 24
Maximum Number of FortiAPs (Total /Tunnel) 96 / 48
Maximum Number of FortiTokens 500
High Availability Configurations Active-Active, Active-Passive, Clustering



Datasheet Download
