Grandstream GAC2570 Ghana



Grandstream GAC2570 Ghana

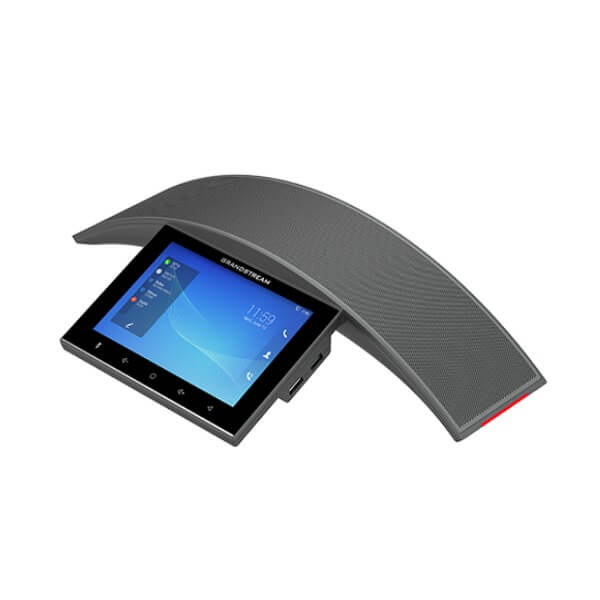

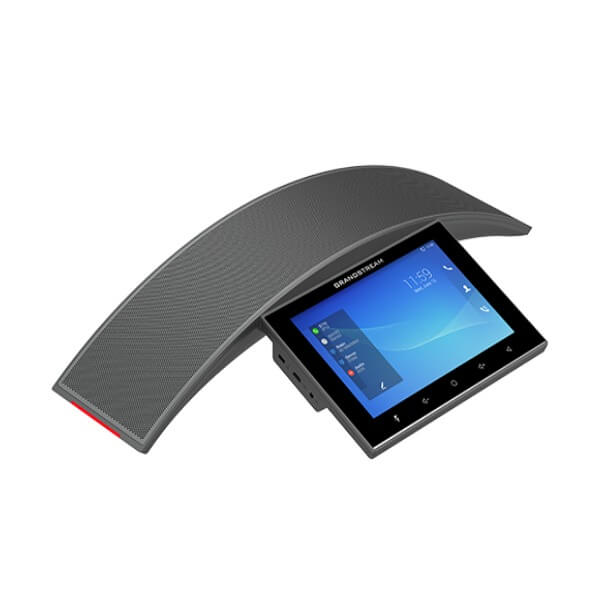

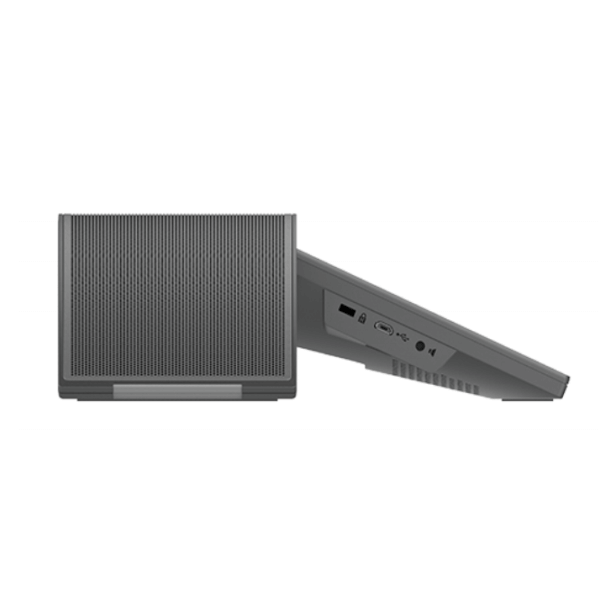

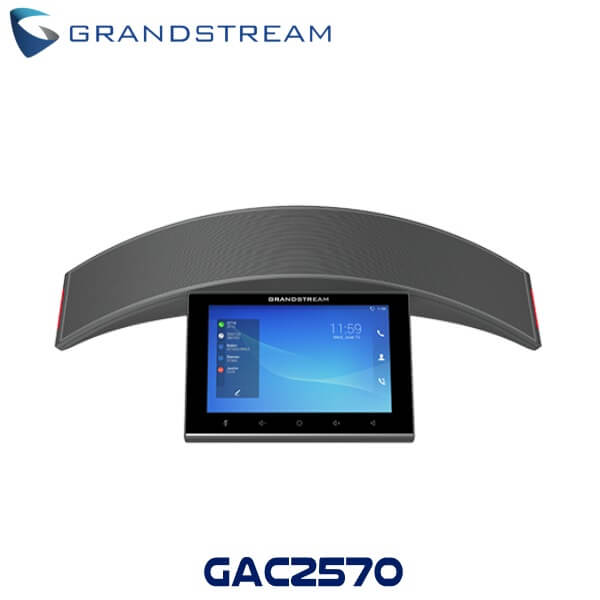

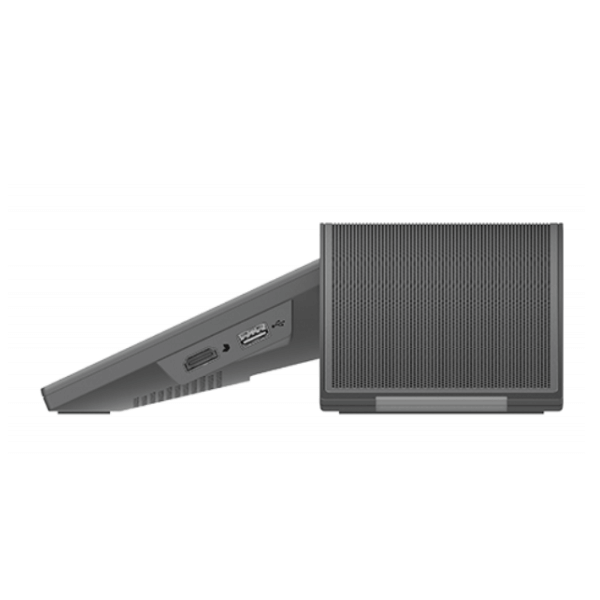

The Grandstream GAC2570 Ghana is a full-duplex conferencing device featuring high-quality voice communication for meeting rooms, huddle areas, boardrooms, and other conferencing spaces.

Category:

Description

Grandstream GAC2570 Enterprise Conference Phone Ghana

The Grandstream GAC2570 Ghana is a full-duplex conferencing device featuring high-quality voice communication for meeting rooms, huddle areas, boardrooms, and other conferencing spaces. Additionally, its modern industrial design and rich features make it a customizable conferencing solution for small to medium sized conference rooms and other day-to-day business conferencing spaces

The Grandstream GAC2570 Ghana device features an exceptional speaker with MMAD (Multichannel Microphone Array Design) to deliver a natural and immersive conferencing experience to both local and remote participants. This wireless design is composed of a wireless extension microphone, modern Wi-Fi and Bluetooth support, and a built-in battery. It features a 7” 1280×800 IPS touchscreen LCD with conferencing support for up to 12 attendees.

The Grandstream GAC2570 Ghana enables any ongoing conference to remain uninterrupted in case of the occasional conference room change. This device supports a 5m pick-up range and can be connected with two GMD1208 desktop wireless microphones up to 20m away to enhance audio quality and provide full room coverage. Additionally, its modern industrial design and rich features make it a customizable conferencing solution for small to medium-sized conference rooms and other day-to-day business conferencing spaces

Features

  • Full-duplex speakerphone with HD acoustic chamber, advanced acoustic echo cancellation, and microphone beamforming array
  • 12 omnidirectional microphones with MMAD (Multichannel Microphone Array Design)
  • Supports 5m pickup range, and can be paired with two GMD1208 desktop wireless microphones up to 20m away for full-room coverage
  • 10/100/1000Mbps network port with PoE+ and dedicated media port for collaborate
  • Integrated Bluetooth 5.0 support
  • Integrated Wi-Fi 6, Dual-band 2.4 & 5GHz with 802.11 a/b/g/n/ac/ax
  • Supports 12-party conferences

Specifications

  • Protocols / Standards : SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Operating System :

  • Android 10 Network

 Interface One :

  • 10/100/1000 Mbps port with integrated PoE+

Wi-Fi :

  • Wi-Fi 6, Dual-band 2.4 & 5GHz with 802.11 a/b/g/n/ac/ax
  • Bluetooth Integrated. V2.1+EDR, V5.0 dual mode.

Microphone :

  • 12 omnidirectional microphones with MMAD

External Microphone :

  • GMD1208, cascade up to 2

Speaker :

  • 10-watt high-fidelity speaker Frequency : 100-20000 Hz Volume : Up to 83 dBA at 1.0 meter

Auxiliary Ports :

  • 1x Media port, 1x network port, 1x HDMI IN, 1x USB, 1x Line-Out, 1x Micro-USB, 1x Kensington lock

Voice Codecs :

  • 711μ/a, G.722 (wide-band), G.722.1c, G.726-32, iLBC, Opus, G.729A/B in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise shield

Telephony Features :

  • SIP paging, hold, call park/pickup, 12-way audio conference (including the host), multi-party calls automatically form a meeting, virtual MPK, downloadable contacts (XML, LDAP, up to 2000 items), call record (local and server), call log (up to 2000 records), call waiting, auto answer, flexible dial plan, personalized music ringtones, and music on hold

HD Audio :

  • Yes, HD speakerphone with support for full-band audio

Certification :

  • Zoom

QoS :

  • Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security :

  • User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control

Upgrade/Provisioning :

  • Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using AES encrypted XML configuration file

Power & Green Energy Efficiency :

  • Integrated PoE+ 802.3at Class 4 Built-in rechargeable 3300mAh battery to allow up to 4-hour talktime

Package Content :

  • GAC2570 Conference Phone, Ethernet cable, Micro-USB cable, quick installation guide, PoE Injector, HDMI cable (optional), GMD1208 dual wireless extension microphones (optional)

Temperature and Humidity :

  • Operation : 0°C to 40°C,
  • Storage : -10°C to 60°C,
  • Humidity : 10% to 90% Non-condensing

 Physical :

  • Unit weight : 1.38Kg
  • Unit dimensions : 419.7 (L) x 218.5 (W) x 78.6mm (H)

Compliance FCC, CE, RCM, IC, UKCA

Datasheet Download
