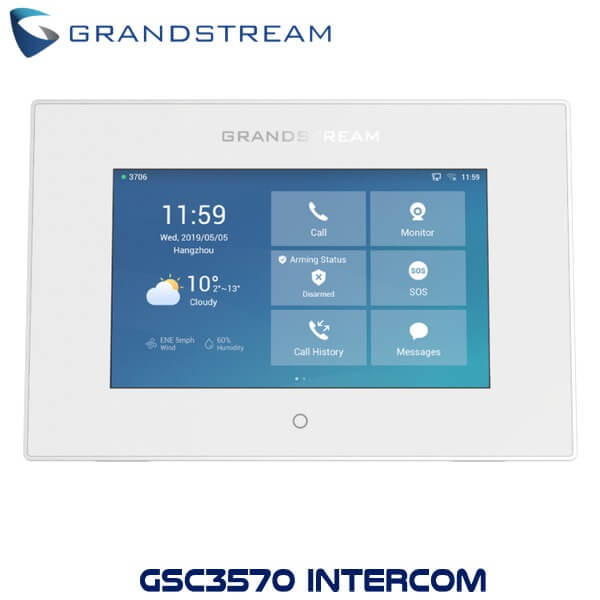

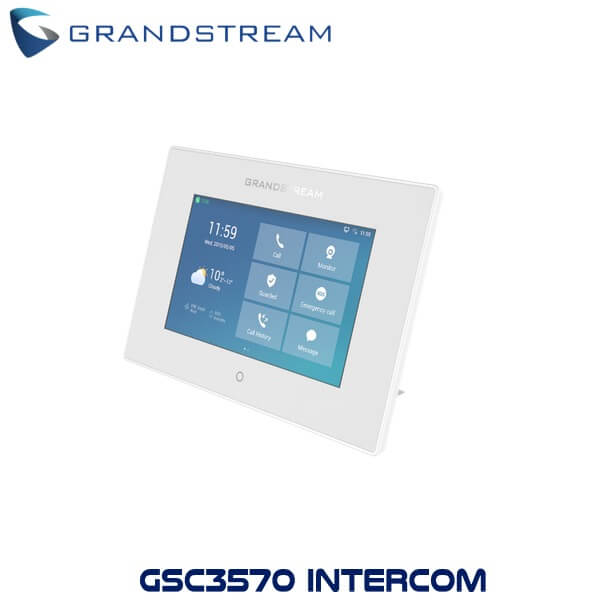

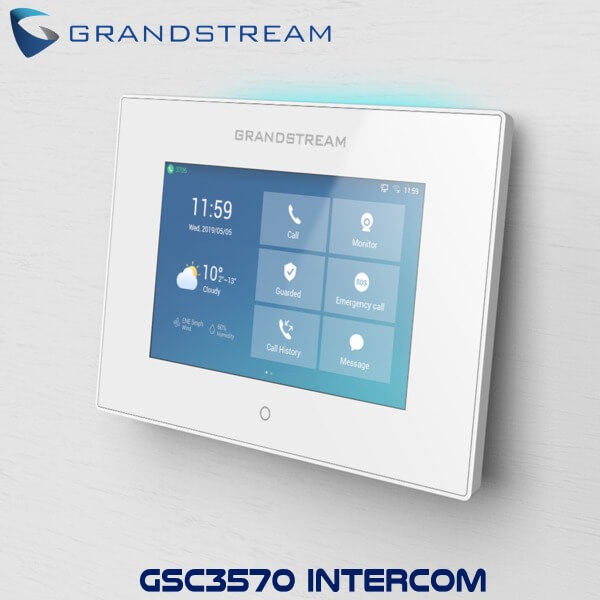

Grandstream GSC3570 HD Intercom & Facility Control Station Ghana



Grandstream GSC3570 HD Intercom & Facility Control Station Ghana

 The Grandstream GSC3570 HD Intercom Ghana offers flexible network connectivity through a 100Mbps network port with PoE or integrated dual-band Wi-Fi support. This SIP intercom and facility control station are designed to seamlessly integrate with Grandstream’s entire range of products, including the GDS series of Door Access devices, GSC series intercom and paging devices, security cameras and more. The Grandstream GSC3570 is ideal for any deployment scenario where facility access, communications and security need to be centrally monitored and controlled.

Description

Grandstream GSC3570 HD Intercom & Facility Control Station Ghana

The Grandstream GSC3570 HD Intercom is a high-performance facility control station in Ghana that has been designed to offer businesses an easy management solution, and enhance facility communications. It also not only offers easy door access but also enhances physical security on-premises. The Grandstream GSC3570 HD Intercom Ghana is a wall-mountable device that can also be placed on a desktop to deliver an easy door control solution, intercom and paging communication, security camera management, and facility-wide UC integration. The Grandstream GSC3570 HD Intercom Ghana is equipped with a 7” 1024 x 600 capacitive touch screen which offers an enhanced visual clarity to its user even when used in poor lighting conditions.  It also comes with a dual-band Wi-Fi radio that supports fast connection speeds of 2.4GHz and 5GHz. For easy and customized deployments, the Grandstream GSC3570 Intercom Ghana uses its 4 alarm input ports and 1 alarm output port.  A built-in 2-way full-duplex speakerphone uses Advanced Echo Cancellation (AEC) to deliver crystal clear audio.  It supports 4 SIP accounts and two different languages including English and Chinese.

Grandstream GSC3570 Key Features:

  • 7 inch 1024×600 capacitive touch screen
  • Dual-band 802.11 ac Wi-Fi
  • 4x alarm input ports and 1x alarm output port for customized deployments
  • Full-duplex 2-way HD audio with advanced echo cancellation
  • Secure Boot & Data, TLS and SRTP security encryption technology to protect calls and accounts
  • Supports PoE to provide a network connection to the device
  • Enhanced Visual Clarity
    • The Grandstream GSC3570 HD Intercom Ghana is equipped with a 7” 1024 x 600 capacitive touch screen which delivers an enhanced visual clarity to its user even when used under poor lighting conditions.
  • Dual-Band Wi-Fi
    • The Grandstream GSC3570 HD Intercom Ghana is equipped with a dual-band Wi-Fi radio which delivers fast connection speeds of 2.4GHz and 5GHz, allowing for the making of quick internet calls.
  • Full-Duplex 2-Way Audio
    • The Grandstream GSC3570 HD Intercom Ghana is equipped with a full-duplex 2-way HD audio which uses a variety of voice codecs including 711μ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B, DTMF (In audio, RFC2833 to deliver crystal clear sounds during calls. It also uses other noise suppression technologies such as Advanced Echo Cancellation (AEC) and Adaptive Jitter Buffer(AJB) to deliver audible sounds.
  • Supports Power over Ethernet (PoE)
    • The Grandstream GSC3570 HD Intercom Ghana is equipped with dual-switched 10/100Mbps ports which are integrated with Power over Ethernet for an easy network connection to the device.
  • Firmware Upgradeable
    • The Grandstream GSC3570 HD Intercom Ghana allows for firmware upgrading so as to access newer updates, fix existing bugs that may cause malfunctioning of the Intercom, and eliminate safety risks that result from malware and malicious cyber hackers. This ensures the security of your system.
  • Interoperability
    • The Grandstream GSC3570 HD Intercom Ghana is compliant with SIP RFC3261 and is therefore widely compatible with various 3rd party door system products.
  • Rich Functionality
    • The Grandstream GSC3570 HD Intercom Ghana is packed with standard telephony features including 4 SIP accounts, Hold, Call Waiting, Call Log, Auto Answer, etc. It is an easy-to-use device that requires no technical expertise from its user.
  • Easy Deployment
    • Grandstream GSC3570 HD Intercom Ghana is equipped with a Micro SD card slot, 4 alarm input ports, and one alarm output port to offer the easiest possible deployment process. It is an easy-to-install device that requires no technical expertise. An included quick start guide, shows you step by step how to set up your facility control station.

Grandstream GSC3570 – Technical Specifications

Protocol/Standards

  • SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV,NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LDAP, 802.1x, TLS, SRTP, IPv6

Network Interface

  • Dual switched 10/100Mbps ports

Graphic Display

  • 7’’ 1024×600 capacitive touch screen TFT LCD with Home key

Wi-Fi

  • Yes, dual-band 802.11 a/b/g/n/ac (2.4GHz & 5GHz)

Auxiliary Ports

  • 4 x Alarm Input
  • 1 x Alarm Output
  • Micro SD card slot

Voice Codecs and Capabilities

  • 711μ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B, DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS

Video Decoders and Capabilities

  • 264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps

Telephony Features

  • 4 SIP Accounts, Hold, Call Waiting, Call Log, Auto Answer, etc

Sample Applications

  • Local apps: Contacts, Call History, Settings, Voicemail, Clock
  • API/SDK available to allow integration with 3rd party door system products

Operating System

  • Linux

HD Audio

  • Yes, Dual speakers with support for wideband audio and media play in stereo, acoustic echo cancellation

QoS

  • Layer 2 (802.1Q, 802.1p), 802.11e and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

  • Secure Boot & Data, Double images for high reliability, random administrator password, user and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES based secure configuration file, SRTP, TLS, 802.1x media access control

Multi-language

  • English and Chinese

Upgrade/Provisioning

  • Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using AES encrypted XML configuration file, manual upload

Power & Green Energy Efficiency

  • 2-pin DC input: 12VDC/1A
  • Integrated PoE : IEEE 802.3af Class 3, power consumption <10W
  • Micro USB input: 5VDC/2A

Temperature and Humidity

  • Operation: -10°C to 50°C, Storage: -20°C to 60°C
  • Humidity: 10% to 90% Non-condensing

Physical

  • Unit Dimension: 224.5 x 149.5 x 36.5mm; Unit Weight: 516g

Package Contents

  • GSC3570
  • Quick installation guide
  • Wall mount bracket
  • Desktop stand (optional)

Compliance

  • FCC, CE, RCM, IC
