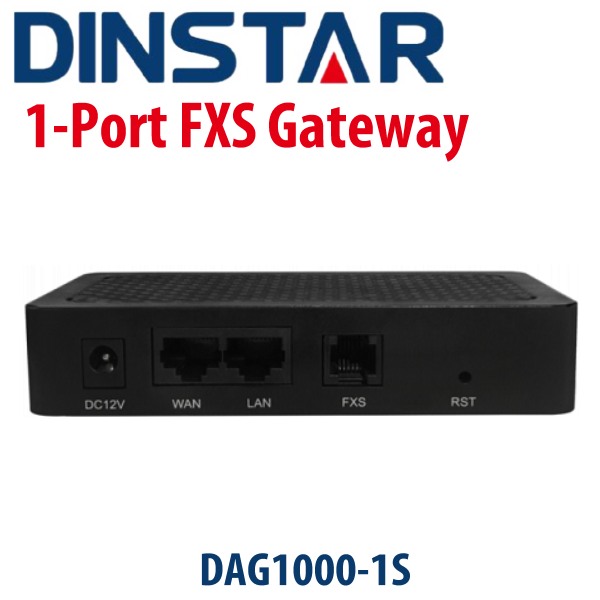

Dinstar DAG1000-1S Telephone Adapter Ghana

The Dinstar DAG1000-1S Ghana is a multi-functional analog telephone adapter which offers seamless connectivity between IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems. The Dinstar DAG1000-1S Telephone Adapter provides 1 FXS port, fax over IP and a built-in high-speed NAT router. These powerful features and good voice quality make the device ideal for personal use and suitable for various application environments such as SOHO and small enterprises. Moreover, with automatic provisioning and centralized management system, the device is easy for maintenance and deployment.

Key Features

• Cost-effective ATA with 1, 2 or 4 FXS ports
• Fax over IP (T.38 and Pass-Through)
• Support IPv4 and IPv6
• TR069 and SNMP
• Elastix and Broadsoft Certification
• Multiple codecs: G.711A/U, G.723.1, G.729A/B, G.726
• Fully compatible with leading IMS/NGN and SIP-based IP telephony systems

Technical Specifications

Physical Interfaces

• Telephone Port
• DAG1000-1S: 1 FXS port (RJ11)
• Ethernet Interfaces
• DAG1000-1S
• 1 WAN, 10/100Mbps (RJ45)
• 1 LAN, 10/100Mbps (RJ45)

Voice Capabilities & Fax

• Codecs: G.711a/μ law, G.723.1, G.729A/B, G.726
• Silence Suppression
• Comfort Noise Generator(CNG)
• Voice Activity Detection(VAD)
• Echo Cancellation: G.168 with up to 128ms
• Adaptive (Dynamic) Jitter Buffer
• Hook Flash
• Adjustable Gain Control
• Programmable Gain Control
• FAX: T.38 and Pass-through
• Modem/POS
• DTMF: SIP Info/RFC2833/Inband
• VLAN 802.1P/802.1Q
• Layer 3 QoS and DiffServ

FXS

• FXS Connector: RJ11
• Dial Mode: DTMF and Pulse
• Pulse: 10 and 20 PPS
• Caller ID: DTMF/FSK CLI Presentation
• Max Cable Length: 3km
• Reversed Polarity
• Programmable Call Progress Tone

VoIP

• Protocols: SIP v2.0 (UDP/TCP), RFC3261, SDP,
  RTP(RFC2833), RFC3262, RFC3263,RFC3264,
  RFC3265, RFC3515, RFC2976, RFC3311
• RTP/RTCP, RFC2198, RFC1889
• SIP over TLS
• RFC4028 Session Timer
• RFC3266 IPv6 in SDP URI
• RFC 3581 NAT.rport
• Primary/Backup SIP Server
• Outbound Proxy
• DNS SRV/A Query/NATPR Query
• SIP Trunk
• Early Media/Early Answer\
• NAT: STUN, Static/Dynamic NAT

Software Features

• Hunting Group
• Web ACL
• Telnet ACL
• Action URL
• PPPoE/IPv4/IPv6
• Digitmap
• Bandwidth Optimization
• Routing Rules based on Prefixes
• Caller/Called Number Manipulation

Supplementary Services

• Call Waiting and Call Holding
• Call Forwarding (Unconditional/Busy/No Reply)
• Call Transfer (Blind & Attended)
• Warm/Immediately Hotline
• Do-not-disturb
• Three Parties Conversation (3-way Conference)
• Message Waiting Indicator

Environmental

• Power Supply: 12V DC, 1A
• Power Consumption: <5W
• Operating Temperature: 0 ℃~ 45 ℃
• Storage Temperature: -20 ℃ ~80 ℃
• Humidity: 10%-90% (Non-Condensing)
• Dimensions:126×76×25mm(W/D/H)
• Unit Weight:<=0.2kg
• Compliance: UL

Maintenance

• SNMP V1/V2/V3
• TR069
• Auto Provisioning (HTTP/FTP/TFTP)
• Web/Telnet
• Configuration Backup/Restore
• Firmware Upgrade via Web
• CDR
• Syslog
• Ping, Tracert Test

Network Capture

• Outward Test (GR909 Standard)
• NTP/Daylight Saving Time
• IVR Local Maintenance
• Cloud-based Management
