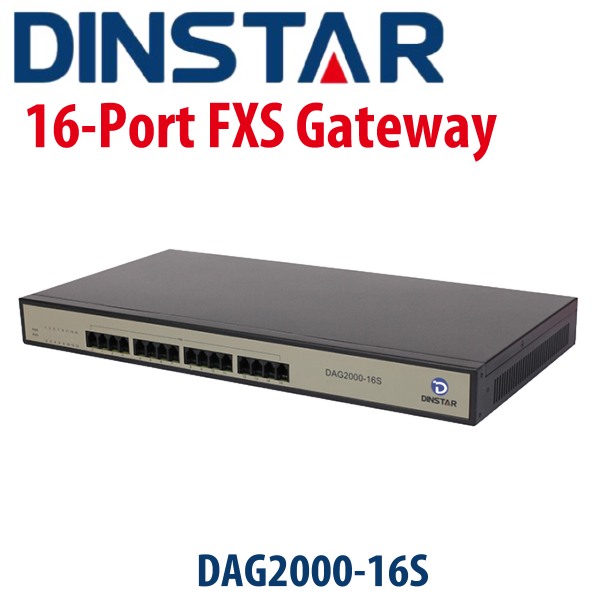

Dinstar DAG2000-16S Analog VoIP Gateway Ghana

The Dinstar DAG2000-16S Analog VoIP Gateway Ghana is a multi-functional analog gateway offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems. The device offers 16 FXS ports, fax over IP and flexible dial plans. It is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services.

DAG2000-16S Analog VoIP Gateway is a versatile IP-based voice and fax gateway. Providing one WAN port and three LAN ports, it allows up to four computers to share the ADSL line in an office or home. Moreover, it is ideal for small business, the family office, remote office and branch business provide a low cost, simple operation VoIP solutions. Connected analog phone, fax, PBX with standard voice interface and provide quality voice service. DAG2000-16S VoIP access gateway use standard SIP protocol and compatible with the leading IMS/NGN platform, IPPBX and SIP servers.

Key Features

• Support SIP/MGCP
• Primary/Backup SIP Servers
• Flexible Routing and Manipulation
• Support Modem/POS
• Elastix/Broadsoft Certification
• Support IPv4 and IPv6
• Data/ Voice/ Management VLAN
• SNMP/TR069/Provision
• Cloud-based Management System and Bandwidth Optimization

Technical Specifications

Physical Interfaces

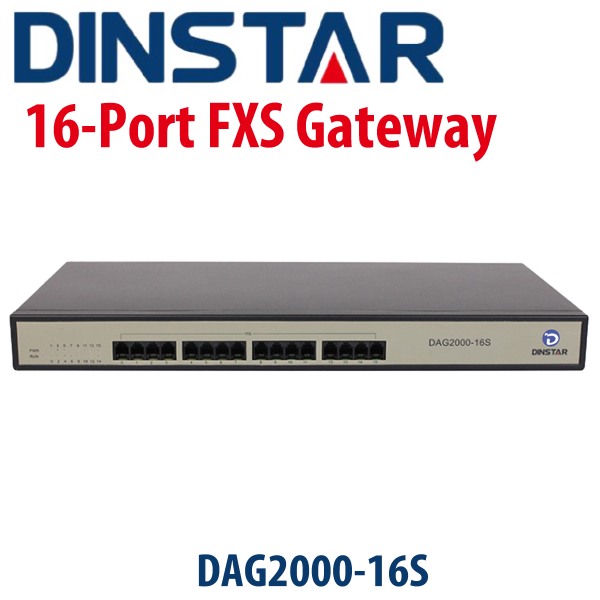

• Phone Interface : 16FXS, RJ-11

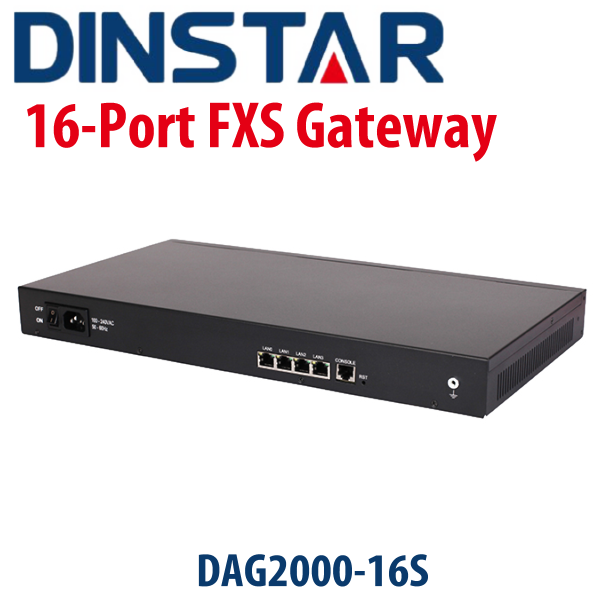

• Ethernet Interface : 4* RJ-45 10/100Mbps, RJ-45

Voice & Fax

• G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR
• Comfort Noise Generation(CNG)
• Voice Activity Detection(VAD)
• Echo Cancellation(G.168)
• Adaptive (Dynamic) Jitter Buffer
• Hook Flash
• Programmable Gain Control
• T.38/Pass-through, up to 14.4kbps
• Modem/POS
• DTMF mode : Signal/RFC2833/INBAND

FXS Port

• Connector : RJ11
• Dial Mode : DTMF and Pulse
• Pulse : 10 and 20 PPS
• Caller ID : DTMF/FSK
• Max Cable Length : 5KM
• Reversed Polarity
• Protocol : TLS / SRTP
• SIP V2.0 (RFC 3261,3262,3264)
• IMS/3GPP
• SDP (RFC 2327)
• REFER (RFC 3515)
• RTP/RTCP (RFC 1889,1890)
• STUN (RFC 3489)
• ARP/RARP (RFC 826/903)
• SNTP (RFC 2030)
• DHCP/PPPoE
• TFTP/HTTP/HTTPS
• DNS/DNS SRV (RFC 1706/RFC 2782)
• VLAN 802.1P/802.1Q

Supplement Service

• Call Waiting
• Blind Transfer
• Attend Transfer
• Call Pickup
• Call Forward on Busy
• Call Forward on No Reply
• Unconditional Call Forward
• Hotline
• Call Hold?
• DND
• 3-way conference
• Voicemail
• Call & Route
• Port Group
• IP Trunk ?
• Primary and Secondary SIP Account
• 32 Inbound/Outbound Routing
• Number Manipulation
• Digitmap

Network Features

• Static IP, PPPoE, DHCP Client
• IPv4, IPv6
• Static/dynamic ARP
• Traffic Shaping
• Voice/Data/Management VLAN
• DIFFServ, ToS
• Maintain & Upgrade
• SNMP/TR069
• Auto Provisioning
• Web/Telnet
• Configuration Backup/Restore
• Firmware Upgrade via WEB/TFTP
• Syslog and CDR
• Access Rule List
• Network Capture
• Outward Test(GR909)
• Automatic Time Synchronization
• IVR local Maintenance
• Cloud-based Management

Environment

• Power Supply : 100-240V,50-60Hz
• Power Consumption : 35W Temperature
• Operation :  -10 ℃ ~ 45 ℃
• Storage : -20 ℃ ~80 ℃
• Humidity : 10%-90% No condensation

Dimension & Weight

• 440(L)×230(W)×44(H)mm 2.7kg
• Homologation
• CE,FCC
• Elastix / Broadsoft
