Ruijie RG-E120GE Ghana



Ruijie RG-E120GE Ghana

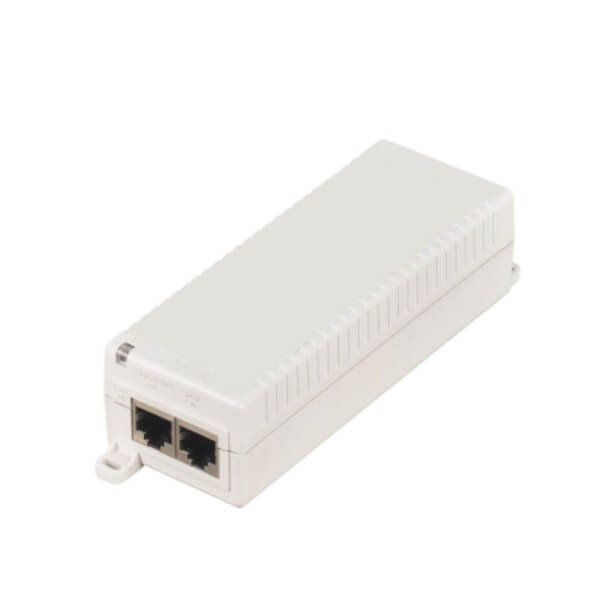

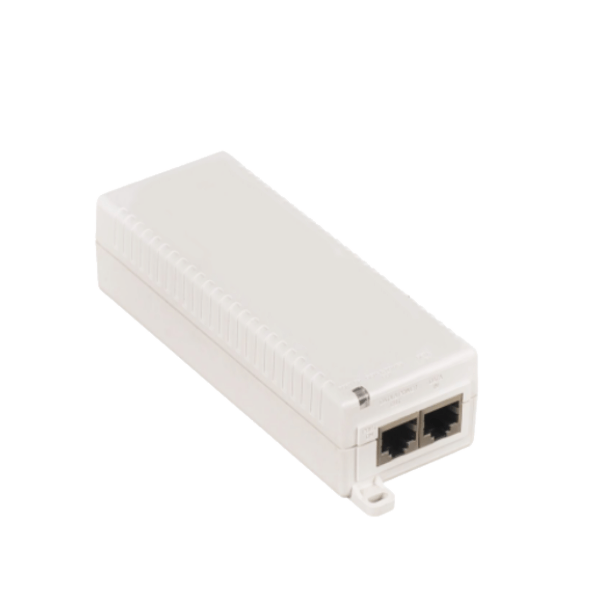

The Ruijie RG-E120GE Ghana is Power Injector designed to power remote management products such as wireless access points, SOHO switches, IP phones, webcams and more.

Description

Ruijie RG-E120GE Power Injector Ghana

Ruijie RG-E120GE Ghana is Power Injector designed to power remote management products such as wireless access points, SOHO switches, IP phones, webcams and more. The Power Injector, compliant with IEEE 802.3at standard, are PSE adapters supporting such products with PoE (Power over Ethernet) power supply. All the RJ45 ports on the Power Injector support auto MDI/MDIX cable recognition and the power injector sustain power transmission via cable for up to 100m, enabling flexible deployment of powered devices (PDs).

The Ruijie RG-E120GE Ghana Power Injector provides excellent short circuit protection and enables intelligent automated PD recognition. This Power Injector detect if the connected device is a PD to eliminate all the possible harms a PSE appliance would cause to a non-PoE device. Featuring modern and exquisite Ruijie Power Injector offer maximized investment cost savings and are an ideal for an extensive range of network settings such as large-scale campus, enterprise, public hotspots, sports stadium, etc. With delicate design combined with outstanding features, suitable for hotels, shops, small & medium offices.

Features

  • Up to 15.4W of Power
  • Compatible with all IEEE 802.3af standards
  • Safe: Low Power Devices Receive Only the Power They Need
  • Safe and Reliable Power to WLAN Access Points
  • Automatic Detection and Protection of Non–standard Ethernet Terminals
  • Supports 10/100/1000Base-T Applications
  • Compact Design Fits Easily in WLAN Access Point Installations

Specifications

Model RG-E-120(GE)
Ports

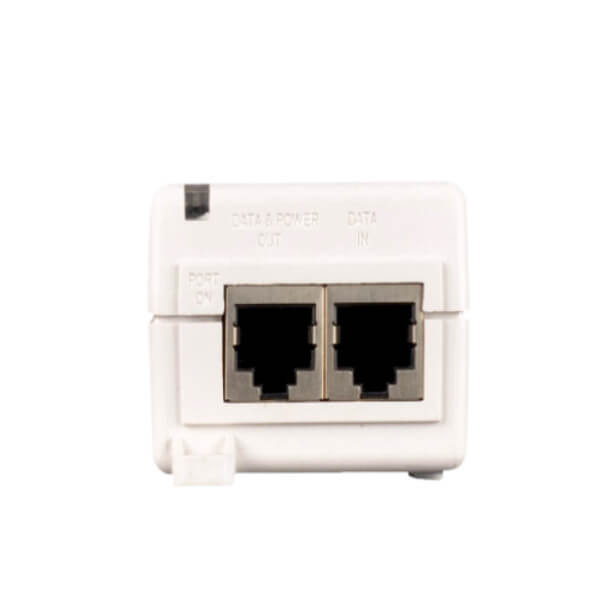

  • 10/100/1000 Mbps Copper port (RJ-45)
  • 10/100/1000 Mbps PoE Copper port (RJ-45)
Power
  • Output Power Voltage : 50V DC
  • Output Port Power : 15.4W
Dimensions
(W x H x L) (mm)
53 x 32.5 x 140
Weight 200g
Temperature
  • Operating Temperature : 0°C to 45°C
  • Storage Temperature : -30°C to 85°C
Humidity
  • Operating Humidity : 5% to 90% (non-condensing)
  • Storage Humidity : 5% to 95% (non-condensing)
Altitude Operating Altitude : 0 to 3048m
Regulatory Compliance IEEE 802.3afRoHS Compliant, WEEE Compliant, CE
MTBF >100,000 hours @25°C
Electromagnetic Emission & Immunity Safety Approval FCC Part 15, EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI, UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1
