Ruijie RG-EW1200GPRO Ghana



Ruijie RG-EW1200GPRO Ghana

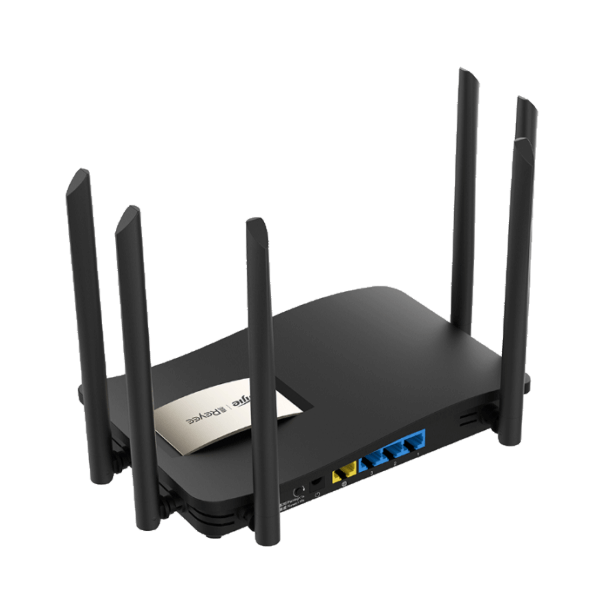

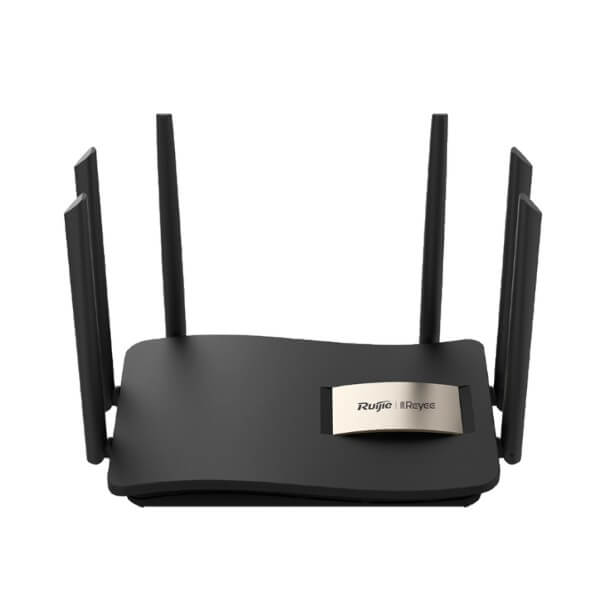

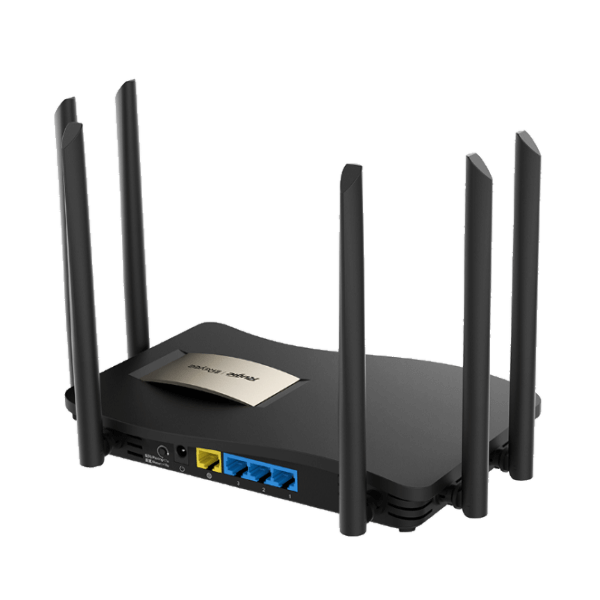

The Ruijie RG-EW1200GPRO Ghana is a Gigabit dual-band wireless consumer router designed for all types of room and other SOHO scenarios. It comes with the next generation Wi-Fi standard 802.11ac Wave2 boosting up to 1267Mbps

Description

Ruijie RG-EW1200GPRO Wireless Router Ghana

Ruijie RG-EW1200GPRO Ghana is a Gigabit dual-band wireless consumer router designed for all types of room and other SOHO scenarios. It comes with the next generation Wi-Fi standard 802.11ac Wave2 boosting up to 1267Mbps, which enables stable 4K streaming and online gaming. With build-in high-power amplifiers and multiple external antennas, additionally, with MU-MIMO technology and beamforming technology, EW1200G PRO brings optimized Wi-Fi coverage throughout all types of space. The Ruijie RG-EW1200GPRO Ghana also equipped with Ruijie Cloud App to support comprehensive ways of smart management and remote operations.

Features

High-performance Gigabit Routing

The Ruijie RG-EW1200GPRO Ghana supports 4 Gigabit Ethernet ports and wireless access rate of up to 1267M. The powerful dual-core hyper-threading CPU, combined with the hardware NAT feature, performs high-speed data forwarding and maximizes the broadband performance. For gigabit broadband speed test of the wired network port, after deducting the basic network overhead, the measured network speed can reach more than 980M.

1267M Dual-Band Integration Offering Low Interference and Fast Internet Speed

Ruijie RG-EW1200GPRO Ghana provides both 2.4GHz and 5GHz wireless frequency bands at the same time. The 2.4GHz frequency band offers good penetration, long transmission and wide coverage, providing good basic signal coverage. The 5GHz frequency band features low interference, high speed, and low latency, providing better experience when watching HD videos and playing online games. The SSIDs of 2.4GHz and 5GHz can be set separately, or the two can be combined into one, offering dual-band concurrent access, 5G priority and smart identification, which provides better Internet experience.

Optimize 2.4G to Increase the Limit of Smart Terminal Connections

In view of the widespread adoption of smart terminals, the device has applied the Wi-Fi 5 chip for Wi-Fi 4 device access to increase the maximum access rate of the 2.4GHz band from 300Mbps to 400Mbps, and provide a higher limit for the number of smart terminal connections.

MU-MIMO Offers Higher Transmission Efficiency

The Ruijie RG-EW1200GPRO Ghana supports 802.11ac Wave2 MU-MIMO (multi-user, multiple-input, multiple-output), changing the previous inefficient transmission method in which only one terminal can occupy the channel at a time. MU-MIMO allows the device to transmit data to multiple terminals concurrently. Multi-terminal concurrent transmission is no longer in competitive mode, which improves the multi-user experience by 50% and offers extremely fast Internet access for all users.

Professional RF Design Multiplies the Coverage Distance

The quad-stream independent FEM design ensures that the LNA amplifies the received signal power during signal transmission to effectively improve the receiving sensitivity and to a certain extent reduce the problems caused by the unbalanced power between the router and the Wi-Fi terminal, such as false signal and terminal signal unable to transmit back to the router. In addition, the external omnidirectional antennas also further ensure the Wi-Fi signal coverage.

Exclusive Reyee Mesh Technology Enables Zero-configuration Networking for Multi-Devices

Reyee Mesh is a networking technology self-developed by Ruijie for multiple wireless routers’ connection, which supports both plug-in and one-key pairing. Without requiring any pre-configuration, you can complete the multiple devices pairing process, additional equipment installation, and coverage optimization with zero threshold. Multiple wireless routers connected by Easy-Link Technology can intelligently identify the connection status and automatically switch between wireless relay and wired relay modes to improve network reliability.

Reyee Mesh Technology Offers Seamless Roaming without Disconnection

The Reyee Mesh Technology supports wired or wireless networking of multiple devices. The RF adjustment algorithm applied to millions of Ruijie enterprise-grade APs can provide seamless roaming between the equipment and fast switching between 2.4GHz and 5GHz. When users walk around under the Wi-Fi signal coverage, the optimal frequency band selection and network switching will be automatically performed without service interruption.

Parental Control Allow Parents to Monitor Their Child’s Internet Use

Users can control the Internet access authority of the specified terminal through the Ruijie Cloud App and set rules to limit the online duration of the specified terminal.

Wi-Fi Acceleration Mode Put You One Step Ahead of Other Players

The Wi-Fi acceleration mode improves the anti-interference of the device and the wireless channel efficiency under high-interference environment, thereby reducing game delays and putting you one step ahead of other players.

Temporary Authorization for Remote Management

Users can use the Ruijie Cloud App for smart network inspection to determine the current network failures. Users can also temporarily grant network authorization and share network to technical personnel who can do remote-diagnosis through various technical tools such as Ruijie Cloud app and MACC cloud platform, to avoid unnecessary on-site services.

Professional Heat Dissipation Design for Long-Term Stable Operation

The Ruijie RG-EW1200GPRO Ghana is equipped with an excellent aerodynamic heat dissipation structure design, the internal temperature of the equipment is greatly reduced. Long-term high-speed operation is stable and reliable, avoiding stability problems such as speed reduction and crashes caused by excessive temperature.

Enterprise-grade product design supporting connection with enterprise-grade equipment

The Ruijie RG-EW1200GPRO Ghana can be deployed with Ruijie Reyee enterprise-grade gateway and AP for hybrid deployment, unified management, unified configuration, and seamless roaming.

Specifications

Brand Ruijie
Model RG-EW1200G PRO
Wireless specifications 2.4GHz : 2*2: maximum rate 400Mbps; 5GHz : 2*2: maximum rate 867Mbps
Antenna : External 6dBi non-removable omnidirectional antennas
Support 802.11a/b/g/n/ac/ax Wave2, MU-MIMO
Frequency band : Independent 2.4GHz and 5GHz modules, supporting dual frequency integration
Support beamforming
Wi-Fi channel :
2.4GHz Channel : 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz Channel : 36,40,44,48,149,153,157,161,165

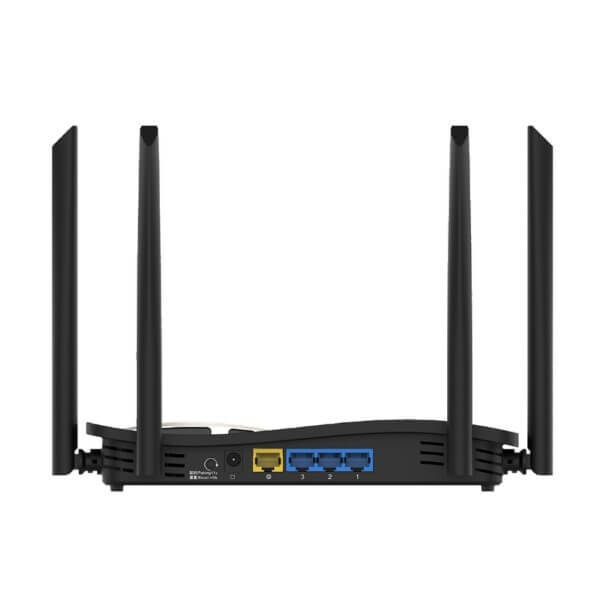

Ports 1 10/100/1000M WAN port(Auto MDI/MDIX)
3 10/100/1000M LAN ports(Auto MDI/MDIX)
1 blue system LED indicator, 4 network port LED indicators
1 device pairing/factory reset button
1 power input interface
Physical specifications Dimensions :220x140x36mm (W×D×H, excluding antennas)
Weight :0.98kg(entire equipment including packaging)
Power supply Power specification : DC12V 1.5A
Maximum power : <14W
Certification CCC,SRRC
Operating environment Operating temperature : 0-45℃
Storage temperature : -40-70℃
Operating humidity : 5%-95%RH (non-condensing)
Storage humidity : 5%-95%RH (non-condensing)
Main features Routing mode : PPPoE / DHCP / static IP; relay mode: wired relay / wireless relay
Obtain PPPoE account from the old router
Wi-Fi dual-band separation/ integration
Guest Wi-Fi; smart home Wi-Fi; wireless network isolation
Static DHCP address
Virtual server : port mapping, DMZ, etc.
DDNS : Oray
UPnP
Network security Wireless security : WPA-PSK/WPA2-PSK encryption
ARP protection : IP/MAC binding
SSID hiding
Preventing rogue devices (Blacklist/whitelist)
Internet access control
Management mode Reyee Mesh : Supports zero-configuration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices
Wi-Fi optimization : Wi-Fi roaming, 5G priority, acceleration mode, channel adjustment, power adjustment, roaming sensitivity adjustment
Bandwidth management : hardware NAT, intelligent bandwidth allocation
Auto network inspection, fault diagnosis
Software upgrade : Automatic & manual cloud software upgrade
Management mode Local web page
Cloud management : MACC cloud platform
Ruijie Cloud app : iOS version, Android version





Datasheet Download
