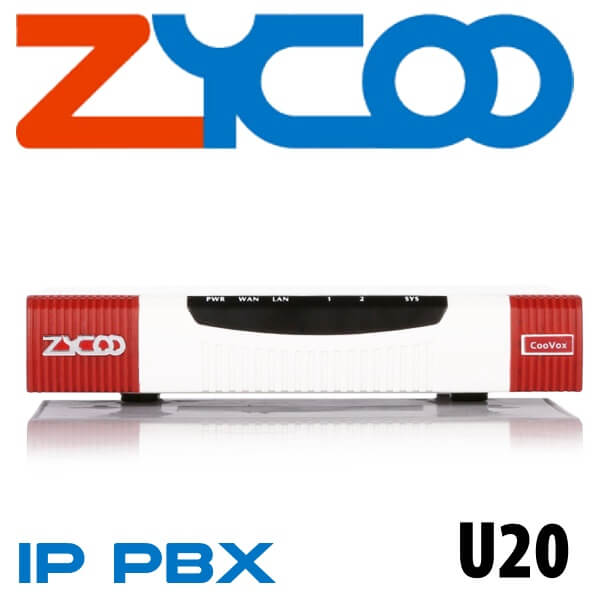

Zycoo CooVox-U20 Ghana



Zycoo CooVox-U20 Ghana

Zycoo CooVox-U20 IP Phone system is the second generation of Mini IP Phone System with the first Mobile IP Phone system with the ability to use the GSM or UMTS (3G) module to connect to the mobile network for mobile telephony

Category:

Description

Zycoo CooVox-U20 IP Phone system Ghana

Zycoo CooVox-U20 IP Phone system is the second generation of Mini IP Phone System with the first Mobile IP Phone system with the ability to use the GSM or UMTS (3G) module to connect to the mobile network for mobile telephony 2FXO and 1 GSM. CooVox-U20 is a next-generation smart IP PBX system designed and optimized for today’s business telecommunication needs.

Zycoo CooVox-U20 IP Phone system is a next-generation smart IP PBX System designed and optimized for today’s business telecommunication needs. CooVox-U20 is an affordable, scalable, interoperable, secure and reliable solution which provides not only traditional PBX features such as Automated Attendant and Voicemail, but also many advanced features including Remote Extensions, Conference Bridge, Call Recording, Call Detail Records (CDR), Automatic Call Distribution (ACD), Web Dial, Unified Messaging (Voicemail to Email), and many more features.

The introduction of Zycoo CooVox-U20 IP Phone system, changed the way the business communicates. It is a great blessing for the enterprises looking for advanced systems in an affordable way. Besides having advanced telephony functions such as the remote connections, call recording, call detail records, it has voice mail and automated attendant. Zycoo CooVox-U20 packs hardware and software flexibility allowing the system to offer an unmatched experience to the business making it a wonderful option for small medium business enterprises. Considered as the next generation smart telephone systems, it comes with both the features of traditional PBX systems and IP PBX systems. The system is scalable, interoperable and highly reliable that is able to meet the most complex communication environments.

Key Features

  • Advanced calling features including call recording, call routing, call forwarding, call on hold
  • Support 3-way conferencing and video call
  • Call monitoring
  • Mobility extension
  • Voice mail to email
  • Support up to 15 concurrent calls
  • Support up to 15 conferences
  • Graphical user interface in multiple languages
  • Phone provisioning
  • Automatic call distribution

Quick Set-Up Wizard

Zycoo CooVox-U20 IP Phone system packs intuitive controls for simple usage. This leading installation wizard, allow users to install and configure saving on time and money

SIP Terminals Zero-Touch Installation

Zycoo CooVox-U20 IP Phone system, automatically detect IP address & MAC address of CooFone IP Phones, systems’ expansion box or iSpeaker SIP Intercom. Particularly a great feature in a large quantity deployment.

Innovative User Extension Web Soft Dialer (WebRTC)

Zycoo CooVox-U20 IP Phone system, features plug in play hence no need of an IT expert. Moreover, phonebook access & update, click-to-dial, window pop-up, voicemail, recordings. More telephony features supported with the web based soft dialer Release hands from handsets

Compatible with Main Stream SIP Terminal Devices

Zycoo CooVox-U20 IP Phone system, supports SIP terminal devices. Including; Softphones, Gateway, IP Phones. It is also compatible with Polycom, CISCO, Huawei, Htek, Yealink, Grandstream, Escene, Fanvil, Snom, Dinstar.

Zycoo-U20-IP PBX Specification

Call Features
  • Call Forward
  • Call Hold
  • Call Paging and Intercom
  • Call Park
  • Call Queue
  • Call Recording
  • Call Routing
  • Blind Transfer
  • Attendant Transfer
  • Call Waiting
  • One Number Stations
  • Caller ID
  • Call Pickup
  • Music On Hold/Transfer
  • 3-Way Conference
  • Video Call
PBX Features
  • BLF (Busy Lamp Field)
  • CDR (Call Detailed Record)
  • Conference
  • Call Monitoring
  • DID (Direct Inward Dialing)
  • DISA (Direct Inward System Access)
  • Distinctive Ringtone
  • DND (Do Not Disturb)
  • Spy
  • Feature Codes
  • Skype for SIP
  • Follow Me
  • IVR (Interactive Voice Response)
  • Mobility Extension
  • Multi-Language Prompts
  • Multi-Language GUI
  • One Touch Recording
  • Phone Book(LDAP Server)
  • Phone Provisioning
  • Pin Set
  • Record File Download
  • Ring Group
  • SIP Register with UDP/TCP/TLS
  • SIP Trunk
  • Voicemail & Voicemail to Email
  • Smart DID
  • Speed Dial
  • WebRTC
  • T.38 Fax (Pass-through)
  • Time Based Rule
  • SRTP (Secure Realtime Transport Protocol)
  • FOP (Flash Operation Panel) Status Monitoring
  • DNIS (Dialed Number Identification Service)
System Capacities
  • Up to 15 Concurrent Calls
  • Up to 30 IP Phone Registers/Extensions
  • Up to 32 Conferences
  • Recording/Voicemail: 150hrs
Codecs & Protocols
  • Protocols: SIP (RFC3261)/IAX2
  • G.726/G.729/GSM/SPEEX Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/
  • Video Codecs: H.261/H.263/H.263+/H.264/VP8
  • DTMF: RFC4733/SIP INFO/In-Band
Network Features
  • DDNS Client
  • DHCP Server
  • Trouble Shooting (Ping/Traceroute)
  • Static Route
  • IPv4/IEEE802.1Q
  • IP Assignment (PPPoE/DHCP/Static)
  • VPN Client (PPTP/OpenVPN)
  • VPN Server (PPTP/OpenVPN)
Security Features
  • Firewall
  • IP Blacklist
  • IP Whitelist
  • GeoIP
  • Intrusion Detection and Prevention
Logs
  • PBX Log
  • Web Access Log
  • PBX Debug Log

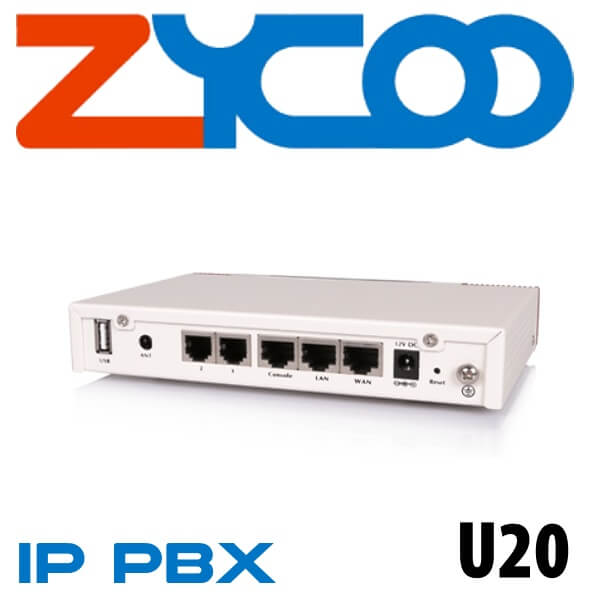

Hardware Interfaces
  • 1 Reset Button
  • 1 Power Interface
  • 2 Ethernet Interface
  • 2 Analog Ports (FXO/FXS)
  • 1 USB 2.0 Interface for Storage
  • 1 Console Port
Hardware Specifications
  • SDRAM: DDR3 512MB
  • Processor: DualCore A7(1GHz)
  • Output DC 12V/1A
  • Storage: 16GB SD Card(Industry Standard)
Environment
  • Working Temperature: 0 ~ 40°C
  • Storage Temperature: -20 ~ 55°C
  • Humidity: 5 ~ 95% Non-condensing

Datasheet Download
