Cisco Nexus31128PQ Ghana



Cisco Nexus31128PQ Ghana

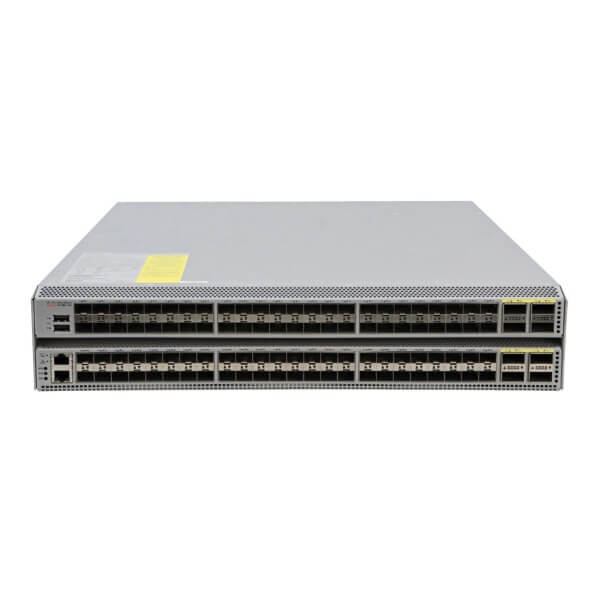

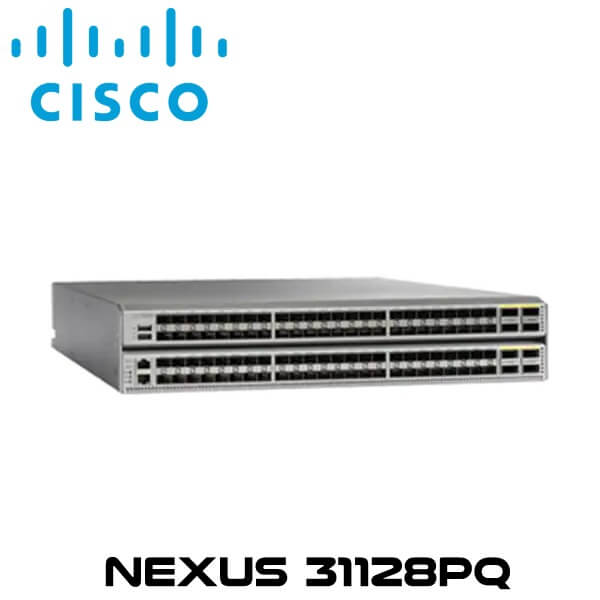

The Cisco Nexus31128PQ Ghana comes in a compact two-rack-unit (2RU) form factor and runs the industry-leading Cisco® NX-OS Software operating system, providing customers comprehensive features and functions that are widely deployed.

Description

Cisco Nexus31128PQ Network Switch Ghana

The Cisco Nexus31128PQ Ghana comes in a compact two-rack-unit (2RU) form factor and runs the industry-leading Cisco® NX-OS Software operating system, providing customers comprehensive features and functions that are widely deployed. The Cisco Nexus31128PQ Ghana Switch is a dense, high-performance Layer 2 and 3, 10- and 40-Gbps switch that is a member of the Cisco Nexus 3100 switches. The Cisco Nexus31128PQ Ghana features the second-generation Cisco Nexus 3000 series and offers improved port density, scalability, and features compared to the first-generation switches. It supports both forward and reverse (port side exhaust and port side intake) airflow schemes with AC and DC power inputs. The Cisco Nexus31128PQ Ghana is well suited for data centers that require a cost-effective, power-efficient line-rate Layer 2 and 3 access or leaf switch.

Features

Wire-rate Layer 2 and 3 switching on all ports

The Cisco Nexus31128PQ Ghana features Layer 2 and 3 switching of up to 2.5 Terabits per second (Tbps) and up to 1.4 Billion packets per second (bpps) is provided in a compact 2RU form-factor switch.

High availability

  • Cisco Nexus31128PQ Ghana has Virtual Port Channel (vPC) technology providing Layer 2 multipathing through the elimination of Spanning Tree Protocol and enables fully utilized bisectional bandwidth and simplified Layer 2 logical topologies without the need to change the existing management and deployment models.
  • The 64-way Equal-Cost Multipath (ECMP) routing enables the use of Layer 3 fat-tree designs and allows organizations to prevent network bottlenecks, increase resiliency, and add capacity with little network disruption.
  • Hot swappable Power-Supply Units (PSUs) and fans.

High Performance

The Cisco Nexus31128PQ Ghana delivers low nominal latency, which enables customers to implement high-performance infrastructure for High-Frequency Trading (HFT) and High-Performance Computing (HPC) workloads.

Purpose-built Cisco NX-OS operating system with comprehensive, proven innovations

  • PowerOn Auto Provisioning (POAP) enables touchless bootup and configuration of the switch, drastically reducing provisioning time.
  • Cisco Embedded Event Manager (EEM) and Python scripting enable automation and remote operations in the data center.
  • Advanced buffer monitoring reports real-time buffer utilization per port and per queue, which allows organizations to monitor traffic bursts and application traffic patterns.
  • Ethanalyzer is a built-in packet analyzer for monitoring and troubleshooting control-plane traffic and is based on the popular Wireshark open source network protocol analyzer.
  • Precision Time Protocol (PTP; IEEE 1588) provides accurate clock synchronization and improved data correlation with network captures and system events.
  • Complete Layer 3 unicast and multicast routing protocol suites are supported, including Border Gateway Protocol (BGP), Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Routing Information Protocol Version 2 (RIPv2), Protocol Independent Multicast Sparse Mode (PIM-SM), Source-Specific Multicast (SSM), and Multicast Source Discovery Protocol (MSDP).

Cisco Nexus31128PQ Specifications

Description Specification
Physical
  • 2RU fixed form-factor switch
  • 8 QSFP+ ports
  • 96 SFP+ ports
  • 2 redundant power supplies
  • 2 redundant (1+1) fans (2 rotors per fan)
  • Management, console, and 2 USB flash-memory ports
Performance
  • 2.5 Tbps switching capacity
  • Forwarding rate up to 1.4 bpps
  • Line-rate traffic throughput (both Layer 2 and 3) on all ports
  • Configurable Maximum Transmission Units (MTUs) of up to 9216 bytes (jumbo frames)
Hardware tables and scalability Number of MAC addresses 288,000
Number of VLANS 4096
Number of spanning-tree instances RSTP : 512

MSTP : 64

Number of Access Control List (ACL) entries 4000 ingress

1000 egress

Routing table 16,000 prefixes and 16,000 host entries

8000 multicast routes

Number of EtherChannels 64 (with vPC)
Number of ports per EtherChannel 16
Buffer size 12 MB shared
Boot flash memory 64 GB SSD
Power Frequency 50 to 60 Hz
Power supply types AC (forward and reversed airflow)

DC (forward and reversed airflow)

Typical operating power 148 watts (W)
Maximum power 413 watts (W)
AC PSUs

Input voltage

Frequency

Efficiency



100 to 240 VAC

50 to 60 Hz

89 to 91% at 220V

DC PSUs

Input voltage

Maximum current (PSU output – System input)

Efficiency



-40 to -72 VDC

78A

85 to 88%

Power-supply efficiency 89 to 91% at 220V
Typical heat dissipation 505 BTU/hr
Maximum heat dissipation 1409 BTU/hr
Cooling
  • Forward and reversed airflow schemes

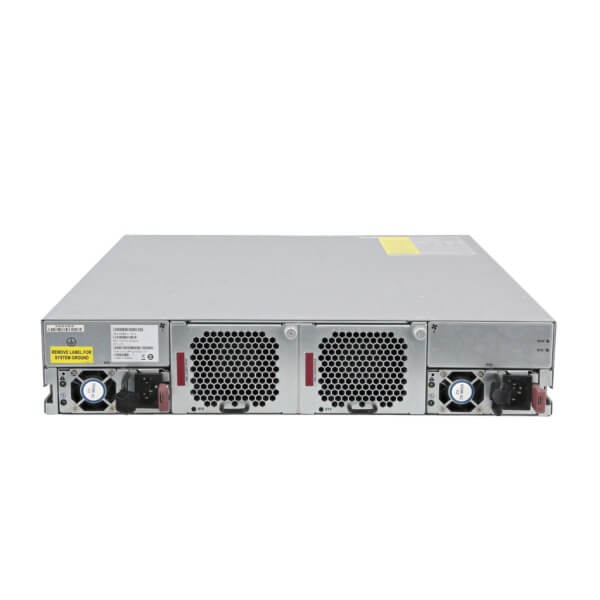

    • Forward airflow : Port-side exhaust (air enters through fan tray and power supplies and exits through ports); supported with AC and DC power supplies
    • Reversed airflow : Port-side intake (air enters through ports and exits through fan tray and power supplies); supported with AC power supply only
  • Redundant fans
  • Hot swappable (must swap within 1 minute)
Sound Measured sound power (maximum)

Fan speed : 40% duty cycle

Fan speed : 70% duty cycle

Fan speed : 100% duty cycle



66.1 dBA

70.6 dBA

76.9 dBA

Environment Dimensions (height x width x depth) 3.39 x 17.40 x 23.70 in. (8.6 x 44.2 x 60.2 cm)
Weight 22.2 lb (10.1 kg)
Operating temperature 32 to 122°F (0 to 50°C)
Storage temperature -40 to 158°F (-40 to 70°C)
Operating relative humidity
  • 10 to 85% non-condensing
  • Up to 5 days at maximum (85%) humidity
  • Recommend ASHRAE data center environment
Storage relative humidity 5 to 95% non-condensing
Altitude 0 to 10,000 ft (0 to 3000m)

Software features

Description Specification
Layer 2
  • Layer 2 switch ports and VLAN trunks
  • IEEE 802.1Q VLAN encapsulation
  • Support for up to 4096 VLANs
  • Rapid Per-VLAN Spanning Tree Plus (PVRST+) (IEEE 802.1w compatible)
  • MSTP (IEEE 802.1s) : 64 instances
  • Spanning Tree PortFast
  • Spanning Tree Root Guard
  • Spanning Tree Bridge Assurance
  • Cisco EtherChannel technology (up to 16 ports per EtherChannel)
  • LACP : IEEE 802.3ad
  • vPC
  • Advanced Port Channel hashing based on Layer 2, 3, and 4 information
  • Jumbo frames on all ports (up to 9216 bytes)
  • Storm control (unicast, multicast, and broadcast)
  • Private VLANs
  • NvGRE Entropy
  • Resilient Hashing
Layer 3
  • Layer 3 interfaces : Routed ports on interfaces, Switch Virtual Interfaces (SVIs), Port Channels, and sub interfaces (total : 1024)
  • 64-way ECMP
  • 4000 ingress and 1000 egress ACL entries
  • Routing protocols : Static, RIPv2, EIGRP, OSPFv2, and BGP
  • Bidirectional Flow Detection (BFD) for BGP
  • HSRP and VRRP
  • ACL : Routed ACL with Layer 3 and 4 options to match ingress and egress ACLs
  • VRF : VRF-lite (IP VPN), VRF-aware unicast (BGP, OSPF, and RIP), and VRF-aware multicast
  • uRPF with ACL; strict and loose modes
  • Jumbo frame support (up to 9216 bytes)
  • Advanced BGP features including BGP add-path for eBGP and iBGP, remove-private-as enhancements and eBGP next hop unchanged
  • IP-in-IP Tunnel support
  • VXLAN
Multicast
  • Multicast : PIMv2, PIM-SM, and PIM-SSM
  • Bootstrap Router (BSR), Automatic Rendezvous Point (Auto-RP) and Static RP
  • Multicast Source Discovery Protocol (MSDP) and Anycast RP
  • Internet Group Management Protocol (IGMP) Versions 2 and 3
Quality of service (QoS)
  • Layer 2 IEEE 802.1p (Class of Service [CoS])
  • 8 unicast and 8 multicast hardware queues per port
  • Per-port QoS configuration
  • CoS trust
  • Port-based CoS assignment
  • Modular QoS CLI (MQC) compliance
  • ACL-based QoS classification (Layers 2, 3, and 4)
  • MQC CoS marking
  • Differentiated Services Code Point (DSCP) marking
  • Weighted Random Early Detection (WRED)
  • CoS-based egress queuing
  • Egress strict-priority queuing
  • Egress port-based scheduling : Weighted Round-Robin (WRR)
  • Explicit Congestion Notification (ECN)
  • Priority Flow Control (with 3 no-drop queues and 1 default queue with strict priority scheduling between queues
  • Policy Based Routing (PBR)
Security
  • Ingress ACLs (standard and extended) on Ethernet
  • Standard and extended Layer 3 to 4 ACLs : IPv4, Internet Control Message Protocol (ICMP), TCP, User Datagram Protocol (UDP), etc.
  • VLAN-based ACLs (VACLs)
  • Port-based ACLs (PACLs)
  • Named ACLs
  • ACLs on virtual terminals (vtys)
  • DHCP snooping with Option 82
  • Port number in DHCP Option82
  • DHCP relay
  • Dynamic Address Resolution Protocol (ARP) inspection
  • Configurable CoPP
  • SPAN with ACL Filtering
Management
  • Switch management using 10/100/1000-Mbps management or console ports
  • CLI-based console to provide detailed out-of-band management
  • In-band switch management
  • Locator and beacon LEDs
  • Port-based locator and beacon LEDs
  • Configurable CoPP
  • Configuration rollback
  • SSHv2
  • Telnet
  • AAA
  • AAA with RBAC
  • RADIUS
  • TACACS+
  • Syslog
  • Syslog generation on system resources (for example, FIB tables)
  • Embedded packet analyzer
  • SNMP v1, v2, and v3
  • Enhanced SNMP MIB support
  • XML (NETCONF) support
  • Remote Monitoring (RMON)
  • Advanced Encryption Standard (AES) for management traffic
  • Unified username and passwords across CLI and SNMP
  • Microsoft Challenge Handshake Authentication Protocol (MS-CHAP)
  • Digital certificates for management between switch and RADIUS server
  • Cisco Discovery Protocol Versions 1 and 2
  • RBAC
  • Cisco SPAN on physical, Port Channel, VLAN, and Fibre Channel interfaces
  • ERSPAN
  • Ingress and egress packet counters per interface
  • PTP (IEEE 1588) boundary clock
  • Network Time Protocol (NTP)
  • Cisco OHMS
  • Comprehensive bootup diagnostic tests
  • Cisco Call Home
  • Cisco DCNM
  • Advanced buffer monitoring
  • Linux Bash
  • NX-API
