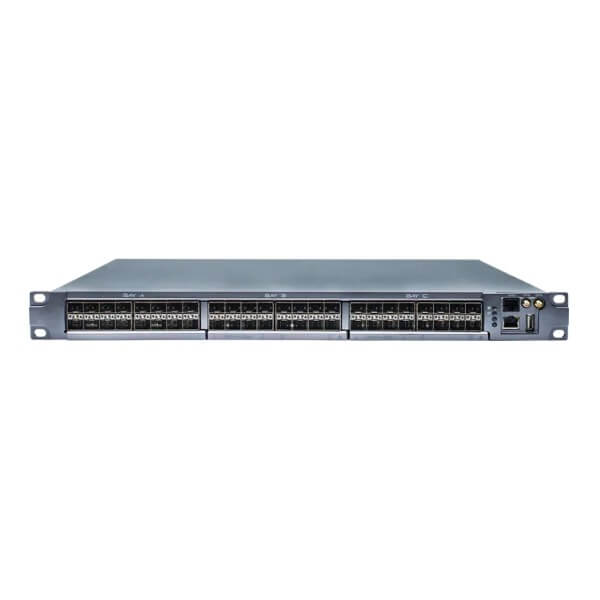

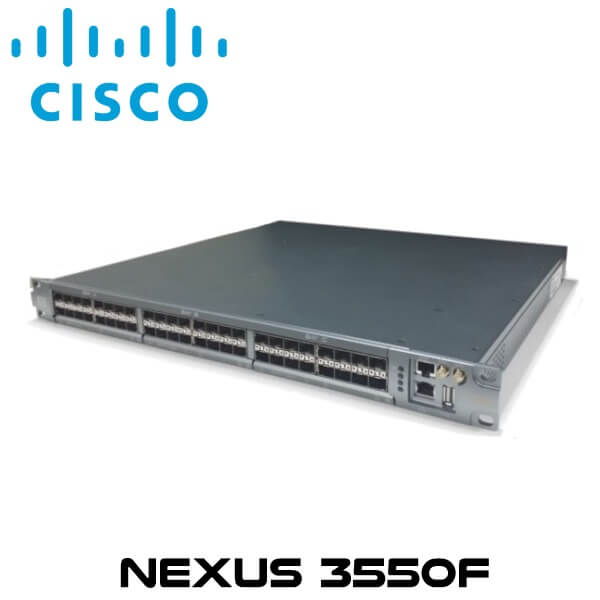

The Cisco Nexus3550F Ghana Fusion (formerly ExaLINK Fusion) is a uniquely flexible top-of-rack switch with a unique and modular architecture. The Switch allows for 95ns switching, 39ns forwarding and aggregation and sub 5ns layer 1 patching and tapping.

Description

Cisco Nexus3550F Fusion Switch Ghana

The Cisco Nexus3550F Ghana Fusion (formerly ExaLINK Fusion) is a uniquely flexible top-of-rack switch with a unique and modular architecture. As a low latency switch, it allows for 95ns switching, 39ns forwarding and aggregation and sub 5ns layer 1 patching and tapping, all within the same device. Extensible by design, the Cisco Nexus3550F Ghana features two internal module bays that are both fully interconnected via a high speed, reconfigurable layer 1 switch. This allows deployment of both Cisco-developed firmware as well as customer developed logic directly to the FPGA itself.

The Cisco Nexus3550F Ghana High Precision Timestamping Switch is a network tapping, aggregation, and monitoring solution, optimized for high-performance, low-latency networks. The device incorporates Cisco industry-leading HPT time-stamping technology, for 70-picosecond (70ps) timestamps that are embedded in every packet. This makes the Cisco Nexus 3550-F HPT the highest-precision network aggregation and monitoring solution available on the market today. The switch also offers high-quality time synchronization to Pulse-Per-Second (PPS), GPS, and Precision Time Protocol (PTP) sources, ensuring that every packet is globally synchronized as well as precisely timestamped.

Features

Scalable modular architecture

The Cisco Nexus3550F Ghana products are built with a unique modular architecture that scales with your network. Three-line card bays provide the flexibility to grow and change connectivity options over time, while two internal module bays allow the device to be upgraded with expanded functionality, adding new capabilities and extending the useful life of the product.

Ease of use and manageability

The Cisco Nexus3550F Ghana use a custom operating system and Command Line Interface (CLI), designed specifically to address the needs of layer 1 switching and low latency FPGA configuration. Every command available on the CLI is also available via a remote JSON RPC API making this device easy to operate and manage at scale.

Transparent tapping

Network monitoring is vital for logging, debugging and compliance. While optical taps can be used for low latency network inspection, they consume valuable rack space and cannot be remotely managed. The Cisco Nexus3550F Ghana Layer 1 Matrix Switch replaces 16 optical taps (48 ports) in a single 1RU device. Taps through the Cisco Nexus3550F Ghana Modular Layer 1 Matrix Switch employ active signal regeneration so that the signal quality remains high while port-to-port latencies are as low.

An electronic patch panel

Network reconfiguration is a fact of life, yet colocation access is often expensive and sometimes impossible (for example, during business hours). The Cisco Nexus3550F Ghana Modular Layer 1 Matrix Switch offers a fast and convenient tool for managing and reconfiguring a physical network, remotely and at any time of the day, yet adds nearly no overhead. The remote JSON RPC API allows for such changes to be simply automated and controlled by a logically central controller.

Packet-aware statistics and monitoring

Although the Cisco Nexus3550F Ghana Modular Layer 1 Matrix Switch operates at the physical layer, it is fully packet aware. Every port on the device is monitored for vital packet statistics including the number of packets/bytes transmitted/received and transmit/receive errors. The device also provides deep diagnostics including light levels, operating temperatures, transceiver capabilities, and more. All these statistics are available at no latency cost on the critical path.

Specifications

Latency

  • L1 Tap/Patch : 3ns minimum – 5ns maximum
  • FastMux : 39ns minimum – 48ns maximum
  • Mux : 92ns minimum – 107ns maximum
  • Mux (switch) : 86ns minimum – 102ns maximum

Statistics

  • Packet counters (RX, TX, dropped etic)
  • Per port status LEDs
  • Live packet dump
  • SFP diagnostics (light levels, temps, etc.)
  • SNMP, local and remote syslog
  • Time series logging to InfluxDB

Connectivity

  • 3x 16 SFP+ line cards, up to 48 ports
  • 3x 4QSFP line cards, up to 12 ports (48x10G)
  • SFP+ Fiber (10GBASE-SR, 10GBASE-LR, 10GBASE-LRM, 1000BASE-SX, 1000BASE-LX)
  • SFP+ Copper Direct Attach
  • SMA for PPS in/out
  • SMA for GPS in
  • RJ45 management port
  • RJ45 Industry standard serial port
  • USB (for firmware upgrades)

Management

  • CLI via serial, SSH, and telnet
  • JSON RPC API for all CLI commands
  • Automatic configuration via DHCP
  • TACACS+ and multiuser support
  • ACLs on management interface
  • FW updates via SFTP, TFTP, HTTP, and USB
  • Onboard BASH and Python scripts
  • Onboard Cron jobs
  • Time sync via PPS, GPS, PTP, and NTP

General

  • 19” 1RU, rack mount
  • Weight 11kg (24lbs)
  • Dual, hot-swappable supplies
  • Standard : AC 90-264V, 47-64 Hz, included IEC C13-C14 cables
  • Optional : DC 40-72V
  • Maximum consumption : 150W
  • Dual hot-swappable fan modules
  • Optional airflow direction
  • Operating temperature : -5 °C to 45 °C
  • Storage temperature : -40 °C to 70 °C
  • Operating Relative Humidity : 5% to 90% (non-condensing)
  • Storage Relative Humidity : 5% to 95% (non-condensing)
