The Cisco Nexus7000-9Slot Ghana provides integrated resilience combined with features optimized specifically for the data center for availability, reliability, scalability, and ease of management.

Description

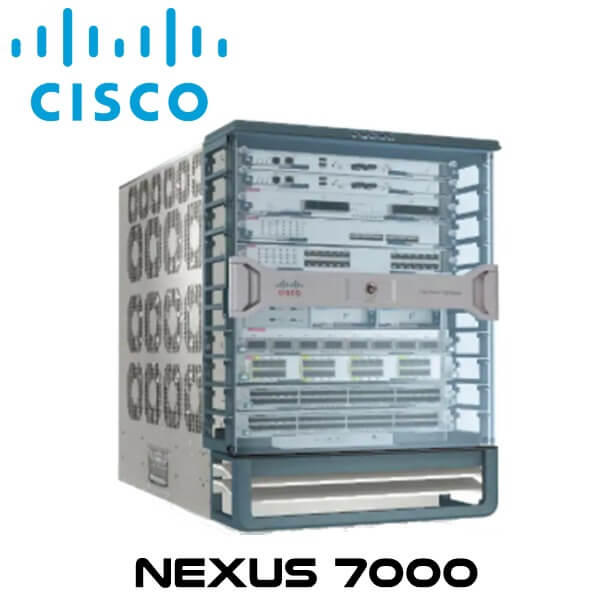

Cisco Nexus7000-9Slot Chassis Network Switch Ghana

The Cisco Nexus7000-9Slot Ghana provides integrated resilience combined with features optimized specifically for the data center for availability, reliability, scalability, and ease of management. With scale beyond 8 terabits per second (Tbps) Cisco Nexus 7000 9-Slot Switch, features a small form factor, high availability, and exceptional performance, this switch is designed to deliver unified fabric to meet the needs of the most demanding data center environments and campus core deployments. Designed to meet the requirements of the most mission-critical data centers, the switches deliver continuous system operation and virtualized, pervasive services. The Cisco Nexus7000-9Slot Ghana is based on the proven Cisco NX-OS Software operating system, with enhanced features to deliver real-time system upgrades with exceptional manageability and serviceability. The Cisco Nexus 7000 9-Slot Switch chassis has two supervisor module slots, seven I/O module slots, five fabric modules, dual-side integrated cable management, and a dual-hinged protective front door, allowing unobstructed access to the cables and modules. On the back are two power supply bays and one system fan tray.

Features

Reliable & Scalable

Protect your infrastructure investments with the following features:

  • Switching capacity of more than 8 Tbps
  • Modular, flexible, scalable NX-OS
  • Efficient power and cooling design
  • Virtualization for efficient resource utilization

Operational Continuity

The Cisco Nexus 7000 9-Slot Switch provides:

  • Lossless, nondisruptive upgrades for zero service downtime
  • Graceful system operations to minimize the effect of upgrades and other maintenance
  • Comprehensive, open Extensible Markup Language (XML) API for flexible management options

Transport Flexibility

  • Support for emerging 40 Gbps and 100 Gbps Ethernet standards
  • Support for new technologies with incremental upgrades
  • Virtualized control plane and data plane forwarding for optimized performance
  • Broad selection of high-performance I/O modules

Airflow

  • Air flows from side to side.
  • Air enters through the inlet located at the right side of the chassis and exits at the left side the chassis.

Fan module

1 system fan module incorporating I/O and fabric fans

Fan module removable from the rear

Fan module is removable from the rear, and hence there is no obstruction from the I/O cabling on the front. This arrangement enables continuous system operation during maintenance.

Variable fan speeds

  • Fans have 256 speed levels controlled by software.
  • The fan speed changes based on the I/O module type (and supervisor) and the inlet temperature reading on the supervisor.
  • Power consumption and noise emission by fans is optimized.

Self-healing mechanism

The software tracks the temperature of the most critical components of the I/O modules and the supervisors. If the recorded temperature is higher than a system-defined threshold, the fan speed automatically increases and stays at that speed until the temperature falls below the threshold.

Fan redundancy

  • The fan module incorporates fan and controller redundancy.
  • The system fan is required for normal operation. If the software detects fan module removal, it warns the user with a syslog message and will shut down the system in 3 minutes unless the removed fan module is replaced. Failure of an individual fan does not result in system shutdown

Energy-Efficient Design

The Cisco Nexus7000-9Slot Ghana uses power supplies that are up to 90 percent efficient, so less power is wasted as heat, and more power is available for the system to use than with typical power supplies. The Cisco Nexus 7000 9-Slot chassis has two power supply bays. With Cisco Nexus7000-9Slot Ghana chassis, the fan tray is designed to completely turn off the power for a row of fans when the corresponding slots are unused.

Specifications

Item Cisco Nexus 7000 4-Slot Switch Cisco Nexus 7000 9-Slot Switch Cisco Nexus 7000 10-Slot Switch Cisco Nexus 7000 18-Slot Switch
Product compatibility
  • Supports all Cisco Nexus 7000 Series Supervisor and I/O modules except the following :
  • N7K-SUP1
  • N7K-M132XP-12
  • N7K-M148GS-11
  • N7K-M148GT-11
  • N7K-F132XP-15
  • Does not use fabric modules
  • Supports all Cisco Nexus 7000 Series Supervisor and I/O modules
  • Supports Fabric2 modules
  • Does not support Fabric1 modules
  • Supports all Cisco Nexus 7000 Series Supervisor and I/O modules
  • Supports Fabric1 and Fabric2 modules
  • Supports all Cisco Nexus 7000 Series Supervisor and I/O modules
  • Supports Fabric1 and Fabric2 modules
Max local switching capacity 600 Gbps 600 Gbps 600 Gbps 600 Gbps
Max inter-slot switching capacity 440 Gbps 550 Gbps 550 Gbps 550 Gbps
Software compatibility Cisco NX-OS Software Release 6.1(2) or later Cisco NX-OS Software Release 5.2 or later Cisco NX-OS Software Release 4.0 or later Cisco NX-OS Software Release 4.1 or later
Options Lockable front module door Lockable front module door Air filter

Lockable front module doors

Lockable front module door
Performance 1.44 billion packets per second (bpps) (IPv4 unicast) in combination with supervisor module and built-in fabric 5.04 bpps (IPv4 unicast) in combination with supervisor and fabric modules 5.76 bpps (IPv4 unicast) in combination with supervisor and fabric modules 11.5 bpps (IPv4 unicast) in combination with supervisor and fabric modules
Reliability and availability Online insertion and removal (OIR) of all redundant components : supervisor modules, power supplies, and fan trays OIR of all redundant components : supervisor and fabric modules, power supplies, and fan trays OIR of all redundant components : Supervisor and fabric modules, power supplies, and fan trays OIR of all redundant components : supervisor and fabric modules, power supplies, and fan trays
MIBs Supports Simple Network Management Protocol (SNMP) Versions 3, 2c, and 1 (see Cisco NX-OS Software release notes for details about specific MIB support) Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support) Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support) Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support)
Network management Cisco Data Center Network Manager (DCNM) 6.1.(2) or later Cisco DCNM 5.2 or later Cisco DCNM 4.0 or later Cisco DCNM 4.1 or later
Programming interfaces
  • XML
  • Scriptable command-line interface (CLI)
  • Cisco DCNM 6.1(2) web services
  • XML
  • Scriptable CLI
  • Cisco DCNM 5.2 web services
  • XML
  • Scriptable CLI
  • Cisco DCNM 4.0 web services
  • XML
  • Scriptable CLI
  • Cisco DCNM 4.1 web services
Physical specifications
  • Usable rack space : 7RU
  • 4-slot chassis : 2 dedicated supervisor modules and 2 I/O modules
  • 4 power supply slots
  • Dimensions (H x W x D) : 12.2 x 17.3 x 24 in. (30.9 x 43.9 x 61 cm)
  • Chassis depth including cable management and chassis doors is 29.6 in. (75.2 cm)
  • Unit is rack mountable in a standard 19-inch (482.6-mm) Electronic Industries Alliance (EIA) rack
  • Weight
    • Chassis only : 45 lb. (20 kg)
    • Fan Tray : 25 lb (11.3 kg)
  • Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies
  • Supports up to 6 chassis stacked in a 42RU rack
  • Usable rack space : 14RU
  • 9-slot chassis : 2 dedicated supervisor modules and 7 I/O modules
  • 5 fabric module slots
  • 2 power supply slots
  • Dimensions (H x W x D) : 24.5 x 17.3 x 24 in. (62.2 x 43.9 x 61 cm)
  • Chassis depth including cable management and chassis doors is 29 in. (73.7 cm)
  • Unit is rack mountable in a standard 19-inch (482.6-mm) EIA rack
  • Weight
    • Chassis only : 100 lb. (45 kg)
    • Fabric Module : 5 lb (2.3 kg)
    • Fan Tray : 25 lb (11.3 kg)
  • Supports 6-kW and 7.5-kW AC and DC power supplies
  • Supports up to 3 chassis stacked in a 42RU rack
  • Usable rack space : 21RU
  • 10-slot chassis : 2 dedicated supervisor modules and 8 I/O modules
  • 5 fabric module slots
  • 3 power supply slots
  • Dimensions (H x W x D) : 36.5 x 17.3 x 33.1 in. (92.7 x 43.9 x 84.1 cm)
  • Chassis depth including cable management and chassis doors is 38 in. (96.5 cm)
  • Unit is rack mountable in a standard 19-inch (482.6-mm) EIA rack
  • Weight
    • Chassis only : 200 lb. (90 kg)
    • Fabric Module : 4 lb (1.8 kg)
    • System Fan Tray : 20 lb (9.1 kg)
    • Fabric Fan Tray : 5 lb (2.3 kg)
  • Supports 6-kW and 7.5-kW AC and DC power supplies
  • Usable rack space : 25RU
  • 18-slot chassis : 2 dedicated supervisor modules and 16 I/O modules
  • 5 fabric module slots
  • 4 power supply slots
  • Dimensions (H x W x D) : 43.5 x 17.3 x 33.1 in. (110.5 x 43.9 x 84.1 cm)
  • Chassis depth including cable management and chassis doors is 38 in. (96.5 cm)
  • Unit is rack mountable in a standard 19-inch (482.6-mm) EIA rack
  • Weight
    • Chassis only : 187 lb. (85 kg)
    • Fabric Module : 7.5 lb (3.4 kg)
    • Fan Tray : 25.8 lb (11.7 kg)
  • Supports 6-kW and 7.5-kW AC and DC power supplies
Environmental specifications
  • Airflow direction : Side to rear
  • Operating temperature : 32 to 104°F (0 to 40°C)
  • Operational relative humidity : 5 to 90%, non-condensing
  • Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.)
  • Seismic : Zone 4 per GR63
  • Floor loading : 42 lb. per sq. ft.
  • Operational vibration
  • GR63, Section 5.4.2
  • ETS 300 019-1-3, Class 3.1, Section 5.5
  • Storage altitude : -1000 to 30,000 ft.
  • Storage temperature : -40 to 158°F (-40 to 70°C)
  • Storage relative humidity : 5 to 95%, non-condensing
  • Heat dissipation : Maximum 3500W per chassis (actual dissipation will be lower, depending on the chassis configuration)
  • Airflow direction : Side to side
  • Operating temperature : 32 to 104°F (0 to 40°C)
  • Operational relative humidity : 5 to 90%, non-condensing
  • Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.)
  • Seismic : Zone 4 per GR63
  • Floor loading : 104 lb. per sq. ft.
  • Operational vibration
  • GR63, Section 5.4.2
  • ETS 300 019-1-3, Class 3.1, Section 5.5
  • Storage altitude : -1000 to 30,000 ft.
  • Storage temperature : -40 to 158°F (-40 to 70°C)
  • Storage relative humidity : 5 to 95%, non-condensing
  • Heat dissipation : Maximum 7500W per chassis (actual dissipation will be lower, depending on the chassis configuration)
  • Airflow direction : Bottom front of chassis to top back
  • Operating temperature : 32 to 104°F (0 to 40°C)
  • Operational relative humidity : 5 to 90%, non-condensing
  • Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.)
  • Seismic : Zone 4 per GR63
  • Floor loading : 190 lb. per sq. ft.
  • Operational vibration
  • GR63, Section 5.4.2
  • ETS 300 019-1-3, Class 3.1, Section 5.5
  • Storage altitude : 1000 to 30,000 ft.
  • Storage temperature : -40 to 158°F (-40 to 70°C)
  • Storage relative humidity : 5 to 95%, non-condensing
  • Heat dissipation : Maximum 12,000W per chassis (actual dissipation will be lower, depending on the chassis configuration)
  • Airflow direction : Side to side
  • Operating temperature : 32 to 104°F (0 to 40°C)
  • Operational relative humidity : 5 to 90%, non-condensing
  • Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.)
  • Seismic : Zone 4 per GR63
  • Floor loading : 190 lb. per sq. ft.
  • Operational vibration
  • GR63, Section 5.4.2
  • ETS 300 019-1-3, Class 3.1, Section 5.5
  • Storage altitude : 1000 to 30,000 ft.
  • Storage temperature : -40 to 158°F (-40 to 70°C)
  • Storage relative humidity : 5 to 95%, non-condensing
  • Heat dissipation : Maximum 18,000W per chassis (actual dissipation will be lower, depending on the chassis configuration)
