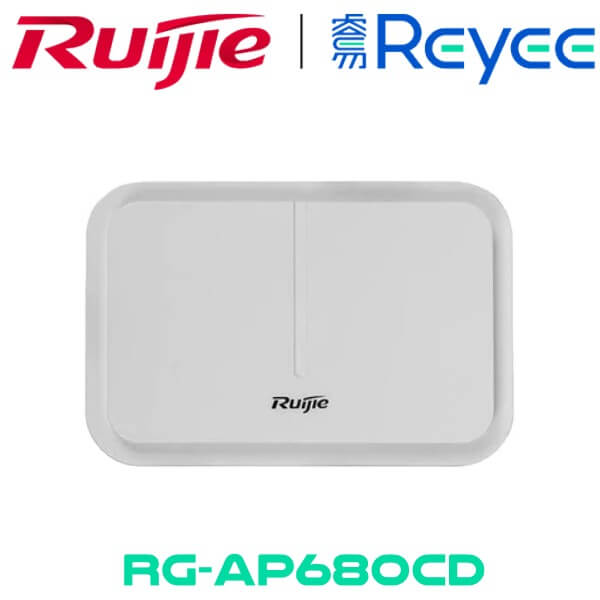

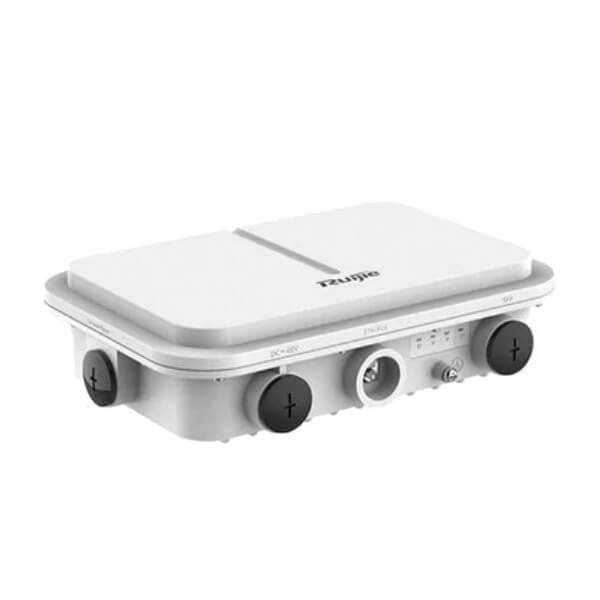

Ruijie RG-AP680CD Access Point Ghana

The Ruijie RG-AP680CD Accesspoint Ghana is a high-performance Wi-Fi 6 (802.11ax) enterprise outdoor AP with IP68 rating designed for extreme outdoor conditions. The RG-AP680CD supports a wide variety of QoS policies

Description

Ruijie RG-AP680CD Access Point Ghana

The Ruijie RG-AP680CD Accesspoint Ghana is a high-performance Wi-Fi 6 (802.11ax) enterprise outdoor AP with IP68 rating designed for extreme outdoor conditions. The RG-AP680CD supports a wide variety of QoS policies and provide concurrent dual-band with up to 2.4Gbps access rate, offers 4 spatial streams and built-in directional antenna. RG-AP680CD supports switching between FAT/FIT mode, offers 1 SFP port and 1 10/100/1000M port with PoE/ local power supply. Taking the wireless network security, RF control, mobile access, QoS, seamless roaming and other important factors into account. Teaming up with Ruijie RG-WS Wireless Controller Series/Cloud AC, the APs offer Wi-Fi user data forwarding, advanced security and access control with ease.

Ruijie RG-AP680CD Accesspoint Ghana adopts the IP68 protection design for the enclosure, which is suitable for application in extreme indoor and outdoor environments. It can withstand extreme weather and other environmental conditions, thereby greatly reducing the difficulty of installation and maintenance. Equipped with built-in directional antenna, Ruijie RG-AP680CD Ghana can achieve the Wi-Fi coverage in vast majority of the scenarios. Multi-hop and point-to-multipoint bridge features are also supported to further enhance the deployment flexibility. Upon the uprising challenges of management efficiency and wireless security, all Ruijie enterprise APs support hybrid management mode. Either deployed as standalone AP (Fat mode) or managed AP (Fit mode), the Ruijie RG-AP680CD Accesspoint Ghana will detect the operation mode automatically without extra effort on firmware upgrade. For additional security and operation, we recommend the enterprise customers to choose either one of the below wireless controller options depending on the functionality and capacity:

Public Cloud: Ruijie Cloud – Ruijie Public Cloud service (powered by RG-MACC) is targeted for the SME segment with integrated captive portal, authentication (such as PPSK for employees, Facebook, voucher, account, etc.), and reporting features. Together with Ruijie Cloud Mobile App (free download), SME customers can provision and manage their networks at fingertips.

Hybrid Cloud: RG-WS6000 Series Wireless Controller (on-premises) Plus Cloud Management (Optional) – targeted for enterprise office and campus with single or multiple sites and high-density AP deployment. The controller appliances are installed at the customer’s site with fully integrated wireless management and authentication feature, supporting up to 5000 APs per cluster. Optionally, the cloud management platform allows for value-added features like centralized device configuration and monitoring, AI radio (RF) optimization, reporting, etc.

Private Cloud: RG-MACC Software Controller – targeted for ISP/MSP, government, or multi-national corporation (MNC) with diverse customer sites and demand on integration of their billing, portal and security systems. The RG-MACC supports unified device management, not only for wireless access points, but also switches and gateway devices.

Features

  • Wi-Fi 6 Certified
  • Max 2.4Gbps with concurrent dual-band Design
  • Max 1024 Client connections
  • Built-in Smart Directional Antenna
  • Outstanding Environmental Adaptability (IP68, -40-65°C, Surge Protection upto 9kV)
  • OFDMA, MU-MIMO and BSS Technology for minimal wireless signal interference
  • Hybrid Management: support standalone AP to over thousands of APs with deployment options of appliances, private cloud or public cloud service
  • Mobility Management: Free mobile app available for RG-MACC-Base private cloud or Ruijie Public Cloud customers

Wi-Fi 6 (802.11ax) Technology

Ruijie RG-AP680CD Accesspoint Ghana adopts the dual-band dual-radio 802.11ax design with up to 4 spatial streams and built-in directional antenna. The first radio offers up to 0.575Gbps access rate at 2.4G and supports switching to 5G with up to 1.2Gbps access rate, while the second radio offers up to 1.2Gbps access rate at 5G. The AP offers a maximum wireless access rate of 2.4Gbps. 2.4G + 5G is recommended, which offers access rate of 1.775Gbps.

OFDMA High-density User Access

Ruijie RG-AP680CD Accesspoint Ghana supports OFDMA of 802.11ax, which divides the WLAN channel into multiple narrower subchannels, with each user occupying one or more subchannels. By scheduling multiple users to receive and send packets concurrently via the AP, user competition and back-off can be reduced, thereby reducing network latency and improving network efficiency.

Spatial Reuse with BSS Color

Ruijie RG-AP680CD Accesspoint Ghana supports spatial reuse with basic service set (BSS) color of 802.11ax to identify the BSSs of different WLANs in the network by different coloring (BSS color), and further divide them into internal (BSS which belongs to the device) and external BSS. Different packet receiving and sending thresholds can be maintained. When receiving packets, BSS coloring is used to quickly identify the packet of external BSS. If the signal strength is lower than the receiving threshold of external BSS, the packet will be ignored. The transmission of the internal BSS packets will be not affected. This technology can implement channel reuse in a high-density scenario, greatly reducing the impact of co-channel interference for the actual network deployment.

Industry-leading Local Forwarding Technology

Employing Ruijie’s intelligent local forwarding technology, Ruijie RG-AP680CD Accesspoint Ghana eliminates the traffic bottleneck of wireless access controllers. Deploying with the Ruijie RG-WS Wireless Controller Series, users can flexibly configure the data forwarding mode for Ruijie RG-AP680CD Ghana. The AP also controls whether the data will be forwarded via the wireless controller according to the SSID or user VLAN, or directly sent to the wired network for data exchange. The local forwarding technology can classify and forward delay-sensitive data which requires real-time transmission through the wired network to greatly alleviate the traffic pressure on the wireless controllers and better meet the high traffic transmission requirements of the 802.11n and 802.11ac network.

Abundant QoS Policies

Ruijie RG-AP680CD Ghana supports a wide variety of QoS policies. For example, it provides WLAN/AP/STA-based bandwidth limitations which prioritize important and critical data transmission over others for bandwidth guarantee. With the multicast-to-unicast technology, Ruijie RG-AP680CD Ghana resolves the video lagging problem due to packet loss or high latency in the wireless network, and highly enhances user experience of the multicast video services of wireless networks.

Specifications

Hardware Specifications
Model RG-AP680(CD)
Radio Dual-radio dual-band:

  • Radio 1 : 2.4G 11ax/5G 11ax: 2×2 MIMO
  • Radio 2 : 5G 11ax: 2×2 MIMO
Protocol
  • Concurrent 802.11ax and 802.11a/b/g/n/ac
  • BLE 5.0
Operating Bands
  • 802.11b/g/n/ac/ax :2.4G ~ 2.4835GHz
  • 802.11a/n/ac/ax : 5G:5.150~5.350GHz, 5.725~5.850GHz

(Note: the operating bands varies according to different countries)

Antenna Built-in directional antenna
Antenna Loba Orientation
  • Internal Directional:
  • 60 degrees total
Antenna Gain 9dBi
Spatial Streams 4 spatial streams, MU-MIMO
Max Throughput
  • Up to [email protected]
  • Up to 1.2Gbps@5G
  • Up to 2.4Gbps per AP
  • 2.4G+5G is recommended with 1.775Gbps access rate
Modulation
  • OFDM :BPSK@6/9Mbps,QPSK@12/18Mbps,16-QAM@24Mbps,64-QAM@48/54Mbps
  • DSSS :DBPSK@1Mbps,DQPSK@2Mbps,and [email protected]/11Mbps
  • MIMO-OFDM :BPSK,QPSK,16QAM,64QAM and 256QAM
  • OFDM :BPSK@6/9Mbps,QPSK@12/18Mbps,16-QAM@24Mbps,64-QAM@48/54Mbps
  • DSSS :DBPSK@1Mbps,DQPSK@2Mbps,and [email protected]/11Mbps
  • MIMO-OFDM :BPSK,QPSK,16QAM,64QAM,256QAM and 1024QAM
Receiver Sensitivity
  • 11b :-91dBm(1Mbps),-88dBm(5Mbps),-85dBm(11Mbps)
  • 11a/g :-89dBm(6Mbps),-80dBm(24Mbps),-76dBm(36Mbps),-71dBm(54Mbps)
  • 11n :-83dBm@MCS0,-65dBm@MCS7,-83dBm@MCS8,-65dBm@MCS15
  • 11ac HT20 :-83dBm(MCS0), -57dBm(MCS9)
  • 11ac HT40 :-79dBm(MCS0), -57dBm(MCS9)
  • 11ac HT80 :-76dBm(MCS0), -51dBm(MCS9)
  • 11ax HT80 :-76dBm(MCS0), -49dBm(MCS11)
Maximum Transmit Power 28dBm

(Note: The actual transmit power varies according to different countries and regions)

Adjustable Power 1dBm
Dimensions 251mm × 168mm × 64mm (without mounting bracket)
Weight <1.5kg
Service Ports
  • 1 10/100/1000Base-T Ethernet uplink port(PoE)
  • 1 SFP port
Management Port 1 console port
Bluetooth Support switching between Bluetooth serial port and iBeacon
Power Supply
  • Support PoE (802.3af / 802.3at)
  • Support 44 ~ 57V DC power supply (DC Power adapters should be purchased from third-party vendors separately if needed.)
Power Consumption <12.95W
Operating Environment
  • Operating Temperature : -40~65℃
  • Storage Temperature : -40~85℃
  • Operating Humidity : 0% to 100% (non-condensing)
  • Storage Humidity : 0% to 100% (non-condensing)
Installation Mode Wall/pole-mount installation
IP Rating IP68
MTBF 250,000 hours
Surge Protection Common mode +/-9kV
Safety Standard GB4943, EN/IEC 60950-1
EMC Standard GB9254, EN301 489
Radio Standard SRRC, EN300 328, EN301 893
Wi-Fi Alliance
  • Wi-Fi CERTIFIED a, b, g, n, ac
  • Wi-Fi CERTIFIED 6
  • WPA3-Enterprise, Personal
  • Wi-Fi Enhanced Open
  • Wi-Fi Agile Multiband
  • WMM
Software Features
WLAN Maximum clients per AP 1024
SSID capacity Up to 32
SSID hiding Support
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID Support
Remote Intelligent Perception Technology (RIPT) Support
Smart device recognition Support
Intelligent load balancing based on the number of users or traffic Support
STA control SSID/radio-based
Bandwidth control STA/SSID/AP-based speed control
Security PSK and web authentication Support
Data encryption WPA (TKIP), WPA-PSK, WPA2 (AES), WEP (64 / 128-bit)
WeChat authentication Support
QR code authentication Support
SMS authentication Support
PEAP authentication Support
Data frame filtering Whitelist, static/dynamic blacklist
User isolation Support
Rogue AP detection and countermeasure Support
Dynamic ACL assignment Support
RADIUS Support
CPU Protection Policy (CPP) Support
Network Foundation Protection Policy (NFPP) Support
Routing IPv4 address Static IP address or DHCP
IPv6 address IPv6 terminal access authentication, ICMPv6
Management and Maintenance Supported wireless LAN controllers
  • Ruijie WS Series Wireless Controller
  • Ruijie MACC-Base Software Controller
  • Ruijie Cloud (Public Cloud)
Management protocol Telnet, SSH, TFTP, Web
Wireless Intelligent AI Optimization Service (WIS) Support
SNMP SNMPV1,V2c,V3
Syslog / Debug Support
FAT/FIT/MACC mode switching Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management
