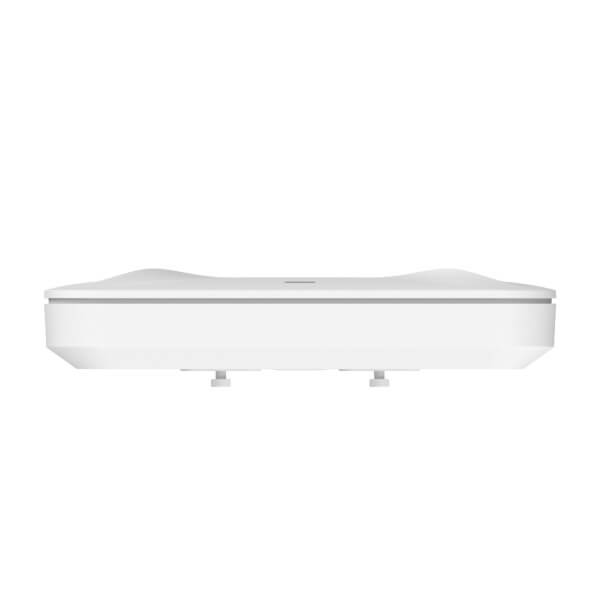

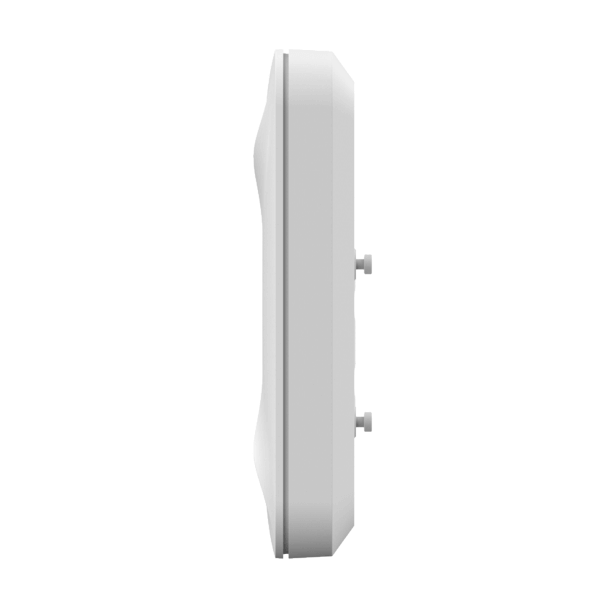

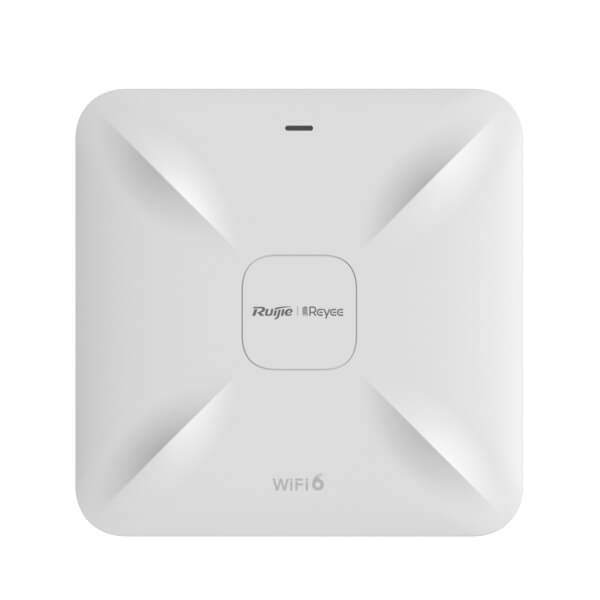

The Ruijie RG-RAP2260E Accesspoint Ghana features Wi-Fi 6 dual band ceiling mount access point, offering high-performance Wi-Fi 6 AP for indoor large-area Wi-Fi coverage scenarios. The device support 802.3at PoE and 12V DC local power supply

Description

Ruijie Reyee RG-RAP2260E Access Point Ghana

The Ruijie RG-RAP2260E Accesspoint Ghana features Wi-Fi 6 dual band ceiling mount access point, offering high-performance Wi-Fi 6 AP for indoor large-area Wi-Fi coverage scenarios. The devices support 802.3at PoE and 12V DC local power supply. The dual Ethernet ports design facilitates the expansion of third-party devices to meet the needs of more networking scenarios. Compliant with 802.11a/b/g/n/ac/ax Wi-Fi protocol, they all offer built-in omnidirectional antennas. RG-RAP2260E also supports dual-band operate concurrently and MU-MIMO, but it supplies more advanced technology about quad-stream. So it can provide higher speed wireless access of 800Mbps at 2.4GHz, 2402Mbps at 5GHz and up to 3202Mbps per AP.  One of the Ethernet ports is upgraded to multi-gigabit Ethernet (2.5GE) port to break through the bottleneck of transmission performance.

The industrial product design, iconic edges and breathing light makes Ruijie RG-RAP2260E Accesspoint Ghana more recognizable. Adopting the non-directional installation design, the new mounting kits support various installation methods including on desktop, ceiling, wall, and pole, which improves the versatility of installation, simplifies the installation steps, reduces the installation difficulty, and greatly improves the installation experience of the device. Moreover, this access point supports ruijie’s self-developed Self-Organizing Network feature. With the Ruijie Cloud app, users can quickly complete the device deployment and configuration, remote management, operation and maintenance of the entire network, which greatly reduces the investment of equipment cost, labor cost and time cost in the process of wireless network construction.

Ruijie RG-RAP2260E Accesspoint Ghana allow comprehensive local management or remote management of the equipment in the entire network via the Ruijie Cloud app, equipment EWEB management, Ruijie Cloud platform, etc. Users can also share the network to third party for network hosting and collaborative management, thereby achieving simpler, easier to use, more secure and convenient enterprise network operation and maintenance.

Ruijie Rg Rap2260e Accesspoint Accra

Ruijie Rg Rap2260e Accesspoint Accra

Features

High-Speed Dual-band Wi-Fi

This Access Point supports 2.4GHz and 5GHz dual-band communication, they can provide 5GHz frequency band with less interference, wider channel, and faster speed for the terminals, allowing the users to enjoy excellent wireless experience. RG-RAP2260E provide access rate of 800Mbps at 2.4GHz, 2402Mbps at 5GHz in total 3202 Mbps per AP.

Dual LAN Ports Design

The Ruijie RG-RAP2260E Accesspoint Ghana adopts the dual LAN ports design. Even for complex networking requirements, it can easily and quickly support the expansion of third-party devices, such as cameras, time and attendance devices, etc.

Support Routing and AP Mode

The device supports both AP and routing mode. A wireless network can be formed with multiple APs, or it can be used as a wireless router when deployed independently. The device offers more flexible configurations, more abundant application features, and more extensive applicable scenarios.

Support Layer 3 roaming

Ruijie RG-RAP2260E Accesspoint Ghana supports Layer 3 roaming for the complex Layer 3 network. When users move across the Layer 3 networks, seamless roaming can be achieved without service interruption.

Stronger and More Stable Signals

An aluminum alloy antenna reflector is added to reflect interference signals and focus effective signals so as to provide stronger signal transmission and better receiving sensitivity. The device uses FBAR to filter out most of interferences caused by the operator’s base stations, microwave ovens, Bluetooth devices, etc., so as to provide cleaner wireless signals, higher transmission rate and more stable transmission quality.

Robust Casing

With the robust and flame-retardant material of the AP casing, the impact resistance is 5 times higher than that of common ABS plastic materials. The tensile and flexural strengths are increased by 30%, which is not easy to damage. Users can rest assured during usage and maintenance.

Simple Installation

It supports various installation methods including on desktop, ceiling, wall, and pole. Adopting the non-directional installation design, the equipment can be installed in one go efficiently.

Industrial Design

The industrial product design, iconic edges and breathing light makes the product more recognizable. Adopting the non-directional installation design, the new mounting kits support various installation methods including on desktop, ceiling, wall, and pole, which improves the versatility of installation, simplifies the installation steps, reduces the installation difficulty, and greatly improves the installation experience of the device.

Specifications

Radio Dual-stream dual-band
Protocol Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n
Operating Bands
  • 802.11b/g/n :2.4G ~ 2.4835GHz
  • 802.11a/n/ac/ax : 5G:5.150~5.350GHz,5.725~5.850GHz (country specific)
Antenna Internal antennas (2.4G: 3dBi,5G: 3dBi)
Spatial Streams 2.4G 4x4MIMO  5G 4x4MIMO
Max Throughput
  • Up to 800Mbps at 2.4G
  • Up to 2402Mbps at 5G
  • 3.202Gbp per AP
Modulation
  • OFDM:
    • BPSK@6/9Mbps
    • QPSK@12/18Mbps
    • 16QAM@24Mbps
    • 64QAM@48/54Mbps
  • DSSS:
  • MIMO-OFDM:
    • BPSK
    • QPSK
    • 16QAM
    • 64QAM
    • 256QAM and1024QAM
  • OFDMA
Receive Sensitivity
  • 11b:
    • -96dBm(1Mbps),
    • -93dBm(5Mbps),
    • -89dBm(11Mbps)
  • 11a/g:
    • -91dBm(6Mbps),
    • -85dBm(24Mbps),
    • -80dBm(36Mbps),
    • -74dBm(54Mbps)
  • 11n:
    • -90dBm(MCS0),
    • -70dBm(MCS7),
    • -89dBm(MCS8),
    • -68dBm(MCS15)
  • 11ac:
    • 20MHz :-88dBm(MCS0), -63dBm(MCS9)
    • 40MHz :-85dBm(MCS0), -60dBm(MCS9)
    • 80MHz :-85dBm(MCS0), -60dBm(MCS9)
  • Wi-Fi 6:
    • 80MHz :-82dBm(MCS0), -57dBm(MCS9),-52dBm(MCS11)
Maximum output power of the transmitter
(single stream)
  • 2.4GHz(2.4~2.4835GHz):23dBm
  • 5GHz(5.150~5.250GHz,5.725~5.850GHz):23dBm

(country-specific comply with local laws)

Adjustable Power 1dBm
Dimensions 220mm×220mm×35mm (excluding mounting kits)
Weight 1.05kg (excluding mounting kits)
Service Ports
  • 1 10/100/1000M/2.5G Base-T Ethernet ports supports PoE;
  • 1 10/100/1000M Base-T
  • Ethernet ports
Management Port NA
LED Indicator Single indicator (green light)
Power Supply
Power Consumption ≤ 25.4W
Environment
  • Operating temperature : 0°C~40°C
  • Storage temperature : -40°C~70°C
  • Operating humidity (non-condensing) : 5%~95%
  • Storage humidity : 5%~95%
Installation Ceiling/wall-mountable
Safety Standard GB4943, IEC 62368-1
EMC Standard GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035
Vibration Standard IEC61373
Radio Standard EN300 328, EN301 893
MTBF >400000H
Operating Mode AP mode and routing mode
WLAN
  • Maximum number of clients : 512
  • Recommended number of clients : 120
  • Up to 8 SSIDs
  • Support SSID hiding
  • Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
  • SSID-based and radio-based STA limit
  • Support Layer 2 user isolation
Roaming Support Layer 2 and Layer 3 roaming
Security
  • Support PSK authentication
  • Support static blacklist and whitelist
  • Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
  • Support Black List / White List:
  • Maximum 256 rules per SSID
  • Maximum 1024 rules per AP
Routing Support static IP address, DHCP, PPPoE Dial Up
Management and maintenance
  • Support unified networking of all network equipment
  • Support local or remote management with Ruijie Cloud app
  • Support local management with web
  • Support remote management with Ruijie Cloud platform
Platform management features
  • Automatic RF adjustment via the platform
  • Unified configuration via the platform
  • Unified monitoring via the platform
