AVer MD330UI Ghana



AVer MD330UI Ghana

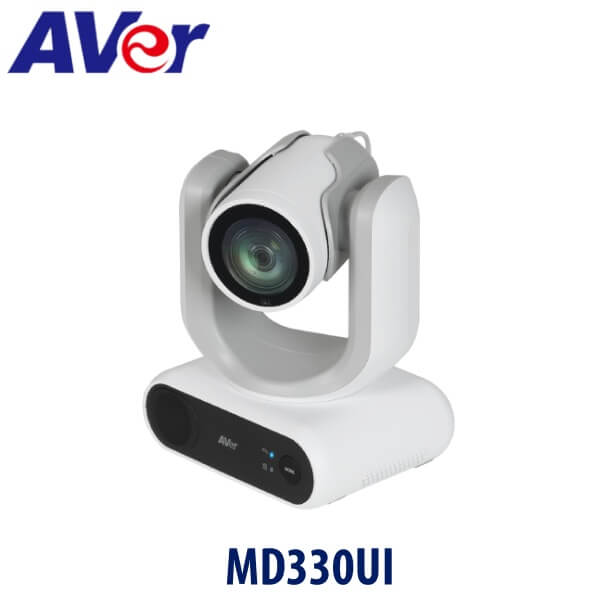

The AVer MD330UI Ghana is Medical Grade PTZ Camera specially designed and medically certified for Telemedicine with the IEC 60601 Medical Certification.

Category:

Description

AVer MD330UI Medical Grade PTZ Camera Ghana

The AVer MD330UI Ghana is Medical Grade PTZ Camera specially designed and medically certified for Telemedicine with the IEC 60601 Medical Certification. Equipped with 30X optical zoom lens with 4K output resolution AVer MD330UI Ghana Medical Grade PTZ Camera delivers superb image quality. The AI Noise Reduction offers a face-to-face communication experience for patients an d doctors. A first in the industry, the removable camera head makes 360-degree angle close-up shooting and snapshots possible. The AVer MD330UI Ghana Medical Grade PTZ Camera is available for infrared night view, delivering care 24/7.

Features

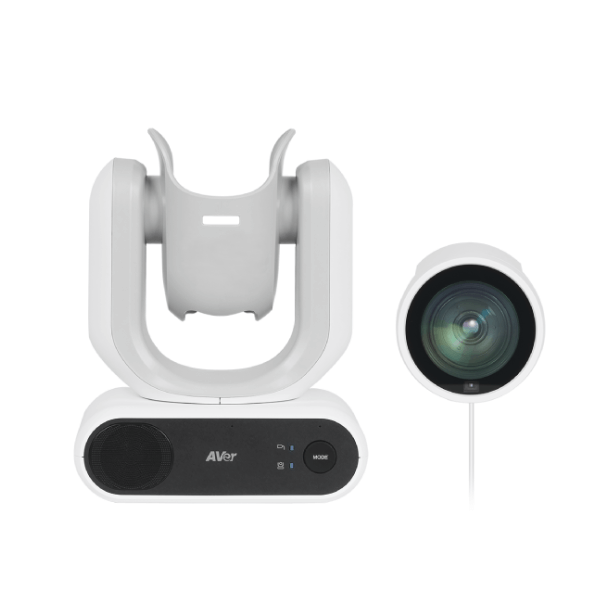

Revolutionary Removable Head Design

The AVer MD330UI Ghana Medical Grade PTZ Camera features removable camera head design providing a true revolution in telemedicine. Doctor can not only make use of the motorized remote controlled PTZ functionality, the near-site medical assistant can also simply remove the camera from the base and easily give the doctor a clear view of any difficult to capture area of interest.

Unparalleled 30X Optical Zoom Capability

The AVer MD330UI Ghana Medical Grade PTZ Camera has 30X optical zoom lens picks up even the smallest of details for the doctor to precisely diagnose, thanks to a superior autofocus, zoom speed and speedy camera movements.

Outstanding 4K Resolution

The AVer MD330UI Ghana Medical Grade PTZ Camera delivers ultra-clear 4K resolution imagery of the patient to the doctor and works together with the excellent 30X optical zoom to allow doctors to make accurate remote diagnoses.

AI Acoustics

With an integrated speakerphone and microphone, the AVer MD330UI Ghana is equipped with an all-in-one audio system. AVer’s in-house AI Noise Deduction technology makes communication smooth and telemedicine sessions stress free.

Medical Grade Certification

The IEC 60601 medical certification not only ensures stability and safety of the AVer MD330UI Ghana Medical Grade PTZ Camera, but also guarantees the compatibility of other medical grade devices with the MD330UI.

Specification

Camera

  • Image Sensor
    • 1/2.8″ 4K Exmor CMOS
  • Effective Picture Elements
    • 8 Megapixels
  • Output Resolutions
    • 4K/30 (IP / UVC), 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50
  • Minimum Illumination
    • 7 lux (IRE50, F1.6, 30fps)
  • S/N Ratio
    • ≥ 50 dB
  • Gain
    • Auto, Manual
  • Shutter Speed
    • 1/1 to 1/10,000 sec
  • Exposure Control
    • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  • White Balance
    • Auto, Manual
  • Optical Zoom
    • 30X
  • Viewing Angles
    • DFOV : 75.5° (Wide) to 3.1° (Tele)
    • HFOV : 68.0° (Wide) to 2.7° (Tele)
    • VFOV : 41.7° (Wide) to 1.5° (Tele)
  • Focal Length
    • f = 4.3 mm (Wide) to 129 mm (Tele)
  • Aperture (Iris)
    • F = 1.6 (Wide) to 4.7 (Tele)
  • Minimum Working Distance
    • 01 m (Wide), 1.2 m (Tele)
  • Pan / Tilt Angles
    • Pan : ±170°, Tilt : +90° / -35°
  • Pan / Tilt Speed (Manual)
    • Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
  • Preset Speed
    • Pan : 200° / sec, Tilt : 200° / sec
  • Preset Positions
    • 10 (IR), 256 (RS-232 / IP)
  • Camera Control – Protocols
    • VISCA (RS-232 / IP), PELCO-D & PELCO-P (RS-232), CGI (IP)
  • Image Processing
    • Noise Reduction (2D / 3D), Flip, Mirror, WDR, BLC
  • Power Frequencies
    • 50 Hz, 60 Hz

Audio

  • Embedded Speaker
    • Yes
  • Microphone
    • Yes, Array Microphone
  • AI Noise Reduction
    • Yes

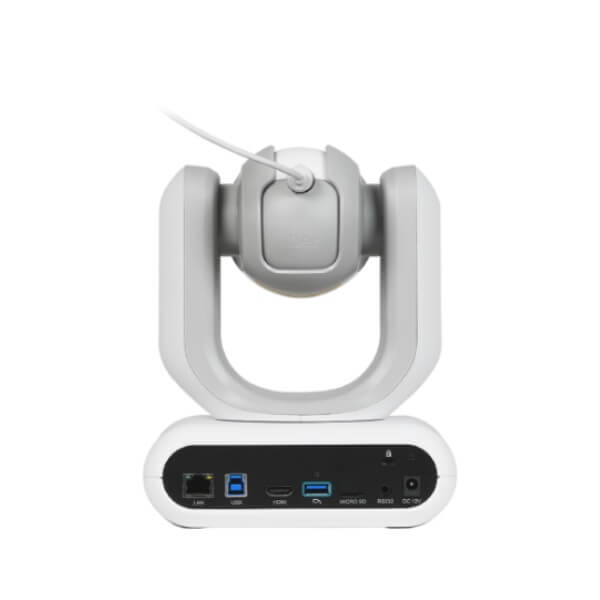

Interface

  • Video Outputs
    • HDMI, IP, USB
  • Audio Outputs
    • HDMI, IP, USB

General

  • Power Requirement
    • AC 100 – 240V to DC 12V/3.34A
  • Power Consumption
    • 36W
  • Dimensions (W x H x D)
    • 0 x 203.0 x 124.0 mm
  • Net Weight
    • 95 kg
  • Application
    • Indoor
  • Tally Lamp
    • N/A
  • Security
    • Kensington Slot
  • Remote Control
    • Infrared
  • Operating Conditions
    • Temperature : 0 °C to +35 °C
    • Humidity : 20% to 80%
  • Storage Conditions
    • Temperature : -20 °C to +60 °C
    • Humidity : 20% to 95%

IP Streaming

  • Resolution
    • 4K 30fps
  • Network Video Compress Formats
    • 264, H.265
  • Maximum Frame Rate
    • 4K 30fps
  • Network Interface
    • 10 / 100 / 1000 Base-T
  • Multi-Stream Capability
    • 2 (RTSP / Web Page), 4K 30fps (max.)
  • Network Protocols
    • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP

USB

  • Connector
    • USB 3.0
  • Video Format
    • MJPEG, YUY2
  • Audio Format
    • PCM
  • USB Video Class (UVC)
    • UVC 1.1
  • USB Audio Class (UAC)
    • UAC 1.0

Software Tools

  • IP Search and Configuration Tool
    • Support Windows 7 or later
  • Package Contents
    • Camera, Remote Control, Power Adapter, Power Cord, Screws (x2), USB Cable, Quick Start Guide



Datasheet Download
