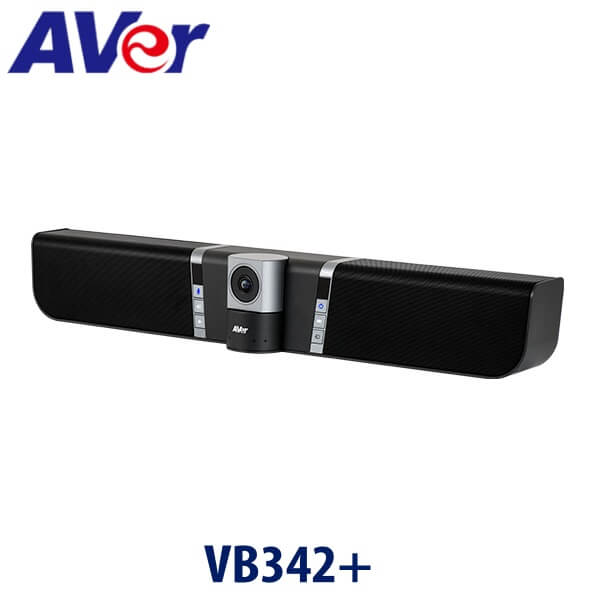

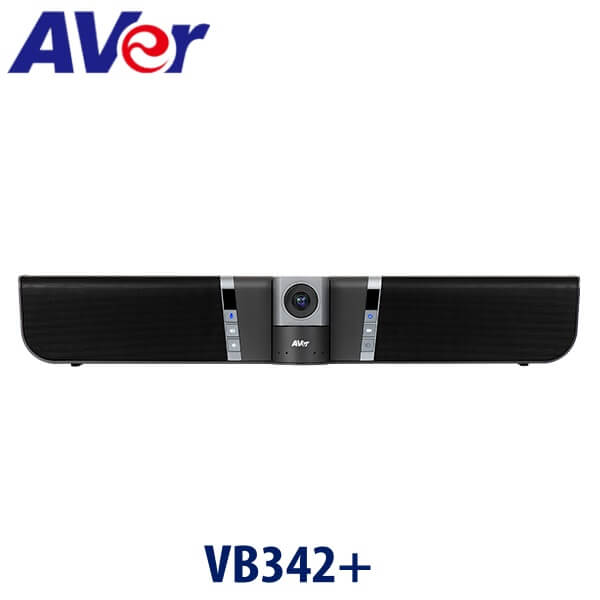

Aver VB342+ Conference Camera

The Aver VB342+ Conference Camera is all-in-One USB 4K Conference solution with Sound-bar from AVer captures up to 4K30 video using a USB Type-C plug-and-play connection to your desktop or laptop, and features an integrated dual stereo speaker system with a bass port. The camera uses an Exmor 4K sensor to capture sharp images with accurate color. The built-in dual unidirectional microphones feature echo and noise cancellation technology for clear audio capture.

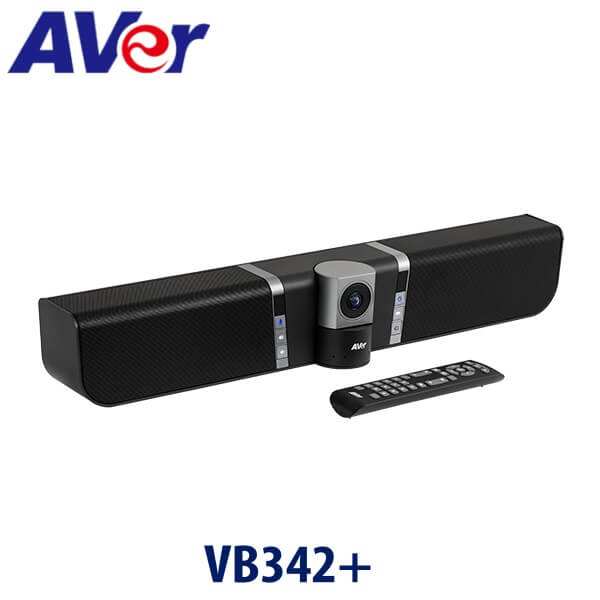

The Aver VB342+ Conference Camera boasts of high quality lens offering up to 4x digital zoom in 4K resolutions, as well as 180° pan and 105° tilt functions that can be controlled using the included IR remote control. Camera functions can also be controlled by using a separately available serial controller plugged into the RS-232 port. Moreover, with IR remote VB342+ offers up to 10 camera presets.

The wide 120° field of view fits into conference rooms of all sizes. An auto white-balance function adjusts to low, bright, natural, or a mixture of lighting conditions. Use the VB342+ with the PTZapp for camera control, live video viewing, firmware upgrades, and more. The VB342+ camera is compatible with Android, Chrome, Mac, and Windows systems, plus a variety of apps and cloud services. Mount the camera onto a wall using the included wall-mount kit. The VB342+ also packs a power cable and a 6′ USB 3.1 Type-C to Type-A adapter.

Key Features

• Supports up to UHD 4K30 Video
• Exmor 4K CMOS Sensor
• 4x HD Digital Zoom in 4K
• Wide 120° Field of View
• USB 3.1 Gen 1 Type-C Output
• HDMI Display Output
• Echo/Noise-Canceling, Dual Microphones
• 5mm Mic Input, 3.5mm Line Output
• Android, Mac & Windows Compatible

Super-Wide Angle

The Aver VB342+ Conference Camera has the widest possible field of view with zero distortion. Perfect for the growing huddle room environments where attendees are closer to the lens but sit on the edge or outside of normal cameras field of view. Motorized pan/tilt widens FOV even further: up to 180°.

Smartframe Technology

 Aver VB342+ Conference Camera packs smart frame technology that automatically frame people based on facial recognition and optimize color and light for human faces with a single click. The SmartFrame app maximizes the viewable field with auto-framing solution that effortlessly puts everyone in your meeting into frame fast and with no hassle. No complex settings or time wasting controls simply click a single button and find the most comfortable distance for your meeting with the SmartFrame.

Amazing Audio

With Aver VB342+ Conference Camera you can connect to smartphones or PC as a speakerphone. 2 uni-directional microphones support pick up to 6m and a full-duplex speakerphone with echo cancellation and noise suppression effectively captures audio through the entire room. Volume up to 96dB SPL at 1/2 meter. Supports an optional expansion microphone if you like to go farther.

Easy Installation

With the Aver VB342+ Conference Camera features easy as plug-n-play Camera. Just connect the provided USB 3.1 cable to your computer or laptop and the VB342+ to start camera, two advanced array microphones, and a full-duplex speakerphone. A TV HDMI connection to VB342+ works automatically via our built-in Display Link.

4K Enterprise Ready Sound-bar

Aver VB342+ Conference Camera is an ideal enterprise-grade, 4K, Ultra HD conference camera designed for business video meetings in huddle rooms and small conference rooms. The VB342+ uses high-quality Sony sensors and multi-lens glass to produce the sharpest and most accurate color ever. Supports ULTRA HD 4k, 1080p and 720p

Compatibility

Aver VB342+ Conference Camera supports all your favorite apps including Zoom, Adobe Connect, BlueJeans, CyberLink U Meeting, Cisco WebEx, fuze, Google Hangout, GoToMeeting, Intel Unite, LiveOn, Microsoft Lync, Skype, Skype for Business, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast and XSplit.

Aver VB342+ Specifications

• Camera

• • Sony Exmore sensor: Ultra crystal-clear image support up to 4K
  • Frame rate: 4K 30fps; 1080p, 720p, 960 x 540, 848 x 480, 800 x 448, 640 x 480, 640 x 360, 424 x 240, 320 x 240, 320 x 180 at 60, 30, 15fps
  • SmartFrame & SmartSpeaker: Automatic FOV adjustment (auto focus) to fit all participants and focus on the speaker
  • 120° wide field of view
  • True WDR up to 120 db: Superb back light compensation technology for optimizing light balance in high-contrast conditions
  • Digital zoom rate up to 4X leveraging 4K sensor
  • 3D denoise technology maintains clear and natural imaging in low light conditions
  • Mirror, AE, white balance: Auto, manual override via PTZApp
  • Minimum focus distance: 80 cm
  • Analytics API: Enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage

• Motorized Pan and Tilt Movement

• • Pan: Total horizontal viewing area 180°
  • Tilt: Total vertical viewing area 105°
  • 10 camera presets (through remote control)
  • Fast and quiet pan & tilt movement

• Audio

• • Microphones: 2 unidirectional microphones supporting 6 m pickup
  • 5Wx2 stereo full range speakers with professional bass port tuned for communication
  • Volume up to 96 dB SPL at 1/2 meter
  • Echo cancellation
  • Noise suppression
  • 3.5 mm Line-in (aux) cable connects BYOD smartphones or PCs as speakerphones

• HDMI

• • DisplayLink: Built-in USB 3.1 (Gen 1) to HDMI adapter
  • 1080p HDMI output to TV**

** Win7/8 OS: Must install DisplayLink driver via AVer PTZApp

• Connectivity

• • 12V/5A power adaptor
  • Mini DIN6 for RS232 connection
  • USB type C connector
  • HDMI out connection (DisplayLink)
  • Phone in (3.5 mm audio jack)
  • Mic input
  • Wireless connection with mobile devices**

• Video Format

• • YUV, YUY2, M-JPEG

• USB

• • 3.1 Gen 1, backward compatible USB 2.0
  • UVC (USB Video Class) 1.1

• Control

• • IR remote control
  • VISCA/pelco P/pelco D via RS232
  • UVC/UVA plug-and-play
  • PTZApp

• Security and Mount

• • Camera wall-mount bracket included

• System Requirements

• • Windows 7/10
  • MacOS X 10.7 or higher
  • Google Chromebook version 29.0.1547.70
  • Android 5 or higher

• Hardware Specs*

• • 2.4 GHz Intel^® Core™2 Duo processor
  • 2 GB RAM or more
  • USB 3.1 Gen1 port (supports 4K); USB 2.0 port (supports up to 1080p)

• Power Supply

• • AC 100V~240V, 50/60 Hz
  • Consumption: 12V, 5A

EZManager: Camera Central Management Software

• • Remotely group FW/SW upgrades, control the camera, and manage settings

PTZApp

• • Compatible with Skype plugin for answering and hanging up via remote control
  • Upgrade firmware automatically or manually
  • Control the camera
  • Set parameters and adjust the camera image
  • Diagnose operating status
  • View live video

EZLive

• • Real-time streaming / annotating / image capturing / video recording

• Environmental Data

• • Operation temperature: 0°C~40°C
  • Operation humidity: 20%~80%
  • Storage temperature: -20°C~60°C
  • Storage humidity: 20%~80%

• Dimensions

• • Package dimensions: 739 x 193 x 229 mm
  • Package weight: 4.16 kg/9.3 lbs
  • Camera: 650 x 100 x 109.5 mm/2.133 kg
  • Remote control: 200 x 50 x 21 mm/0.09 kg

• Package Contents

• • VB342+ unit
  • Power cable 10 ft (3 m)
  • USB 3.1 type-C to type-A Cable 6 ft (1.8 m)
  • USB 3.1 type-A to type-C adapter
  • Quick-start guide
  • Wall-mount bracket and screws
  • Warranty card
  • Remote control
  • Battery

• Optional Accessories

• • Mini DIN6 to RS232 adapter
  • TV mount and mounting screws
  • 33 ft (10 m) expansion microphone
  • 66 ft (20 m) expansion microphone
  • 33 ft (10 m) USB 3.1 extension cable
  • 66 ft (20 m) USB 3.1 extension cable
  • 16 ft (5 m) USB 2.0 cable

• Warranty**

• • Camera: 3+2 years
  • Accessories: 1 year

** Please register online to receive a free 2-year warranty extension.
For detailed warranty information, please contact an AVer representative.

• Compatible Applications

• • Zoom, Microsoft^® Teams, Skype for Business, Skype, Google Hangouts, Intel^® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting^®, TrueConf, Adobe Connect, Cisco WebEx^®, Fuze, GoToMeeting™, Microsoft^® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit
