Description

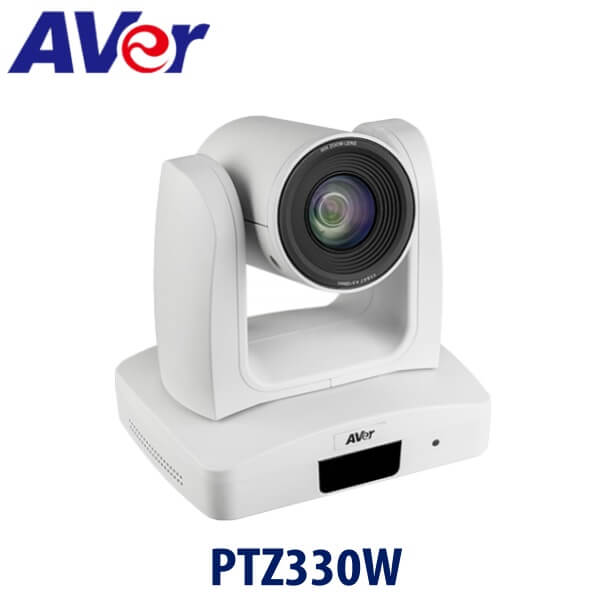

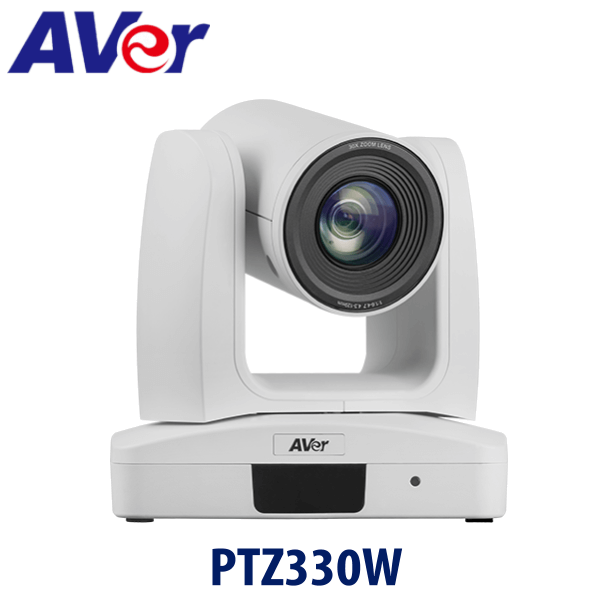

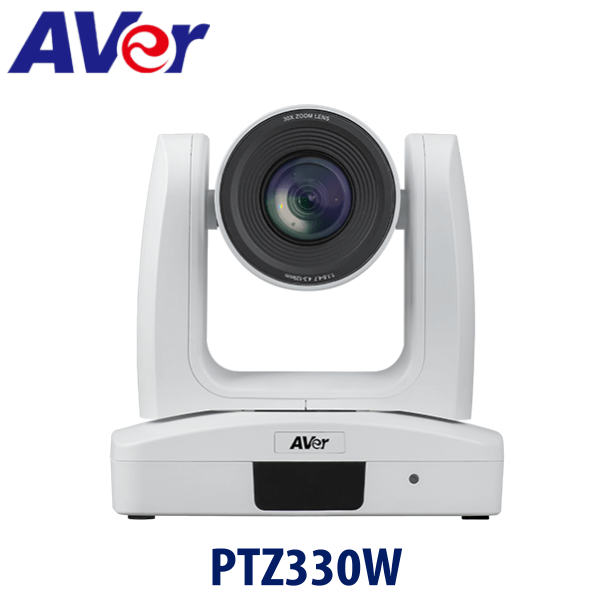

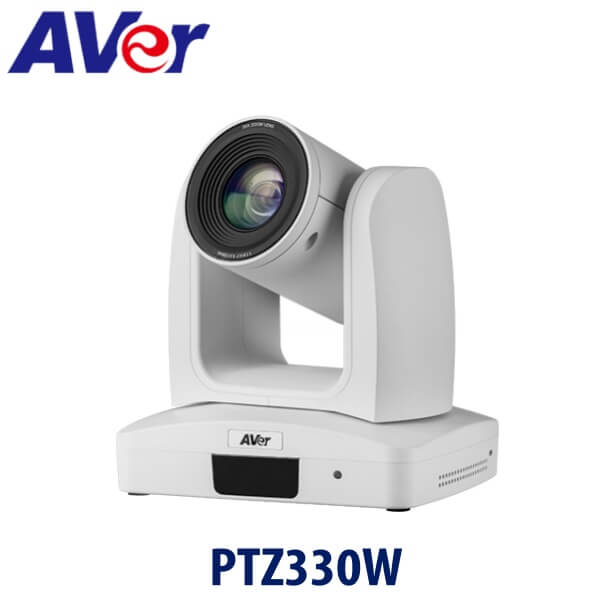

Aver PTZ330W Professional PTZ Camera Ghana
The Aver PTZ330W Ghana features 30X PTZ Camera from AVer allowing a capture of 1080p images and videos via its 1/2″8 CMOS sensor. The PTZ330W features a 30X optical zoom and a 12X digital zoom, and supports Flip and Mirror options. This video conferencing system ghana features 10 angle preset locations via IR and 255 presets via RS-232. You can control the 170° pan and -30 to +90° tilt range and speed. The camera features 3G-SDI and HDMI outputs, stereo audio input, RS-422, RS-232, LAN, and USB control interfaces. The SmartShoot Content Capture allows you to streamline the camera feel, and the SmartFrame feature allows you to adjust your FOV when recording. Capture Events in Lifelike Quality AVer PTZ330W Professional PTZ Cameras provide the superior video quality and versatility you need to record and share events around the world! They are available in white or grey to suite every classroom, hospital, or performance venue. AVer PTZ330W is available in white or grey and equipped versatile functions to suite every classroom, hospital, or business.
PTZ330W Features
Multiple Presets
Preset Aver PTZ330W Ghana with up to 255 different locations through VISCA via RS232 and RS422 functionality. In addition, you can set 10 preset locations with its simplified IR remote, which gives you easy manual control of the recording view.
30X Optical Zoom
Get resounding image quality with 30X optical zoom. People, products, or images are always crystal clear with the PTZ330W’s powerful PTZ Camera
Versatile Motion Control
The Aver PTZ330W Ghana is equipped with advanced Motion Control Settings allowing precise camera movement during recording. Pan/tilt rotation maneuvers as small as 0.1° and as large as 200° per step with customizable speed controls allow you to fully optimize your video recording
Ideal FOV in Seconds
AVer’s new SmartFrame function provides one-touch face targeting technology that lets you quickly create stunning video content. SmartFrame instantly adjusts your FOV to capture everyone on-screen so you can start recording presentations, lectures, and more without hassle. Perfect for capturing multiple people, SmartFrame makes creating video content easy and enjoyable.
Seamlessly Track in Preset
AVer SmartShoot optimizes your camera controls for automatic and seamless content capturing between preset areas, enabling you to create an uncompromising multi-camera feel with just one PTZ330W. Save time and effort while unlocking a huge variety of options for your video.
PTZ330W Specifications
| Output Formats | SDI, HDMI, USB: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 50, 59.94, 60 fps |
| IP Streaming | H.264, MJPEG: 1080p at 30p, 60p |
Control
| Presets | 10 via IR 255 via RS-232 |
| Move Speed | Pan: 0.1 to 100°/sec Tilt: 0.1 to 100°/sec |
| Movement Range | Pan: 170° Tilt: -30 to 90° |
| Supported Control Protocols | IP RS-232 RS-422 VISCA |
Interfaces

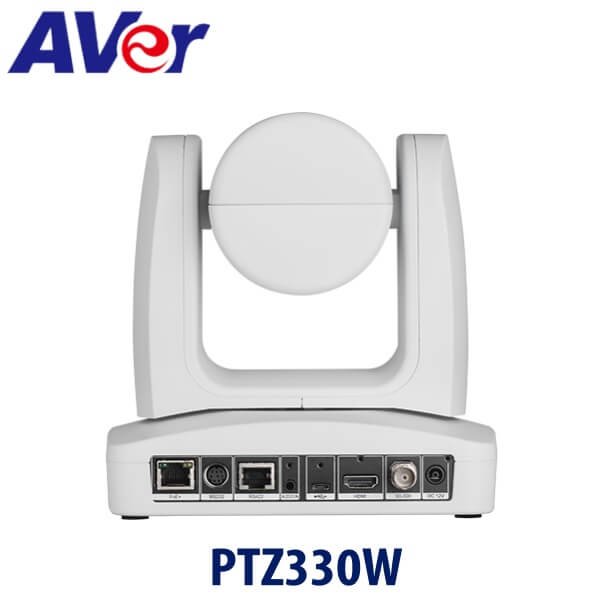

| Video Output Connectors | 1 x BNC (3G-SDI) 1 x HDMI Type A (HDMI 1.4) |
| Audio I/O | 1 x 1/8″ / 3.5 mm Stereo Mic/Line Level Input |
| Control Interface | 1 x RJ45 (RS-422) 1 x 9-Pin D-Sub (RS-232) |
| Other I/O | 1 x RJ45 (LAN) 1 x USB Micro-B |
Power
| PoE Support | PoE+ 802.3at |
| Power Connectors | 1 x Barrel / Coaxial (12 VDC at 5 A) |
| Power Consumption | Power Supply: 100 to 240 VAC |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 95% |
General
| Security Lock Support | Kensington Lock Slot |
| Dimensions | 7.22 x 7.09 x 5.71″ / 183.5 x 180 x 145 mm |
| Weight | 3.57 lb / 1.62 kg |
Packaging Info
| Package Weight | 7.07 lb |
| Box Dimensions (LxWxH) | 10.8 x 10.2 x 10″ |
