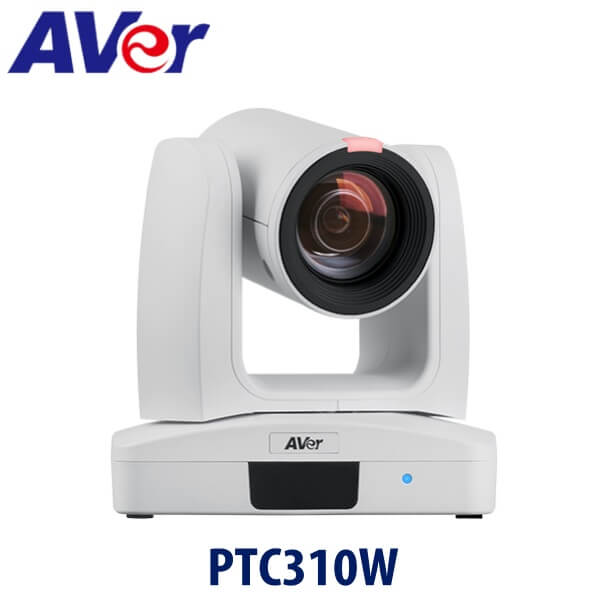

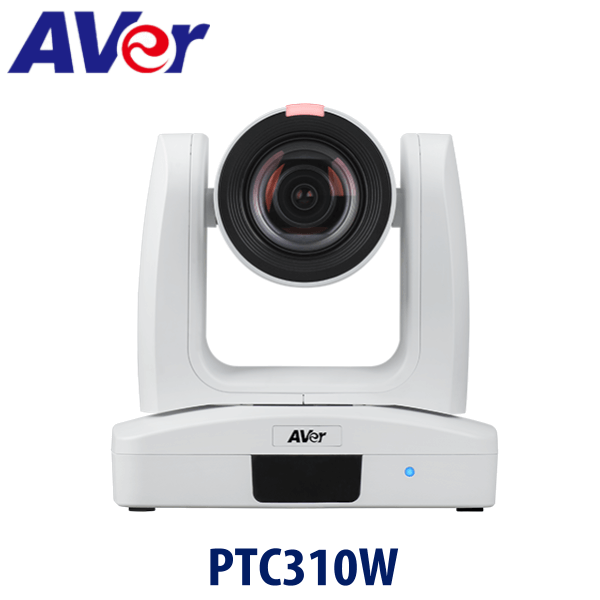

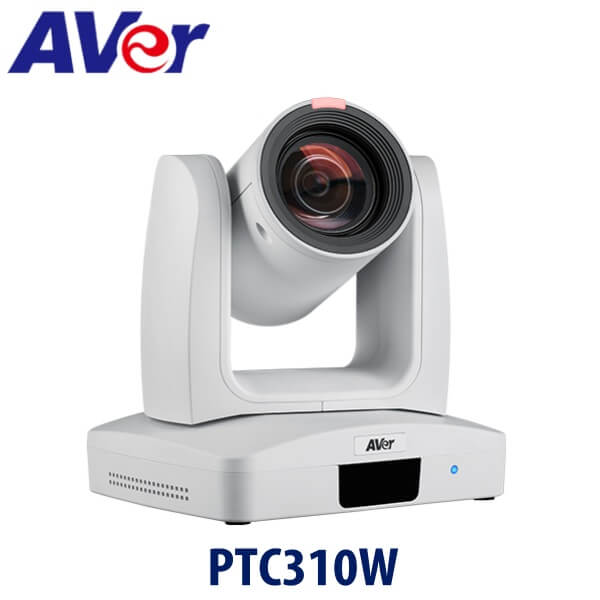

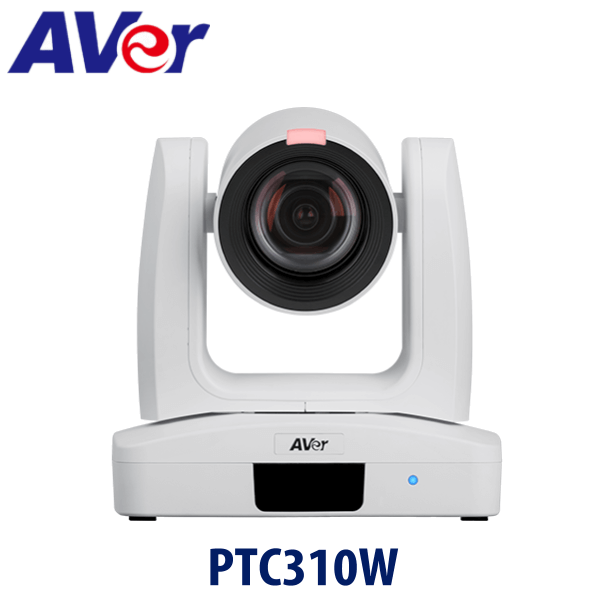

Aver PTC310W AI Auto Tracking PTZ Camera Ghana

The Aver PTC310W Ghana is AI Auto Tracking PTZ Camera featuring a market-standard pinpoint accuracy and advanced targeting technology to go along with full HD resolution. The innovation of PTC310W is ideal solutions for the video capturing needs of educational organizations, medical facilities, businesses, and houses of worship. Users receive unprecedented image quality and remote tracking control via an intuitive web UI, and Aver’s industry leading AI auto tracking technology uses facial recognition and image analysis to follow presenters all around the classroom, auditorium, or stage. This functionality conveniently eliminates the need for lecturers to wear extra devices. Easily engage your audience with high-quality imaging and smooth PTZ movement that helps you clearly communicate from your unique perspective.

PTC310W Features

Full HD 1080p Resolution

The Aver PTC310W Ghana Professional PTZ Camera, is equipped with Full HD 1080p60 providing the superior video quality and versatility you need to record and share events around the world.

12X Optical Zoom & 2X Sensor Zoom
The Aver PTC310W AI Auto Tracking PTZ Camera boasts of an incredible 24X (12X optical and 2X sensor zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles.

Human Detection AI

Aver PTC310W AI Auto Tracking PTZ Camera packs a most advanced AI tool yet Human Detection. This highly accurate processing function enables PTC310W to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.

Click & Track

With Aver PTC310W AI Auto Tracking PTZ Camera you can redirect focus instantly. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via remote control or Web UI without need of an IT expert.

Presenter Mode
Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.

Zone Mode
Aver PTC310W AI Auto Tracking PTZ Camera packs Zone Mode that enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.

FOV

Aver PTC310WGhana Professional PTZ Camera has SmartFrame allowing one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed, so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.

PTC310W Specifications

Camera

• Image Sensor: 1/2.8″ 1080p Exmor CMOS
• Effective Picture Elements:2 Megapixels
• Output Resolutions: 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination: 0.4 lux (IRE50, F1.6, 30fps)
• S/N Ratio: ≥ 50dB
• Gain: Auto, Manual
• TV Line: 900 (Center)
• Shutter Speed: 1/1 to 1/32,000 sec
• Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance: Auto, Manual
• Optical Zoom: 12X
• Digital Zoom: 12X
• Sensor Zoom:2X
• Viewing Angles:
  • DFOV: 78° (Wide) to 7° (Tele)
  • HFOV: 70° (Wide) to 6° (Tele)
  • VFOV: 42° (Wide) to 3° (Tele)
• Focal length: f = 3.9 mm (Wide) to 46.8 mm (Tele)
• Aperture (Iris): F = 1.6 (Wide) to 2.8 (Tele)
• Minimum Working Distance: 0.3 m (Wide), 1.5m (Tele)
• Pan/Tilt Angles:
  • Pan: ±170°, Tilt: +90° / -30°
  • Pan/Tilt Speed (Manual)
• Pan: 0.1° to 100° /sec, Tilt: 0.1° to 100° /sec
• Preset Speed: Pan: 200° /sec, Tilt: 200° /sec
• Preset Positions: 10 (IR), 256 (RS-232)
• Camera Control – Interfaces: RS-232 (DIN8), RS-422 (RJ45), IP
• Camera Control – Protocols: VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
• Image Processing: Noise Reduction (2D / 3D), Flip, Mirror
• Power Frequencies: 50Hz, 60Hz

AI Auto Tracking Functions:

• Tracking Modes
• Presenter Mode, Zone Mode

Audio

• Channels: 2ch (Stereo)
• Codecs: AAC-LC (48 / 44.1 / 32 / 24K), G.711, PCM (8K)
• Sample Rates: 48 / 44.1 / 32 / 24 / 16 / 8 KHz

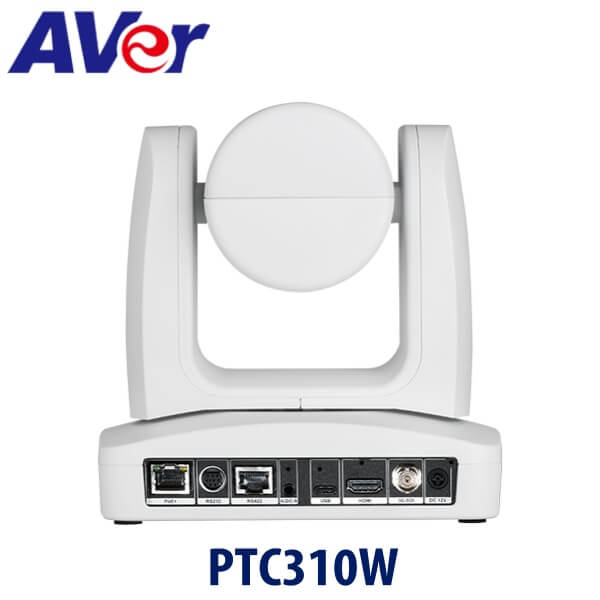

Interface

• Video Outputs:3G-SDI, HDMI, IP, USB
• Audio Outputs: 3G-SDI, HDMI, IP, USB
• Audio Inputs: MIC in, Line in

General

• Power Requirement: AC100V-AC240V to DC12V/5A
• Power Consumption: 18W
• PoE PoE+
• Dimensions (W x H x D): 180.0 x 183.5 x 145.0 mm
• Net Weight: 1.7 (±0.1) kg
• Application: Indoor
• Tally Lamp: Yes
• Security: Kensington slot
• Remote Control: Infrared
• Operating Conditions: Temperature: 0°C to +40°C; Humidity: 20% to 80%
• Storage Conditions: Temperature: -20°C to +60°C; Humidity: 20% to 95%

IP Streaming

• Resolution: 1080p 60fps
• Network Video Compress Formats: H.264, H.265, MJPEG
• Maximum Frame Rate: 1080p 60fps
• Bit-rate Control Modes: VBR, CBR (selectable)
• Range of Bit-Rate Setting: 512 Kbps to 32 Mbps
• Network Interfaces: 10/100/1000 Base-T
• Multi-Stream Capability:2 (RTSP / Web Page), 1080p 60fps (max.)
• Network Protocols: IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP

USB

• Connector: USB 3.0
• Video Formats: MJPEG, YUV, YUY2
• Maximum Video Resolution: 1080p
• USB Video Class: UVC1.1
• USB Audio Class: UAC1.0

Web UI

• Live Video Preview: Yes
• Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
• Camera/Image Adjustment: Exposure, White Balance, Picture
• Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS
• Software Tools: IP Search & Configuration Tool
• Support Windows® 7 or later: PTZ Management
• Support Windows® 7 or later: PTZ Control Panel
• Support iPadOS® v11 or later

Package Contents

Camera, Remote Control, Power Adapter, Power Cord, Cable Ties (x 5), Screws (x 10), Cable Fixing Plates (x 2), Ceiling Mount Brackets (x 2), Quick Start Guide
