The AVer PTC310UV2 Ghana features AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. It is equipped with in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking.

Category:

Description

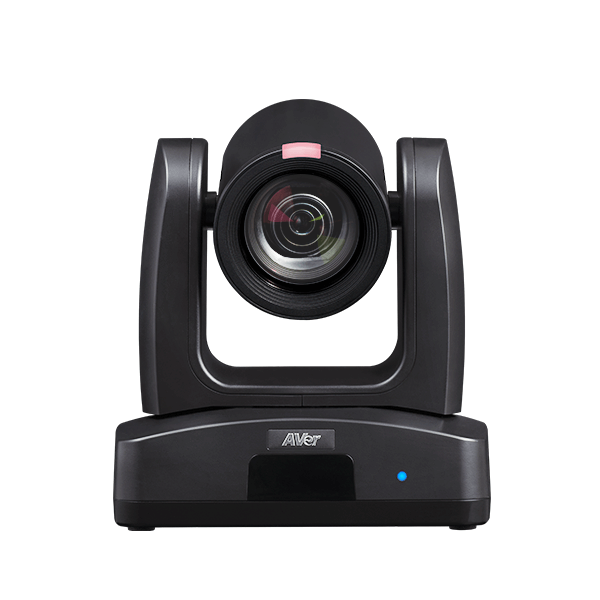

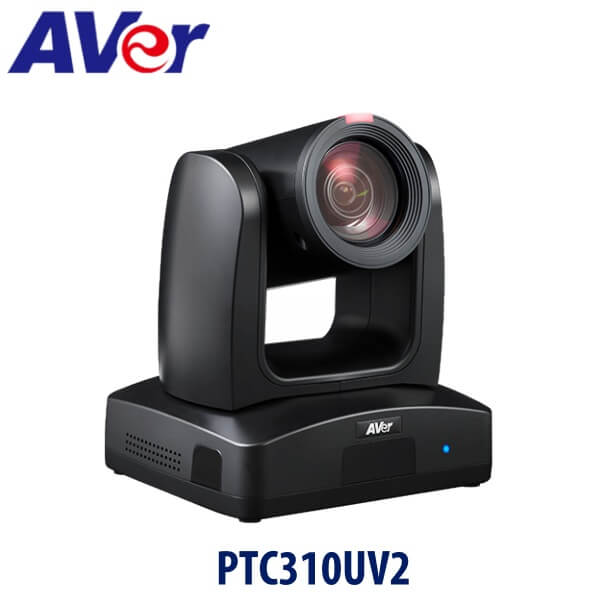

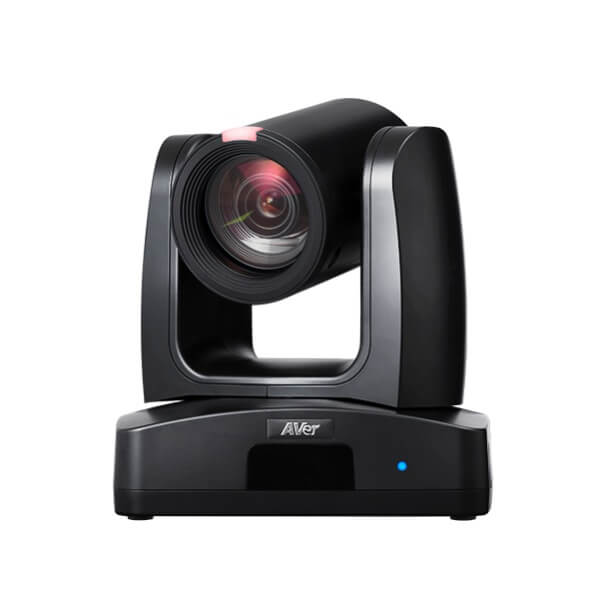

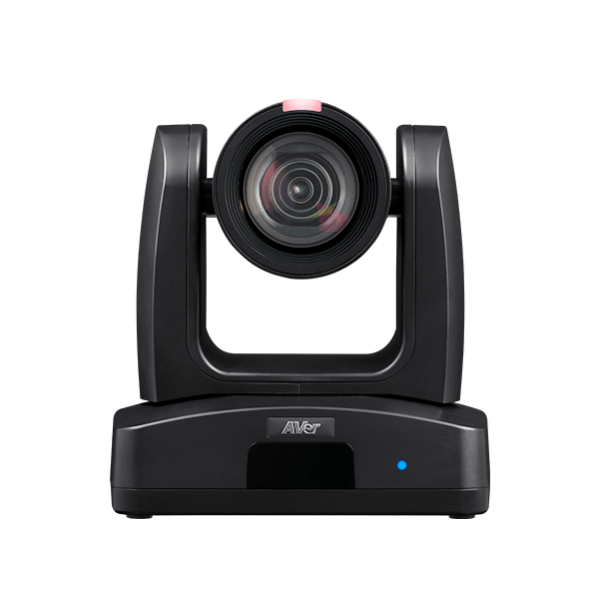

AVer PTC310UV2 AI Auto Tracking PTZ Camera Ghana

The AVer PTC310UV2 Ghana features AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, Aver PTC310UV2 Ghana features in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking, thanks to Human Detection processing. Combine the 12X Optical Zoom lens and 4K resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. AVer PTC310UV2 Ghana provides an excellent solution for audio and video capturing.

Features

4K Output Resolution

AVer PTC310UV2 Ghana is equipped with 4K resolution providing ultra-precise auto tracking. The PTC310UV2 also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.

12X Optical Zoom & 12X Digital Zoom

With a zoom power reaching an incredible 144X (12X optical and 12X digital zoom), AVer PTC310UV2 Ghana works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC310UV2.

Human Detection AI

Welcome AVer’s most advanced AI tool yet—Human Detection. This highly accurate processing function enables PTC310UV2 to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.

Click & Track

Redirect focus in an instant with AVer PTC310UV2 Ghana. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via remote control or Web UI.

Presenter Mode

Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.

Zone Mode

The AVer PTC310UV2 Ghana has Zone Mode that enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.

Hybrid Mode

AVer PTC310UV2 Ghana packs Hybrid Mode providing the utmost freedom of movement for performing artists. Use preset areas for segment tracking to have the camera automatically snap to a full view of each preset location as the artist moves between it. If the artist leaves the preset areas, the camera seamlessly transitions to tracking mode and follows the artist wherever they go.

Specifications

Camera

  • Image Sensor
    • 1/2.8″ 4K Exmor CMOS
  • Effective Picture Elements
    • 8 Megapixels
  • Output Resolutions
    • 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
  • Minimum Illumination
    • 5 lux (IRE50, F1.6, 30fps)
  • S/N Ratio
    • ≥ 50dB
  • Gain
    • Auto, Manual
  • TV Lines
    • 1400 (Center/Wide)
  • Shutter Speed
    • 1/1 to 1/32,000 sec
  • Exposure Control
    • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  • White Balance
    • Auto, Manual, ATW, One Push
  • Optical Zoom
    • 12X
  • Digital Zoom
    • 12X
  • Total Zoom
    • 144X
  • Viewing Angles
    • DFOV : 78° (Wide) to 7° (Tele)
    • HFOV : 70° (Wide) to 6° (Tele)
    • VFOV : 42° (Wide) to 3° (Tele)
  • Focal Length
    • f = 3.9 mm (Wide) to 46.8 mm (Tele)
  • Aperture (Iris)
    • F = 1.6 (Wide) to 2.8 (Tele)
  • Minimum Working Distance
    • 3 m (Wide), 1.5m (Tele)
  • Pan / Tilt Angles
    • Pan : ±170°, Tilt : +90° / -30°
  • Pan / Tilt Speed (Manual)
    • Pan : 0.1° to 100° /sec, Tilt : 0.1° to 100° /sec
  • Preset Speed
    • Pan : 200° /sec, Tilt : 200° /sec
  • Preset Positions
    • 10 (IR), 255 (RS-232, RS-422, IP)
  • Camera Control – Interfaces
    • RS-232 (DIN8), RS-422 (RJ45), IP
  • Camera Control – Protocols
    • VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
  • Image Processing
    • Noise Reduction (2D / 3D), Flip, Mirror
  • Power Frequencies
    • 50Hz, 60Hz

AI Auto Tracking Functions

  • Tracking Modes
    • Presenter Mode, Zone Mode, Hybrid Mode

Privacy Protection Mechanism

  • Protection Mode
    • Sleep Mode

Audio

  • Channels
    • 2ch Stereo
  • Codecs
    • AAC-LC, PCM

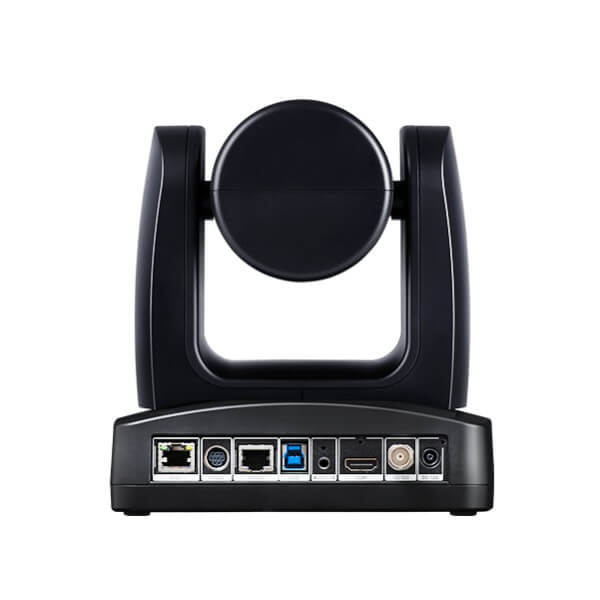

Interface

  • Video Outputs
    • 3G-SDI, HDMI, IP, USB
  • Audio Outputs
    • 3G-SDI, HDMI, IP, USB
  • Audio Inputs
    • MIC in, Line in

General

  • Power Requirement
    • AC 100 – 240V to DC 12V/5A
  • Power Consumption
    • 19W
  • PoE
    • PoE+
  • Dimensions (W x H x D)
    • 0 x 192.0 x 145.0 mm
  • Net Weight
    • 0 (±0.1) kg
  • Application
    • Indoor
  • Tally Lamp
    • Yes
  • Security
    • Kensington Slot
  • Remote Control
    • Infrared
  • Operating Conditions
    • Temperature : 0°C to +40°C ; Humidity : 20% to 80%
  • Storage Conditions
    • Temperature : -20°C to +60°C ; Humidity : 20% to 95%

IP Streaming

  • Resolution
    • 4K 30fps
  • Network Video Compress Formats
    • 264, H.265, MJPEG
  • Maximum Frame Rate
    • 4K 30fps
  • Bit-rate Control Modes
    • VBR, CBR (selectable)
  • Range of Bit-Rate Setting
    • 512 Kbps to 32 Mbps
  • Network Interface
    • 10 / 100 / 1000 Base-T
  • Multi-Stream Capability
    • 2 (RTSP / Web Page), 4K 30fps (max.)
  • Network Protocols
    • IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
  • NDI HX Capability
    • License Upgrade

USB

  • Connector
    • USB 3.0
  • Video Formats
    • MJPEG, YUY2
  • Maximum Video Resolution
    • 2160p
  • USB Video Class
    • 1
  • USB Audio Class
    • 0
