Description

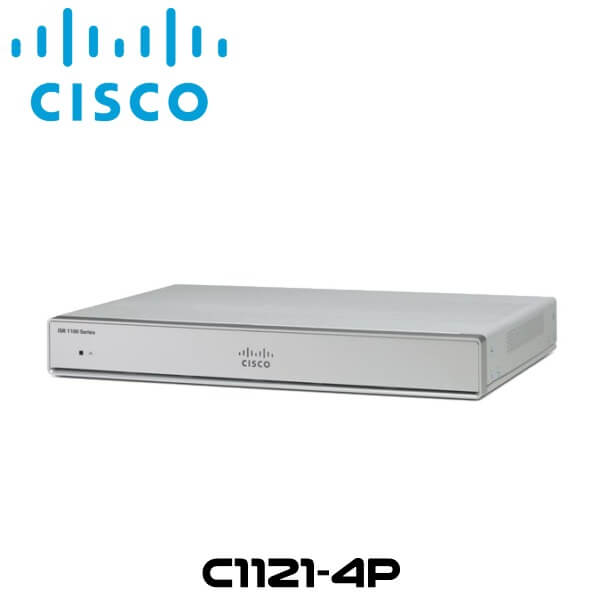

Cisco C1121-4P Integrated Service Router Ghana

The Cisco C1121-4P Ghana Integrated Service Router with Cisco IOS XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device. The router simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller making it easy to deploy and manage, with separate data and control plane capabilities. Network perimeter security with integrated application inspection firewall. Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption. Cisco C1121-4P Ghana has high-performance VPNs : DMVPN, FlexVPN, GETVPN. Encrypted Traffic Analytics (ETA) to identify malware communications in encrypted traffic using passive monitoring, extraction of relevant data elements, and supervised machine learning with cloud-based global visibility. Cisco Umbrella ™ is a cloud security platform that provides the first line of defense against threats on the internet wherever users go.

Features

Lightweight, compact size with low power consumption

The Cisco C1121-4P Ghana is deployable in many different environments where space, heat dissipation, and low power consumption are critical factors (Including Cisco Pluggable smaller form factor technology).

High performance to run concurrent services

Cisco C1121-4P Ghana is highly performing allowing customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services. C1160 models will have better overall performance.

High availability and business continuity

Redundant WAN connections for failover protection and load balancing.
Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP).

Consistent, high application performance levels

The Cisco C1121-4P Ghana router can run multiple services simultaneously with minimal performance degradation.

Risk mitigation with multilevel security

Network perimeter security with integrated application inspection firewall.
Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption.
High-performance VPNs : DMVPN, FlexVPN, GETVPN.
Encrypted Traffic Analytics (ETA) to identify malware communications in encrypted traffic using passive monitoring, extraction of relevant data elements, and supervised machine learning with cloud-based global visibility.
Cisco Umbrella ™ is a cloud security platform that provides the first line of defense against threats on the internet wherever users go.
Security hardware acceleration.
Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor.

Unified control of wired and wireless networks from a common console for streamlined operations

Cisco C1121-4P Ghana simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller.
Supports Mobility Express for WLAN-enabled routers.

Remote configuration and management to keep local IT staff lean

Supports separate console and USB ports. Can be configured to work with optional USB token.
Supports TR-069.

Enhanced Visibility

Natively integrated with Cisco ThousandEyes to extend visibility beyond traditional into the Internet, cloud, and SaaS

Lower WAN expenditures

Cisco Software-Defined WAN (SD-WAN) support for optimized WAN connection.
Smaller form factor and Cisco Pluggable technology provide additional protection investment and flexibility.

Pay as you grow : IPsec performance upgrade model

Cisco C1121-4P Ghana IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings and CapEx budget management.

IT consolidation, space savings, and improved Total Cost of Ownership (TCO)

Single converged branch platform integrates routing, switching, security, and performance management capabilities.

Business continuity and increased resiliency

Cisco C1121-4P Ghana has an optional upgrade to enable PoE capabilities on the integrated ethernet switch modules is available. It offers supports Power over Ethernet (PoE) and PoE+ power to endpoints

Support for Cisco SD-WAN

Better user experience The ability to deploy applications in minutes, on any platform, with a consistent user experience. Deliver predictable performance for applications residing in the data center or in the cloud.
Greater agility. Faster, easier deployment and operation of your WAN, and get faster performance using less bandwidth. Add new revenue generating services in minutes not months
Advanced threat protection. Cisco C1121-4P Ghana securely connect your users to applications in minutes and protect your data from the WAN edge to the cloud. Secure segmentation for critical assets and multi-layer, robust security that encrypts all data

Specifications

Product Code	C1121-4P
Product Description	ISR 1100 4P Dual GE SFP Router
Memory (default and maximum)	DRAM : 4 GB Only C1111X-8P,C1121X-8P,C1126X,C1127X, C1161X models have 8GB DRAM Flash : 4 GB Only C1111X-8P,C1121X-8P,C1126X,C1127X, C1161X models have 8GB Flash
Console	Micro USB console (Type A). RJ45.
Micro-USB port (reserved)	Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0).
WLAN interfaces	Multiuser Multiple-Input Multiple-Output (MU-MIMO) allows transmission of data to multiple 802.11ac Wave 2–capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU-MIMO). 802.11ac Wave 2 with 2×2 :2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points. Flexible deployment through the Mobility Express solution is ideal for small to medium-sized deployments. Easy setup allows the 1000 Series (similar to 1815i) to be deployed on networks without a physical controller.
Maximum clients	Maximum number of associated wireless clients : 200 per Wi-Fi radio; in total 400 clients per access point. C1109-4PLTEP and C1109-4PLTEW models come with default dual W-ANTM2050D-RPSMA external antenna and all modem have default 8.8 AP autonomous or Mobility Express release. Option to select 8.8 CAPWAP WLC image.
Authentication and security	AES for Wi-Fi Protected Access 2 (WPA2). 802.1X, RADIUS AAA. 802.11r and 802.11i.
802.11ac	2×2 SU-MIMO/MU-MIMO with two spatial streams. Maximal Ratio Combining (MRC). 20-, 40-, and 80-MHz channels. PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz). Packet aggregation : A-MPDU (Tx/Rx), A-MSDU (Rx). 802.11 Dynamic Frequency Selection (DFS). Cyclic Shift Diversity (CSD) support.
Software	Cisco IOS Software feature set : Universal Cisco IOS XE 16.6.1 Software image or later. C1112, C1113, and C1101 models support starting with IOS XE 16.8.1 Software image or later. C1118, C1111X-8P and C1109 models support with IOS XE 16.9.1 Software image or later. Cisco IOS Software feature set : C1120 and C1160 models Universal Cisco IOS XE 16.11.1 Software image or later. Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 (migration to 8.8 starting March, 2019 and 8.8 for 1101 and 1109 Models) MR1 or later.
Serial WAN interface and protocol	Support for both synchronous and bisync modes. Synchronous maximum speed of up to 8 Mbps. Support for bisync modes. Support for network clock synchronization. EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21.
Inline PoE	Optional internal adapter for inline PoE on 4 switch ports for IP phones or external wireless access points; 802.3af-compliant PoE or 802.3at-compliant PoE+.
External power supply	Product power specifications : C111X, C1120 and C1160 Models AC input voltage : Universal 100 to 240 VAC. Frequency : 50 to 60 Hz. Maximum output power : 66W (default). Output voltages : 12 VDC. Optional PoE and PoE+ : Single 150W power supply required for Cisco 1100-8P series router Single 115W power supply required for Cisco 1100-4P series router External output voltage : 48 VDC. C1101-4PLTEPWX and C1109-4PLTE2PWX Models : AC input voltage : Universal 100 to 240 VAC. Frequency : 50 to 60 Hz. Maximum output power : 66W (default iTemp for C1109-4PLTE2PWX Models). Output voltages : 12 VDC. C1101-4P, C1101-4PLTEP,C1109-2PLTE, and C1109-4PLTE2P Models : AC input voltage : Universal 100 to 240 VAC. Frequency : 50 to 60 Hz. Maximum output power : 30W (default iTemp for Models). Output voltages : 12 VDC.
USB 3.0	USB devices supported : USB eTokens and USB flash memory Devices USB 3.0 supports to be connected externally.
EDs	WWAN (green/amber). SIM status (green/amber). Received signal strength indication (RSSI) bar (green). 3G/LTE service (green/amber). GPS (green/amber). Speed and link for Gigabit Ethernet WAN port (green). Speed and link for all Fast Ethernet LAN ports (green).
Physical dimensions (H x W x D)	C111X Models 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet on LTE models). 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet on non-LTE models). C1120 Models 1.65 x 12.7 x 8.9 in. (41.9 x 322 x 226 mm). C1160 Models 1.65 x 10.8 x 7.85 in. (41.9 x 274 x 199 mm). C1101-4PLTEP and C1101-4PLTEPWX Models 1.73 x 9.75 x 6.6 in. (43.9 x 247.6 x 167.6 mm) (includes rubber feet models). C1101-4P Models 1.1 x 7.5 x 6.0 in. (27.9 x 190.5 x 152.4 mm) (includes rubber feet models). C1109-2PLTE Models 1.27 x 8.4 x 6.0 in. (32.3 x 213.4 x 152.4mm) (includes rubber feet models). C1109-4PLTE2P and C1109-4PLTE2PWX Models (ship default with dual W-ANTM2050DRPSMA Wi-Fi antennae) 1.71 x 11.16 x 9.8 in. (43.4 x 283.5 x 248.9 mm) (includes rubber feet models). Pluggable 0.85 x 2.5 x 3.88 in. (21.6 x 63.5 x 98.5 mm).
Standard safety certifications	UL 60950-1.and EN 60950-1. CAN/CSA C22.2 No. 60950-1. CB to IEC 60950-1, 2 nd edition with all group differences and national deviations.
EMC emissions	EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, and EN61000-6-1.
EMC immunity	EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), and EN300-386.
Radio immunity	EN301 489-1, EN 301 489-7, and EN301 489-24.
Cellular radio	EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, and EN 301 908-13.
Environmental operating range	Non-operating temperature : -4° to 149°F (-20° to 65°C). Non-operating humidity : 5% to 95% relative humidity (noncondensing). Non-operating altitude : 0 to 15,000 ft (0 to 4570 m). Operating temperature : 32° to 104°F (0° to 40°C). C1101 support 32° to 113°F (0° to 45°C). C1109-2PLTE support 32° to 122°F (0° to 50°C). C1109-4PLTE2P and C1109-4PLTE2PW models support -4° to 131°F (-20° to 55°C). Operating humidity : 10% to 85% relative humidity (noncondensing). Operating altitude : 0 to 10,000 ft (0 to 3000 m at 30°C). Operating altitude : 0 to 10,000 ft (0 to 3000 m at 35°C for C1109-2PLTE models). Operating altitude : 0 to 10,000 ft (0 to 3000 m at 40°C for C1109-4PLTE2P and C1109-4PLTE2PW models).
