Cisco ISR1100 Ghana



Cisco ISR1100 Ghana

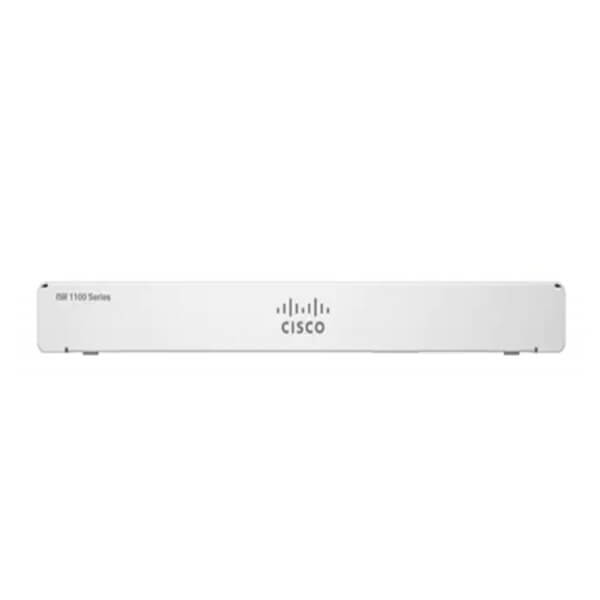

The Cisco ISR1100 Ghana is Integrated Service Router powered by Viptela operating system or IOS XE SD-WAN operating system. This device combine WAN and comprehensive security in a wired high-performance platform.

Description

Cisco ISR1100 Integrated Service Router Ghana

The Cisco ISR1100 Ghana is Integrated Service Router powered by Viptela operating system or IOS XE SD-WAN operating system. This device combine WAN and comprehensive security in a wired high-performance platform. Cisco ISR1100 Ghana combine an enterprise grade platform with best-in-class SD-WAN. Cisco ISR1100 Ghana come with 4GB DRAM. Cisco Software-Defined WAN (SD-WAN) is a cloud-first architecture that provides unparalleled visibility across your WAN, optimal connectivity for end users, and the most comprehensive security platform to protect your network. Cisco SD-WAN provides transport independence, rich network, and security services as well as endpoint flexibility. The Cisco ISR1100 Ghana is delivered as platform that sit at the perimeter of a site, such as a remote office, branch office, campus, or data center. They participate in establishing a secure virtual overlay network over a mix of any WAN transports, working in controller mode.

Features

Lightweight, compact size with low power consumption

Cisco ISR1100 Ghana can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors (Including Cisco Pluggable smaller form factor technology).

High performance to run concurrent services

Cisco ISR1100 Ghana features high performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services.

Consistent, high application performance levels

  • The router can run multiple services simultaneously with minimal performance degradation.
  • Cisco SD-WAN delivers the best user experience over any connection.
  • Performance depends on the actual features that have been enabled

Risk mitigation with multilevel security

  • Data privacy through high-speed IP Security (IPsec) and Advanced Encryption Standard (AES) encryption
  • Trustworthy systems and hardware anchor

Remote configuration and management to keep local IT staff lean

  • Zero-touch provisioning with Cisco vManage Network Management System (NMS)
  • Supports separate console port

Lower WAN expenditures

Cisco SD-WAN powered by Viptela operating system with Overlay Management Protocol (OMP) support for optimized WAN connection as well as easy-to-use management solution with Cisco vManage

Pay as you grow : IPsec performance upgrade model

  • Router IPsec capacity can be increased with a remote-performance, on-demand license upgrade (no hardware upgrade) for better CapEx budget management.

IT consolidation, space savings, and improved TCO

  • Single converged branch platform integrates routing, security, and performance management capabilities.

Security services

  • Cisco ISR1100 Ghana has XE SD-WAN Operating System :
    • ISR1100-4G/6G/4GLTE : Enterprise Firewall, DNS Web Layer Security
  • Viptela Operating System : Enterprise Firewall, DNS Web Layer Security

Specifications

Multicore architecture Dedicated control plane for service reliability; multicore data plane for higher performance.

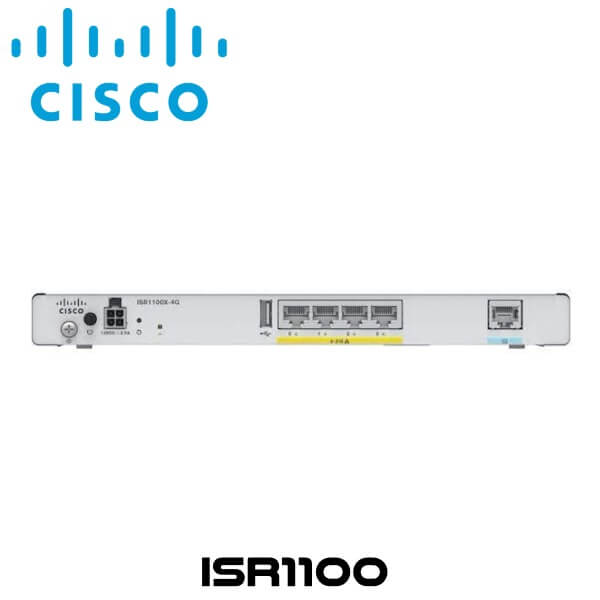

Integrated Gigabit Ethernet ports
  • ISR1100-4G, ISR1100-4G LTEGB/NA, ISR1100X-4G Provides up to four built-in 10/100/1000 Ethernet ports for WAN or LAN
  • ISR1100-6G, ISR1100X-6G platform has four built-in 10/100/1000 Ethernet ports for WAN or LAN and additional two Ethernet ports that can support Small Form-Factor Pluggable (SFP)-based connectivity in addition to RJ-45 connections, enabling fiber or copper connectivity.
Console access RJ45 console port supports management connectivity.
USB 3.0 USB devices supported : USB flash memory

Note : Supported USB 3.0 devices to be connected externally.

Flash memory support The ISR1100 and ISR1100X Series routers ship with a fixed dual 16 MB serial flash memory.

Bulk flash : 8 GB eMMC pSLC (usable storage : 5.8 GB) for ISR1100 Series and ISR1100X-4G routers, 16GB eMMC pSLC (usable storage : 13.1 GB) for ISR 1100X-6G routers.

USB type A 3.0 ports (4.5 W) provide capabilities for convenient storage.

DRAM
  • The ISR1100 Series comes with 4 GB fixed DDR4 ECC DRAM.
  • The ISR1100X Series comes with 8GB fixed DDR4 ECC DRAM
Embedded device security
  • Cisco anticounterfeit functionality
  • UEFI secure boot
Authentication and security
  • TACACS+
  • RADIUS
  • Local, role-based access control
External power supply Product power specifications :

  • External Adapter : 30W 341-100891-01
  • AC input voltage : Universal 100 to 240 VAC
  • Frequency : 50 to 60 Hz
  • Maximum output power : 30W
  • Output voltage : +12VDC for system power
LEDs
  • System status : off = no power, green steady on = normal operation, amber steady on = system going down/fault, amber blink = boot up phase
  • OMP Status : Green steady on = Connection is up, Off = Connection is down
  • 1x green per Ethernet; off = no link, steady on = link connected, blink = traffic flowing
  • SIM : green; off = no SIM, steady on = SIM present, blink : traffic flowing (Applicable only to the ISR1100-4GLTENA and ISR1100-4GLTEGB)
  • 1x green per SFP
Physical dimensions (W x D x H) ISR 1100 and ISR1100X Series – 10.2 x 7 x 1.1 in (259 x 178 x 28 mm)
Weight
  • ISR 1100X-4G,ISR1100X-6G,ISR1100-4G,ISR1100-6G – 2.67 lbs (1.21 kg)
  • ISR 1100-4GLTENA, ISR1100-4GLTEGB – 2.69 lbs (1.22 kg)
Standard safety certifications
  • UL 60950-1, second edition
  • CAN/CSA C22.2 No. 60950-1, second edition
  • EN 60950-1, second edition
  • CB to IEC 60950-1, second edition with all group differences and national deviations
  • AS/NZS 60950.1 :2011
  • IEC-62368 (CB and UL/CSA)
  • NOM-019-SCFI-1998
  • GB4943
EMC emissions EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, KN22, TCVN 7189, and EN61000-6-1
EMC immunity EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), EN61000-6-1, KN24, TCVN 7317, and EN300-386
Environmental operating range
  • Operating temperature : 0 to 40°C (32 to 104°F) at sea level (temperature derating of 1.5°C per 1000 feet of altitude applicable up to max of 10,000 feet or 3000 m)
  • Operating altitude : Maximum 10,000 ft (3000 m) with 1°C derating per 1000 feet
  • Operating humidity : 0 to 95% relative humidity noncondensing



Datasheet Download
