Cisco ISR1941 Ghana



Cisco ISR1941 Ghana

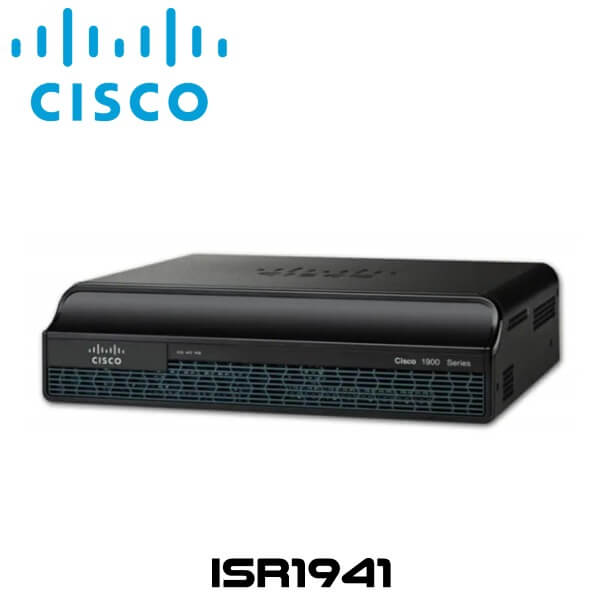

The Cisco ISR1941 Ghana Integrated Services Router offers native hardware-based encryption acceleration to provide greater IPSec throughput with less overhead for the router processor when compared with software-based encryption solutions.

Description

Cisco ISR1941 Integrated Services Router Ghana

The Cisco ISR1941 Ghana Integrated Services Router offers native hardware-based encryption acceleration to provide greater IPSec throughput with less overhead for the router processor when compared with software-based encryption solutions. The Cisco ISR1941 Ghana builds on the best-in-class offering of the existing Cisco 1841 Integrated Services Router and supports a wide range of wireless and wired connectivity options. All Cisco 1900 Series Integrated Services Routers offer embedded hardware encryption acceleration, optional firewall, intrusion prevention, and application services. In addition, the platforms support the industries widest range of wired and wireless connectivity options such as T1/E1, xDSL, 3G, 4G LTE, and GE.

The Cisco ISR1941 Ghana Integrated Services Router delivers innovative technologies running on industry-leading Cisco IOS Software. Developed for wide deployment in the world’s most demanding enterprise, access, and service provider networks, Cisco IOS Software Release 15 M & T provides support for a comprehensive portfolio of Cisco technologies, including new functionality and features delivered in Releases 12.4 and 12.4T, and new innovations that span multiple technology areas, including security, voice, high availability, IP Routing and Multicast, Quality of Service (QoS), IP Mobility, Multiprotocol Label Switching (MPLS), VPNs, and embedded management.

Features

  • 2 integrated 10/100/1000 Ethernet ports
  • 2 enhanced High-Speed WAN Interface Card slots that can host 2 single wide or 1 double wide and 1 single wide (e)HWIC
  • 1 Internal Services1 Internal Services Module slot
  • Fully integrated power distribution to modules supporting 802.3af Power over Ethernet (PoE) and Cisco Enhanced PoE
  • Security Embedded hardware-accelerated VPN encryption
  • Secure collaborative communications with Group Encrypted Transport VPN, Dynamic Multipoint VPN, or Enhanced Easy VPN
  • Integrated threat control using Cisco IOS Firewall, Cisco IOS Zone-Based Firewall, Cisco IOS IPS, and Cisco IOS Content Filtering
  • Identity management that uses authentication, authorization, and accounting (AAA), and public key infrastructure

Service Integration

The Cisco ISR1941 Ghana increased levels of services integration with data, security, wireless, and mobility services enabling greater efficiencies cost savings.

Services on Demand

  • A single Cisco IOS ® Software Universal image is installed on each ISR G2. The Universal image contains all of the Cisco IOS technology sets which can be activated with a software license. Cisco ISR1941 Ghana allows your business to quickly deploy advanced features without downloading a new IOS image. Additionally, larger default memory is included to support the new capabilities.
  • The Cisco Services Ready Engine (SRE) enables a new operational model which allows you to reduce capital expenditures (CapEx) and deploy a variety of application services as needed on a single integrated computer services module

High Performance with Integrated Services

  The Cisco ISR1941 Ghana enables deployment in high speed WAN environments with concurrent services enabled up to 25 Mbps. Multi-Gigabit Fabric enables high bandwidth module to module communication without compromising routing performance.

Network Agility

  • Designed to address customer business requirements, Cisco ISR1941 Ghana with the modular architecture, offers performance range of modular interfaces and services as your network needs grow.
  • Modular interfaces offer increased bandwidth, a diversity of connection options, and network resiliency.

Energy Efficiency

The Cisco ISR1941 Ghana offers intelligent power management and allows the customer to control power to the modules based on the time of day. Cisco EnergyWise technology will be supported in the future.

  • Services integration and modularity on a single platform performing multiple functions, optimizes raw materials consumption and energy usage.
  • Platform flexibility and ongoing development of both hardware and software capabilities lead to a longer product lifecycle, lowering all aspects of the total cost of ownership, including materials and energy use.
  • High efficiency power supplies are provided with each platform.

Architecture and Modularity

The Cisco ISR1941 Ghana is architected to meet the application demands of today’s branch offices with design flexibility for future applications. The modular architecture is designed to support expanding customer requirements, increased bandwidth, and fully integrated power distribution to modules supporting 802.3af Power over Ethernet (PoE) and Cisco Enhanced PoE (ePoE).

Cisco IOS Software

The Cisco ISR1941 Ghana Integrated Services Router delivers innovative technologies running on industry-leading Cisco IOS Software. Developed for wide deployment in the world’s most demanding enterprise, access, and service provider networks, Cisco IOS Software Release 15 M & T provides support for a comprehensive portfolio of Cisco technologies, including new functionality and features delivered in Releases 12.4 and 12.4T, and new innovations that span multiple technology areas, including security, voice, high availability, IP Routing and Multicast, Quality of Service (QoS), IP Mobility, Multiprotocol Label Switching (MPLS), VPNs, and embedded management.

Highly Secure

Cisco ISR1941 Ghana Integrated Services Router offers a comprehensive and adaptable security solution for branch-office routers that include features such as :

  • Secure connectivity : Secure collaborative communications with Group Encrypted Transport VPN (GETVPN), Dynamic Multipoint VPN (DMVPN), or Enhanced Easy VPN.
  • Integrated threat control : Respond to sophisticated network attacks and threats using Cisco IOS Firewall, Cisco IOS Zone-Based Firewall, IOS IPS, IOS Content Filtering and Flexible Packet Matching (FPM).
  • Identity Management : Intelligently protecting endpoints using technologies such as authentication, authorization, and accounting (AAA) and public key infrastructure (PKI).

Wireless LAN

The Cisco ISR1941 Ghana Integrated Services Router supporting the Cisco Unified Wireless Network enable deployment of secure, manageable WLANs optimized for remote sites and branch offices, including fast secure mobility, survivable authentication, and simplified management. The Cisco Unified Wireless Network addresses critical points of potential failure and helps enable resiliency and survivability for WLANs at remote locations and branch offices.

Specifications

Model Cisco1941, Cisco1941W
Services and Slot Density
Embedded hardware-based crypto acceleration (IPSec + SSL) Yes
Total Onboard LAN 10/100/1000 2
RJ-45-Based Ports 2
SFP-Based Ports 0
SM Slots 0
Double-Wide SM Slots 0
EHWIC Slots 2
Double-Wide EHWIC slots (use of a double-wide EHWIC slot will consume two EHWIC slots) 1
ISM Slots 1 (0 on the Cisco 1941W)
Memory (DDR2 Error Correction Code [ECC] ECC DRAM) – Default 512 MB
Memory (DDR2 ECC DRAM) – Maximum 2.0 GB
Compact Flash (external) – Default slot 0 : 256 MB

slot 1 : none

Compact Flash (external) – Maximum slot 0 : 4 GB

slot 1 : 4 GB

External USB flash memory slots (Type A) 2
USB Console Port (Type B) (up to 115.2 kbps) 1
Serial Console Port (up to 115.2 kbps) 1
Serial Auxiliary Port (up to 115.2 kbps 1
Power Supply Options AC, POE
Redundant Power Supply Support No
Power Specifications
AC Input Voltage 100-240 V ~
AC Input Frequency 47-63 Hz
AC Input Current range AC Power Supply (Max) (Amps) 1.5-0.6
AC Input Surge Current <50 A
Typical Power (No Modules) 35 W
Maximum Power capacity with AC power supply 110 W
Maximum Power capacity with PoE power supply (platform only) 110 W
Maximum PoE device power capacity with PoE power supply 80 W
Physical Specifications
Dimensions (H x W x D) 3.5 in x 13.5 in x 11.5 in
Rack Height 2 RU
Rack-mount 19in. (48.3 cm) EIA Included
Wall-mount (refer to installation guide for approved orientation) Yes
Weight-with AC power supply (no modules) 12 lbs
Weight-with POE power supply (no modules) 12.8 lbs
Maximum Weight-Fully Configured 14 lbs
Airflow Front to Side
Environmental Specifications
Operating Condition
Temperature-5906 feet (1800 m) max. altitude 0-40°C (32-104°F)
Temperature-9843 feet (3000 m) max. altitude 0-25°C (32-77°F)
Altitude 3000 m (10000 ft)
Humidity 10 to 85% RH
Acoustic : Sound Pressure (Typ/Max) 26/46 dBA
Acoustic : Sound Power (Typ/Max) 36/55 dBA
Transportation/Storage Condition
Temperature -40 – 70 oC (-40 – 158 oF)
Humidity 5 to 95%RH
Altitude 4570m (15000 ft)
Regulatory Compliance
Safety
  • UL 60950-1
  • CAN/CSA C22.2 No. 60950-1
  • EN 60950-1
  • AS/NZS 60950-1
  • IEC 60950-1
EMC
  • 47 CFR, Part 15
  • ICES-003 Class A
  • EN55022 Class A
  • CISPR22 Class A
  • AS/NZS 3548 Class A
  • VCCI V-3
  • CNS 13438
  • EN 300-386
  • EN 61000 (Immunity)
  • EN 55024, CISPR 24
  • EN50082-1
Telecom
  • TIA/EIA/IS-968
  • CS-03
  • ANSI T1.101
  • ITU-T G.823, G.824
  • IEEE 802.3
  • RTTE Directive





Datasheet Download
