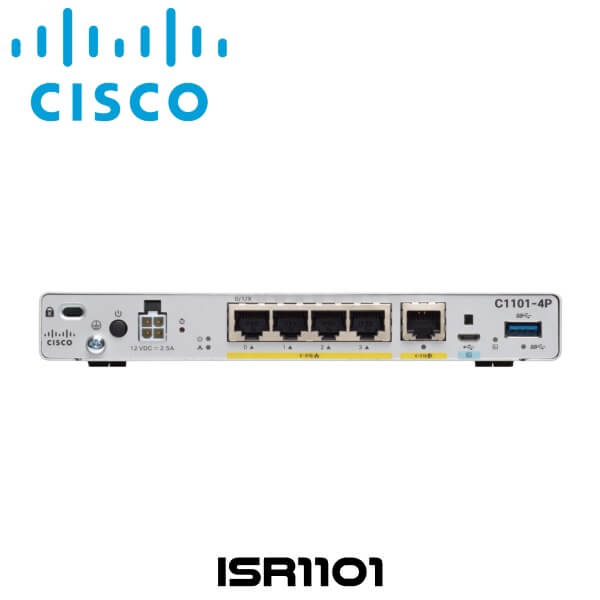

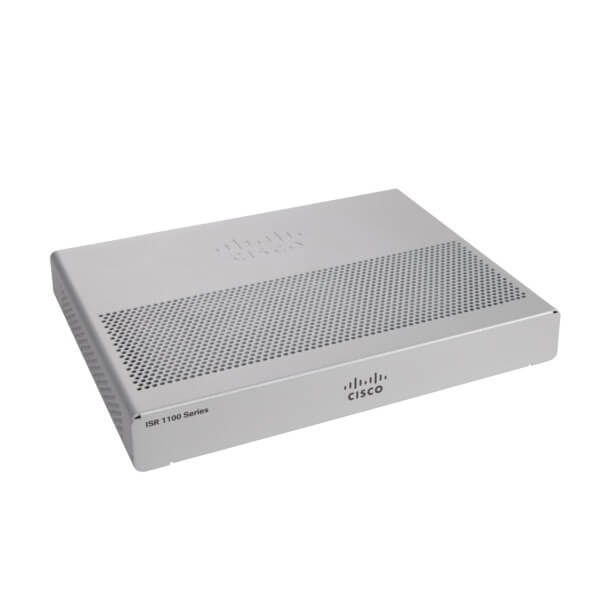

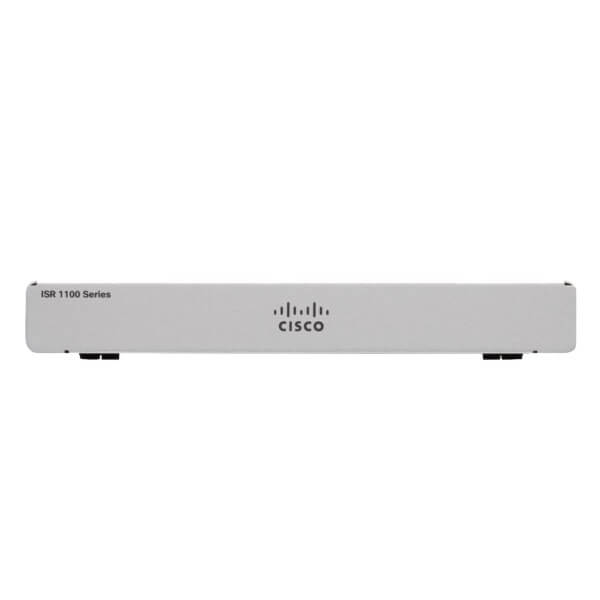

The Cisco ISR1101 Ghana is Integrated Service Router delivering Cisco IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform.

Description

Cisco ISR1101 Integrated Service Router Ghana

The Cisco ISR1101 Ghana is Integrated Service Router delivering Cisco IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. This Integrated Service Router comes with 4 Ports GE Ethernet WAN. Cisco ISR1101 Ghana is ideal for Small and Medium enterprise branch offices. With Cisco ISR1101 gain enterprise-class security and a highly secure WAN. Cisco Umbrella, Encrypted Traffic Analytics, and advanced threat defense provide high-performance encryption, VPN, firewall, and URL filtering. The Cisco IR1101 Ghana has an integrated 9.6 to 60V DC power input and is designed to withstand hostile environments, including shock, vibration, dust, humidity and Electrostatic Discharge (ESD). Cisco ISR1101 Ghana also supports a wide temperature range: –40 to 60°C standard operation, –40 to 75°C in a forced air enclosure with 200 LFM of air, and type-tested at 85°C for 16 hours. This durability makes it ideal for harsh industrial and distributed IoT deployments such as transportation, oil and gas, distribution substations, industrial automation, and financial institutions.

Features

Next-generation connectivity

Get increased mobility and next-generation WAN and LAN options. Access Ethernet, DSL, LTE Advanced, and 802.11ac Wi-Fi. The Cisco ISR1101 Ghana is ideal for use as customer premises equipment.

Intent-based networking

Manage and operate your WAN from a single dashboard. Provide highly secure, direct Internet access at the branch and optimize the user experience with Cisco SD-WAN.

Integrated enterprise-class security

Gain enterprise-class security and a highly secure WAN. Cisco Umbrella, Encrypted Traffic Analytics, and advanced threat defense provide high-performance encryption, VPN, firewall, and URL filtering.

Easy management and deployment

Use one operating system for consistency and visibility across all branch offices and remote sites. The Cisco ISR1101 Ghana is the first fixed-configuration router with Cisco’s trusted IOS XE software.

Lightweight, compact size with low power consumption

Cisco ISR1101 Ghana is deployable in many different environments where space, heat dissipation, and low power consumption are critical factors.

High performance to run concurrent services

Featuring high performance Cisco ISR1101 Ghana allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services

High availability and business continuity

  • Redundant WAN connections for failover protection and load balancing.
  • Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP).

Consistent, high application performance levels

The Cisco ISR1101 router can run multiple services simultaneously with minimal performance degradation.

Risk mitigation with multilevel security

  • Network perimeter security with integrated application inspection firewall.
  • Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption.
  • High-performance VPNs: DMVPN, FlexVPN, GET VPN.
  • Encrypted Traffic Analytics (ETA) to identify malware communications in encrypted traffic using passive monitoring, extraction of relevant data elements, and supervised machine learning with cloud-based global visibility.
  • Cisco Umbrella™ security architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources.
  • Enforced security policy with OpenDNS.
  • Security hardware acceleration.
  • Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor.

Unified control of wired and wireless networks from a common console for streamlined operations

  • Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller.
  • Supports Mobility Express for WLAN-enabled routers.

Remote configuration and management to keep local IT staff lean

  • Supports separate console/auxiliary and USB ports.
  • Can be configured to work with optional USB token.
  • Supports TR-069.

Powerful Throughput Service reliability

Cisco ISR1101 can provide encrypted traffic performance greater than 350 Mbps. A distributed multicore architecture with the dedicated control plane and service plane. Remote installation of application-aware services that run identically to their counterparts in dedicated appliances.

  • Lower WAN expenditures
  • Cisco Software-Defined WAN (SD-WAN) support for optimized WAN connection.
  • Smaller form factor and Cisco Pluggable technology provide additional protection investment and flexibility.

Pay as you grow: IPsec performance upgrade model

Cisco ISR1101 router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management.

IT consolidation, space savings, and improved total cost of ownership (TCO)

Single converged branch platform integrates routing, switching, security, and performance management capabilities.

Business continuity and increased resiliency

The Cisco ISR1101 Ghana supports Power over Ethernet (PoE) and PoE+ power to endpoints.

Specifications

Description ISR 1101 4 Ports GE Ethernet WAN Router.
Physical Properties
Dimensions (H x W x D) 1.1 x 7.5 x 6.0 in. (27.9 x 190.5 x 152.4 mm) (includes rubber feet models)
Weight 1.89 lb (.86kg)
AC Power Input voltage Universal 100 to 240 VAC
Frequency 50-60 Hz
Maximum output power 30W (default)
Output voltages 12 VDC
Console port Micro USB console (USB 3.0)
WAN GE 1
LAN GE 4
Default and maximum DRAM 4GB
Default and maximum flash 4GB
Approvals and compliance Emission

  • 47 CFR Part 15
  • CISPR 32 Edition 2
  • EN 300 386 V1.6.1
  • EN 55032:2012/ AC:2013
  • EN 55032:2015
  • EN61000-3-2 2014
  • EN61000-3-3: 2013
  • ICES-003 ISSUE 6:2016
  • KN 32: 2015
  • V-2/2015.04
  • V-3/2015.04
  • TCVN 7189: 2009
  • CNS13438: 2006
  • IEC 60950-1
  • EN 60950-1
  • UL 60950-1
  • CSA C22.2 No. 60950-1

Immunity

  • CISPR24: 2010 + A1: 2015
  • EN 300 386 V1.6.1
  • EN55024: 2010 + A1: 2015
  • KN35: 2015
  • TCVN 7317: 2003
Environmental
Operating humidity 10% to 85% relative humidity (noncondensing)
Operating temperature 32° to 113°F (0° to 45°C)
Transportation and Storage
Non-operating temperature -4° to 149°F (-0° to 65°C)
Non-operating humidity 5 to 95% relative humidity (noncondensing)
Non-operating altitude 0 to 15,000 ft (0 to 4570m)
