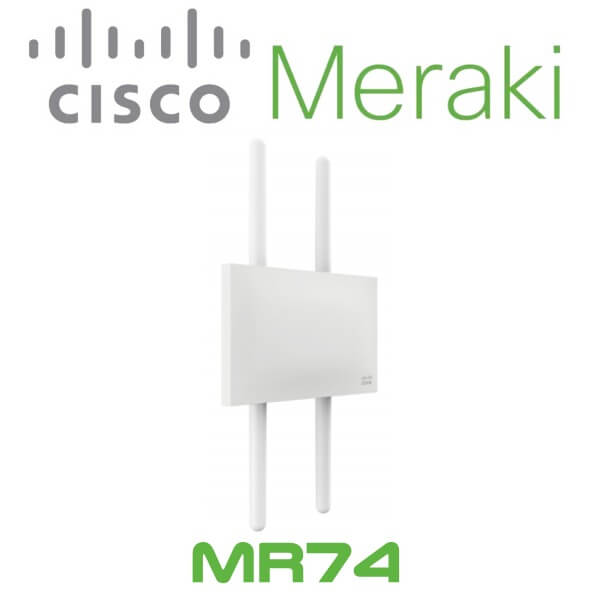

Meraki MR74 Ghana

The Cisco Meraki MR74 Ghana is a four-radio, cloud-managed 2×2 MIMO 802.11ac Wave 2 access point. MR74 is designed for general purpose, next-generation deployments in harsh outdoor locations and industrial indoor conditions

Description

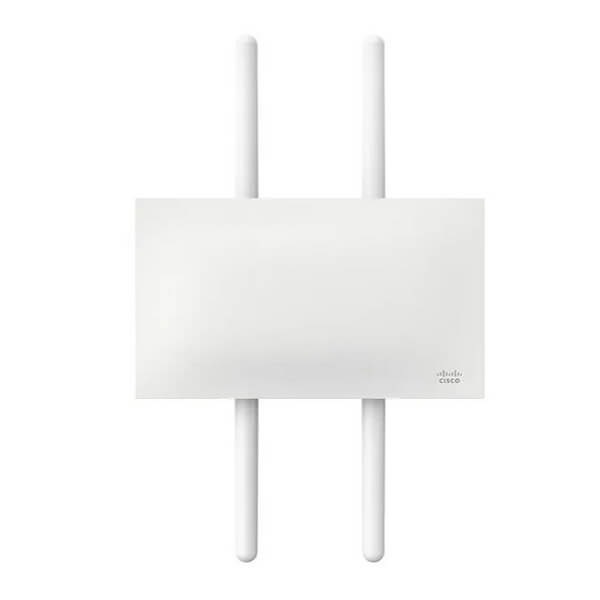

Meraki MR74 Access Point Ghana

The Meraki MR74 Ghana is a four-radio, cloud-managed 2×2 MIMO 802.11ac Wave 2 access point. MR74 is designed for general purpose, next-generation deployments in harsh outdoor locations and industrial indoor conditions, offering performance, enterprise-grade security, and intuitive management. The Meraki MR74 Wi-Fi Access Point Ghana is managed via the Meraki cloud, with an intuitive browser-based interface that lets you get up and running quickly without training or certifications. Since the MR74 is self-configuring and managed over the web, it can even be deployed at a remote location without on-site IT staff. The MR74 delivers a maximum 1.3 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization. A fourth radio delivers seamless Bluetooth Low Energy (BLE) scanning and Beaconing.

The combination of cloud management, 802.11ac, full-time RF environment scanning, and an integrated Bluetooth Low Energy radio delivers the high throughput, reliability, and flexibility required by the most demanding business applications like voice and high-definition streaming video, even in the most harsh outdoor environments. The Meraki MR74 Ghana is monitored 24×7 from the Meraki cloud, which delivers real-time alerts if your network encounters problems. Remote diagnostics tools also enable real-time troubleshooting over the web. The MR74’s firmware is always kept up to date from the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web, so you never have to manually download software updates or worry about missing security patches.

MR70 Features

Ideal for outdoor and industrial indoor environments
2×2:2 802.11ac, 1.3 Gbps aggregate dual-band data rate
24×7 real-time WIPS/WIDS and spectrum analytics via dedicated third radio
Integrated Bluetooth Low Energy (BLE) Beaconing and scanning radio
Forms point-to-point links with optional sector antennas
Self-healing, zero-configuration mesh
Integrated enterprise security and guest access
Application-aware traffic shaping
Self-configuring, plug-and-play deployment

Aggregate data rate of up to 1.3 Gbps*

A 5 GHz 2×2:2 radio supporting 80 MHz channel widths and a 2.4 GHz 2×2:2 radio supporting 40 MHz channel widths offer a combined dual-radio aggregate frame rate of 1.3 Gbps*, with up to 866 Mbps in the 5 GHz band thanks to 802.11ac Wave 2 and 400 Mbps in the 2.4 GHz band.

Multi User Multiple Input Multiple Output (MU-MIMO)

With support for the 802.11ac Wave 2 standard, the Meraki MR70 Ghana offers MU-MIMO for more efficient transmission to multiple clients. This increases the total network performance and the improves the end user experience.

Integrated enterprise security and guest access

The Wi-Fi MR74Ghana features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X provide wire-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors. Our policy firewall (Identity Policy Manager) enables group or device-based, granular access policy control.

Secure wireless environments using Air Marshal

The Wi-Fi MR74Ghana comes equipped with Air Marshal, a built-in wireless intrusion prevention system (WIPS) for threat detection and attack remediation. MR70 access points will scan their environment opportunistically based on user-defined preferences. Alarms and auto-containment of malicious rogue Access Points are configured via flexible remediation policies, ensuring optimal security and performance in even the most challenging wireless environments.

Application-aware traffic shaping

The MR70 includes an integrated Layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Prioritize your mission critical applications, while setting limits on recreational traffic, e.g., peer-to-peer and video streaming.

Self-configuring, self-optimizing, self-healing

The MR70’s advanced mesh technologies like multi-channel routing protocols and multiple gateway support enable scalable coverage of hard-to-wire areas with zero configuration. Mesh also improves network reliability — in the event of a switch or cable failure, the MR70 will automatically revert to mesh mode, providing continued gateway connectivity to clients.

Rapid, plug-and-play deployment

When plugged in, the MR70 automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. It self-optimizes, determining the ideal channel, transmit power, and client connection parameters.

Integrated analytics

Drill down into the details of your network usage with highly granular traffic analytics. Extend your visibility into the physical world with built-in location analytics that enables you to view visitor numbers, dwell time, repeat visit rates, and track foot traffic trends.

MR70 Specifications

Radios

2.4 GHz 802.11b/g/n/ac client access radio
5 GHz 802.11a/n/ac Wave 2 client access radio
2.4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio
2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support
Concurrent operations of all four radios

Supported frequency bands (country-specific restrictions apply):

2.412-2.484 GHz
5.150-5.250 GHz (UNII-1)
5.250-5.350 GHz (UNII-2)
5.470-5.600, 5.660-5.725 GHz (UNII-2e)
5.725-5.825 GHz (UNII-3)

802.11ac Wave 2 and 802.11n Capabilities

2 x 2 multiple input, multiple output (MIMO) with two spatial streams
SU-MIMO and MU-MIMO support
Maximal ratio combining (MRC) and beamforming
20 and 40 MHz channels (802.11n); 20, 40, 80 channels (802.11ac)
Up to 256-QAM on both 2.4 GHz and 5 GHz bands
Packet aggregation

Power

Power over Ethernet : 37-57 V (802.3af compatible)
Power consumption : 11 W max (802.3af)
Power over Ethernet injector sold separately

Mounting

Mounts to walls and vertical poles
Mounting hardware included

Physical Security

Security screw included

Environment

Operating temperature : -4 °F to 131 °F (-20 °C to 55 °C)C)
IP67 environmental rating
Operating humidity : 5% to 95%

Physical Dimensions

10” x 6.2” x 2.6” (256 mm x 158 mm x 65 mm)
Weight: 2.4 lbs. (1.09 kg)

Antenna

Integrated omni-directional antennas (4.5 dBi gain at 2.4 GHz, 4.7 dBi gain at 5 GHz)m)

Interfaces

1x 100/1000 BASE-T Ethernet (RJ45)
Four external N-type female antenna connectors

Security

Integrated Layer 7 firewall with mobile device policy management
Real-time WIDS/WIPS with alerting and automatic rogue Access Point containment with Air Marshal
Flexible guest access with device isolation
VLAN tagging (802.1Q) and tunneling with IPSec VPN
PCI compliance reporting
WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
EAccess Point-TLS, EAccess Point-TTLS, EAccess Point-MSCHAccess Pointv2, EAccess Point-SIM
TKIP and AES encryption
Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration)

Quality of Service
