Meraki MS125-48 Ghana

Description

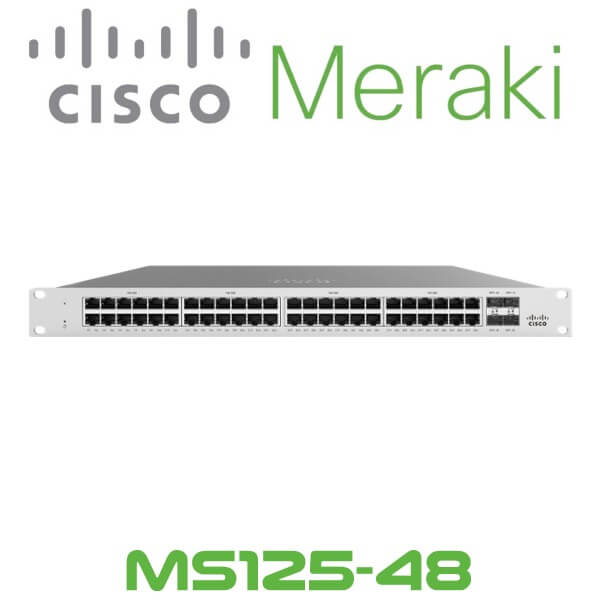

Meraki MS125-48 Network Switch Ghana

The Meraki MS125-48 Ghana is Cloud-Managed Compact Switch provide Layer 3 access switching ideal for branch and campus deployments. It features a variety of power options designed to meet the diverse needs of large enterprise networks. Meraki MS125-48 is built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches. Setting up is simple, Meraki MS125-48 Ghana is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. Meraki’s centralized management gives administrators deep visibility into the network and how it’s used allowing managers to monitor switches that are near capacity across hundreds of sites. MS125 switch automatically connect to the Meraki cloud, download configuration, and join the appropriate network. If new firmware is required, this is retrieved by the switch and updated automatically.

Features

Switch ports

48 × 1G port models
4 × 10G SFP+ uplinks

Power/PoE

MS125-48LP includes 370W
MS125-48FP includes 740W
Up to 30W per port

Hardware platform

Reliable platform with 24/7 Meraki Support
1RU rack mountable
Low noise, fan-less model available
Voice and video QoS
Non-blocking switch fabric

Cloud management

Email alerts for switch management
Remote troubleshooting tools
Manage ports from a GUI-based dashboard
Zero-touch provisioning
Per-port and per-client usage statistics
Secure, user-scheduled firmware updates

Switching capabilities

Layer 2
DHCP Relay
1X Authentication
DHCP Snooping
STP Enhancements
IPv4 and IPv6 ACLs

Campus Access

Physical stacking with support for up to 8 stack members for built-in redundancy and performance
Static and dynamic routing support with DHCP relay and server capabilities
Quality-of-Service (QoS) to prioritize mission critical traffic such as voice and video
Voice VLAN support for simplified VoIP deployments
CDP, LLDP advertisement and snooping, with detailed neighbor visibility
Port Mirroring to monitor network traffic
IGMP Snooping to optimize network performance for multicast applications
Link Aggregation Control Protocol (LACP) for high-capacity trunking, with Multi-chassis (MLAG) support on stacked switches

Network Security

IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
Port security and MAC whitelisting
Change of Authorization (CoA) and RADIUS accounting support
DHCP snooping to prevent users from adding unauthorized DHCP servers on the network
Rapid spanning tree, BPDU guard, root guard, and other safeguards to help prevent misconfigurations and reduce convergence time
Per port VLAN configuration
Multiple administrative roles with sophisticated security policy management

Network Troubleshooting & Automation

Virtual Stacking lets administrators manage up to thousands of ports in a single interface without having to physically connect stack members
Configuration templates for rapid, zero-touch provisioning and auditing of all sites
Network Topology for automatic and interactive network mapping
Remote cable testing, packet capture and client discovery
Automatic and scheduled firmware upgrades for the complete network

Converged Voice, Video and Data Environments

The Meraki MS125-48 Ghana is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich quality of-service (QoS) functionality for prioritizing data, voice, and video traffic. The Meraki MS125-48 Ghana support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization. PoE models provide power VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices.

Application Layer Visibility

Meraki Network Switch Ghana include integrated Layer 7 fingerprinting. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting with Google-like search allows administrators to easily identify and control individual users, PCs, iMacs, iPads, Androids, and other devices. This unprecedented visibility allows optimizing of network resources and maintaining optimal network performance.

Unified Software Architecture

The use of a common operating system allows the Switch to deliver a consistent experience across all product lines. When connected, the Meraki MS125-48 Switch Ghana automatically connect to the Meraki cloud, download configuration, and join the appropriate network. If new firmware is required, this is retrieved by the switch and updated automatically.

Specifications

	MS125-48	MS125-48LP	MS125-48FP
Interface	48 × 10/100/1000BASE-T Ethernet (RJ45) 4 × 10G SFP+ ports for uplinks Auto-negotiation and crossover detection
Management	Managed via the Web with the Meraki cloud management platform Integrated with Meraki wireless and complete portfolio of IT products and solutions Zero-touch remote provisioning (no staging needed) Detailed historical per-port and per-client usage statistics Operating system, device, and hostname fingerprinting SNMP and SYSLOG support for integration with other network management solutions Automatic firmware upgrades with scheduling control
Remote diagnostics	Email, SMS, and Mobile push notification alerts Ping, traceroute, cable testing, and link failure detection with alerting Remote packet capture Dynamic and interactive network discovery and topology Combined event and configuration change logs with instant search
Stacking	Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet switching capabilities	802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) 802.1Q VLAN and trunking support for up to 4,094 VLANs 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) STP Enhancements : BPDU guard, Root guard, Loop guard, UDLD 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches Port mirroring IGMP snooping for multicast filtering MAC forwarding entries : 32K
Security	Integrated multi-factor authentication for cloud management platform Role-based access control (RBAC) with granular device and configuration control Corporate-wide password policy enforcement IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing Single-Host/Multi-Domain/Multi-Host/Multi Authentication Port security: Sticky MAC, MAC whitelisting DHCP snooping, detection and blocking IPv4 and IPv6 ACLs
Performance	Switching capacity : 176 Gbps Forwarding rate : 130.95 mpps Jumbo frame support (9578 byte Ethernet frame) Flow control
Layer 3	DHCP Relay
Power	Power input : 100 – 240 V~, 50-60 Hz 21.7-42W max, fanless	Power input: 100 – 240 V~, 50-60 Hz 40.2-439.8 W	Power input: 100 – 240 V~, 50-60 Hz 52-845.4 W
Mounting	1U Rack-mountable with included rack mount hardware 2-post front mounting options available
Environment	Operating temperature: 0°C to 45°C 0°C – 40°C at sea level 0°C – 35°C at 10,000 feet for MS125-48 when using MA-SFP-10GB-ER Humidity: 5 to 95% RH
MTBF at 25°C	1,628,120	287,429	311,726
Physical dimensions (H×W×D)	1.73” × 17.32” × 9.84” (4.40 × 44 × 25cm)	1.73” × 17.32” × 13.84” (4.40 × 44 × 34cm)	1.73” × 17.32” × 13.84” (4.40 × 44 × 34cm)
Physical Weight	9.25 lb (4.20 kg)	11.90 (5.40 kg)	12.78 (5.80 kg)
