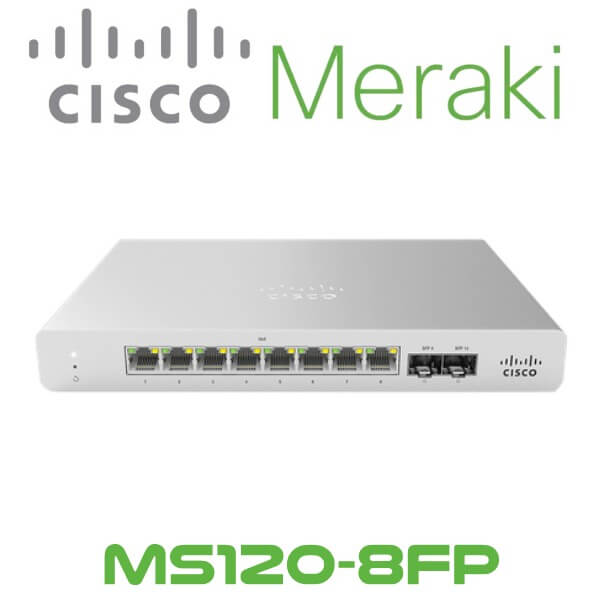

Meraki MS120-8FP Network Switch Ghana

Cisco Meraki MS120-8FP Ghana provide Layer 2 access switching in a fanless, compact form factor. The MS120-FP include 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot, ensuring secure rapid deployment to branch location. Meraki MS120-8FP Ghana is highly reliable with its unique design that uses the same protocol for measuring path performance as real traffic. Build resilient SD-WAN connectivity with integrated wired and cellular WAN, switching, and Wi-Fi. Optimize traffic over all available paths between sites and all multi-cloud environments.

Meraki network switches are built to work seamlessly with cloud-managed Wi-Fi access points, IoT devices, and security solution. They are easily configured to be deployed, secured, and monitored at scale. To set up Meraki MS120-8FP Ghana Switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch. Meraki’s centralized management gives administrators deep visibility into the network and how it’s used.

MS120-8FP Features

• Gigabit Access switching with 8 x 1GbE RJ45 ports and optional PoE/PoE+
• 2 x 1G SFP uplink interfaces on all models
• Fanless operation
• 20Gbps non-blocking compact switch
• 67/124 watt PoE budget with PoE+ support and dynamic power allocation for powering access points, phones, cameras, and other PoE-enabled devices
• 8 dedicated QoS queues for converged voice, video, and data applications
• Integrated mounting brackets for wall or desk mounting, with included Kensington security slot
• Lifetime hardware warranty and advanced replacement at no additional cost

Cloud Managed Switch

Meraki Network Switch Ghana is cloud managed with a number of benefits that make it easier to build networks large and small:

• True zero-touch device provisioning
• Virtual Stacking: manage up to thousands of ports from a single pane of glass
• Application-layer visibility with automatic operating system, client, and hostname fingerprinting
• Powerful live tools such as packet capture and cable test to isolate and troubleshoot network issues
• Alerts to indicate power loss, downtime, excessive Layer 1 issues, and configuration changes
• Role-based administration and automatic, scheduled firmware upgrades over the web
• Regular feature updates and enhancements delivered on demand from the Meraki cloud

Branch & Campus Access

• Quality-of-Service (QoS) to prioritize mission-critical traffic such as voice and video
• Voice VLAN support for simplified VoIP deployments
• CDP/LLDP with detailed neighbor discovery and visibility
• Port Mirroring support for monitoring network traffic at line rate
• IGMP Snooping to optimize network performance for multicast applications
• Link Aggregation Control Protocol (LACP) for high-capacity trunking

Network Security

• IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
• Port security and MAC whitelisting
• Change of Authorization (CoA) and RADIUS accounting support
• DHCP snooping to prevent users from adding unauthorized DHCP servers on the network
• Rapid Spanning Tree, BPDU Guard, Root Guard, and other safeguards to help prevent misconfigurations and reduce convergence time
• Per-port VLAN configuration
• Multiple administrative roles with sophisticated security policy management

Network Troubleshooting & Automation

• Virtual Stacking lets administrators configure thousands of ports across a network in one dashboard action
• Configuration templates for rapid, zero-touch provisioning and auditing of all sites
• Network Topology for automatic and interactive network mapping
• Remote cable testing, packet capture, and client discovery
• Staged, automatic, and scheduled firmware upgrades for the complete network

Rapid Deployment & Configuration

With Meraki’s secure cloud architecture, Meraki MS120-8FP Ghana provisioning and orchestration becomes completely streamlined. Also, have zero-touch configuration coupled with configuration templates let administrators define a switch configuration once and then bind thousands of switches to a profile, reducing overhead and increasing network security.

MS120-8FP Specifications
