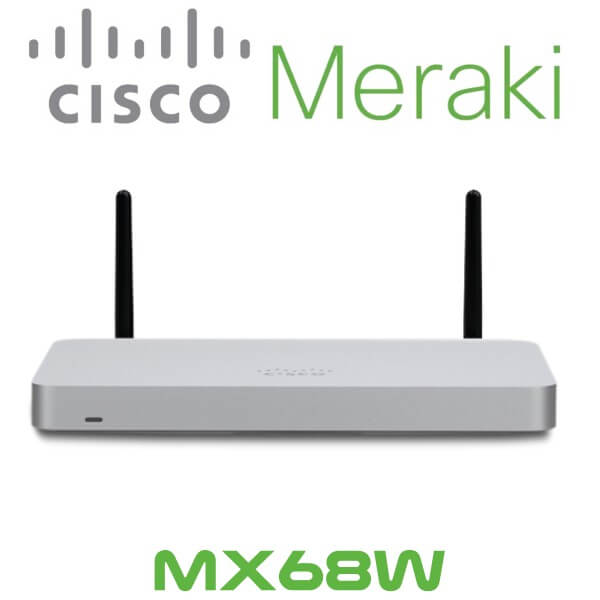

Meraki MX68W Ghana

The Meraki MX68W Ghana has a comprehensive suite of network services, eliminating the need for multiple appliances. It is ideal for organizations considering a Unified Threat Management (UTM) solution.

Description

Meraki MX68W Security Appliance Ghana

The Meraki MX68W Ghana has a comprehensive suite of network services, eliminating the need for multiple appliances.is ideal for organizations considering a Unified Threat Management (UTM) solution, for distributed sites, campuses or datacenter VPN concentration. Since the MX68W is 100% cloud managed, installation and remote management are simple. The MS68W provide services including SD-WAN capabilities, application-based firewalling, content filtering, web search filtering, SNORT® based intrusion detection and prevention, Cisco Advanced Malware Protection (AMP), web caching, 4G cellular failover and more. Auto VPN and SD-WAN features are available on our hardware and virtual appliances, configurable in Amazon Web Services or Microsoft Azure. With a scalable form, Meraki MX68W Ghana accepts up to 50 users. The router has a 450 Mbps stateful firewall throughput that facilitates secure data flow across end-points. It comes with 10 LAN ports that include 2 PoE+ ports to support device addition within a network. Featuring dual-band wireless connectivity, it transmits data concurrently over 2.4 GHz and 5 GHz WI-Fi® bandwidths.

Cisco Meraki SD-WAN security appliance comes with a comprehensive network and security services suite that incorporates threat management and SD-WAN capabilities. This appliance uses 2-stream 802.11aac Wave 2 and 802.11n data protocols to transfer data remotely at maximum speeds of 1.3Gbps. The wireless network accommodates up to four SSIDs to optimize network resources. It embraces static (IP routing and multiprotocol label switching (MPLS) to control traffic flow. This static IP routing manually configures routing addresses to enable remote connections. The MPLS speeds and shapes network traffic flows. Its 7 layer switching shapes traffic on application data basis. This ensures network utilization as per application prioritization. Use its content filtering to safeguard the enterprise network from dangerous sites and malicious content online. This firewall has an IPS that identifies and counters identified threats that may exploit a known vulnerability. Its desktop-form factor allows for convenient installation or positioning on walls and flat platforms.

MX68W Features

Application-aware traffic control : bandwidth policies for Layer 7 application types (e.g., block YouTube, prioritize Skype, throttle BitTorrent).
Content filtering : CIPA-compliant content filter, safe-search enforcement (Google/Bing), and YouTube for Schools
Intrusion prevention : PCI-compliant IPS sensor using industry-leading SNORT® signature database from Cisco
Advanced Malware Protection : file reputation-based protection engine powered by Cisco AMP
Identity-based security policies and application management

MX68W Specification

General

Recommended Use Cases : Small branch
Recommended Clients : 50
Stateful Firewall Throughput : 450 Mbps
Advanced Security Throughput : 300 Mbps
Maximum VPN Throughput : 200 Mbps
Maximum Concurrent VPN Tunnels : 50
WAN Interfaces ( Dedicated) : 2 x GbE RJ45, 1 x USB (cellular failover )
LAN Interfaces : Fixed 10 x GbE RJ45, ( 2 x PoE+)
Mounting : Desktop or wall mount
Dimensions : 11.2” x 6.8” x 1.1” (284mm x 148mm x 27mm)
Weight : 2.55 lb (1.16 kg)
Power Supply : 100W DC
Operating Temperature : 32°F to 104°F (0°C to 40°C)
Humidity : 5% to 95%

Management

Managed via the web using the Cisco Meraki dashboard
Single-pane-of-glass into managing wired and wireless networks
Zero-touch remote deployment (no staging needed)
Automatic firmware upgrades and security patches
Templates based multi-network management
Org-level two-factor authentication and single sign-on
Role-based administration with change logging and alerts

Monitoring and Reporting

Throughput, connectivity monitoring and email alerts
Detailed historical per-port and per-client usage statistics
Application usage statistics
Org-level change logs for compliance and change management
VPN tunnel and latency monitoring
Network asset discovery and user identification
Periodic emails with key utilisation metrics
Device performance and utilisation reporting
Netflow support
Syslog integration

Remote Diagnostics

Live remote packet capture
Real-time diagnostic and troubleshooting tools
Aggregated event logs with instant search

Network and Firewall Services

Stateful firewall, 1:1 NAT, DMZ
Identity-based policies
Auto VPN : Automated site-to-site (IPsec) VPN, for hub-and-spoke or mesh topologies
Client (IPsec L2TP) VPN
Multiple WAN IP, PPPoE, NAT
VLAN support and DHCP services
Static routing
User and device quarantine

WAN Performance Management
