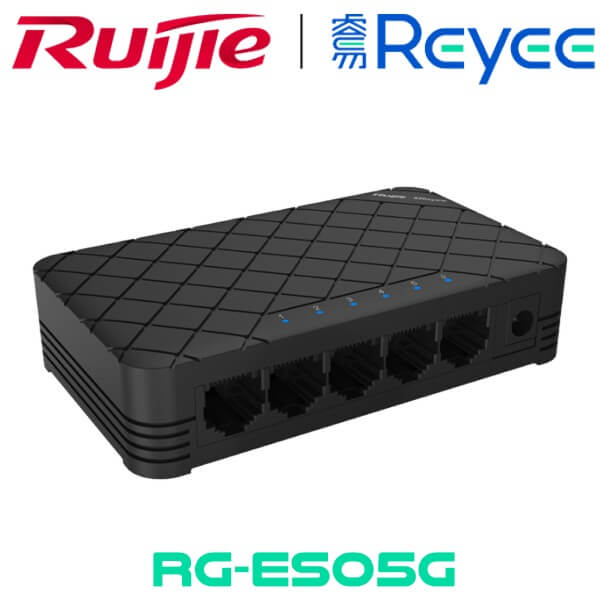

Ruijie RG-ES05G NetworkSwitch Ghana



Ruijie RG-ES05G Network Switch Ghana

The Ruijie RG-ES05G NetworkSwitch Ghana perfect combination of quality, ease of use & cost effectiveness. Ruijie Reyee RG-ES05G Plastic Switch is a desktop switch tailored for small enterprises, small-scale surveillance and SOHO

Description

Ruijie RG-ES05G Network Switch Ghana

The Ruijie RG-ES05G NetworkSwitch Ghana perfect combination of quality, ease of use & cost effectiveness. Ruijie Reyee RG-ES05G Plastic Switch is a desktop switch tailored for small enterprises, small-scale surveillance and SOHO, which consists a total of 4 different models to meet the network needs of small enterprise customers. This switch features plug and play, zero configuration and compatibility with a variety of terminals such as network cameras, printers, PCs, to offer fast deployment experience. With zero configuration, the device can operate instantly after plugging in. The energy saving feature enables the non-operating ports to automatically reduce power consumption, and the fanless design also enables noiseless opera

Key Features

  • Fine Craftsmanship Exquisite and Powerful Design
  • Real 8-Pin Enterprise-grade Quality
  • Stringent Testing Worry-free
  • Plug and Play Energy Saving
  • Strong Adaptability Applicable for Various Scenarios

Plug and Play & Energy Saving

Ruijie RG-ES05G NetworkSwitch Ghana has self-adaptive feature is supported for the network ports. With zero configuration, the device can operate instantly after plugging in. The energy saving feature enables the non-operating ports to automatically reduce power consumption, and the fanless design also enables noiseless opera

Conduct Stringent Testing, Provide Worry-free Products

The Ruijie RG-ES05G has passed rigorous tests have been performed in the manufacturing process, including anti-drop test, anti-collision test, high-temperature resistance test and humidity resistance test, to provide worry-free products.

Exquisite Design, Powerful Performance

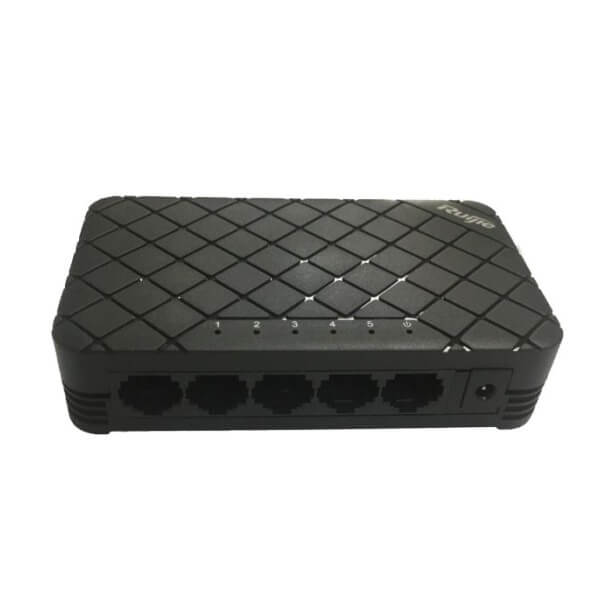

Ruijie RG-ES05G NetworkSwitch Ghana has matte-finish diamond pattern design with honeycomb heat dissipation holes at the bottom ensures effective heat dissipation while offering an exquisite appearance. The embedded foot pads and hidden hanging hole design also provide ease of use for the users

Specifications

Model RG-ES05 RG-ES05G
Ports 5 10/100M Base-T ports 5 10/100/1000M Base-T ports
Operating mode
  • Half-duplex, full-duplex, auto-negotiation mode
  • Support auto MDI/MDIX
Backplane bandwidth 1Gbps 16Gbps
Packet forwarding rate
  • 10Mbps :14880pps
  • 100Mbps : 148800pps
  • 10Mbps :14880pps
  • 100Mbps : 148800pps
  • 1000Mbps : 1488000pps
MAC address 1K 2K
Power supply External, DC 5.0V / 600mA External, DC 5.0V / 600mA
Maximum power consumption ≤2.5W ≤2.5W
Fan Fanless Fanless
Dimensions 108.1mm*64mm*24.8mm 108.1mm*64mm*24.8mm
Temperature
  • Operating temperature : 0 ℃ ~ 40 ℃
  • Storage temperature : -40 ℃ ~ 70 ℃
Humidity
  • Operating humidity : 10% ~ 90% RH
  • Storage humidity : 5% ~ 95% RH
