Ruijie RGNBS3100-8GT2SFPP Ghana is a real-easy RG-NBS3100 Managed Switch Series consists 4 models of switches designed for SME customers to meet their different network needs including basic VLAN division and advanced security features

Description

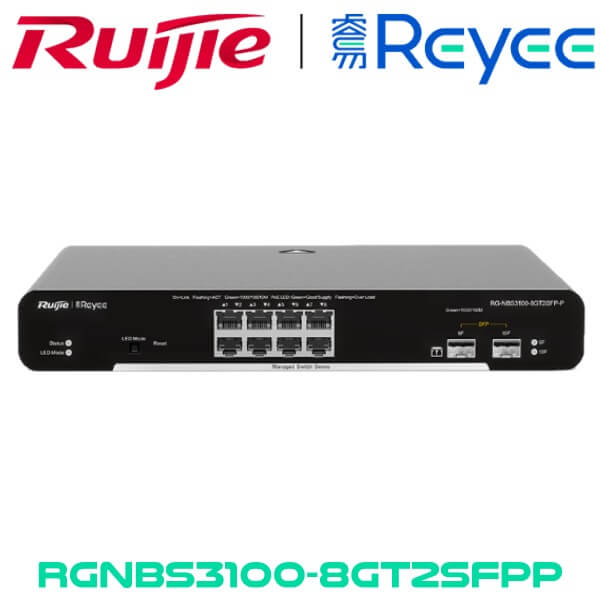

Ruijie RGNBS3100-8GT2SFPP Network Switch Ghana

Ruijie RGNBS3100-8GT2SFPP Ghana is a real-easy RG-NBS3100 Managed Switch Series consists 4 models of switches designed for SME customers to meet their different network needs including basic VLAN division and advanced security features such as ACL. The models with suffix -P support PoE, which can meet the PoE requirements of wireless APs, digital cameras and other devices in various scenarios. In the office network, in order to isolate network access between different departments to avoid PCs infected by virus affecting the entire network, it is often necessary to divide the internal network into VLANs according to departments, floors, etc. to isolate the broadcast domain and improve the stability of the network.

Features

Flexible VLAN Division

Ruijie Real-easy Series managed switches provide a convenient and flexible way to divide VLANs, allowing you to assign the ports to different VLANs as needed. Users in different VLANs do not affect each other, creating a more stable network for the users.

Surge Protection Ensuring Product Stability

The 6KV surge protection of the port reduces the probability of being damaged by surges and improves the customer’s network stability.

MANET for Switches Allowing One-step Project Management

Ruijie RGNBS3100-8GT2SFPP Ghana can obtain the IP address automatically from the gateway and connect to the external network without configuration. It also supports MANET for switches. Users can scan the QR code of any switch in the network using the Ruijie Cloud app to automatically add all switches in the network to the project.

Ruijie Cloud App/ Ruijie Cloud Platform Remote Management

Ruijie RGNBS3100-8GT2SFPP Ghana not only supports web interface management, but also supports Ruijie Cloud app and Ruijie Cloud platform remote management. Users can view the network status, modify the configuration, and troubleshoot at home.

Specifications

Model RG-NBS3100-24GT4SFP RG-NBS3100-8GT2SFP RG-NBS3100-24GT4SFP-P RG-NBS3100-8GT2SFP-P
Fixed ports 24 10/100/1000Base-T ports

4 SFP 1000Base-X ports

8 10/100/1000Base-T ports

2 SFP 1000Base-X ports

24 10/100/1000Base-T ports (802.3 af/at compliant)

4 SFP 1000Base-X ports

370W PoE power

8 10/100/1000Base-T ports (802.3 af/at compliant)

2 SFP 1000Base-X ports

125W PoE power

Switching capacity 336Gbps 192Gbps 336Gbps 192Gbps
Packet forwarding rate 42Mpps 15Mpps 42Mpps 15Mpps
MAC address Support static MAC address, MAC address filtering
MAC address table size 8K
Number of VLANs 4094
Link aggregation Support
Port mirroring Many-to-one mirroring
Spanning tree STP, RSTP
LLDP Support
IP routing N/A
ACL
  • IP standard ACL
  • MAC extended ACL
  • IP extended ACL
  • Port ACL for Layer 2 ports (physical port / AP)
QoS Port-based speed limit (ingress/egress)
Security
  • Port protection
  • Hardware CPP
Management Web management, Ruijie Cloud or Ruijie Cloud app management
DHCP DHCP snooping
EEE Support
Physical specifications
Dimensions 440×165×44mm 260x120x43.6mm 440×293×44mm 300x220x43.6mm
PoE N/A N/A 24 Base-T ports (support PoE and PoE+)

Maximum PoE / PoE+ output power per switch: 370W

Maximum output power per port: 30W

8 Base-T ports (support PoE and PoE+)

Maximum PoE / PoE+ output power per switch: 125W

Maximum output power per port: 30W

Temperature
  • Operating temperature : 0 ℃ ~ 50 ℃
  • Storage temperature : -40 ℃ ~ 70 ℃
Humidity
  • Operating humidity : 10% ~ 90% RH
  • Storage humidity : 5% ~ 90% RH
