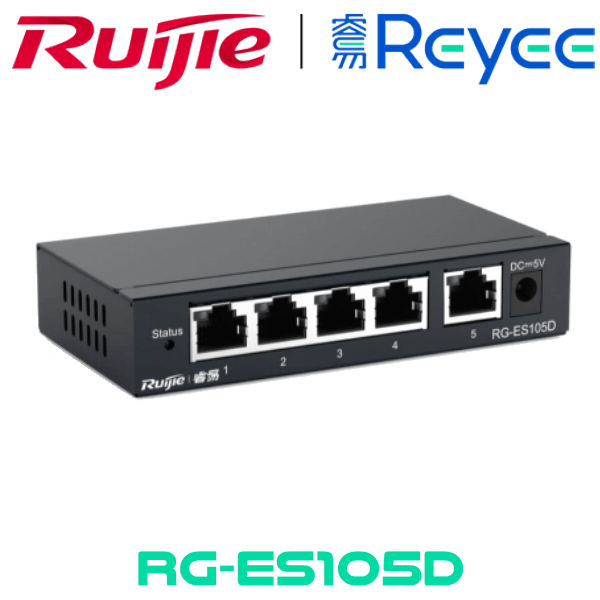

Ruijie RG-ES105D Network Switch Ghana

The Ruijie RG-ES105D NetworkSwitch Ghana features real-easy cost-effective unmanaged access switches with metal casing designed for SMEs. The RG-ES105D supports self-adaptive ports and plug-and-play feature with zero configuration

Description

Ruijie RG-ES105D Network Switch Ghana

The Ruijie RG-ES105D NetworkSwitch Ghana features real-easy cost-effective unmanaged access switches with metal casing designed for SMEs. The RG-ES105D supports self-adaptive ports and plug-and-play feature with zero configuration without requiring any configuration, which can meet the requirements of various scenarios such as wired, wireless and surveillance networks. The high-quality 8-core network cable and enterprise-grade components ensure no packet loss or lagging for data transmission. The compact size allows easy installation in the ELV box at home or the waterproof surveillance junction box, as it only takes up little space.

Features

Plug and Play

Ruijie RG-ES105D NetworkSwitch Ghana supports self-adaptive ports and plug-and-play feature with zero configuration.

Metal Casing

The Ruijie RG-ES105D Ghana features metal casing with entire casing of metal which provides better heat dissipation.

Easy to Install

The compact size allows easy installation in the ELV box at home or the waterproof surveillance junction box, as it only takes up little space.

Enterprise-grade Quality

The high-quality 8-core network cable and enterprise-grade components ensure no packet loss or lagging for data transmission.

Specifications

Model ES105D
Port 5 10/100Mbps RJ45 Port
Largest port forwarding rate 100Mbps
Adaptive support MDI/MDI – X Yes
MAC address 2K
Exchange capacity 1Gbps
Packet forwarding rate 744Kpps
Indicator light Each port Link/lamp Act connection/state
Power light;
Size 119mm*62mm*24mm
Power Outer 5VDC 1.0A
Lightning protection level 4KV
Largest power ≤5W
Temperature Working : 0℃~40℃
Storage : -40℃~70℃
Humidity Working : 10%~90% RH
Storage : 5%~90% RH



Datasheet Download
