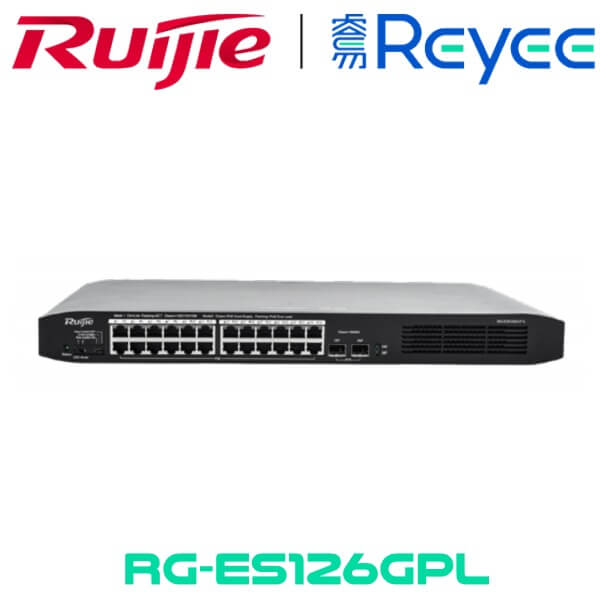

Ruijie RG-ES126GPL Network Switch Ghana

The Ruijie RG-ES126GPL NetworkSwitch Ghana features next-generation unmanaged switches, with wide choice of PoE power budgets from 185W to 370W on 24-port models. It is designed for scenarios such as CCTV, ELV, and small offices.

Description

Ruijie RG-ES126GPL Unmanaged Network Switch Ghana

The Ruijie RG-ES126GPL NetworkSwitch Ghana features next-generation unmanaged switches, with wide choice of PoE power budgets from 185W to 370W on 24-port models. It is designed for scenarios such as CCTV, ELV, and small offices. The Ruijie RG-ES126GPL Ghana is designed for small and medium businesses looking for a Plug-n-Play solution. Ruijie RG-ES100 series is part of Ruijie SME network products. The series consists of 3 switches, including an 8-port Gigabit PoE+ model and two 24-port Gigabit PoE+ switch models. These switches can be implemented with plug-and-play out of the box. Additionally, flow control and port isolation functions can be performed with a simple turn of the panel knob. Also, the PoE budget status can be displayed directly on the port indicators, which helps a lot in troubleshooting.

Features

  • 24-port Gigabit PoE CCTV / ELV and other SMB scenarios
  • Simple one-click button management beyond Plug-n-Play
  • Budget options 370W and 180W PoE on 24-port models
  • All 8/24 ports are compatible with PoE / PoE +, feel free to choose any port

Plug and Play

Ruijie RG-ES126GPL Ghana boasts of a Full Gigabit Ethernet Selection including; 10 / 100 / 1000Mbps on any port, line rate forwarding. Also, Auto MDI/MDIX ensures all RJ45 ports support automatic MDI/MDIX, no cable restrictions when linking to clients or other switches.

Power over Ethernet (PoE / PoE+)

Ruijie RG-ES126GPL NetworkSwitch Ghana provides up to 30Watt per port, enabling support for the latest IEEE802.3at (PoE+) capable devices such as high performance access points and IP cameras, as well as any IEEE802.3af (PoE) – compatible powered devices. Power on all ports including; Ports 1~8 of RG-ES126GLPL are all PoE/PoE+ capable. Also, PoE budget selection allow for wide choice of PoE power budgets from 185W to 370W on 24-port models.

Simple Controls

The One-click flow control. With a flip button on the control panel, Ruijie RG-ES126GPL NetworkSwitch Ghana flow control (IEEE802.3X) can be easily enabled to smooth traffic and avoid packet drops due to sudden traffic spikes. Also, one-click port isolation capability, With the switch on the board, users can also set up an isolating port between each port, helping to ensure the safety of CCTV cameras. Moreover, PoE Power Indicator provide status for alerts on the LED indicators of each port

Specifications

Model RG-ES126GPL
Ports
  • 2 x 1000M SFP
  • 24 x PoE/PoE+ 10/100/1000BASE-T
Auto MDI/MDI-X support
PoE power budget 370W
Power supply type Internal
Input voltage AC 100~240V, 50/60Hz
Cooling Fan
Switching capacity 52Gbps
Forwarding rate 39Mpps
Flow control (IEEE802.3X) Yes
Port isolation Yes
PoE budget indicators Yes
Dimensions (WxDxH) 440 x 292 x 43.6 mm
Weight 4.2kg
Surge protection 4KV
Operating temperature 0 ° C ~ 40 ° C
Storage temperature -40 ° C ~ 70 ° C
Operating humidity 5%~90% RH
Storage humidity 5%~95% RH
