Aver PTZ330UV2 Ghana



Aver PTZ330UV2 Ghana

Impress and captivate your audience with the remarkable Aver PTZ330UV2 Ghana. This cutting-edge PTZ camera puts you in the driver’s seat of your streaming content, offering unparalleled control and quality.

Category:

Description

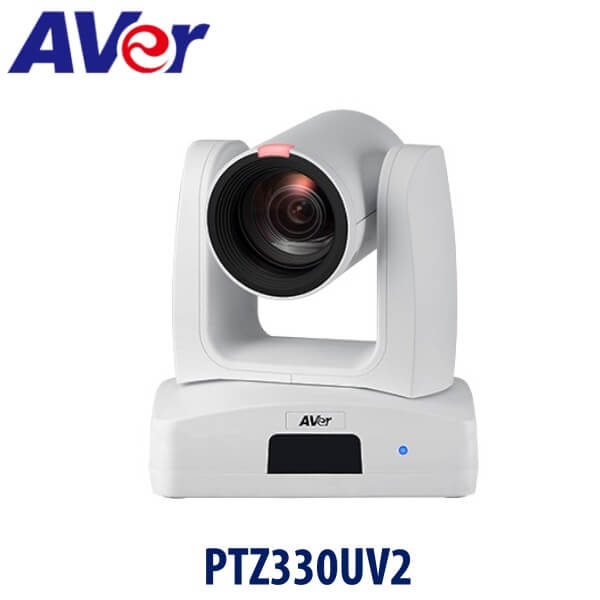

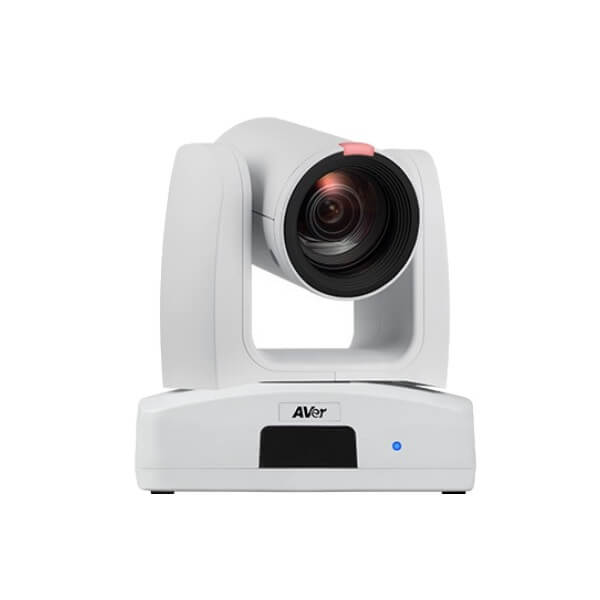

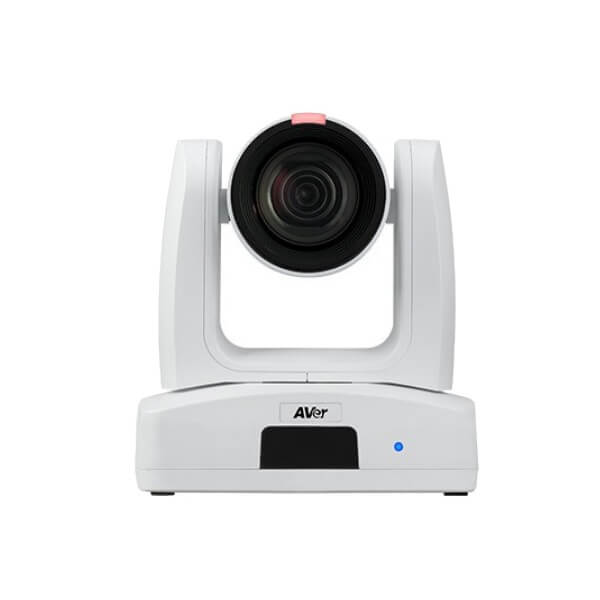

Aver PTZ330UV2 PTZ Camera Ghana

Impress and captivate your audience with the remarkable Aver PTZ330UV2 Ghana. This cutting-edge PTZ camera puts you in the driver’s seat of your streaming content, offering unparalleled control and quality. Boasting 4K 60 fps HDMI/USB/IP outputs, a powerful 30X optical zoom lens, and innovative SmartShoot functionality, this advanced streaming solution elevates your content to new heights. From detailed close-ups to expansive wide shots, the Aver PTZ330UV2 Ghana delivers stunning clarity and precision. Step up your streaming game and leave a lasting impression with the Aver PTZ330UV2 Ghana—where excellence meets innovation.

Features

Harness the Power of Zoom

The 30X optical zoom camera and rapid autofocus ensure that every participant appears crystal-clear onscreen. With advanced zoom performance capturing every detail, you’ll never miss a moment of any occasion.

A New Level of Clarity

With its industry-leading Sony sensor and 4K Ultra HD super-high resolution, the PTZ330UV2 takes every streaming experience from ordinary to stunning. And an advanced image processor automatically optimizes the quality of every shot, whether it’s a close-up or an extreme long shot.

Smoother Streams

NDI<SUP>®</SUP> has praised the PTZ330UV2 for its real 4K 60 fps streaming capabilities via HDMI, USB, and IP outputs. With no complicated settings or tangled cords to manage, you can easily use multiple devices at the same time and still get a smoother video streaming experience.

Pro Camera Control

Customizable movement speed settings, ranging from 0.1° to 200° per second, offer high-level agility and precision for ultimate motion control during streams. The resulting sensitive and smooth multi-angle movement lets you capture extraordinary footage that dazzles your audience.

Keep People and Content in Focus

With embedded SmartShoot, the PTZ330UV2 uses real-time Human Detection to automatically move the camera smoothly between up to 4 preset zones. The camera focuses on the presenter to quickly switch between shooting zones whenever they do, delivering consistently clear images of them and their content.

Bring Voice Tracking to PTZ Cameras

PTZ Link is the only software that lets you connect PTZ Cameras to microphone systems. With the help of PTZ Link, you can easily turn your AVer PTZ Camera into a voice tracking camera by setting preset areas that let the camera automatically switch focus between different speakers in those spaces. Leverage seamless camera and audio integration with PTZ Link to experience ultimate -quality streams.

Specifications

Camera

  • Image Sensor
    • 1/2.8” 4K Exmor CMOS
  • Effective Picture Elements
    • 8 Megapixels
  • Output Resolutions
    • 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
  • Minimum Illumination
    • 0.5 lux (IRE50, F1.6, 30fps)
  • S/N Ratio
    • ≥ 50 dB
  • Gain
    • Auto, Manual
  • TV Lines
    • 1400 (Center/Wide)
  • Shutter Speed
    • 1/1 to 1/32,000 sec
  • Exposure Control
    • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  • White Balance
    • Auto, Manual, ATW, One Push
  • Optical Zoom
    • 30X
  • Digital Zoom
    • 1X
  • Total Zoom
    • 30X
  • Viewing Angles
    • DFOV: 69.2° (Wide) to 2.8° (Tele)
    • HFOV: 62.3° (Wide) to 2.5° (Tele)
    • VFOV: 37.3° (Wide) to 1.4° (Tele)
  • Focal Length
    • f = 4.5 mm (Wide) to 135 mm (Tele)
  • Aperture (Iris)
    • F = 1.8 (Wide) to 4.7 (Tele)
  • Minimum Working Distance
    • 0.1 m (Wide)
    • 1.2 m (Tele)
  • Pan / Tilt Angles
    • Pan : ±170°
    • Tilt : +90° / -30°
  • Pan / Tilt Speed (Manual)
    • Pan : 0.1° to 100° / sec
    • Tilt : 0.1° to 100° / sec
  • Preset Speed
    • Pan : 200° / sec
    • Tilt : 200° / sec
  • Preset Positions
    • 10 (IR)
    • 256 (RS-232, RS-422, IP)
  • Camera Control – Interfaces
    • RS-232 (DIN8)
    • RS-422 (RJ45)
    • IP
  • Camera Control – Protocols
    • VISCA (RS-232 / RS-422 / IP)
    • PELCO-D & PELCO-P (RS-232 / RS-422)
    • CGI (IP)
    • ONVIF
  • Image Processing
    • Noise Reduction (2D / 3D)
    • Flip
    • Mirror
  • Power Frequencies
    • 50 Hz, 60 Hz

AI Function

  • Mode
    • SmartShoot

Audio

  • Channels
    • 2ch Stereo
  • Codecs
    • AAC-LC

Interface

  • Video Outputs
    • 3G-SDI, HDMI, IP, USB
  • Audio Outputs
    • 3G-SDI, HDMI, IP, USB
  • Audio Inputs
    • MIC in, Line in

General

  • Power Requirement
    • AC 100 – 240V to DC 12V/2A
  • Power Consumption
    • 19W
  • PoE
    • PoE+
  • Dimensions (W x H x D)
    • 180.0 x 192.0 x 145.0 mm
  • Net Weight
    • 2.0 (±0.1) kg
  • Application
    • Indoor
  • Tally Lamp
    • Yes
  • Security
    • Kensington Slot
  • Remote Control
    • Infrared
  • Operating Conditions
    • Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
  • Storage Conditions
    • Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%

IP Streaming

  • Resolution
    • 4K 60fps
  • Network Video Compress Formats
    • H.264, H.265, MJPEG
  • Maximum Frame Rate
    • 4K 60fps
  • Bit-Rate Control Modes
    • VBR, CBR (selectable)
  • Range of Bit-Rate Setting
    • 512 Kbps to 120 Mbps
  • Network Interface
    • 10 / 100 / 1000 Base-T
  • Multi-Stream Capability
    • 4
    • 4K 60fps: RTSP, HDMI & USB
    • 1080p 60fps: 3G-SDI
  • Network Protocols
    • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
  • NDI®|HX3
    • N/A
  • NDI® Genlock
    • N/A

USB

  • Connector
    • USB 3.1
  • Video Formats
    • MJPEG, YUY2
  • Maximum Video Resolution
    • 2160p
  • USB Video Class (UVC)
    • UVC 1.1
  • USB Audio Class (UAC)
    • UAC 1.0

Web UI

  • Live Video Preview
    • Yes
  • Camera PTZ Control
    • Pan, Tilt, Zoom, Focus, Preset Control
  • Camera / Image Adjustment
    • Exposure, White Balance, Picture
  • Network Configuration
    • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

  • IP Search and Configuration Tool
    • Support Windows® 7 or later
  • PTZ Management
    • Support Windows® 7 or later
  • PTZ Control Panel
    • Supports iOS & iPadOS® 11 or later
  • PTZ Link
    • Supports Windows® 7 or later, macOS® 10.14 or later
  • OBS Plugin for PTZ Cameras
    • Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
  • CaptureShare
    • Supports Windows® 7 or later, macOS® 10.14 or later

Warranty

  • Camera
    • 5 Years
  • Accessories
    • 1 Year
  • Package Contents
    • Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)
  • Optional Accessories
    • AVer CL01 PTZ Camera Controller, L-Type Wall Mount
