Cisco CBS350-48FP4G Ghana



Cisco CBS350-48FP4G Ghana

The Cisco CBS350-48FP4G Ghana is part of the Cisco Business line of network solutions featuring affordable managed switch that provides a critical building block for any small office network.

Category:

Description

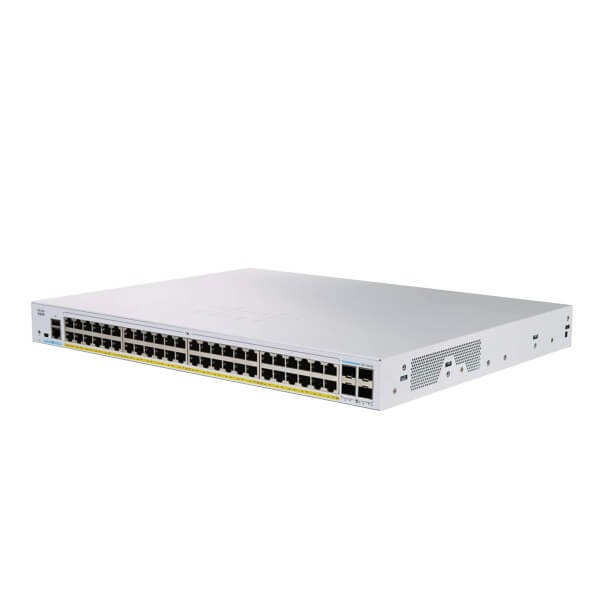

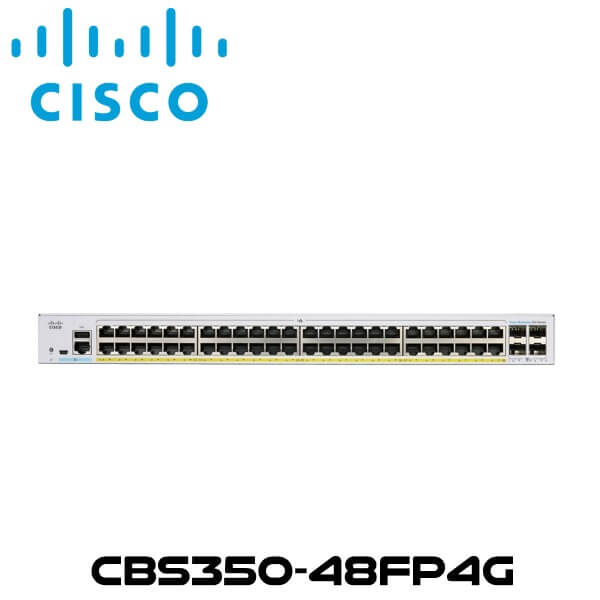

Cisco CBS350-48FP4G Network Switch Ghana

The Cisco CBS350-48FP4G Ghana is part of the Cisco Business line of network solutions featuring affordable managed switch that provides a critical building block for any small office network. Intuitive dashboard simplifies network setup, and advanced features accelerate digital transformation, while pervasive security protects business critical transactions. The Cisco CBS350-48FP4G Ghana provides the ideal combination of affordability and capabilities for small office and helps you create a more efficient, better-connected workforce. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco Business CBS350-48FP-4G and its connected devices. The single-fan cooling design produces low noise to minimize disruptions to your environment.

The Cisco CBS350-48FP4G Ghana is 48-Port Gigabit PoE+ Compliant Managed Network Switch from Cisco. This managed rackmount switch features 48 PoE+ compliant Gigabit Ethernet ports with a 740W budget to operate compatible devices. There are also four Gigabit SFP ports available for high-speed fiber connections. Its extensive Layer 2 and Layer 3 features include secure connections, clear communications, and link aggregation to create up to eight groups of 16 ports for multi-Gig connections to compatible devices. Its 104 Gb/s switching capacity and 77.38 Mpps forwarding rate also help to ensure smooth and reliable data transfers.

Features

High Reliability and Resiliency

The Cisco CBS350-48FP4G Ghana switch supports dual images, allowing you to perform software upgrades without having to take the network offline or worry about the network going down during the upgrade.

IPv6 Support

As the IP address scheme evolves to accommodate a growing number of network devices, the Cisco CBS350-48FP4G Ghana Switch can support the transition to the next generation of networking. This switch continues to support previous-generation IPv4, allowing you to evolve to the new IPv6 standard at your own pace and helping ensure that your current network will continue to support your business applications in the future.

Advanced Layer 3 Traffic Management

The Cisco CBS350-48FP4G Ghana switch enables a more advanced set of traffic management capabilities to help growing businesses organize their networks more effectively and efficiently. For example, the switches provide dynamic Layer 3 routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance.

True Stacking

Reduce the complexity of your network while enhancing your control over a growing network by configuring, managing, and troubleshooting all your switches in a stack as a single unit using a single IP address. True stacking also provides other benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring.

Energy Efficient

 The Cisco CBS350-48FP4G Ghana has support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.

Compact Design

The sleek and compact design for the Cisco CBS350-48FP4G Ghana provides additional deployment flexibility, including outside wiring closet installation such as retail stores, open plan offices, and classrooms without disturbing the environment.

Specifications

Feature Description
Capacity in Millions of Packets per Second (mpps) (64-byte packets) 77.38
Switching Capacity in Gigabits per Second (Gbps) 104.0
Total System Ports 52 x Gigabit Ethernet
RJ-45 Ports 48 x Gigabit Ethernet
Combo Ports (RJ45 + Small form-factor pluggable [SFP]) 4 x SFP
Packet Buffer 3 MB
Unit dimensions (W x D x H) 445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in)
Layer 3
IPv4 routing Wirespeed routing of IPv4 packets

Up to 990 static routes and up to 128 IP interfaces

IPv6 routing Wirespeed routing of IPv6 packets
Layer 3 Interface Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface
Classless Interdomain Routing (CIDR) Support for classless interdomain routing
RIP v2 Support for Routing Information Protocol version 2 for dynamic routing
Policy-Based Routing (PBR) Flexible routing control to direct packets to different next hop based on IPv4 or IPv6 Access Control List (ACL)
DHCP Server Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes

Support for DHCP options

DHCP relay at Layer 3 Relay of DHCP traffic across IP domains
User Datagram Protocol (UDP) relay Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets
Quality of Service
Priority levels 8 hardware queues
Scheduling Strict priority and Weighted Round-Robin (WRR)
Rate limiting Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based; 2R3C policing
Congestion avoidance A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization
iSCSI traffic optimization A mechanism for giving priority to iSCSI traffic over other types of traffic
Green (power efficiency)
Energy Detect Automatically turns power off on RJ-45 port when detecting link down. Active mode is resumed without loss of any packets when the switch detects the link up
Cable length detection Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables.
EEE Compliant (802.3az) Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Disable port LEDs LEDs can be manually turned off to save on energy
Time-based port operation Link up or down based on user-defined schedule (when the port is administratively up)
Time-based PoE PoE power can be on or off based on user-defined schedule to save energy
General
Jumbo frames Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table 16K addresses
Hardware
USB slot USB Type-A slot on the front panel of the switch for easy file and image management
Buttons Reset button
Cabling type Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs System, Link/Act, PoE, Speed
Flash 256 MB
CPU 800 MHz ARM
DRAM 512 MB
Environmental
Storage temperature -13° to 158°F (-25° to 70°C)
Operating humidity 10% to 90%, relative, non-condensing
Storage humidity 10% to 90%, relative, non-condensing
Warranty Limited lifetime with next business day advance replacement (where available)
Package Contents
  • Cisco Business 350 Series Managed Switch
  • Power Cord (Power adapter for select 8-port and 16-port SKUs)
  • Mounting Kit
  • Quick Start Guide



Datasheet Download
