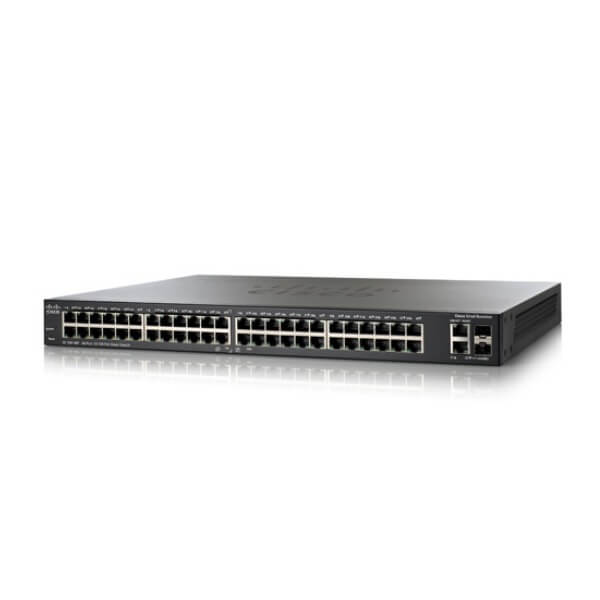

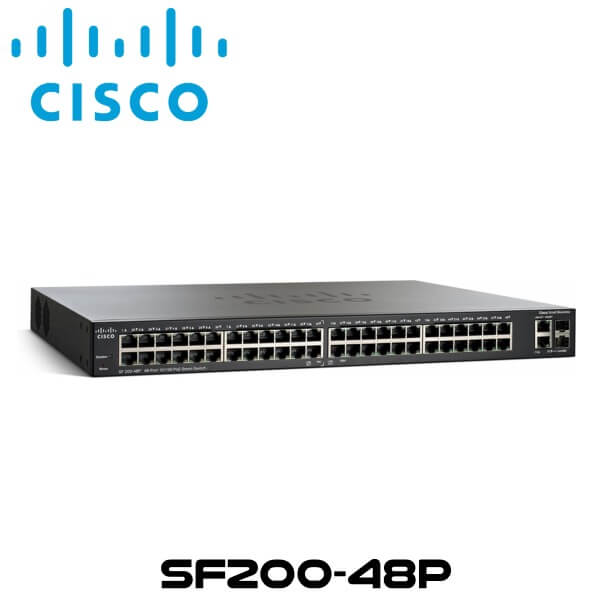

The Cisco SF200-48P Ghana switch is an affordable 48-port 10/100 smart switch with two combination mini-GBIC uplink ports and Power over Ethernet (PoE). It delivers the basic security and quality of service (QoS) features

Category:

Description

Cisco SF200-48P Network Switch Ghana

The Cisco SF200-48P Ghana switch is an affordable 48-port 10/100 smart switch with two combination mini-GBIC uplink ports and Power over Ethernet (PoE). It delivers the basic security and quality of service (QoS) features needed to share network resources and connect network devices. The switch has native support for IPv6 as well as the previous IPv4 standard ensuring your network is ready for the next generation of technologies. With energy-efficient technology, it optimizes power use to reduce energy costs without compromising performance. It’s easy to configure and manage with intuitive browser-based tools and is offered with a limited lifetime warranty. The Cisco SF200-48P provides the ideal combination of affordability, reliability and performance in a switch designed specifically for small businesses.

Cisco SF200-48P Ghana features expandable Fast Ethernet or Gigabit Ethernet switches provide basic management, security, and quality-of-service (QoS) features beyond those of an unmanaged or consumer-grade switch, at a lower cost than managed switches. Cisco SF200-48P Ghana is equipped with an easy-to-use web user interface, Cisco Discovery Protocol, and Cisco Smartports, you can deploy and configure a rock-solid business network in minutes.

Features

  • High Performance and Reliability: Get the high availability and performance you need to support vital business applications while reducing downtime.
  • Advanced Features: Control network traffic with advanced features such as quality of service (QoS), Layer 3 static routing and IPv6 support.
  • Easy Setup and Management: Intuitive browser-based tools, mass deployment capabilities, and consistent features across all models simplify setup and configuration.
  • Switches optimize power usage for energy efficiency without compromising performance.
  • 48 total ports with 24 port POE with 180W of total power

High-speed desktop connectivity

Cisco SF200-48P Ghana can quickly and securely connect employees working in small offices with one another and with all of the servers, printers, and other devices they use. High performance and reliable connectivity help speed file transfers and data processing, improve network uptime, and keep your employees connected and productive.

Highly secure wireless connectivity

Cisco 200 Series switches work with Cisco and third-party wireless solutions to extend the reach of your network. Employees can work productively from conference rooms and common areas, collaborate in any office, and access business applications from wherever they are. With their security features, Power over Ethernet (PoE), Auto Smartports, VLAN, and QoS, these switches are the perfect foundation to add business-grade wireless to a network.

Unified communications

The Cisco 200 Series provides QoS features to enable you to prioritize delay-sensitive traffic in your network and let you converge all of your communications solutions – such as IP telephony and video surveillance – onto a single Ethernet network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for small businesses, and Cisco 200 Series switches have been rigorously tested to help ensure easy integration and full compatibility with these and other vendor products.

Easy configuration and management

  • Cisco 200 Series switches are designed to be easy to deploy and use by small businesses or the partners that serve them. Simple-to-use web-based interfaces reduce the time it takes to deploy, manage, and troubleshoot your network. Key features include:
  • Cisco Discovery Protocol and Link Layer Discovery Protocol (LLDP-MED) automatically detect all the devices connected to your network and then automatically configure themselves for the appropriate connectivity and instruct the devices to use appropriate voice VLAN or QoS parameters.
  • Cisco Smartports technology provides for more advanced capabilities and hands-on control by automatically configuring ports with specific levels of security, QoS, and availability according to the type of connected device, based on Cisco best practices and pretested configurations. The Auto Smartports feature automatically applies the intelligence delivered through the Smartports roles to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This capability facilitates zero‑touch deployments.
  • Cisco FindIT Network Discovery Utility works through a simple toolbar on the user’s web browser to discover Cisco devices on the network and display basic information, such as serial numbers and IP addresses, to aid in the configuration and speed the deployment of Cisco Small Business products.

Performance and reliability

Cisco 200 Series switches have been tested to deliver the high availability and performance you would expect from a Cisco switch and help you prevent costly downtime. The switches speed file transfer times, improve slow and sluggish networks, keep your vital business applications available, and help your employees respond more quickly to customers and each other. With a network based on Cisco 200 Series switches, you can address all of your business communications and connectivity needs and reduce the total cost of ownership of your technology infrastructure.

Power over Ethernet (PoE)

Cisco 200 Series switches are available with PoE on both Fast Ethernet and Gigabit Ethernet models. This capability simplifies the deployment of IP telephony, wireless, video surveillance, and other solutions by allowing you to send data and power to network endpoints over the same network cable. With no need for separate power supplies or outlets for IP phones, IP cameras, or wireless access points, you can speed up deployment and installation and take advantage of advanced communications technologies quickly, and at a lower cost.

Network security

Cisco SF200-48P Ghana switch provides security and network management features you need to maintain a high level of security for your business, keep unauthorized users off the network, and protect your business data. The switch provides integrated network security to reduce the risk of a security breach, with IEEE 802.1X port security to control access to your network. Denial-of-service (DOS) attack prevention increases network uptime in the presence of an attack.

IP telephony support

Cisco SF200-48P Ghana include QoS features to prioritize delay-sensitive services such as voice and video, simplify unified communications deployments, and help ensure consistent network performance for all services.

Network-wide automatic voice deployment

Using a combination of Cisco Discovery Protocol, LLDP-MED, Auto Smartports, and Voice Services Discovery Protocol (VSDP) – a unique patent-pending Cisco protocol – customers can deploy an end-to-end voice network dynamically. The switches in the network automatically converge into a single voice VLAN and set of QoS parameters and then propagate them out to the phones on the ports where they are discovered. For example, automated voice VLAN capabilities let you plug any IP phone (including third-party phones) into your IP telephony network and receive an immediate dial tone. The switch automatically configures the device with the right VLAN and QoS parameters to prioritize voice traffic.

IPv6 support

As the IP network addressing scheme evolves to accommodate more devices, you can make sure that your network is ready. Cisco SF200-48P Ghana provides native support for IPv6 alongside traditional IPv4. That means you can take full advantage of IPv6-enabled operating systems and applications in the future, without having to upgrade your network equipment.

An energy-efficient solution

Cisco SF200-48P Ghana is designed to be energy efficient and eco-friendly without compromising performance. They help conserve energy by optimizing power use, which helps protect the environment and lowers your energy costs. Power-saving features include:

  • Energy-Efficient Ethernet (EEE, the IEEE 802.3az standard), supported on Cisco 200 Series Gigabit Ethernet switch models. EEE improves the efficiency of network equipment and provides standardized signaling mechanisms that can enable rapid transitions between normal operation and low power idle (LPI) states in systems on either end of the physical layer link.
  • Automatic power down on Gigabit Ethernet ports when a link is not active.
  • Embedded intelligence to adjust power based on cable length on Gigabit Ethernet models.
  • Fanless design in most models, which reduces power consumption, increases reliability, and provides quieter operation.

Additional Gigabit Ethernet ports

The Cisco SF200-48P Ghana provides more ports per switch than other switches in the market, giving you more flexibility to connect and empower your business. Gigabit Ethernet models feature 26- and 50-port switches, versus traditional devices that offer 20 or 44 ports with 4 shared ports. The Cisco 200 Series also offers mini Gigabit Interface Converter (mini-GBIC) expansion slots that give you the option to add fiber optic or Gigabit Ethernet uplink connectivity to the switch. With the ability to increase the connectivity range of the switches, you have more flexibility to design your network around your unique business environment, and to easily connect switches on different floors or across the business.

Peace of mind and investment protection

Cisco SF200-48P Ghana switch offer the reliable performance, investment protection, and peace of mind you expect from a Cisco switch. When you invest in the Cisco 200 Series, you gain the benefit of:

  • Cisco limited lifetime warranty to protect your investment.
  • Rigorous testing to help ensure easy integration and compatibility with other Cisco networking and communications products, including the complete Cisco Small Business portfolio.

Multiple language options

 The Cisco 200 Series is available in seven languages: English, French, German, Italian, Spanish, Japanese, and simplified Chinese. All product documentation and most user interfaces are translated, giving you the ability to select your preferred language.

Specifications

Performance
Switching capacity and forwarding rate Model Capacity in Millions of Packets per Second (mpps) (64-byte packets) Switching Capacity in Gigabits per Second (Gbps)
SF200-24 6.55 8.8
SF200-24P 6.55 8.8
SF200-24FP 6.55 8.8
SF200-48 10.12 13.6
SF200-48P 10.12 13.6
SG200-08 11.9 13.6
SG200-08P 11.9 13.6
SG200-10FP 14.88 20.0
SG200-18 26.78 36.0
SG200-26 38.69 52.0
SG200-26P 38.69 52.0
SG200-26FP 38.69 52.0
SG200-50 74.41 100.0
SG200-50P 74.41 100.0
SG200-50FP 74.41 100.0
Layer 2 Switching
Spanning Tree Protocol (STP) Standard 802.1d STP support

Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default

Port grouping Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

  • Up to 4 groups
  • Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs). 16 VLANs supported in SG200-08
and SG200-08PPort-based and 802.1Q tag-based VLANs
Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS
Internet Group Management Protocol (IGMP) versions 1 and 2 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups (16 for SG200-08 and SG200-08P)
Head-of-line (HOL) blocking HOL blocking prevention
Security
IEEE 802.1X (Authenticator role) 802.1X : RADIUS authentication, MD5 hash
Port security Locks MAC addresses to ports, and limits the number of learned MAC addresses
Storm control Broadcast, multicast, and unknown unicast
DoS prevention DoS attack prevention
Quality of Service
Priority levels 4 hardware queues
Scheduling Strict priority and weighted round-robin (WRR)

Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)

Class of service Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/type of service (ToS)/DSCP based, Differentiated Services (DiffServ)
Rate limiting Ingress policer, per VLAN and per port
Standards
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1350, RFC 1533, RFC 1541, RFC 1542, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 2618
IPv6
IPv6
  • IPv6 host mode
  • IPv6 over Ethernet
  • Dual IPv6/IPv4 stack
  • IPv6 neighbor and router discovery (ND)
  • IPv6 stateless address auto-configuration
  • Path maximum transmission unit (MTU) discovery
  • Duplicate address detection (DAD)
  • Internet Control Message Protocol (ICMP) version 6
  • IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) support
IPv6 QoS Prioritize IPv6 packets in hardware
Multicast Listener Discovery (MLD) snooping Deliver IPv6 multicast packets only to the required receivers
IPv6 applications Web, ping, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), RADIUS, syslog, DNS client
IPv6 RFCs supported
  • RFC 2463 : ICMP version 6
  • RFC 3513 : IPv6 address architecture
  • RFC 4291 : IPv6 addressing architecture
  • RFC 2460 : IPv6 specification
  • RFC 2461 : Neighbor discovery for IPv6
  • RFC 2462 : IPv6 stateless address auto-configuration
  • RFC 1981 : Path maximum transmission unit (MTU) discovery
  • RFC 4007 : IPv6 scoped address architecture
  • RFC 3484 : Default address selection mechanism
  • RFC 4214 : ISATAP tunneling
  • RFC 4293 : MIB IPv6 : Textual conventions and general group
  • RFC 3595 : Textual conventions for IPv6 flow label
Management
Web user interface Built-in switch configuration utility for easy browser-based device configuration (HTTP). Supports configuration, system dashboard, system maintenance, and monitoring
Simple Network Management Protocol (SNMP) SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model (USM)

Not supported on SG200-08 and SG200-08P

Standard MIBs (Not supported on SG200‑08 and SG200-08P)
  • draft-ietf-bridge-8021x-MIB
  • draft-ietf-bridge-rstpmib-04-MIB
  • draft-ietf-hubmib-etherif-MIB-v3-00-MIB
  • draft-ietf-syslog-device-MIB
  • ianaaddrfamnumbers-MIB
  • ianaifty-MIB
  • ianaprot-MIB
  • inet-address-MIB
  • ip-forward-MIB
  • ip-MIB
  • RFC1155-SMI
  • RFC1213-MIB
  • SNMPv2-MIB
  • SNMPv2-SMI
  • SNMPv2-TM
  • RMON-MIB.my
  • dcb-raj-DCBX-MIB-1108-MIB
  • rfc1724-MIB
  • RFC-1212.my_for_MG-Soft
  • rfc1213-MIB
  • rfc1757-MIB
  • RFC-1215.my
  • SNMPv2-CONF.my
  • SNMPv2-TC.my
  • rfc2674-MIB
  • rfc2575-MIB
  • rfc2573-MIB
  • rfc2233-MIB
  • rfc2013-MIB
  • rfc2012-MIB
  • rfc2011-MIB
  • draft-ietf-entmib-sensor-MIB
  • lldp-MIB
  • lldpextdot1-MIB
  • lldpextdot3-MIB
  • lldpextmed-MIB
  • p-bridge-MIB
  • q-bridge-MIB
  • rfc1389-MIB
  • rfc1493-MIB
  • rfc1611-MIB
  • rfc1612-MIB
  • rfc1850-MIB
  • rfc1907-MIB
  • rfc2571-MIB
  • rfc2572-MIB
  • rfc2574-MIB
  • rfc2576-MIB
  • rfc2613-MIB
  • rfc2665-MIB
  • rfc2668-MIB
  • rfc2737-MIB
  • rfc2925-MIB
  • rfc3621-MIB
  • rfc4668-MIB
  • rfc4670-MIB
  • trunk-MIB
  • tunnel-MIB
  • udp-MIB
Private MIBs (Not supported on SG200‑08 and SG200-08P)
  • CISCOSB-lldp-MIB
  • CISCOSB-brgmulticast-MIB
  • CISCOSB-bridgemibobjects-MIB
  • CISCOSB-bonjour-MIB
  • CISCOSB-dhcpcl-MIB
  • CISCOSB-MIB
  • CISCOSB-wrandomtaildrop-MIB
  • CISCOSB-traceroute-MIB
  • CISCOSB-telnet-MIB
  • CISCOSB-stormctrl-MIB
  • CISCOSB-ssh-MIB
  • CISCOSB-socket-MIB
  • CISCOSB-sntp-MIB
  • CISCOSB-smon-MIB
  • CISCOSB-phy-MIB
  • CISCOSB-multisessionterminal-MIB
  • CISCOSB-mri-MIB
  • CISCOSB-jumboframes-MIB
  • CISCOSB-gvrp-MIB
  • CISCOSB-endofmib-MIB
  • CISCOSB-dot1x-MIB
  • CISCOSB-deviceparams-MIB
  • CISCOSB-cli-MIB
  • CISCOSB-cdb-MIB
  • CISCOSB-brgmacswitch-MIB
  • CISCOSB-3sw2swtables-MIB
  • CISCOSB-smartPorts-MIB
  • CISCOSB-tbi-MIB
  • CISCOSB-macbaseprio-MIB
  • CISCOSB-policy-MIB
  • CISCOSB-env_mib
  • CISCOSB-sensor-MIB
  • CISCOSB-aaa-MIB
  • CISCOSB-application-MIB
  • CISCOSB-bridgesecurity-MIB
  • CISCOSB-copy-MIB
  • CISCOSB-CpuCounters-MIB
  • CISCOSB-Custom1BonjourService-MIB
  • CISCOSB-dhcp-MIB
  • CISCOSB-dlf-MIB
  • CISCOSB-dnscl-MIB
  • CISCOSB-embweb-MIB
  • CISCOSB-fft-MIB
  • CISCOSB-file-MIB
  • CISCOSB-greeneth-MIB
  • CISCOSB-interfaces-MIB
  • CISCOSB-interfaces_recovery-MIB
  • CISCOSB-ip-MIB
  • CISCOSB-iprouter-MIB
  • CISCOSB-ipv6-MIB
  • CISCOSB-mnginf-MIB
  • CISCOSB-lcli-MIB
  • CISCOSB-localization-MIB
  • CISCOSB-mcmngr-MIB
  • CISCOSB-mng-MIB
  • CISCOSB-physdescription-MIB
  • CISCOSB-Poe-MIB
  • CISCOSB-protectedport-MIB
  • CISCOSB-rmon-MIB
  • CISCOSB-rs232-MIB
  • CISCOSB-SecuritySuite-MIB
  • CISCOSB-snmp-MIB
  • CISCOSB-specialbpdu-MIB
  • CISCOSB-banner-MIB
  • CISCOSB-syslog-MIB
  • CISCOSB-TcpSession-MIB
  • CISCOSB-traps-MIB
  • CISCOSB-trunk-MIB
  • CISCOSB-tuning-MIB
  • CISCOSB-tunnel-MIB
  • CISCOSB-udp-MIB
  • CISCOSB-vlan-MIB
  • CISCOSB-ipstdacl-MIB
  • CISCO-SMI-MIB
  • CISCOSB-DebugCapabilities-MIB
  • CISCOSB-CDP-MIB
  • CISCOSB-vlanVoice-MIB
  • CISCOSB-EVENTS-MIB
  • CISCOSB-sysmng-MIB
  • CISCOSB-sct-MIB
  • CISCO-TC-MIB
  • CISCO-VTP-MIB
  • CISCO-CDP-MIB
  • CISCOSB-eee-MIB
  • CISCOSB-ssl-MIB
  • CISCOSB-qosclimib-MIB
  • CISCOSB-digitalkeymanage-MIB
  • CISCOSB-tbp-MIB
  • CISCOSMB-MIB
  • CISCOSB-secsd-MIB
  • CISCOSB-draft-ietf-entmib-sensor-MIB
  • CISCOSB-draft-ietf-syslog-device-MIB
  • CISCOSB-rfc2925-MIB
Remote Monitoring (RMON) Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
IPv4 and IPv6 dual stack Coexistence of both protocol stacks to ease migration
Firmware upgrade Web browser upgrade (HTTP) and TFTP
Port mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 4 source ports can be mirrored to one destination port. A single session is supported.
VLAN mirroring Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 4 source VLANs can be mirrored to one destination port. A single session is supported.
Dynamic Host Configuration Protocol (DHCP) (options 66 and 67) (DHCP) options facilitate tighter control from a central point (DHCP server) to obtain IP address and perform auto-configuration (with configuration file download)
Text-editable config files Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment
Smartports
  • Simplified configuration of QoS and security capabilities
  • Not supported on SG200-08 and SG200-08P
Auto Smartports
  • Automatically applies the intelligence delivered through the Smartports roles to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This facilitates zero touch deployments.
  • Not supported on SG200-08 and SG200-08P
Cloud services Support for FindIT Network Discovery Utility and Cisco Active Advisor
Localization Localization of GUI and documentation into multiple languages
Other management HTTP, RADIUS, port mirroring, TFTP upgrade, DHCP client, BOOTP, SNTP, ping, syslog
Power Efficiency
EEE compliant (802.3az)
  • Supports 802.3az on all copper Gigabit Ethernet ports (SG200-xx models)
  • Not supported on SG200-08 and SG200-08P
Energy Detect mode
  • Automatically turns off power on Gigabit Ethernet RJ-45 port when the switch detects a link down
  • Active mode is resumed without loss of any packets when the switch detects that the link is back up
Cable length detection
  • Adjusts the signal strength based on the cable length. Reduces the power consumption for cables shorter than 10 m.
  • Not supported on SG200-08 and SG200-08P
General
Jumbo frames Frame sizes up to 10 KB supported on 10/100 and Gigabit Ethernet interfaces

(9 KB for SG200-08 and SG200-08P)

MAC table Up to 8,000 MAC addresses
Discovery
Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP‑MED extensions LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices, which store the data in an MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones.
Cisco Discovery Protocol
  • The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics via this protocol.
  • Not supported on SG200-08 and SG200-08P
Auto Smartports
  • Automatically applies the intelligence delivered through the Smartports roles to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This capability facilitates zero-touch deployments.
  • Not supported on SG200-08 and SG200-08P
Bonjour The switch advertises itself using the Bonjour protocol
Power over Ethernet (PoE)
IEEE 802.3af PoE delivered on half of the RJ-45 ports within the listed power budgets Maximum power of 15.4W to any 10/100 or Gigabit Ethernet base port supporting PoE. The total power available for PoE per switch is as follows :
Model Power Dedicated to PoE Number of Ports That Support PoE
SF200-24P 100W 12
SF200-24FP 180W 24
SF200-48P 180W 24
SG200-08P 32W 4
SG200-10FP 62W 8
SG200-26P 100W 12
SG200-26FP 180W 24
SG200-50P 180W 24
SG200-50FP 375W 48
IEEE 802.3af PoE Powered Device (PD) Besides AC power, SG200-08 can work as PoE powered device (PD) and be powered by PoE switch connected to port 1. When both AC and PoE power are connected, PoE is preferred over AC, and AC will function as the backup to PoE power source.
Power consumption Model Power Savings Mode Power Consumption : Worst Case Heat Dissipation (BTU/hr)
SF200-24 Energy Detect 110V/0.272A/13.7W 220V/0.169A/14.5W 49.5
SF200-24P Energy Detect 110V/0.346A/21.3W 220V/0.166A/22.2W 75.8
SF200-24FP Energy Detect 110V/0.231A/23.5W 220V/0.179A/24.4W 85.6
SF200-48 Energy Detect 110V/0.453A/26.2W 220V/0.276A/26.8W 91.5
SF200-48P Energy Detect 110V/0.355A/37.2W 220V/0.217A/37.4W 127.6
SG200-08 Auto power down for link down 110V/P=6.7W 220V/P=7.21W 24.6
SG200-08P Auto power down for link down 110V/P=7.6W 220V/P=8.1W 27.6
SG200-10FP Short reach plus Energy Detect 110V/P=13.13W 220V/P=13.48W 46.0
SG200-18 Short reach plus Energy Detect 110V/P=22.4W 20V/P=22.9W 78.2
SG200-26 Short reach plus Energy Detect 110V/0.513A/27.8W 220V/0.306A/28.3W 96.6
SG200-26P Short reach plus Energy Detect 110V/0.591A/36.8W 220V/0.381A/37.5W 97.9
SG200-26FP Short reach plus Energy Detect 110V/0.269A/27.8W 220V/0.196A/28.7W 128.0
SG200-50 Short reach plus Energy Detect 110V/0.569A/61.8W 220V/0.296A/61.4W 209.6
SG200-50P Short reach plus Energy Detect 110V/0.595A/62W 220V/0.338A/61.2W 211.6
SG200-50FP Short reach plus Energy Detect 110V/0.749A/76.4W 220V/0.412A/78.3W 267.2
Ports Model Name Total System Ports RJ-45 Ports Combo Ports (RJ‑45 + SFP)
SF200-24 24 Fast Ethernet 2 Gigabit Ethernet 24 Fast Ethernet 2 Gigabit Ethernet combo
SF200-24P 24 Fast Ethernet 2 Gigabit Ethernet 24 Fast Ethernet 2 Gigabit Ethernet combo
SF200-24FP 24 Fast Ethernet 2 Gigabit Ethernet 24 Fast Ethernet 2 Gigabit Ethernet combo
SF200-48 48 Fast Ethernet 2 Gigabit Ethernet 48 Fast Ethernet 2 Gigabit Ethernet combo
SF200-48P 48 Fast Ethernet 2 Gigabit Ethernet 48 Fast Ethernet 2 Gigabit Ethernet combo
SG200-08 8 Gigabit Ethernet 8 Gigabit Ethernet
SG200-08P 8 Gigabit Ethernet 8 Gigabit Ethernet
SG200-10FP 8 Gigabit Ethernet 8 Gigabit Ethernet 2 Gigabit Ethernet combo
SG200-18 18 Gigabit Ethernet 16 Gigabit Ethernet 2 Gigabit Ethernet combo
SG200-26 26 Gigabit Ethernet 24 Gigabit Ethernet 2 Gigabit Ethernet combo
SG200-26P 26 Gigabit Ethernet 24 Gigabit Ethernet 2 Gigabit Ethernet combo
SG200-26FP 26 Gigabit Ethernet 24 Gigabit Ethernet 2 Gigabit Ethernet combo
SG200-50 50 Gigabit Ethernet 48 Gigabit Ethernet 2 Gigabit Ethernet combo
SG200-50P 50 Gigabit Ethernet 48 Gigabit Ethernet 2 Gigabit Ethernet combo
SG200-50FP 50 Gigabit Ethernet 48 Gigabit Ethernet 2 Gigabit Ethernet combo
Buttons Reset button
Cabling type Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T
LEDs System, Link/Act, PoE, Speed
Flash 16 MB (8 MB in SG200-08 and SG200-08P)
CPU memory 128 MB (32 MB in SG200-08 and SG200-08P)
Packet buffer All numbers are aggregate across all ports, as the buffers are dynamically shared :
Model Packet Buffer
SF200-24 8 Mb
SF200-24P 8 Mb
SF200-24FP 8 Mb
SF200-48 16 Mb
SF200-48P 16 Mb
SG200-08 4 Mb
SG200-08P 4 Mb
SG200-10FP 8 Mb
SG200-18 8 Mb
SG200-26 8 Mb
SG200-26P 8 Mb
SG200-26FP 8 Mb
SG200-50 16 Mb
SG200-50P 16 Mb
SG200-50FP 16 Mb
Supported Small Form-Factor Pluggable (SFP) Modules Product Ordering Number Media Speed Typical Distance
MFEFX1 Multimode fiber 100 Mbps 2 km
MFELX1 Single-mode fiber 100 Mbps 15 km
MFEBX1 Single-mode fiber 100 Mbps 20 km
MGBBX1 Single-mode fiber 1000 Mbps 10 km
MGBSX1 Multimode fiber 1000 Mbps 500 m
MGBLH1 Single-mode fiber 1000 Mbps 40 km
MGBLX1 Single-mode fiber 1000 Mbps 10 km
Environmental
Dimensions (W x H x D) Model Metric (mm) Inches
SF200-24 440 x 44.32 x 257 17.35 x 1.74 x 10.1
SF200-24P 440 x 44 x 257 17.35 x 1.73 x 10.1
SF200-24FP 440 x 44 x 257 17.35 x 1.73 x 10.1
SF200-48 440 x 44 x 257 17.35 x 1.73 x 10.1
SF200-48P 440 x 44.32 x 350 17.35 x 1.74 x 13.8
SG200-08 113 x 27 x 130 4.45 x 1.06 x 5.12
SG200-08P 130 x 42.3 x 130 5.12 x 1.52 x 5.12
SG200-10FP 279.4 x 44.45 x 170 11 x 1.45 x 6.7
SG200-18 440.6 x 44.32 x 202.82 17.35 x 1.74 x 7.99
SG200-26 440 x 44 x 257 17.35 x 1.73 x 10.1
SG200-26P 440 x 44 x 257 17.35 x 1.73 x 10.1
SG200-26FP 440 x 44 x 257 17.35 x 1.73 x 10.1
SG200-50 440 x 44 x 257 17.35 x 1.73 x 10.1
SG200-50P 440 x 44 x 350 17.35 x 1.73 x 13.8
SG200-50FP 440 x 44 x 350 17.35 x 1.73 x 13.8
Unit weight Model Kilograms Pounds
SF200-24 3.04 6.70
SF200-24P 3.45 7.61
SF200-24FP 3.67 8.09
SF200-48 3.42 7.54
SF200-48P 4.73 10.43
SG200-08 0.75 1.65
SG200-08P 1.26 2.78
SG200-10FP 1.26 2.78
SG200-18 2.01 4.43
SG200-26 3.27 7.21
SG200-26P  3.67 8.09
SG200-26FP 3.82 8.42
SG200-50 3.96 8.73
SG200-50P 5.47 12.06
SG200-50FP 6.04 13.32
Power Model Power
SF200-24 100V-240V, 50-60 HZ, internal, universal
SF200-24P 100V-240V, 50-60 HZ, internal, universal
SF200-24FP 100V-240V 47-63 Hz, internal, universal
SF200-48 100V-240V, 50-60 HZ, internal, universal
SF200-48P 100V-240V, 47-63 HZ, internal, universal
SG200-08 (external) 100V-240V, 0.5A, 50-60 HZ
SG200-08P (external) 100V-240V, 1-0.56A, 50-60 HZ
SG200-10FP (external) 100V-240V, 2A, 50-60 Hz
SG200-18 100V-240V, 50-60 HZ, internal, universal
SG200-26 100V-240V, 50-60 HZ, internal, universal
SG200-26P 100V-240V, 50-60 HZ, internal, universal
SG200-26FP 100V-240V 47-63 Hz, internal, universal
SG200-50 110V-240V, 50-60 HZ, internal, universal
SG200-50P 100V-240V, 47-63 HZ, internal, universal
SG200-50FP 100V-240V 47-63 Hz, internal, universal
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature
  • SF200-24, SF200-24P, SF200-48, SF200-48P, SG200-08, SG200-08P, SG200-18, SG200-26, SG200-26P, SG200-50, SG200-50P
  • 32° to 104°F (0° to 40°C)
  • SG200-10FP
  • 32° to 113°F (0° to 45°C)
  • SF200-24FP, SG200-26FP, SG200-50FP
  • 32° to 122°F (0° to 50°C)
Storage temperature –4° to 158°F (–20° to 70°C)
Operating humidity 10% to 90%, relative, non-condensing
Storage humidity 10% to 90%, relative, non-condensing
Acoustic noise and mean time between failures (MTBF) Model Fan (Number) Acoustic Noise MTBF @ 40°C (hours)
SF200-24 No 414,166
SF200-24P 1 40.2 dB 307,098
SF200-24FP 2 40.2 dB 314,444.5 (based on 45°C)
SF200-48 No 267,865
SF200-48P 2 41.7 dB 174,966
SG200-08 No 71,834
SG200-08P No 69,003
SG200-10FP No 287,436 (based on 45°C)
SG200-18 No 68,033
SG200-26 No 194,278
SG200-26P 1 40.2 dB 218,842
SG200-26FP 2 40.2 dB 319,407 (based on 45°C)
SG200-50 2 41.7 dB 237,610
SG200-50P 4 42.5 dB at 30°C 54.7 dB at 40°C 208,976
SG200-50FP 4 42.1 dB at 30°C 55.9 dB at 50°C 192,790 (based on 45°C)
Warranty Limited lifetime
Package Contents
  • Cisco 200 Series Smart Switch
  • Power cord (power adapter for 8-port and 10-port SKUs)
  • Mounting hardware
  • Quick-start guide



Datasheet Download
