Cisco SG220-26 Ghana



Cisco SG220-26 Ghana

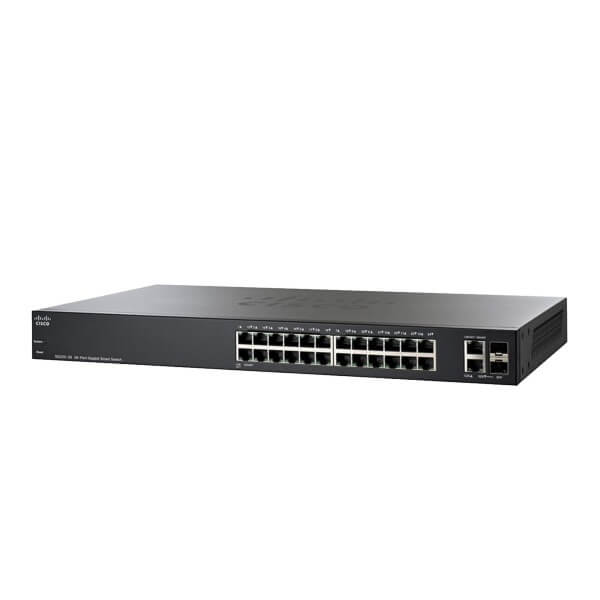

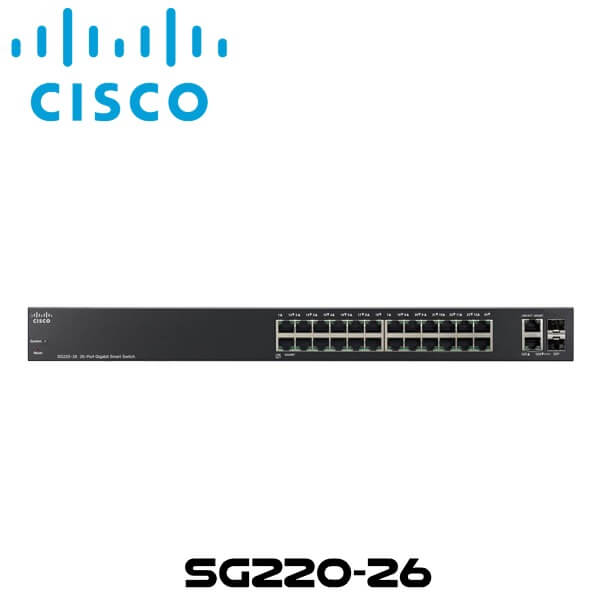

The Cisco SG220-26 Ghana Switch is a 24-port Gigabit and 2-port Gigabit RJ45/SFP combo with capabilities such as security and quality of service (QoS), and access control lists (ACLs).

Category:

Description

Cisco SG220-26 Network Switch Ghana

The Cisco SG220-26 Ghana Switch is a 24-port Gigabit and 2-port Gigabit RJ45/SFP combo with capabilities such as security and quality of service (QoS), and access control lists (ACLs). Setup and configuration are simplified with intuitive, browser-based tools. It delivers outstanding value, providing comprehensive features designed for growing businesses while maintaining the affordability of smart switches. This switch is part of the Cisco small and midsize business portfolio and is an affordable smart switch equipped with security, performance, and ease of use to help build a solid business network.

Add secure and energy-saving switching capacity to a small mid-size corporate network with the Cisco SG220-26 Ghana Smart Switch from Cisco. The Cisco SG220-26 Ghana Smart Switch comes equipped with 24 Gigabit RJ45 ports, two Gigabit combo RJ45/SFP uplink ports, a total switching capacity of 52 Gb/s and a total forwarding capacity of 38.69 Mpps. Boasting 128MB of processor RAM, the Cisco SG220-26 Ghana comes with security features such as 802.11x authentication, guest VLANs, access control lists, and denial of service protection, while support for Energy-Efficient Ethernet helps to conserve power during low-activity periods.

Features

Flexible Management

Management options for the Cisco SG220-26 Ghana Smart Switch include Simple Network Management Protocol (SNMP), a Command-Line Interface (CLI), a web-based interface, and the Cisco FindIT utility.

Configuration and Deployment Features

Cisco Discovery Protocol (CDP) and Link Layer Discovery Protocol-Media Endpoint Discovery (LLDP-MED) automatically detects the devices connected to your network, then automatically configures the switch with the appropriate settings and instructs end devices on the appropriate voice VLAN or QoS parameters to use. In addition, the Cisco FindIT Network Discovery Utility discovers Cisco devices on the network and display basic information, such as serial numbers and IP addresses.

Remote Management

Cisco SG220-26 Ghana use SNMP (Simple Network Management Protocol), you can set up and manage all switches and other Cisco devices in your network remotely.

Dual Image Support

With the ability to maintain two images in permanent storage instead of only a single image, you can perform software upgrades without taking the network offline or worrying about an outage because of a bad image file.

Dual Configuration Files Support

Configures the device, validating the configuration, and then save the configuration to take effect after reboot. Additionally, a mirror configuration file provides automatic backup of the latest stable configuration file.

IPv6 Support

The Cisco SG220-26 Ghana provides native support for IPv6, making it easier to migrate to the next generation of networking applications and operating systems without an equipment upgrade.

Network Security

Cisco SG220-26 Ghana has support for network security applications such as IEEE 802.1X and port security can tightly limit access to specific segments of your network. Guest virtual LANs (VLANs) let you provide internet connectivity to nonemployee users while isolating critical business services from guest traffic. Extensive ACLs can restrict sensitive portions of the network from unauthorized users and guard against network attacks. Security mechanisms such as broadcast/multicast/unknown unicast storm control and Bridge Protocol Data Unit (BPDU) guard can protect the network from invalid configurations or malicious intent. Denial of service (DOS) attack prevention helps to increase uptime in the event of a network attack. Finally, RADIUS, TACACS+, local database authentication, and secure management communication over SSL, SSH, and SNMPv3 can help protect management sessions.

IP Telephony Support

Cisco SG220-26 Ghana is embedded QoS intelligence prioritizes delay-sensitive services such as voice and video and simplifies unified communications deployments, helping to ensure consistent network performance for all services. For example, automated voice VLAN capabilities let you plug any IP phone (including third-party phones) into your IP telephony network and receive an immediate dial tone. The switch automatically configures the device with the right VLAN and QoS parameters to prioritize voice traffic.

Energy Efficiency

Energy Efficient Ethernet (IEEE 802.3az) and Energy Detect support help you save operational expenses and reduce your environmental footprint.

Layer 2 Switching Features

MAC Table Support for up to 8,192 MAC addresses.

Spanning Tree Protocol (STP)

Standard 802.1d Spanning Tree support, enabled by default Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]) Multiple Spanning Tree instances using 802.1s (MSTP) 16 instances are supported

Port Grouping

Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) Cisco SG220-26 Ghana has up to 8 groups Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
Load balance based on source and destination MAC address, or source and destination MAC/IP

Specifications

Interfaces
Ports
  • 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
  • 2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) (Uplink)
Protocols
Layer Services Supported Layer 2 Support
Supported Protocols
  • Head-of-Line (HOL) Blocking
  • IGMP Snooping
  • IPv4
  • IPv6
  • Link Aggregation
  • MAC Filtering
Queuing Strict Priority, Weighted Round Robin (WRR)
Transmission Method Store-and-Forward
Jumbo Frames Support 9216 Bytes
Security
Security Features
  • DoS Attack Prevention
  • RADIUS Authentication
  • Storm Control
SNMP Support 1, 2c, 3
Standards
RFC
  • RFC 768
  • RFC 791
  • RFC 792
  • RFC 793
  • RFC 813
  • RFC 826
  • RFC 854
  • RFC 855
  • RFC 856
  • RFC 858
  • RFC 879
  • RFC 896
  • RFC 894
  • RFC 919
  • RFC 920
  • RFC 922
  • RFC 950
  • RFC 1042
  • RFC 1071
  • RFC 1123
  • RFC 1141
  • RFC 1155
  • RFC 1157
  • RFC 1215
  • RFC 1493
  • RFC 1624
  • RFC 1700
  • RFC 1867
  • RFC 1981
  • RFC 2012
  • RFC 2013
  • RFC 2233
  • RFC 2460
  • RFC 2618
  • RFC 2665
  • RFC 2666
  • RFC 2674
  • RFC 2737
  • RFC 2819
  • RFC 2863
  • RFC 3416
  • RFC 3484
  • RFC 4007
  • RFC 4291
  • RFC 4443
  • RFC 4861
  • RFC 4862
Supported IEEE Standards 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z
Performance
Forwarding Rate 38.69 Mpps
Switching Bandwidth 52 Gb/s
Packet Buffer 4.1 MB
Computer
Flash Memory 32 MB
Memory 128 MB
Electrical
Power Draw 18.9 W
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Environmental
Operating Temperature 32 to 122°F / 0 to 50°C
Operating Humidity 10 to 90%
Storage Temperature -4 to 158°F / -20 to 70°C
Storage Humidity 10 to 90%
Certifications C-Tick, CE, CSA, FCC, UL, as per Manufacturer
General
Cooling System Passive
Indicator Lights Link/Activity, Speed, System
Dimensions 17.32 x 7.91 x 1.73″ / 440 x 201 x 44 mm
Weight 6.19 lb / 2.81 kg
Packaging Info
Package Weight 8.8 lb
Box Dimensions (LxWxH) 21 x 12.5 x 4.1″
