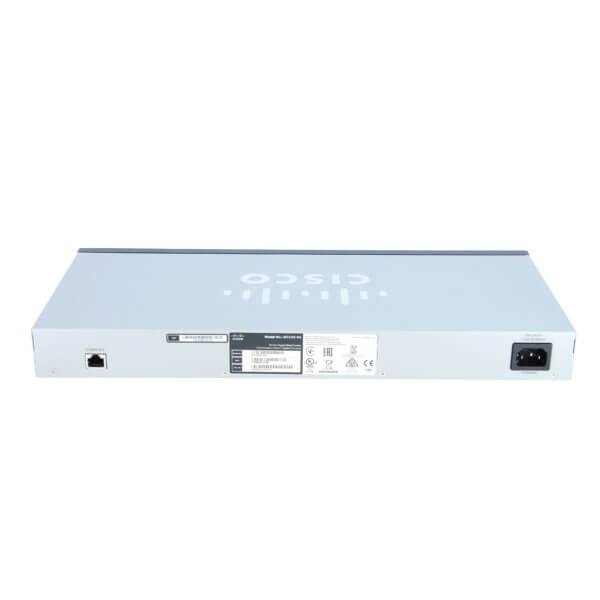

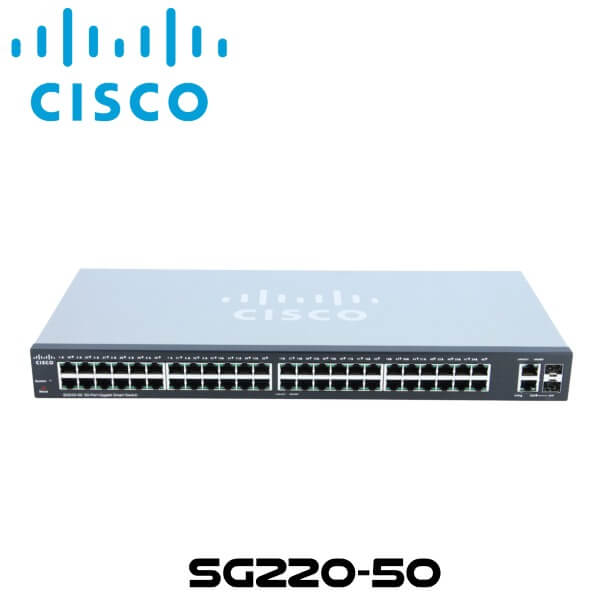

The Cisco SG220-50 Ghana is Cisco Small Business line of network solutions, are a series of affordable smart switches equipped with enhanced security, intelligence, and performance.

Category:

Description

Cisco SG220-50 Network Switch Ghana

The Cisco SG220-50 Ghana is Cisco Small Business line of network solutions, are a series of affordable smart switches equipped with enhanced security, intelligence, and performance. For small and medium-sized businesses running on a tight budget but still requiring a solid network, these switches deliver an excellent combination of features, performance, and ease of use to build a fast, reliable, and highly secure network – at a lower price than managed switches.

The Cisco 220 Series includes a broad range of smart switches that provide 24 to 50 ports of Fast Ethernet and Gigabit Ethernet access with extensive Power over Ethernet (PoE) options. With enhanced features like access control list (ACL), command line interface (CLI) and Power over Ethernet Plus (PoE+), these switches can not only improve the productivity for your business today, but also meet the evolving network demands in the future.

With Cisco SG220-50 Ghana, you can not only build an efficient and reliable network to connect the workforce, but also advanced solutions to deliver data, voice, and video services on a converged infrastructure. Get the best value for your money by improving the productivity of employees. Possible deployment scenarios include:

Features

Secured desktop connectivity.

Cisco SG220-50 Ghana Switch can quickly and reliably connect employees working in small offices with each other and with all of the servers, printers, and other devices they use. With device authentication and access control, you can maintain the integrity of key business information while keeping you employees connected and productive.

Flexible wireless connectivity.

With PoE+ support, and comprehensive security and quality of service (QoS) capabilities, Cisco SG220-50 Ghana provides a solid foundation to add business-grade wireless to the network. You can easily move up to a cutting-edge 802.11ac wireless access point to increase workforce productivity without worrying about power and throughput.

Unified communications.

The Cisco SG220-50 Ghana switch provides QoS features to automatically prioritize delay-sensitive traffic to help you easily deploy an IP-based communication solution on a converged network. PoE+ support can enable IP cameras and videophones to be easily added to your current network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for small businesses. Cisco 220 Series Switches have been rigorously tested to help ensure easy integration and full compatibility with these and other vendor products.

Raising the Bar for Smart Switches

Smart switches are typically priced low but are limited in functionality and scalability. Cisco SG220-50 Ghana Smart Plus Switches raise the bar for the smart switches by providing additional features and enhancements, including:

A higher level of security and intelligence.

ACLs and flow-based QoS give you more control over network performance, maintain the integrity of key business information, and can enable higher network efficiency.

Simple and flexible management.

Cisco SG220-50 Ghana is easy to deploy and use, not only for small, self-installed deployment by non-IT professionals, but also for mid-scale deployment by IT engineers. This switch provides more management options like Cisco CLI, Simple Network Management Protocol (SNMP), Cisco Prime™ LAN Management System (LMS) integration, besides the intuitive, web-based interface and Cisco FindIT utility.

Power Over Ethernet Plus.

PoE+ streamlines the deployment for wireless access points, IP telephony, and video surveillance by allowing power and data to run over a single network cable. In addition to PoE support on all copper ports, Cisco 220 Series Switches also support PoE+ on selected ports, which is up to 30 watts of power per port. PoE+ can enable deployments for 802.11ac wireless access points, Pan Tilt Zoom (PTZ) IP cameras, videophones, and thin client devices, delivering more flexibility and investment protection.

In addition, the Cisco SG220-50 Ghana provides a rich set of features that help you create business-class networks. These features deliver a comprehensive solution to simplify the operation, increase uptime, and ultimately get your business better connected to employees, customers, and suppliers. Some primary features include:

High performance and reliability.

Cisco 220 Series Switches have been tested to deliver the high availability and performance that users have come to expect from Cisco switches. The switches speed up file transfer times, keep vital business applications available, and help your employees respond more quickly to customers and each other. With enhanced QoS capabilities, the Cisco SG220-50 Ghana also gives you the flexibility to manage and prioritize high-bandwidth traffic so you can easily integrate all the business communications and connectivity needs on a single converged infrastructure.

Optimal energy efficiency.

Cisco SG220-50 Ghana is designed with Energy Efficient Ethernet (IEEE 802.3az) and Energy Detect support on all models, as well as fanless designs on selected models. These designs help you save operational expenses and reduce your environmental footprint.

Enhanced network security.

The Cisco SG220-50 Ghana provides new levels of security for smart switches and deliver more ways to safeguard your network. Extensive ACLs can restrict sensitive portions of the network from unauthorized users and guard against network attacks.

  • Support for network security applications such as IEEE 802.1X and port security can tightly limit access to specific segments of your network.
  • Guest virtual LANs (VLANs) let you provide Internet connectivity to nonemployee users while isolating critical business services from guest traffic.
  • Security mechanisms such as broadcast/multicast/unknown unicast storm control and Bridge Protocol Data Unit (BPDU) guard can protect the network from invalid configurations or malicious intent.
  • Denial-of-service (DOS) attack prevention helps to increase uptime in the event of a network attack.
  • Embedded security can protect management data traveling to and from the switch and encrypt network communications.
  • Protect management sessions using RADIUS, TACACS+, and support local database authentication as well as secure management communication over SSL, SSH, and SNMPv3.

Easy configuration and management.

Cisco Cisco SG220-50 Ghana is designed to be easy to deploy and use by small- and medium-sized businesses or the partners that manage them. The simple and intuitive web-based interfaces allow even users without IT expertise to configure, manage, and troubleshoot the switch in minutes. Other ease-of-use features include:

  • Cisco Discovery Protocol (CDP) and Link Layer Discovery Protocol (LLDP-MED). Automatically detect all the devices connected to your network. Then automatically configure the switch itself with the appropriate settings and instruct the end devices on the appropriate voice VLAN or QoS parameters to use.
  • Cisco FindIT Network Discovery Utility. This feature works through a simple toolbar on the user’s web browser to discover Cisco devices on the network and display basic information, such as serial numbers and IP addresses. This aids in quicker configuration and deployment of Cisco Small Business products.

Advanced network management capabilities.

Cisco SG220-50 Ghana provides more flexibility for network management through:

  • The switches can be managed using CLI. This can enable scripted or automated deployment for network professionals.
  • Remote management. Using SNMP, you can set up and manage all switches and other Cisco devices in your network remotely.
  • Dual image support. With the ability to maintain two images in permanent storage instead of only a single image that is traditionally supported on smart switches, you can perform software upgrades without taking the network offline or worrying about an outage because of a bad image file. This reduces switch downtime when the firmware is being upgraded or downgraded.
  • Dual-configuration files support. Configure the device, validating that it is done correctly and then save this configuration to become effective after reboot. Additionally, a mirror configuration file provides automatic backup of the latest stable configuration file.
  • IPv6 support. Cisco 220 Series Switches provide native support for IPv6, as well as the previous IPv4 standard. As a result, you can migrate to the next generation of networking applications and operating systems without an equipment upgrade.

Additional Gigabit uplink ports.

The Cisco SG220-50 Ghana Switch provides more ports per switch than other switches typically in the market, giving you more flexibility to connect and empower your business. Cisco SG220-50 Ghana comes with two Gigabit Ethernet combo ports in addition to the 24 or 48 copper ports, instead of traditional devices that offer two shared uplink ports with 22 or 46 ports. The Mini-Gigabit Interface Converter (mini-GBIC) expansion slots in the combo ports give you the option to add fiber optic uplink connectivity to the switch. With the ability to increase the connectivity range of the switches, you have more flexibility to design your network around your unique business environment, and to easily connect switches on different floors or across the business.

IP telephony support.

Cisco SG220-50 Ghana include embedded QoS intelligence to prioritize delay-sensitive services such as voice and video. They can simplify unified communications deployments, and help ensure consistent network performance for all services. For example, automated voice VLAN capabilities let you plug any IP phone (including third-party phones) into your IP telephony network and receive an immediate dial tone. The switch automatically configures the device with the right VLAN and QoS parameters to prioritize voice traffic.

Peace of mind and investment protection.

Cisco SG220-50 Ghana offers the reliable performance, investment protection, and peace of mind you expect from a Cisco switch. They have undergone rigorous testing to help ensure easy integration and compatibility with other Cisco networking and communications products, including the complete Cisco Small Business portfolio.

Cisco Limited Lifetime Hardware Warranty.

The Cisco 220 Series switches come with Cisco Limited Lifetime Hardware Warranty. This includes limited lifetime hardware warranty with return to factory replacement (one-year limited warranty for fans and power supplies) and a 90-day limited software warranty. Additionally, Cisco offers software updates for bug fixes for the warranty term, and telephone technical support at no charge for the first 12 months following the date of purchase.

Additional service support.

To extend the support coverage beyond the warranty provisions, you can choose additional Cisco Small Business Support Service, which helps you get the most value from Cisco Small Business solutions, providing peace of mind at an affordable price. The subscription-based service offers next-business-day advanced hardware replacement (if needed), software upgrades, access to the Cisco Small Business Support Center, and telephone and online chat support for three years.

Specifications

Performance
Forwarding rate in millions of packets per second (mpps; 64-byte packets) 38.69 38.69 74.40 74.40
Switching capacity in Gigabits per second 52 52 100 100
Layer 2 Switching
MAC Table Up to 8192 MAC addresses
Spanning Tree Protocol (STP)
  • Standard 802.1d Spanning Tree support, enabled by default
  • Fast convergence using 802.1w (Rapid Spanning Tree [RSTP])
  • Multiple Spanning Tree instances using 802.1s (MSTP)
  • 16 instances are supported
Port Grouping
  • Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • Up to 8 groups
  • Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
  • Load balance based on source and destination MAC address, or source and destination MAC/IP
VLAN
  • Support for up to 256 VLANs simultaneously
  • Port-based and 802.1Q tag-based VLANs
  • Management VLAN
  • Guest VLAN
Auto Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS
QinQ VLAN VLANs transparently cross a service provider network while isolating traffic among customers
Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) Protocols for automatically propagating and configuring VLANs in a bridged domain
Head-of-Line (HOL) Blocking HOL blocking prevention
Jumbo Frame Frame sizes up to 9216 supported
Security
ACLs
  • Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag
  • Support up to 512 rules
Port Security Creates the ability to lock source MAC addresses to ports; limits the number of learned MAC addresses
IEEE 802.1x (Authenticator Role) Creates the ability to lock source MAC addresses to ports; limits the number of learned MAC addresses
RADIUS, TACACS+ Supports RADIUS and TACACS authentication; switch functions as a client
MAC Address Filtering Supported
Storm Control Broadcast, multicast, and unknown unicast
DoS Protection DOS attack prevention
STP Bridge Protocol Data Unit (BPDU) Guard This security mechanism protects the network from invalid configurations. A port enabled for BPDU Guard is shut down if a BPDU message is received on that port
Secure Shell (SSH) Protocol SSH is a secure replacement for Telnet traffic. SCP also uses SSH. SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch
Quality of Service (QoS)
Priority Levels 8 hardware queues per port
Scheduling Strict priority and weighted round-robin (WRR) queue assignment based on DSCP and class of service (802.1p/CoS)
Class of Service Port-based; 802.1p VLAN priority-based; IPv4/v6 IP precedence, type of service (ToS), and DSCP-based; Differentiated Services (DiffServ); classification and re-marking ACLs, trusted QoS
Rate Limiting Ingress policer; egress shaping and rate control; per VLAN, per port, and flow-based
Congestion Avoidance A TCP congestion avoidance algorithm is required to reduce and prevent global TCP loss synchronization
Multicast
nternet Group Management Protocol (IGMP) Versions 1, 2, and 3 Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
Standards
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP),IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1350, RFC 1533, RFC 1541, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2576, RFC 4330, RFC 1213, RFC 1215, RFC 1286, RFC 1442, RFC 1451, RFC 1493, RFC 1573, RFC 1643, RFC 1757, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 1157, RFC 1493, RFC 1215, RFC 3416
IPv6
IPv6
  • IPv6 host mode
  • IPv6 over Ethernet
  • IPv6/IPv4 Dual Stack
  • IPv6 neighbor and router discovery (ND)
  • IPv6 stateless address auto-configuration
  • Path maximum transmission unit (MTU) discovery
  • Duplicate address detection (DAD)
  • ICMP version 6
IPv6 ACL Drop or rate limit IPv6 packets in hardware
IPv6 QoS Prioritize IPv6 packets in hardware
Multicast Listener Discovery (MLD v1/2) Snooping Deliver IPv6 multicast packets only to the required receivers
IPv6 Applications Web/SSL, Telnet server/SSH, DHCP Client, DHCP Autoconfig, CDP, LLDP
IPv6 RFCs Supported
  • RFC 4443 (which obsoletes RFC2463) – ICMP version 6
  • RFC 4291 (which obsoletes RFC 3513) – IPv6 address architecture
  • RFC 4291 – IPv6 addressing architecture
  • RFC 2460 – IPv6 specification
  • RFC 4861 (which obsoletes RFC 2461) – Neighbor discovery for IPv6
  • RFC 4862 (which obsoletes RFC 2462) – IPv6 stateless address auto-configuration
  • RFC 1981 – Path MTU discovery
  • RFC 4007 – IPv6 scoped address architecture
  • RFC 3484 – Default address selection mechanism
Management
Web User Interface Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, system dashboard, system maintenance, and monitoring
Text-Editable Config Files Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment
Command line interface Scriptable CLI; a full CLI is supported. User privilege levels 1 and 15 are supported for the CLI
Cloud Services Support for Cisco Small Business FindIT Network Tool
SNMP SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Standard MIBs
  • MIB-II (RFC1213)
  • IF-MIB (RFC2863)
  • Bridge-MIB (RFC4188)
  • Bridge-MIB-Extension (RFC2674)
  • RMON (RFC2819)
  • Etherlike MIB (RFC3635)
  • Radius Client MIB (RFC2618)
  • Entity MIB (RFC2737)
  • POWER-ETHERNET-MIB (RFC3621)
  • Syslog MIB (RFC3164)
  • Generic Traps MIB (RFC1215)
  • SNMP-COMMUNITY-MIB
  • SNMP-MIB
  • LLDP-MIB
  • LLDP-EXT-MED-MIB
  • IEEE8023-LAG-MIB
  • CISCO-PORT-SECURITY-MIB
  • CISCO-ENVMON-MIB
  • CISCO-CDP-MIB
Remote Monitoring (RMON) Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
IPv4 and IPv6 Dual Stack Coexistence of both protocol stacks to ease migration
Port Mirroring Traffic on a port or VLAN can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port. Four sessions are supported.
Firmware Upgrade Web browser upgrade (HTTP/HTTPS) and Trivial File Transfer Protocol ( TFTP)

Dual images for resilient firmware upgrades

DHCP (Option 12, 66, 67, 82, 129, and 150) DHCP options facilitate tighter control from a central point (DHCP server) to obtain IP address, auto-configuration (with configuration file download), DHCP relay, and hostname
Time Synchronization Simple Network Time Protocol (SNTP)
Login Banner Configurable multiple banners for web as well as CLI
Other Management HTTP/HTTPS; TFTP upgrade; DHCP client; BOOTP; cable diagnostics; ping; traceroute; syslog
Discovery
Bonjour The switch advertises itself using the Bonjour protocol
Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP-MED Extensions LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones.
Cisco Discovery Protocol The switch advertises itself using the Cisco Discovery Protocol. Display brief information for connected Cisco network devices, IP phones, and wireless access points
Minimum Requirements
Web Configuration Browser: Internet Explorer 8 or later; Mozilla Firefox 20 or later; Google Chrome 23 or later; Safari 5.1 or later
Power Efficiency
EEE Compliance (802.3az) Support 802.3az Energy Efficient Ethernet on all ports; substantially reduce the power consumption when link bandwidth is not at full utilization
Energy Detect Automatically turns power off on Gigabit Ethernet and 10/100 RJ-45 ports when detecting a link down
Active mode is resumed without loss of any packets when the switch detects the link up
Power Over Ethernet
802.3af PoE or 802.3at PoE+ Delivered over Any of the RJ-45 Ports Within the Listed Power Budgets Switches support 802.3af, 802.3at, and Cisco pre-standard (legacy) PoE on port 1 to port 4 with maximum power of 30 W per port; switches support 802.3af and Cisco pre-standard (legacy) PoE on other RJ-45 ports with maximum power of 15.4 W per port

This applies to all PoE-enabled models; the maximum number of ports providing PoE power simultaneously is determined by the total PoE budget for the switch, and the actual power requirement of PD devices

The total power available for PoE per switch is as follows:

Model Name Power Dedicated to PoE Number of Ports That Support PoE
SG220-26P 180W 24
SG220-50P 375W 48
Pre-Standard PoE Support Cisco Pre-Standard PoE
Intelligent PoE Power Management Support the granular power negotiation with CDP/LLDP communication with PD devices after IEEE classification
Hardware Specifications SF220-26 SF220-26P SF220-50 SF220-50P
Hardware
Buttons Reset button
Cabling Type Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T
LEDs System, Link/Act, Speed System, Link/Act, Speed System, Link/Act, Speed System, Link/Act, Speed
Flash 32 MB 32 MB 32 MB 32 MB
CPU Memory 128 MB 128 MB 128 MB 128 MB
Total System Ports 26 Gigabit Ethernet 26 Gigabit Ethernet 50 Gigabit Ethernet 50 Gigabit Ethernet
RJ-45 Ports 24 Gigabit Ethernet 24 Gigabit Ethernet 48 Gigabit Ethernet 48 Gigabit Ethernet
Uplink Ports 2 Gigabit Ethernet combo 2 Gigabit Ethernet combo 2 Gigabit Ethernet combo 2 Gigabit Ethernet combo
Packet Buffer 4.1 Mb 4.1 Mb 12 Mb 12 Mb
Supported SFPModules
SKU Media Speed Maximum Distance
MFEFX1 Multimode fiber 100 Mbps 2 km
MFELX1 Single-mode fiber 100 Mbps 10 km
MFEBX1 Single-mode fiber 100 Mbps 20 km
MGBSX1 Multimode fiber 100 Mbps 550 m
MGBLX1 Single-mode fiber 1000 Mbps 10 km
MGBLH1 Single-mode fiber 1000 Mbps 40 km
MGBBX1 Single-mode fiber 1000 Mbps 40 km
MGBT1 UTP Category 5 1000 Mbps 100 m
Environmental SF220-26 SF220-26P SF220-50 SF220-50P
Dimensions (W x H x D) 440 x 44 x 201 mm 440 x 44 x 250 mm 440 x 44 x 201 mm 440 x 44 x 350 mm
Unit Weight 2.81 kg 3.7 kg 3.3 kg 5.28 kg
Power 100-240 V, 50-60 Hz, Internal
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, C-tick
Operating Temperature 0-50° C
Storage Temperature -20° C to +70° C
Operating Humidity 10% to 90%, relative, non-condensing
Storage Humidity 10% to 90%, relative, non-condensing
Environmental SF220-26 SF220-26P SF220-50 SF220-50P
Green Power (mode) EEE + Energy Detect EEE + Energy Detect EEE + Energy Detect EEE + Energy Detect
System Power Consumption 110V=18.9W
220V=18.2W
110V=29.1W
220V=30.7W
110V=36.6W
220V=39.9W
110V=59.4W
220V=63.2W
Power Consumption (with PoE) N/A 110V=206.5W
220V=200.7W
N/A 110V=426W
220V=427W
Heat Dissipation (BTU/hr) 64.5 704.6 124.9 1453.6
Acoustic Noise and Mean Time Between Failure (MTBF)
FAN (Number) No fan 2 pcs/6300rpm and Fan speed control 1 pcs/6300rpm
No Fan speed control
4 pcs/9500rpm and Fan speed control
Acoustic Noise N/A <32°C=25.6dB 32°C-40°C=37.2dB >40°C=41.5dB N/A <32°C=39.1dB 32°C-40°C=50.5dB >40°C=52dB
MTBF @ 50°C (Hours) 342,867 343,684 382,742 194,036
Warranty
Warranty Term Limited Lifetime Hardware Warranty
Package Contents
  • Cisco 220 Series Ethernet switch
  • Power cord
  • Mounting kit included in all SKUs
  • Console cable
  • CD-ROM with user documentation (PDF) included
  • Quick start guide



Datasheet Download
