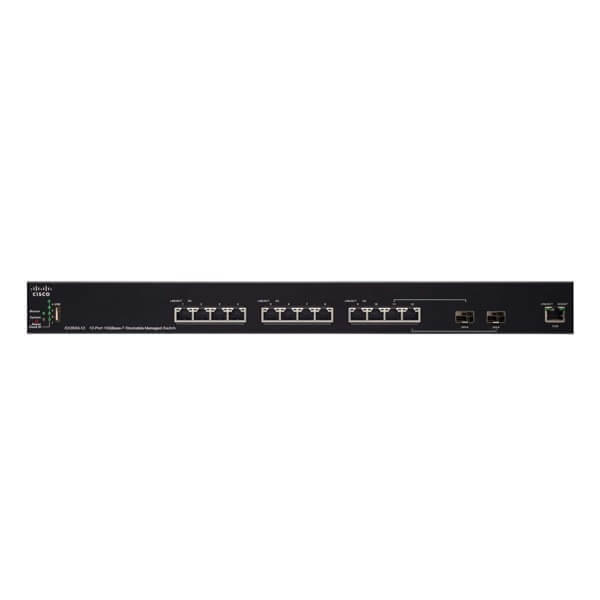

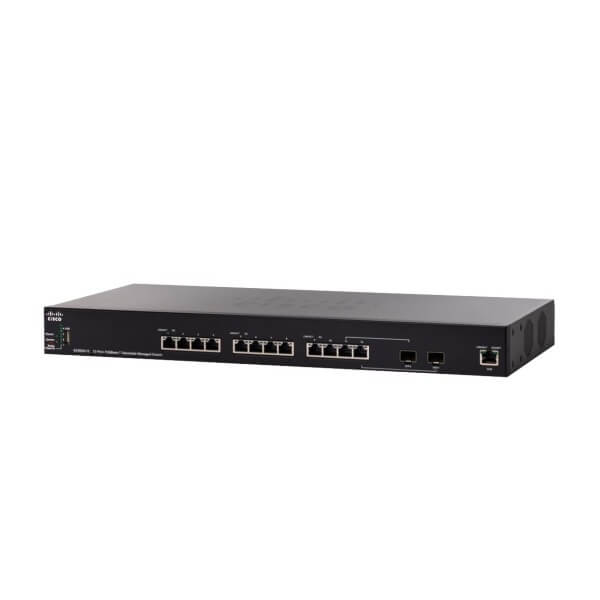

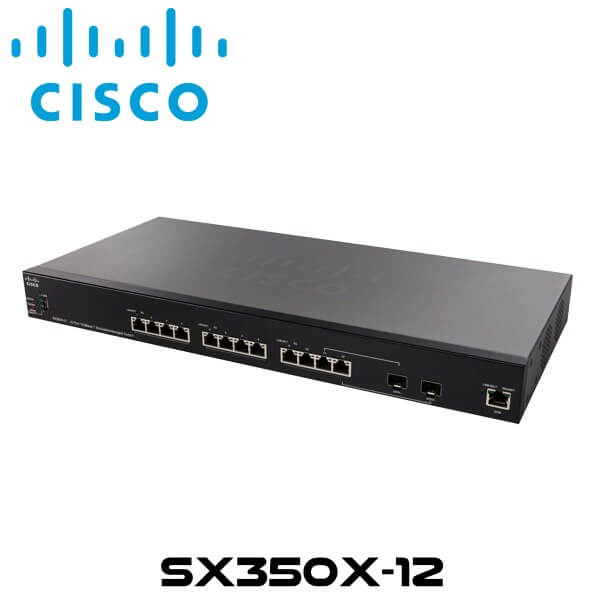

Cisco SX350X-12 Ghana



Cisco SX350X-12 Ghana

The Cisco SX350X-12 Ghana Switch is designed to protect your technology investment as your business grows. This Switch provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device.

Category:

Description

Cisco SX350X-12 Network Switch Ghana

The Cisco SX350X-12 Ghana Switch is designed to protect your technology investment as your business grows. This Switch provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network. A true stack delivers a unified data and control plane, in addition to management plane, providing flexibility, scalability, and ease of use because the stack of units operates as a single entity. The Cisco SX350X-12 Ghana switch also protects your technology investment with an enhanced warranty, dedicated technical support, and the ability to upgrade equipment in the future. Overall, the Cisco SX350X-12 Ghana switch provides the ideal technology foundation for a growing business.

Features

High-Performance 10 Gigabit Ethernet

The Cisco SX350X-12 Ghana switch breaks the barrier of 10 Gigabit Ethernet adoption by providing affordable and powerful features of for growing small and medium businesses networks. With the 10-Gigabit ports, in both copper and fiber, you can easily and cost-effectively enable 10G connections to servers and network storage devices with standard RJ45 Ethernet cable. You can also aggregate 10G SFP+ fiber connections to build a high-performance backbone to dramatically increase the overall speed of your network.

Multigigabit Performance

Network needs are changing quickly. Thanks to evolving wireless standards and the rising number of wireless devices, keeping up with data rates and growing traffic can be a challenge. Your traditional Ethernet infrastructure can support speeds up to 1 Gigabit per second (Gbps), but competing today requires much more capacity. One option is completely replacing your older cabling infrastructure and upgrading your hardware. But wouldn’t it be better to increase network speed and traffic capacity in a way that’s quick, inexpensive, and efficient?

Cisco’s Multigigabit Ethernet switches offer just that: an easy-to-deploy, budget-friendly solution that allows you to increase network speed and bandwidth using your existing cables. By partnering with other industry leaders to form the NBASE-T Alliance, Cisco uses NBASE-T technology to help you get more out of your existing infrastructure. Save time and money by avoiding upgrades and extending the life of your installed cable plants. And discover the benefits of meeting consumer demand for increased bandwidth and speeds without a large initial investment.

Multigigabit Ethernet technology uses capabilities in your existing cabling infrastructure to meet bandwidth requirements and provide up to five times the performance. The technology enables intermediate data rates of 2.5 and 5 Gbps to ease the jump between traditional rates of 1 Gbps and 10 Gbps. These intermediate rates run on most installed cables and preserve older UTP wiring, which is good for 802.11ac wireless LAN applications.

The technology also supports Power over Ethernet (PoE) forms, including PoE+ and 60W PoE. Cisco Multigigabit Ethernet switches help you avoid having to run multiple cables between switches and access points and let your networks welcome next-generation traffic speeds and data rates.

Easy configuration and management

The Cisco SX350X-12 Ghana switch is designed to be easy to use and manage by small business customers or the partners that serve them. Smart Network Application (SNA) is an innovative network-level monitoring and management tool embedded in the Cisco 100 to 500 Series switches. It can discover network topology, display link status, monitor events, apply configurations, and upgrade software images across multiple switches in the network.

  • The FindIT Network Manager and Probe are designed to manage Cisco 100 to 500 Series switches, routers, and wireless access points. They let you proactively manage the network instead of just reacting to events. Cisco 250 Series switches support the embedded FindIT Network Probe, eliminating the need to set up a separate hardware or virtual machine on site.
  • The FindIT Network Discovery Utility works through a simple toolbar on the user’s web browser to discover Cisco devices on the network and display basic device information, inventory, and new firmware updates to aid in the configuration and speed the deployment of Cisco Small Business products.
  • Simple or advanced-mode graphic user interfaces reduce the time required to deploy, troubleshoot, and manage the network. Configuration wizards simplify the most common configuration tasks and provide the ultimate tool for anyone to set up and manage the network.
  • Cisco Smartports technology provides more advanced capabilities and hands-on control by automatically configuring ports with specific levels of security, QoS, and availability according to the type of connected device, based on Cisco best practices and pretested configurations. The Auto Smartports feature automatically applies the intelligence delivered through the Smartports roles to the port based on the device types discovered over Cisco Discovery Protocol or LLDP-MED. This capability facilitates zero-touch deployments.
  • The USB port on the front panel of the switch enables easy image and configuration transfer for faster deployment or upgrades.

Power over Ethernet Plus (PoE+) and 60W PoE

PoE technology simplifies the deployment of IP phones and wireless access points by allowing you to connect and power network endpoints over a single Ethernet cable, without having to install separate power supplies. The 350X Series switches support 15W Power over Ethernet (PoE) and 30W Power over Ethernet Plus (PoE+). The Cisco SX350X-12 Ghana switch also support 60W PoE on selected ports to power compact switches, high-power wireless access points, or connected lighting. The PoE power is intelligently managed in a way such that only the amount of power needed by endpoints is delivered to it and not wasted. As a result, the switches can support devices that require more power, such as 802.11ac wireless access points, video-based IP phones, surveillance cameras, and more. The PoE features in the 350X Series switches are also fully backward compatible with 802.3af PoE, 802.3at PoE+, and Cisco legacy PoE protocols.

High Reliability and Resiliency

In a growing business where availability 24 hours a day, 7 days a week is critical, you need to assure that employees can always access the data and resources they need. In these environments, stackable switches can play an important role in eliminating downtime and improving network resiliency. For example, if a switch within a Cisco SX350X-12 Ghana stack fails, another switch immediately takes over, keeping your network up and running. You can also replace individual devices in the stack without taking your network offline or affecting employee productivity. The Cisco SX350X-12 Ghana also supports dual images, allowing you to perform software upgrades without having to take the network offline or worry about the network going down during the upgrade.

Simplified IT Operation

Cisco SX350X-12 Ghana switch help optimize your IT operations with built-in features that simplify and streamline day-to-day network operation:

  • True stacking allows you to troubleshoot, configure, and manage multiple physical switches as a single entity.
  • Cisco switches use common chipsets/software across all switching portfolios, so all Cisco switches within a category support the same feature set, making it easier to manage and support all switches across the network.

True Stacking

Cisco SX350X-12 Ghana switch provides true stacking capability, allowing you to configure, manage, and troubleshoot all switches in a stack as a single unit, with a single IP address, for up to 4 units and a maximum of 208 Ethernet ports. A true stack delivers a unified data and control plane, in addition to management plane, providing flexibility, scalability, and ease of use because the stack of units operates as a single entity constituting all the ports of the stack members. This capability can radically reduce complexity in a growing network environment while improving the resiliency and availability of network applications. True stacking also provides other cost savings and administrative benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring, which clustered switches can’t support.

Strong Security

Cisco SX350X-12 Ghana switch provides the advanced security features you need to protect your business data and keep unauthorized users off the network:

  • Embedded Secure Sockets Layer (SSL) encryption protects management data traveling to and from the switch.
  • Extensive access control lists (ACLs) restrict sensitive portions of the network to keep out unauthorized users and guard against network attacks.
  • Guest VLANs let you provide Internet connectivity to nonemployee users while isolating critical business services from guest traffic.
  • Support for advanced network security applications such as IEEE 802.1X port security tightly limits access to specific segments of your network. Web-based authentication provides a consistent interface to authenticate all types of host devices and operating systems, without the complexity of deploying IEEE 802.1X clients on each endpoint.
  • Advanced defense mechanisms, including dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, detect and block deliberate network attacks. Combinations of these protocols are also referred to as IP-MAC port binding (IPMB).
  • IPv6 First Hop Security extends the advanced threat protection to IPv6. This comprehensive security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check, providing unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks.
  • Time-based ACLs and port operation restrict access to the network during pre-designated times such as business hours.
  • Uniform MAC address-based security can be applied automatically to mobile users as they roam between wireless access points.
  • Secure Core Technology (SCT) helps ensure that the switch is able to process management traffic in the face of a denial-of-service (DoS) attack.
  • Private VLAN Edge (PVE) provides Layer 2 isolation between devices on the same VLAN.
  • Storm control can be applied to broadcast, multicast, and unknown unicast traffic.
  • Protection of management sessions occurs using RADIUS, TACACS+, and local database authentication as well as secure management sessions over SSL, SSH, and SNMPv3.
  • DoS attack prevention maximizes network uptime in the presence of an attack.

IPv6 Support

As the IP address scheme evolves to accommodate a growing number of network devices, the Cisco SX350X-12 Ghana can support the transition to the next generation of networking and operating systems such as Windows 7, Vista, and Linux. Cisco SX350X-12 Ghana can continue to support previous-generation IPv4, allowing you to evolve to the new IPv6 standard at your own pace, and helping ensure that your current network will continue to support your business applications in the future. Cisco SX350X-12 Ghana has successfully completed rigorous IPv6 testing and have received the USGv6 and IPv6 Gold certification.

Advanced Layer 3 Traffic Management

The Cisco SX350X-12 Ghana switch enables a more advanced set of traffic management capabilities to help growing businesses organize their networks more effectively and efficiently. The Cisco SX350X-12 Ghana switch provides static LAN Layer 3 routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance. With these capabilities, you can boost the efficiency of your network by offloading internal traffic-handling tasks from your router and allowing it to manage primarily external traffic and security. You can minimize the need to manually configure routing devices and simplify the ongoing operation of the network.

Power Efficiency

The Cisco SX350X-12 Ghana integrates a variety of power-saving features across all models, providing the industry’s most extensive energy-efficient switching portfolio. These switches are designed to conserve energy by optimizing power use, which helps protects the environment and reduce your energy costs. They provide an eco-friendly network solution without compromising performance. Cisco 350X Series switches feature:

  • Support for the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods
  • The latest application-specific integrated circuits (ASICs), which use low-power 65/40-nanometer technology and low-power, high-performance ARM CPUs
  • Automatic power shutoff on ports when a link is down
  • LEDs that can be turned off to save power
  • Embedded intelligence to adjust signal strength based on the length of the connecting cable

Networkwide Automatic Voice Deployment

Using a combination of Cisco Discovery Protocol, LLDP-MED, Auto Smartports, and Voice Services Discovery Protocol (or VSDP, a unique Cisco protocol), customers can deploy an end-to-end voice network dynamically. The switches in the network automatically converge around a single voice VLAN and QoS parameters and then propagate them out to the phones on the ports, where they are discovered. For example, automated voice VLAN capabilities let you plug any IP phone (including third-party phones) into your IP telephony network and receive an immediate dial tone. The switch automatically configures the device with the right VLAN and QoS parameters to prioritize voice traffic.

Peace of Mind and Investment Protection

Cisco 350X Series switches offer the reliable performance and peace of mind you expect from a Cisco switch. When you invest in the Cisco 350 Series, you gain the benefit of:

  • Limited lifetime warranty with next-business-day (NBD) advance replacement (where available; otherwise same day ship)
  • A solution that has been rigorously tested to help ensure optimal network uptime to keep employees connected to primary resources and productive
  • A solution designed and tested to easily and fully integrate with other Cisco voice, unified communications, security, and networking products, as part of a comprehensive technology platform for your business

World-Class Service and Support

Your time is valuable, especially when you have a problem affecting your business. Cisco 350X Series switches are backed by the Cisco SMARTnet Total Care, which provides affordable peace-of-mind coverage. This subscription-based service helps you protect your investment and derive maximum value from Cisco SMB products. Delivered by Cisco and backed by your trusted partner, this comprehensive service includes software updates and access to the Cisco Support Center, and it extends technical service to three years.

Cisco SMB products are supported by professionals in the Cisco Support Center, a dedicated resource for small business customers and networks, with locations worldwide that are specifically trained to understand your needs. You also have access to extensive technical and product information through the Cisco Support Community, an online forum that enables you to collaborate with your peers and reach Cisco technical experts for support information.

Specifications

Performance
Switching capacity and forwarding rate
All switches are wire-speed and nonblocking
Product Name Capacity in mpps
(64-byte packets)
Switching Capacity (Gbps)
SF350-08 1.19 1.6
SF352-08 4.17 5.6
SF352-08P 4.17 5.6
SF352-08MP 4.17 5.6
SF350-24 9.52 12.8
SF350-24P 9.52 12.8
SF350-24MP 9.52 12.8
SF350-48 13.09 17.6
SF350-48P 13.09 17.6
SF350-48MP 13.09 17.6
SG350-8PD 46.13 62.0
SG350-10 14.88 20.0
SG350-10P 14.88 20.0
SG350-10MP 14.88 20.0
SG355-10MP 14.88 20.0
SG350-10SFP 14.88 20.0
SG355-20 29.76 40.0
SG350-28 41.66 56.0
SG350-28P 41.66 56.0
SG350-28MP 41.66 56.0
SG350-28SFP 41.66 56.0
SG350-52 77.38 104.0
SG350-52P 77.38 104.0
SG350-52MP 77.38 104.0
USB slot For file-management purposes
Layer 2 Switching
Spanning Tree Protocol
  • Standard 802.1d spanning tree support
  • Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default
  • 8 instances are supported
  • Multiple Spanning Tree instances using 802.1s (MSTP)
Port grouping/link aggregation
  • Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    • Up to 8 groups
    • Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN
  • Support for up to 4096 VLANs simultaneously
  • Port-based and 802.1Q tag-based VLANs
  • MAC-based VLAN
  • Management VLAN
  • Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks
  • Guest VLAN
  • Unauthenticated VLAN
  • Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication
  • CPE VLAN
Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Auto voice capabilities deliver network-wide zero touch deployment of voice endpoints and call control devices.
Multicast TV VLAN Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR).
Q-in-Q VLANs transparently cross over a service provider network while isolating traffic among customers.
GVRP/GARP Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) enable automatic propagation and configuration of VLANs in a bridged domain.
Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP) Protocols for automatically propagating and configuring VLANs in a bridged domain
Unidirectional Link Detection (UDLD) UDLD monitors physical connection to detect unidirectional links caused by incorrect wiring or port faults to prevent forwarding loops and blackholing of traffic in switched networks.
DHCP Relay at Layer 2 Relay of DHCP traffic to DHCP server in a different VLAN. Works with DHCP Option 82.
IGMP (versions 1, 2, and 3) snooping Internet Group Management Protocol (IGMP) limits bandwidth-intensive multicast traffic to only the requesters; supports 1K multicast groups (source-specific multicasting is also supported)
IGMP querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router.
HOL blocking Head-of-line (HOL) blocking.
Jumbo frames Up to 9K (9216) bytes
Layer 3
IPv4 routing
  • Wirespeed routing of IPv4 packets
  • Up to 512 static routes and up to 128 IP interfaces
Classless Interdomain Routing (CIDR) Support for CIDR
Layer 3 interface Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface
DHCP relay at Layer 3 Relay of DHCP traffic across IP domains
User Datagram Protocol (UDP) relay Relay of broadcast information across Layer 3 domains for application discovery or relaying of bootP/DHCP packets
DHCP server
  • Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes
  • Support for DHCP options
Security
Secure Shell (SSH) Protocol SSH is a secure replacement for Telnet traffic. SCP also uses SSH. SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch
IEEE 802.1X (Authenticator role)
  • 802.1X: RADIUS authentication and accounting, MD5 hash; guest VLAN; unauthenticated VLAN, single/multiple host mode and single/multiple sessions
  • Supports time-based 802.1X
  • Dynamic VLAN assignment
Web-based authentication Web-based authentication provides network admission control through web browser to any host devices and operating systems.
STP Bridge Protocol Data Unit (BPDU) Guard A security mechanism to protect the network from invalid configurations. A port enabled for BPDU Guard is shut down if a BPDU message is received on that port.
STP Root Guard This prevents edge devices not in the network administrator’s control from becoming Spanning Tree Protocol root nodes.
DHCP snooping Filters out DHCP messages with unregistered IP addresses and/or from unexpected or untrusted interfaces. This prevents rogue devices from behaving as a DHCP server.
IP Source Guard (IPSG) When IP Source Guard is enabled at a port, the switch filters out IP packets received from the port if the source IP addresses of the packets have not been statically configured or dynamically learned from DHCP snooping. This prevents IP address spoofing.
Dynamic ARP Inspection (DAI) The switch discards ARP packets from a port if there are no static or dynamic IP/MAC bindings or if there is a discrepancy between the source or destination address in the ARP packet. This prevents man-in-the-middle attacks.
IP/MAC/Port Binding (IPMB) The preceding features (DHCP Snooping, IP Source Guard, and Dynamic ARP Inspection) work together to prevent DoS attacks in the network, thereby increasing network availability.
Secure Core Technology (SCT) Makes sure that the switch will receive and process management and protocol traffic no matter how much traffic is received.
Secure Sensitive Data (SSD) A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices, and secure autoconfig. Access to view the sensitive data as plaintext or encrypted is provided according to the user-configured access level and the access method of the user.
Layer 2 isolation Private VLAN Edge (PVE) with community VLAN PVE (also known as protected ports) provides Layer 2 isolation between devices in the same VLAN, supports multiple uplinks.
Port security Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses.
RADIUS/TACACS+ Supports RADIUS and TACACS authentication. Switch functions as a client.
RADIUS accounting The RADIUS accounting functions allow data to be sent at the start and end of services, indicating the amount of resources (such as time, packets, bytes, and so on) used during the session.
Storm control Broadcast, multicast, and unknown unicast.
RADIUS accounting The RADIUS accounting functions allow data to be sent at the start and end of services, indicating the amount of resources (such as time, packets, bytes, and so on) used during the session.
DoS prevention Denial-of-service (DOS) attack prevention
ACLs
  • Support for up to 512 rules
  • Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag, time-based ACLs supported.
Quality of Service
Priority levels 8 hardware queues
Scheduling
  • Strict Priority and weighted round-robin (WRR)
  • Queue assignment based on DSCP and class of service (802.1p/CoS)
Class of service Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/type of service (ToS)/DSCP based; differentiated services (DiffServ); classification and remarking ACLs, trusted QoS.
Rate limiting Ingress policer; egress shaping and ingress rate control; per VLAN, per port, and flow based
Congestion avoidance A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization.
Standards
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1350, RFC 1533, RFC 1541, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2576, RFC 4330, RFC 1213, RFC 1215, RFC 1286, RFC 1442, RFC 1451, RFC 1493, RFC 1573, RFC 1643, RFC 1757, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 1157, RFC 1493, RFC 1215, RFC 3416
IPv6
IPv6
  • IPv6 host mode
  • IPv6 over Ethernet
  • Dual IPv6/IPv4 stack
  • IPv6 neighbor and router discovery (ND)
  • IPv6 stateless address autoconfiguration
  • Path maximum transmission unit (MTU) discovery
  • Duplicate address detection (DAD)
  • ICMP version 6
  • IPv6 over IPv4 network with Intrasite Automatic Tunnel Addressing Protocol (ISATAP) support
  • USGv6 and IPv6 Gold Logo certified
IPv6 QoS Prioritize IPv6 packets in hardware
IPv6 ACL Drop or Rate Limit IPv6 packets in hardware
IPv6 First Hop Security
  • RA guard
  • ND inspection
  • DHCPv6 guard
  • Neighbor binding table (snooping and static entries)
  • Neighbor binding integrity check
Multicast Listener Discovery (MLD v1/2) snooping Deliver IPv6 multicast packets only to the required receivers
IPv6 applications Web/SSL, Telnet server/SSH, ping, traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), SNMP, RADIUS, syslog, DNS client, Telnet Client, DHCP Client, DHCP Autoconfig, IPv6 DHCP Relay, TACACS
IPv6 RFC supported
  • RFC 4443 (which obsoletes RFC 2463) – ICMPv6
  • RFC 4291 (which obsoletes RFC 3513) – IPv6 Address Architecture
  • RFC 4291 – IP Version 6 Addressing Architecture
  • RFC 2460 – IPv6 Specification
  • RFC 4861 (which obsoletes RFC 2461) – Neighbor Discovery for IPv6
  • RFC 4862 (which obsoletes RFC 2462) – IPv6 Stateless Address Auto-configuration
  • RFC 1981 – Path MTU Discovery
  • RFC 4007 – IPv6 Scoped Address Architecture
  • RFC 3484 – Default address selection mechanism
  • RFC 5214 (which obsoletes RFC 4214) – ISATAP tunneling
  • RFC 4293 – MIB IPv6: Textual Conventions and General Group
  • RFC 3595 – Textual Conventions for IPv6 Flow Label
Management
Web user interface Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, system dashboard, system maintenance, and monitoring.
SNMP SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Standard MIBs
  • draft-ietf-bridge-8021x-MIB
  • draft-ietf-bridge-rstpmib-04-MIB
  • draft-ietf-hubmib-etherif-MIB-v3-00-MIB
  • draft-ietf-syslog-device-MIB
  • ianaaddrfamnumbers-MIB
  • ianaifty-MIB
  • ianaprot-MIB
  • inet-address-MIB
  • ip-forward-MIB
  • ip-MIB
  • RFC1155-SMI
  • RFC1213-MIB
  • SNMPv2-MIB
  • SNMPv2-SMI
  • SNMPv2-TM
  • RMON-MIB.my
  • dcb-raj-DCBX-MIB-1108-MIB
  • rfc1724-MIB
  • RFC-1212.my_for_MG-Soft
  • rfc1213-MIB
  • rfc1757-MIB RFC-
  • 1215.my SNMPv2-
  • CONF.my
  • SNMPv2-TC.my
  • rfc2674-MIB
  • rfc2575-MIB
  • rfc2573-MIB
  • rfc2233-MIB
  • rfc2013-MIB
  • rfc2012-MIB
  • rfc2011-MIB
  • draft-ietf-entmib-sensor-MIB
  • lldp-MIB
  • lldpextdot1-MIB
  • lldpextdot3-MIB
  • lldpextmed-MIB
  • p-bridge-MIB
  • q-bridge-MIB
  • rfc1389-MIB
  • rfc1493-MIB
  • rfc1611-MIB
  • rfc1612-MIB
  • rfc1850-MIB
  • rfc1907-MIB
  • rfc2571-MIB
  • rfc2572-MIB
  • rfc2574-MIB
  • rfc2576-MIB
  • rfc2613-MIB
  • rfc2665-MIB
  • rfc2668-MIB
  • rfc2737-MIB
  • rfc2925-MIB
  • rfc3621-MIB
  • rfc4668-MIB
  • rfc4670-MIB
  • trunk-MIB
  • tunnel-MIB
  • udp-MIB
Private MIBs
  • CISCOSB-lldp-MIB CISCOSB-
  • brgmulticast-MIB CISCOSB-
  • bridgemibobjects-MIB
  • CISCOSB-bonjour-MIB
  • CISCOSB-dhcpcl-MIB
  • CISCOSB-MIB
  • CISCOSB-wrandomtaildrop-MIB
  • CISCOSB-traceroute-MIB
  • CISCOSB-telnet-MIB
  • CISCOSB-stormctrl-MIB
  • CISCOSB-ssh-MIB
  • CISCOSB-socket-MIB
  • CISCOSB-sntp-MIB
  • CISCOSB-smon-MIB
  • CISCOSB-phy-MIB
  • CISCOSB-multisessionterminal-MIB
  • CISCOSB-mri-MIB
  • CISCOSB-jumboframes-MIB
  • CISCOSB-gvrp-MIB
  • CISCOSB-endofmib-MIB
  • CISCOSB-dot1x-MIB
  • CISCOSB-deviceparams-MIB
  • CISCOSB-cli-MIB
  • CISCOSB-cdb-MIB
  • CISCOSB-brgmacswitch-MIB
  • CISCOSB-3sw2swtables-MIB
  • CISCOSB-smartPorts-MIB
  • CISCOSB-tbi-MIB
  • CISCOSB-macbaseprio-MIB
  • CISCOSB-policy-MIB
  • CISCOSB-env_mib
  • CISCOSB-sensor-MIB
  • CISCOSB-aaa-MIB
  • CISCOSB-application-MIB
  • CISCOSB-bridgesecurity-MIB
  • CISCOSB-copy-MIB
  • CISCOSB-CpuCounters-MIB
  • CISCOSB-Custom1BonjourService-MIB
  • CISCOSB‑dhcp-MIB
  • CISCOSB-dlf-MIB
  • CISCOSB-dnscl-MIB
  • CISCOSB-embweb-MIB
  • CISCOSB-fft-MIB
  • CISCOSB-file-MIB
  • CISCOSB-greeneth-MIB
  • CISCOSB-interfaces-MIB
  • CISCOSB-interfaces_recovery-MIB
  • CISCOSB-ip-MIB
  • CISCOSB-iprouter-MIB
  • CISCOSB-ipv6-MIB
  • CISCOSB-mnginf-MIB
  • CISCOSB-lcli-MIB
  • CISCOSB-localization-MIB
  • CISCOSB-mcmngr-MIB
  • CISCOSB-mng-MIB
  • CISCOSB-physdescription-MIB
  • CISCOSB-Poe-MIB
  • CISCOSB-protectedport-MIB
  • CISCOSB-rmon-MIB
  • CISCOSB-rs232-MIB
  • CISCOSB-SecuritySuite-MIB
  • CISCOSB-snmp-MIB
  • CISCOSB-specialbpdu-MIB
  • CISCOSB-banner-MIB
  • CISCOSB-syslog-MIB
  • CISCOSB-TcpSession-MIB
  • CISCOSB-traps-MIB
  • CISCOSB-trunk-MIB
  • CISCOSB-tuning-MIB
  • CISCOSB-tunnel-MIB
  • CISCOSB-udp-MIB
  • CISCOSB-vlan-MIB
  • CISCOSB-ipstdacl-MIB
  • CISCO-SMI-MIB
  • CISCOSB-DebugCapabilities-MIB
  • CISCOSB-CDP-MIB
  • CISCOSB-vlanVoice-MIB
  • CISCOSB-EVENTS-MIB
  • CISCOSB-sysmng-MIB
  • CISCOSB-sct-MIB
  • CISCO-TC-MIB
  • CISCO-VTP-MIB
  • CISCO-CDP-MIB
  • CISCOSB-eee-MIB
  • CISCOSB-ssl-MIB
  • CISCOSB-qosclimib-MIB
  • CISCOSB-digitalkeymanage-MIB
  • CISCOSB-tbp-MIB
  • CISCOSMB-MIB
  • CISCOSB-secsd-MIB
  • CISCOSB-draft-ietf-entmib-sensor-MIB
  • CISCOSB-draft-ietf-syslog-device-MIB
  • CISCOSB-rfc2925-MIB
RMON Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
IPv4 and IPv6 Dual Stack Coexistence of both protocol stacks to ease migration
Firmware upgrade
  • Web browser upgrade (HTTP/HTTPS) and TFTP and upgrade over SCP running over SSH
  • Upgrade can be initiated through console port as well
  • Dual images for resilient firmware upgrades
Port mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port.
VLAN mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port. A single session is supported.
DHCP (Options 12, 66, 67, 82, 129, and 150) DHCP options facilitate tighter control from a central point (DHCP server) to obtain IP address, autoconfiguration (with configuration file download), DHCP relay, and hostname.
Secure Copy (SCP) Securely transfer files to and from the switch.
Autoconfiguration with Secure Copy (SCP) file download Enables secure mass deployment with protection of sensitive data
Text-editable config files Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment
Smartports Simplified configuration of QoS and security capabilities
Auto Smartports Applies the intelligence delivered through the Smartport roles and applies it automatically to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This facilitates zero-touch deployments.
Textview CLI Scriptable command-line interface. A full CLI as well as a menu-based CLI is supported. User privilege levels 1, 7, and 15 are supported for the CLI.
Cloud services Support for Cisco Small Business FindIT Network
Localization Localization of GUI and documentation into multiple languages
Other management Traceroute; single IP management; HTTP/HTTPS; SSH; RADIUS; port mirroring; TFTP upgrade; DHCP client; BOOTP; SNTP; Xmodem upgrade; cable diagnostics; ping; syslog; Telnet client (SSH secure support)
Time-based port operation Link up or down based on user-defined schedule (when the port is administratively up)
Login banner Configurable multiple banners for web as well as CLI
Power Efficiency
Energy Detect Automatically turns power off on Gigabit Ethernet and 10/100 RJ-45 port when detecting link down. Active mode is resumed without loss of any packets when the switch detects the link up.
Cable length detection Adjusts the signal strength based on the cable length for Gigabit Ethernet models. Reduces the power consumption for cables shorter than 10m.
EEE compliant (802.3az) Supports 802.3az on all copper ports (SG350 models)
Disable port LEDs LEDs can be manually turned off to save on energy.
General
Jumbo frames Frame sizes up to 9K (9216) bytes supported on 10/100 and Gigabit interfaces
MAC table Up to 16K (16384) MAC addresses
Discovery
Bonjour The switch advertises itself using the Bonjour protocol.
LLDP (802.1ab) with LLDP-MED extensions Link Layer Discovery Protocol (LLDP) allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones.
Cisco Discovery Protocol (CDP) The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics using Cisco Discovery Protocol.
Ports
Model Name Total System Ports RJ-45 Ports Combo Ports (RJ-45 + SFP)
SF350-08 8 Fast Ethernet 8 Fast Ethernet
SF352-08P 8 Fast Ethernet + 2 Gigabit Ethernet 8 Fast Ethernet 2 Gigabit Ethernet combo
SF352-08P 8 Fast Ethernet + 2 Gigabit Ethernet 8 Fast Ethernet 2 Gigabit Ethernet combo
SF352-08MP 8 Fast Ethernet + 2 Gigabit Ethernet 8 Fast Ethernet 2 Gigabit Ethernet combo
SF350-24 24 Fast Ethernet + 4 Gigabit Ethernet 24 Fast Ethernet 2 Gigabit Ethernet combo + 2 SFP
SF350-24P 24 Fast Ethernet + 4 Gigabit Ethernet 24 Fast Ethernet 2 Gigabit Ethernet combo + 2 SFP
SF350-24MP 24 Fast Ethernet + 4 Gigabit Ethernet 24 Fast Ethernet 2 Gigabit Ethernet combo + 2 SFP
SF350-48 48 Fast Ethernet + 4 Gigabit Ethernet 48 Fast Ethernet
2 Gigabit Ethernet
2 SFP slots, 2 Gigabit Ethernet
SF350-48 48 Fast Ethernet + 4 Gigabit Ethernet 48 Fast Ethernet
2 Gigabit Ethernet
2 SFP slots, 2 Gigabit Ethernet
SF350-48P 48 Fast Ethernet + 4 Gigabit Ethernet 48 Fast Ethernet
2 Gigabit Ethernet
2 SFP slots, 2 Gigabit Ethernet
SF350-48MP 48 Fast Ethernet + 4 Gigabit Ethernet 48 Fast Ethernet
2 Gigabit Ethernet
2 SFP slots, 2 Gigabit Ethernet
SG350-8PD 6 Gigabit Ethernet + 2 2.5G 8 Gigabit Ethernet 2 Gigabit Ethernet combo
SG350-10 10 Gigabit Ethernet 8 Gigabit Ethernet 2 Gigabit Ethernet combo
SG350-10P 10 Gigabit Ethernet 8 Gigabit Ethernet 2 Gigabit Ethernet combo
SG350-10MP 10 Gigabit Ethernet 8 Gigabit Ethernet 2 Gigabit Ethernet combo
SG355-10MP 10 Gigabit Ethernet 8 Gigabit Ethernet 2 Gigabit Ethernet combo
SG350-20 20 Gigabit Ethernet 16 Gigabit Ethernet 2 SFP slots, 2 Gigabit Ethernet combo
SG350-28 28 Gigabit Ethernet 24 Gigabit Ethernet 2 SFP slots, 2 Gigabit Ethernet combo
SG350-28P 28 Gigabit Ethernet 24 Gigabit Ethernet 2 SFP slots, 2 Gigabit Ethernet combo
SG350-28MP 28 Gigabit Ethernet 24 Gigabit Ethernet 2 SFP slots, 2 Gigabit Ethernet combo
SG350-28SFP 28 Gigabit Ethernet 24 Gigabit SFP slots 2 Gigabit Ethernet combo
SG350-52 52 Gigabit Ethernet 48 Gigabit Ethernet 2 SFP slots, 2 Gigabit Ethernet combo
SG350-52P 52 Gigabit Ethernet 48 Gigabit Ethernet 2 SFP slots, 2 Gigabit Ethernet combo
SG350-52MP 52 Gigabit Ethernet 48 Gigabit Ethernet 2 SFP slots, 2 Gigabit Ethernet combo
Product Specifications
Buttons Reset button
Cabling type Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5
Ethernet or better for 1000BASE-T
LEDs System, Link/Act, PoE, Speed, LED power saving option
Flash 32 MB
CPU memory 256 MB
Package Contents
  • Cisco 350 Series Switch
  • Power Cord (Power Adapter for Desktop SKUs)
  • Mounting Kit included in all SKUs, including desktop models
  • Console Cable
  • Quick Start Guide



Datasheet Download
