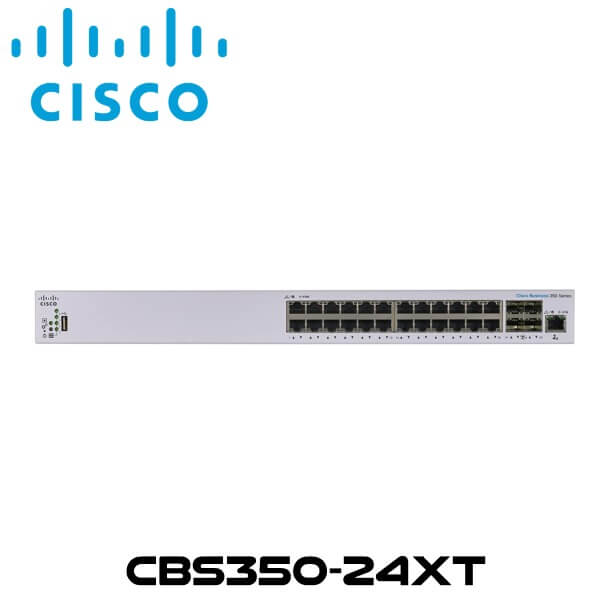

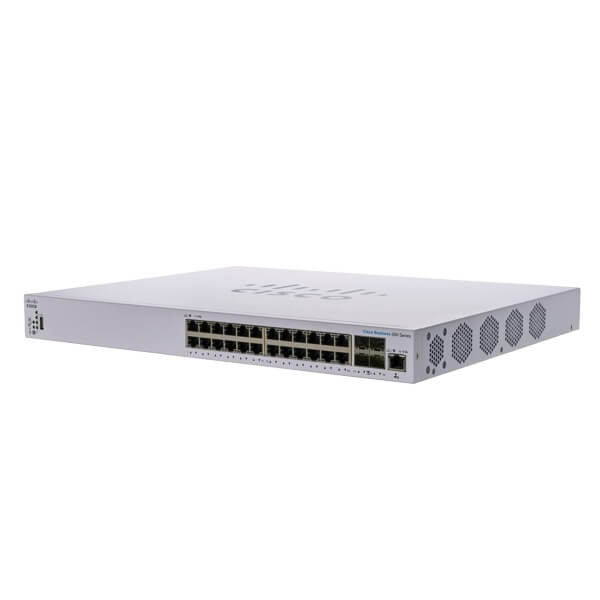

Cisco CBS350-24XT Ghana



Cisco CBS350-24XT Ghana

The Cisco CBS350-24XT Ghana features 24-Port 10G Managed Network Switch with 10G SFP+/RJ45 Combo Ports, the switch provides expansion to your business’s network capacity to support high-bandwidth connected devices

Category:

Description

Cisco CBS350-24XT Network Switch Ghana

The Cisco CBS350-24XT Ghana features 24-Port 10G Managed Network Switch with 10G SFP+/RJ45 Combo Ports, the switch provides expansion to your business’s network capacity to support high-bandwidth connected devices. This managed rackmount switch features twenty-four 10G RJ45 Ethernet ports that work with compatible wired devices such as computers, network attached storage, and more. There are also four 10G fiber SFP+ / copper RJ45 combo ports available for high-speed uplinks. The Cisco CBS350-24XT Ghana offers extensive Layer 2 and Layer 3 features include secure connections, clear communications, and link aggregation to create up to eight port groups for multi-Gig connections to compatible devices. Its 480 Gb/s switching capacity and 240 Mpps forwarding rate also help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS350-24XT and its connected devices. The four fan design helps to maintain optimal temperatures while the switch to operates quietly in the background.

Features

Unmatched Performance

Cisco CBS350-24XT Ghana is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 480 Gb/s switching capacity and 240 Mpps forwarding rate.

Extensive Security

  • Cisco CBS350-24XT Ghana has support for features such as IEEE 802.1x and port security limit access to specific segments of your network while web-based authentication provides a consistent interface to all types of host devices and operating systems.
  • Advanced defense mechanisms such as dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping help to detect and block network attacks. When combined, these protocols may be referred to as IP-MAC port binding (IPMB).
  • The IPv6 First Hop Security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check to protect your IPv6 network against a range of address spoofing and man-in-the-middle attacks.

IPv6 Support

The Cisco CBS350-24XT Ghana switch allows you to evolve your network using the IPv6 standard while remaining compatible the previous-generation IPv4 networks.

Layer 3 Static Routing

Dynamic Layer 3 routing features include the ability to segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.

True Stacking

Reduce the complexity of your network while enhancing your control over a growing network by configuring, managing, and troubleshooting all your switches in a stack as a single unit using a single IP address. The Cisco CBS350-24XT Ghana stacking capability also provides other benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring.

Compact Design

With a sleek and compact 1 RU design, Cisco CBS350-24XT Ghana switch can fit into most wiring closets and other installations within retail stores, offices, and other businesses.

Energy Efficient

Cisco CBS350-24XT Ghana has support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.

Specifications

Interfaces
Ports
  • 24 x 10Gb Ethernet (RJ45)
  • 4 x 10Gb SFP+
  • 1 x Ethernet (RJ45)
Protocols
Layer Services Supported Layer 2 Support, Layer 3 Support
Supported Protocols
  • Head-of-Line (HOL) Blocking
  • IGMP Snooping
  • IPv4
  • IPv6
  • Link Aggregation
  • MAC Filtering
  • Port Mirroring
  • RADIUS
  • SNMPv1
  • SNMPv2c
  • SNMPv3
Queuing Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support 9000 Bytes
MAC Address Table Size 16K
Multicast Groups 2000
VLAN IDs 4094
Security
Security Features
  • DoS Attack Prevention
  • RADIUS Authentication
  • Storm Control
Access Control List 1024
IP Interfaces 128
Static Routes 990
SNMP Support 1, 2c, 3
Standards
RFC RFC 4330
Supported IEEE Standards 802.1ab, 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3an, 802.3az, 802.3u, 802.3x, 802.3z
Performance
Forwarding Rate 240 Mpps
Switching Bandwidth 480 Gb/s
Priority Queues 8
Packet Buffer 3 MB
Computer
Flash Memory 256 MB
Processor 800 MHz ARM
Memory 512 MB
Electrical
Power Draw 124.5 W (Max)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Supply Type Internal
Environmental
Operating Temperature 32 to 122°F / 0 to 50°C
Operating Humidity 10 to 90%
Storage Temperature -13 to 158°F / -25 to 70°C
Storage Humidity 10 to 90%
Noise Level 41.2 dB
General
Cooling System Fan
Mean Time Between Failures (MTBF) 556,642 Hours
Indicator Lights Link/Activity, Speed, System
Rack Form Factor 1 RU
Dimensions 17.3 x 13.8 x 1.7″ / 440 x 350 x 44 mm
Weight 11.2 lb / 5.1 kg



Datasheet Download
