Poly TC8 Ghana



Poly TC8 Ghana

The Poly TC8 Ghana Touch Control enables you to easily start, join, or share content, and also collaborate and connect easily with colleagues and friends.

Description

Poly TC8 Touch Control Ghana

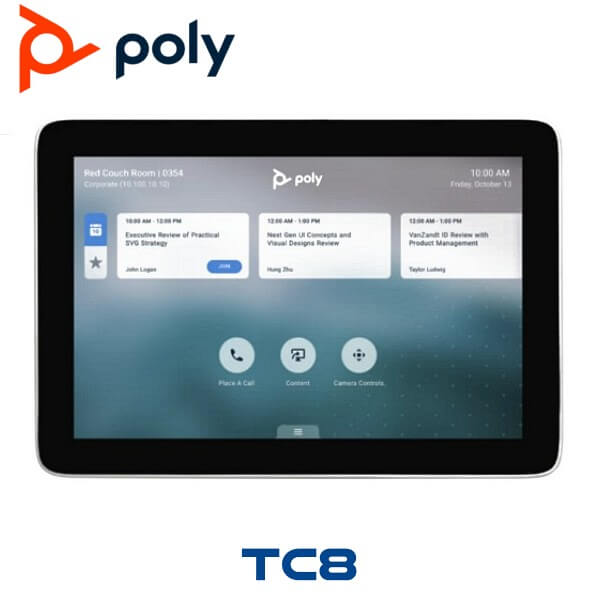

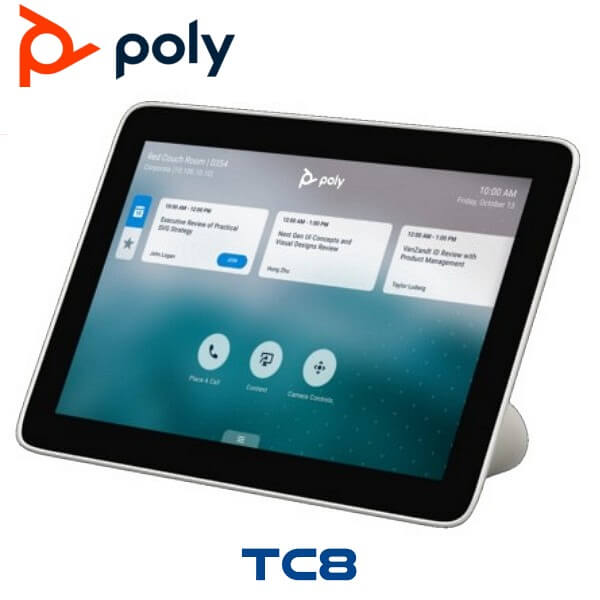

The Poly TC8 Ghana is an intuitive touch interface which has been designed to provide an easy access to Poly video conferencing solutions. It comes in a sleek, compact design with an 8-inch high-resolution touch display which makes it easy for the user to access control options. cThe Touch Control is fully compatible with Poly Studio X family and Poly G7500.

Features

  • Integrated calendar for one touch to join a call
  • Easily share content, adjust the camera, and change participant layouts
  • Compatible with Poly Studio X Series and Poly G7500 Systems
  • Intuitive interface makes it easy to personalise the experience for more productive meetings
  • Power over Ethernet means only one cable is required, keeping your table clean
  • Easy setup as it’s pre-paired out of the box when purchasing as part of a full Poly video solution

Poly TC8 Technical Specifications

Package includes

  • Poly TC8 and RJ45 (LAN) cable
  • Setup sheet
  • Printed warranty statement

Physical Characteristics

  • Physical dimensions: 123 x 205 x 79 (mm)
  • Micro-B USB 2.0 (diagnostics)
  • Mechanical locking mechanism (Kensington lock)
  • Weight: 812 grams

Operating Environment

  • Temperature: 0ºC to 40ºC
  • Non-operating: -20ºC to 60ºC

Altitude

  • Operating: 0 to 10,000 ft ASL
  • Non-operating: 0 to 35000 ft ASL

Compatible Systems

  • Poly G7500 (min 3.0 software)
  • Poly Studio X30 and Studio X50

Usability

  • Display: 8-inch screen
  • Aspect ratio: 16 x 10
  • Resolution: WXGA (1280 x 800)
  • Designed with built-in stand support—no external stand required
  • Viewing angle: 75 degrees (U/D/L/R)
  • Positioning/placing angle: 60 degrees
  • Tap and touch control to access call controls and administrative menus
  • Intuitive user interface

Technology

  • Capacitive touch sensor supports multi-touch functionality
  • Direct API command through network
  • LCD panel with LED backlighting
  • IPS (In-Plane Switching)

Electrical

  • Power over Ethernet (PoE), compatible with IEEE 802.3af Class 3
  • Low-power sleep mode

Warranty

  • One-year return to factory parts and labor
  • 90-day software warranty
