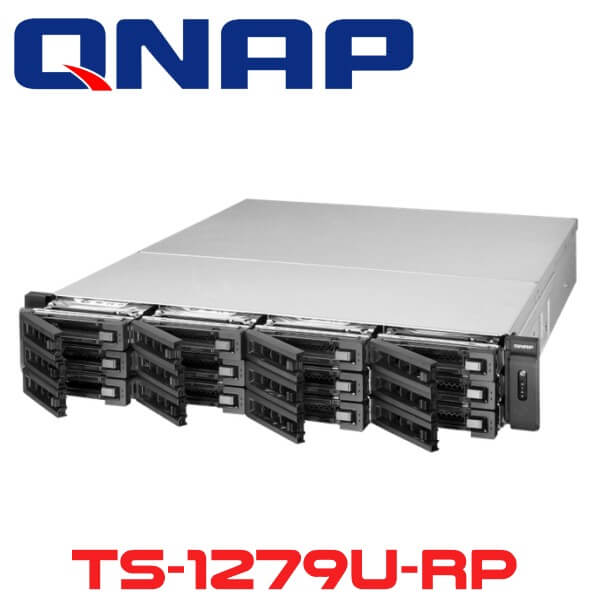

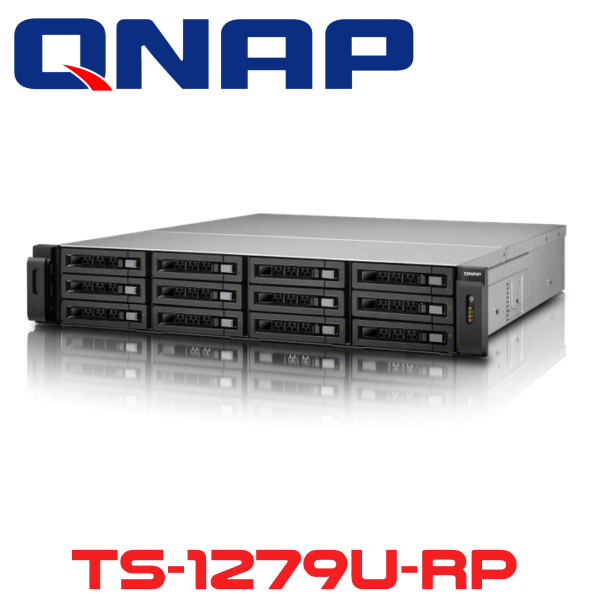

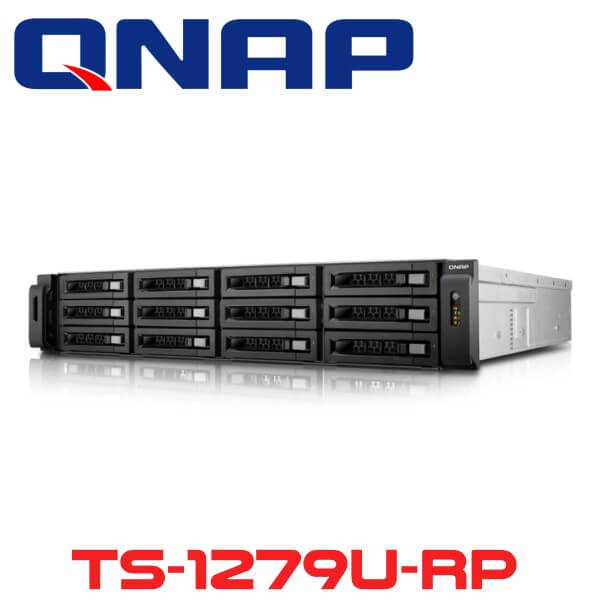

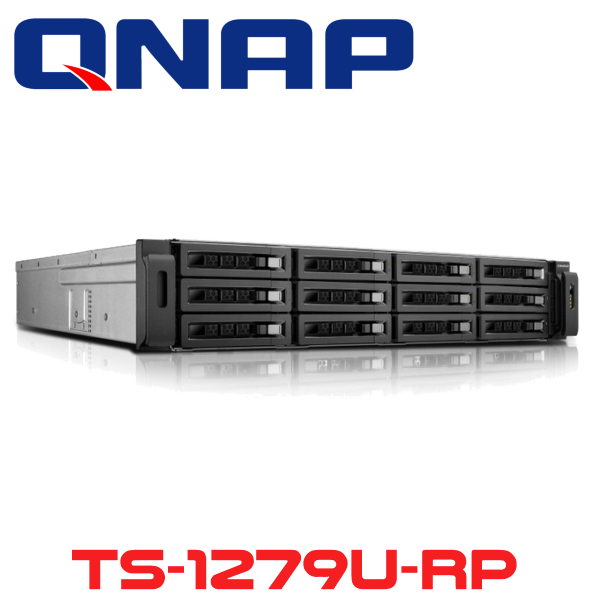

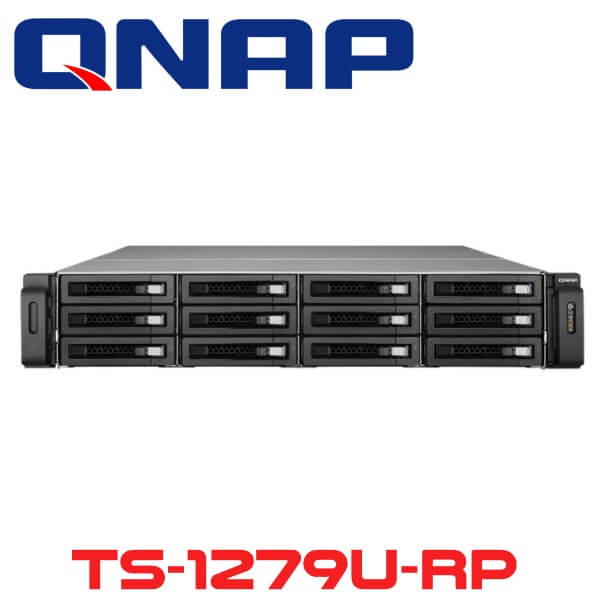

Qnap TS-1279U-RP Ghana



Qnap TS-1279U-RP Ghana

The Qnap TS-1279U-RP Ghana is designed to provide IP SAN/NAS unified storage for large-scale business organizations that demand uncompromising high performance. Featuring a powerful Intel® Core™ i3-3220 Dual Core Processor, 4GB DDR3 RAM and the capacity to hold up to 12 hard drives

Description

Qnap TS-1279U-RP Ghana

The Qnap TS-1279U-RP Ghana is designed to provide IP SAN/NAS unified storage for large-scale business organizations that demand uncompromising high performance. Featuring a powerful Intel® Core™ i3-3220 Dual Core Processor, 4GB DDR3 RAM and the capacity to hold up to 12 hard drives. Qnap TS-1279U-RP greatly enhances efficiency of CPU-consuming tasks, powering large amount of concurrent tasks, and meeting the stringent requirements of data-hungry applications

Qnap TS-1279U-RP Ghana is reliable with built-in safety precautions to safeguard all data from any unforeseen problems. The advanced RAID configurations and hot-swap capabilities are included to give RAID performance, protection and reduced rebuilding time. Moreover, the dual OS embedded on the DOM architecture ensures the system will boot up. If one of the two operating systems fails, the healthy operating system will boot up and operate normally while repairing the failed operating system. The dual Gigabit LAN ports can also be configured for failover which allows the NAS server to sustain the failure of one network port and still provide continuous services.

Key Features

Secure

Qnap TS-1279U-RP Ghana boasts of a variety of security options such as encrypted access, IP filtering, policy-based automatic IP blocking among other important security measures packed in this NAS server. Moreover, full control of the NAS is offered down to the user and folder access rights to determine authorized access. The server is loaded with AES-256 volume-based encryption. This feature stops sensitive data from being accessed by unauthorized users, and also prevents data-breach, even in the event that the hard drive(s) or device is stolen.

Reliable

Qnap TS-1279U-RP Ghana is reliable with built-in safety precautions to safeguard all data from any unforeseen problems. With multiple built-in features to guarantee no interruptions to the work flow of a business. The sophisticated RAID configurations and hot-swap capabilities are included to offer RAID performance, protection and minimized rebuilding time. Moreover, it has dual OS embedded on the DOM architecture makes sure that the system boots up. In the event that 1 of the 2 operating systems fails, the healthy OS will boot up and operate normally while repairing the failed one. The dual Gigabit LAN ports are also configurable for failover, allowing the NAS server to sustain one network port failure and continue to provide continuous service

Advanced folder permissions

Advanced folder permissions allow users to configure folder/subfolder access to the Qnap TS-1279U-RP Ghana. With this feature enabled, users can manage the folder permissions from Microsoft Windows or the web-based management interface of the TS-1279U-RP without complicated procedures. Qnap TS-1279U-RP Ghana is cost effective and does not require any IT skills.

Simple Installation

Installation processes is simplified to the point where most of the necessary steps are either automatic or may be completed via an installation wizard. The user-friendly web GUI enables administrators to easily manage the NAS without extensive knowledge of complicated commands. Easy management tools like instant SMS / Email alert, the hard drive S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) feature, and system resource monitor are included to keep administrators up-to-date on their NAS at all times.

Flexible 10GbE network expansion

Qnap TS-1279U-RP boasts of 10GbE-ready which includes 2 in-built Gigabit Ethernet ports, which can be expanded with additional 2 Gigabit Ethernet ports, or 2 10Gigabit Ethernet ports and delivers excellence performance with 1,000 MB/s throughput and 100,000 IOPS, improving the efficiency of virtualization applications via both NFS and iSCSI protocols. Coupled with the support for large storage capacity, the TS-1279U-RP is a perfect choice for applications demanding high storage space and transmission speed such as data centers storing big data and for studios editing 4K/HD videos on-the-fly without transferring the videos between the TS-1279U-RP and mobile devices

Policy-based unauthorized IP blocking

The administrator can allow, deny or auto block specified IP address or network domain which attempt to connect to the Qnap TS-1279U-RP Kenya via SSH, Telnet, HTTP(S), FTP, Samba, or AFP.

Remote login

Qnap TS-1279U-RP Ghana supports remote login by SSH (secure shell) or Telnet connection.

Secure FTP

Qnap TS-1279U-RP Ghana offers secure data transfer with SSL/TLS (explicit) encryption. Passive FTP port range setup is also supported.

Shared folder management

Administrator can select to hide or show the network shared folders of the TS-1279U-RP on Windows network.

User authority management

Administrator can create user ID and password, and define the authority and quota for each user.

Failover

The LAN ports of the Turbo NAS can be configured in failover mode which allows the TS-1279U-RP to sustain the failure of one network port and provide continuous services.

Load balancing

The LAN ports of Qnap TS-1279U-RP Ghana can be configured in load balancing mode for bandwidth aggregation to boost file transfer speeds. It works with managed Ethernet switch with 802.3ad configured.

Multi-IP settings

Qnap TS-1279U-RP Ghana can be deployed with multiple different IP settings for sharing among different workgroups in two different subnets.

Ultra high Performance

The Qnap TS-1279U-RP Ghana is designed to provide IP SAN/NAS unified storage for large-scale business organizations that demand uncompromising high performance. Featuring a powerful Intel® Core™ i3-3220 Dual Core Processor, 4GB DDR3 RAM (expandable to 32GB), and the capacity to hold up to 12 hard drives, Qnap TS-1279U-RP greatly enhances efficiency of CPU-consuming tasks, powering large amount of concurrent tasks, and meeting the stringent requirements of data-hungry applications

NAS + iSCSI / IP-SAN Solution for Server Virtualization

Qnap TS-1279U-RP Ghana provides class-leading system architecture paired with 10 GbE networking performance engineered to meet the requirements of demanding server virtualization–including VMware, Citrix, and Windows Hyper-V. The 10 GbE network speeds greatly enhance the agility of data transmission in a virtualized environment, improving NFS and iSCSI connection performance.

High Network Bandwidth

Qnap TS-1279U-RP Ghana provides network expansion options, including dual-port 1 GbE and dual-port 10 GbE network expansion cards, to aggregate and improve network performance. The TS-EC1279U-RP features 2x Gigabit (GbE) LAN ports, expandable to 4x GbE LAN, or 2x 10 GbE LAN plus 2x GbE ports.

ECC RAM for High Reliability

Qnap TS-1279U-RP Ghana is equipped with ECC (Error Correction Codes) RAM of the Turbo NAS is capable of detecting and correcting errors that are introduced during data transmission or storage. It provides greater protection in mission critical applications.

Cross-platform Sharing with Antivirus

Qnap TS-1279U-RP Ghana is compatible SMB / CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, and Linux / UNIX networks. User accounts and shared folders may be generated with the user-friendly web-based interface–no IT expertise required! The integrated antivirus solution for the Turbo NAS makes sure business workflow remains continuous by providing detection against the latest viruses, malware, worms and Trojan horses.

Windows Active Directory (AD) and LDAP Directory Service

Windows AD and LDAP (Lightweight Directory Access Protocol) directory service features allow the system administrator to retrieve user accounts from Windows AD or Linux LDAP server to the Qnap TS-1279U-RP Ghana, cutting down on time and effort in account setup. Users are permitted to use the same login name and password to access.

Shared Folder Aggregation

As an added convenience, you can connect to the shared folders of other servers on Microsoft Networking via the “portal folder” on Qnap TS-1279U-RP Ghana. This minimizes the hassle of logging in to various servers one by one.

ISO File Archiving and Sharing

Qnap TS-1279U-RP Ghana supports mounting of ISO images of CD / DVD discs for network sharing folders for data archiving, storage and sharing. This feature conserves way more space than does storing the physical discs, lowers the risk of data loss due to long-term use of the discs, and improves the performance of data sharing on a business network.

Centralized Log Monitoring

Qnap TS-1279U-RP Ghana features a central repository of log data from different network devices enables efficient business management and security auditing. QNAP Syslog server permits the IT administrator to collect and store logs of other network devices in the Turbo NAS.

Backup Center for Business

Qnap TS-1279U-RP Ghana delivers a total backup solution for businesses with QNAP QBack / NetBak Replicator, which supports real-time and scheduled data backup from Windows PCs, Apple Time Machine backup from Mac OS, and 3rd party backup software, including Acronis True Image and Symantec Backup Exec.

Disaster Recovery Solution, Real-time Remote Replication (RTRR)

Offers real-time or scheduled data replication between Qnap TS-1279U-RP Ghana and a remote QNAP NAS, FTP server, or external drive.

iSCSI LUN Backup and Restore

The Turbo NAS takes iSCSI LUN backup/ restore to a new level with snapshot technology. The IT administrator is now able to use the LUN snapshot to back up contents in the LUN to different storage destinations, such as Windows shared folders via SMB / CIFS, Linux shared folders via NFS, or local shared folders on the Turbo NAS.

Cloud Storage Backup

Qnap TS-1279U-RP Ghana provides support for Amazon S3 and ElephantDrive cloud storage backup, which feature several backup modes, such as real-time, scheduled backup and versioning control. This allows data to be restored from any point in time. With ElephantDrive, cloud storage may be monitored via web browser. An additional set of all of the data stored will always be available, making remote data recovery quick and easy.

NAS + iSCSI Combo Solution

Qnap TS-1279U-RP Ghana is capable of concurrently serving as a NAS for file sharing and iSCSI storage.

Qnap TS-1279U-RP Ghana Specifications

CPU Dual Core Intel® Core™ i3-3220 Processor 3.3 GHz
Memory System memory: 4 GB DDR3 RAM
Memory module pre-installed: 4 GB x1
Total memory slots: 4 Memory expandable up to: 32 GB (8GB x4)
Flash Memory 512MB DOM
Hard Drive 12 x 3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive or SSD
Hard Drive Tray 12 x hot-swappable and lockable tray

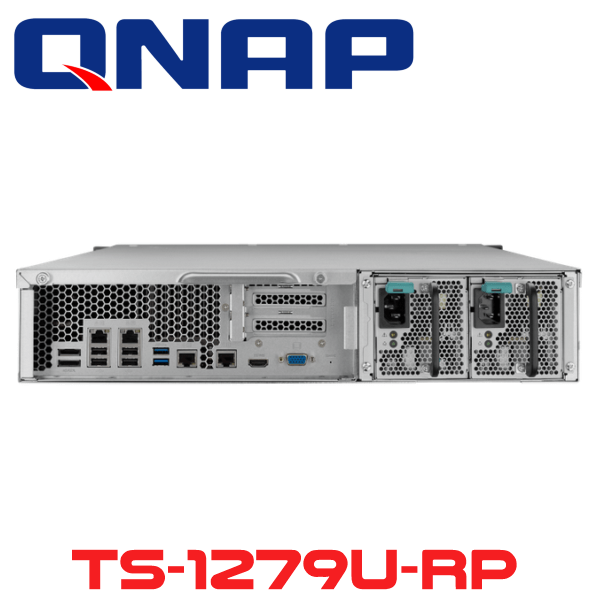

LAN Port 4 x Gigabit RJ-45 Ethernet port
LED Indicators Status, 10 GbE, LAN, eSATA, hard drives
USB 2x USB 3.2 Gen 1 port (rear)
4x USB 2.0 port
Esata 2 (rear)
Buttons System: Power button and reset button
Alarm Buzzer System warning
Form Factor 2U, Rackmount
Dimensions 88(H) x 439(W) x 520(D) mm
3.46(H) x 17.28(W) x 20.47(D) inch
Weight Net weight: 15.88 kg/ 35.01 lb
Gross weight: 22.92 kg/ 50.53 lb
Sound Level (dB) Standby: 48.17 dB
In operation:48.17 dB
(with12 x 1TB HDD installed)
Power Consumption (W) Sleep mode: 68 W
In Operation: 165 W
(with 12 x 1TB hard drive installed)
Temperature 0~40˚C
Relative Humidity 5~95% RH non-condensing, wet bulb: 27˚C.
Power Supply Input: 100-240V AC,50-60Hz
Output: 600W
Expansion Slot 2 (for network and storage expansion)
VGA Reserved for maintenance
Fan 3 x 6 cm smart cooling fan
