Description

Qnap TS-870U-RP Ghana

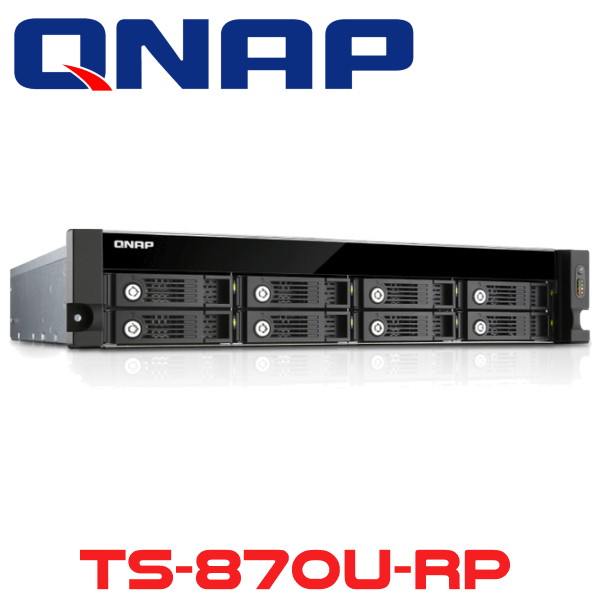

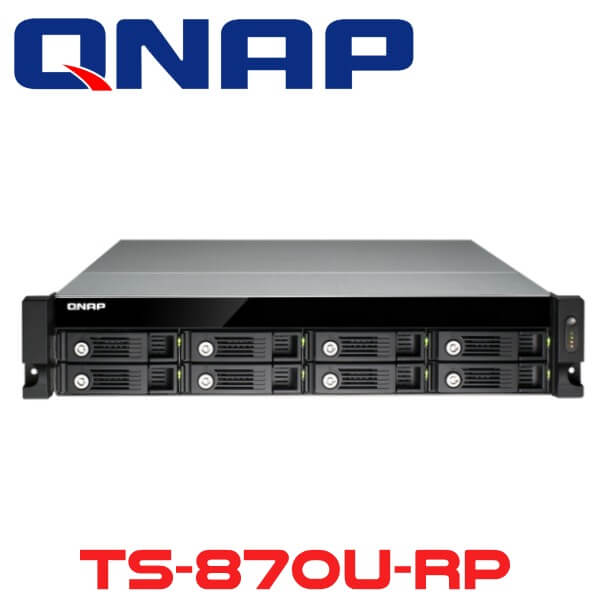

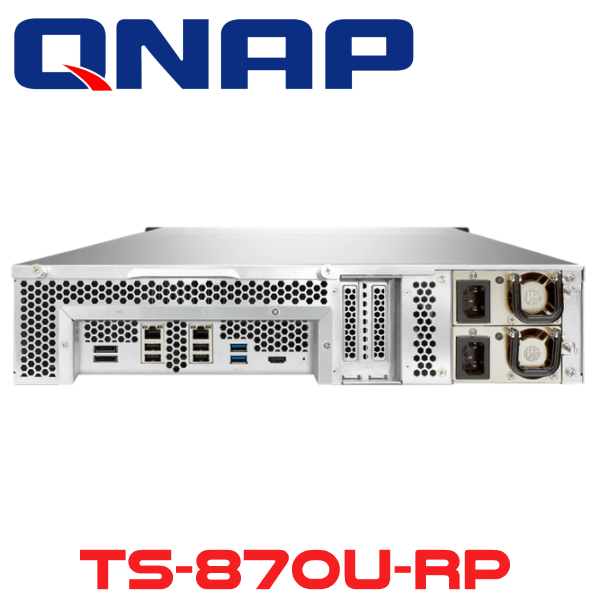

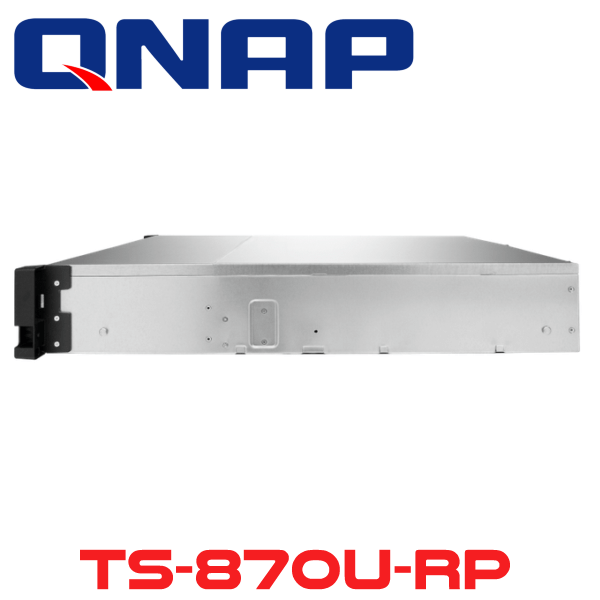

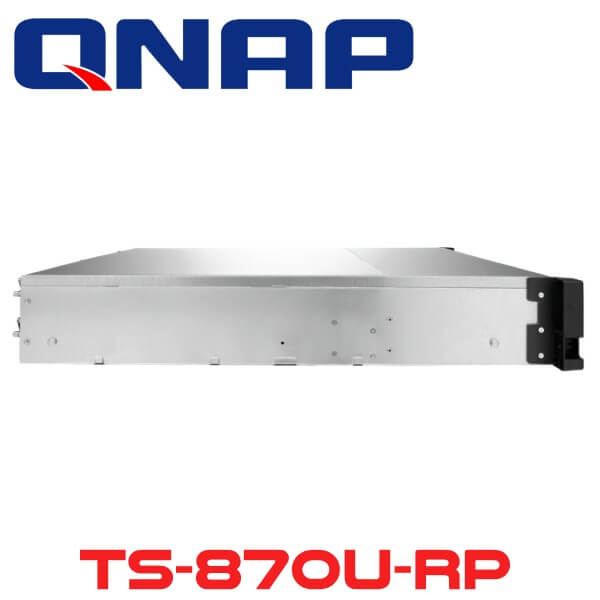

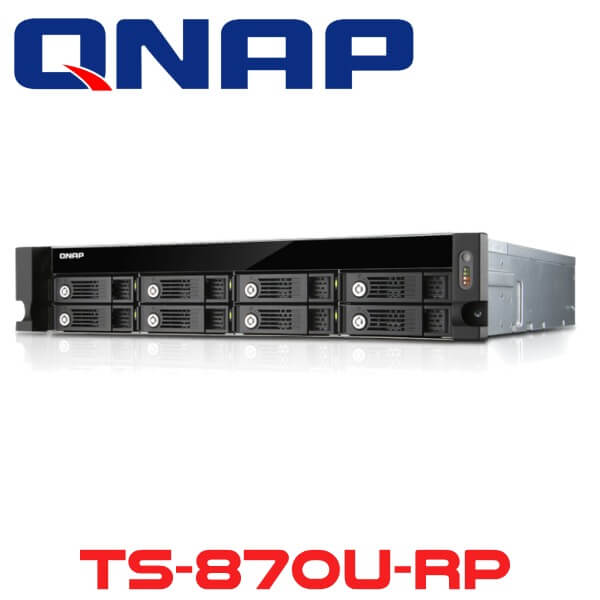

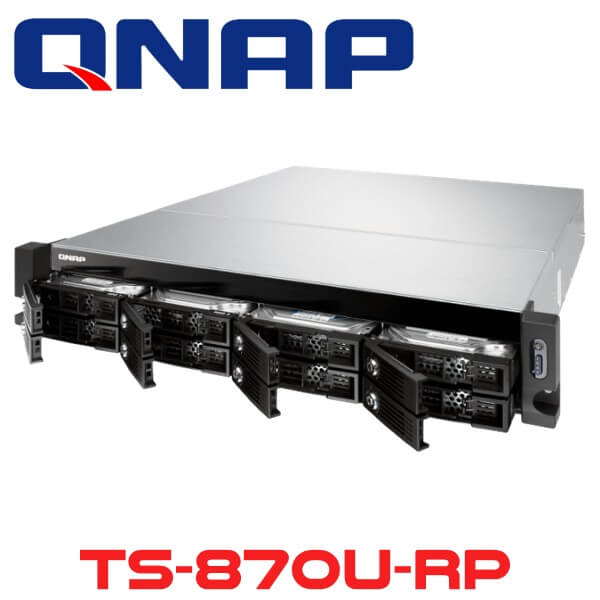

The Qnap TS-870U-RP Ghana is 8-Bay IP-SAN/NAS SATA 6G/USB 3.0 Storage Solution that functions as both IP-SAN (iSCSI) and NAS. TS-870U-RP is easily employable in various business and enterprise applications, including as a backup center and for disaster recovery, file sharing, virtualization and video editing storage. The system features an Intel dual-core processor, 4GB DDR3 memory, 10 Gigabit network capability and a 6 Gbps SATA interface for high performance and fast data transfer rates. You also get blazing-fast data backup via USB 3.0.

The TS-870U-RP offers a variety of security options to prevent unauthorized access to your data, even in the event that the hard drive(s) or device is stolen. The server has sophisticated RAID configurations and hot-swap capabilities to offer high performance, protection and minimized rebuilding time. The dual OS embedded on the DOM architecture ensures that the system will boot up in the event of failure. Moreover, setting is easy without need IT skills. Easy management tools like instant SMS / Email alert, the hard drive S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) feature and system resource monitor are included to keep administrators up-to-date on their NAS at all times.

Key Features

Secure

Qnap TS-870U-RP Ghana offers a variety of security options, including encrypted access, IP filtering, policy-based automatic IP blocking and more. Additionally, the user has complete control of the NAS with folder access rights to determine who is able to access the NAS and what is / is not accessible. The server is loaded with security features that prevent unauthorized data access, including AES-256 volume-based encryption. This feature stops sensitive data from being accessed by unauthorized users and also prevents data breach, even in the event that the hard drive(s) or device is stolen.

Reliable

Built-in safety precautions protect your data from unforeseen problems. With numerous built-in features to guarantee that nothing interrupts the work flow of your business, the TS-870U-RP is a highly efficient asset. Sophisticated RAID configurations and hot-swap capabilities are included to offer RAID performance, protection and minimized rebuilding time. Moreover, the dual OS embedded on the DOM architecture ensures that the system boots up. In the event that one of the two operating systems fails, the healthy OS will boot up and operate normally while repairing the failed one. The dual Gigabit LAN ports are also configurable for failover, allowing the NAS server to sustain one network port failure and provide continuous service.

Simple

Qnap TS-870U Ghana setup processes have been simplified. Most of the necessary steps are either automatic or may be completed via an installation wizard. The user-friendly web GUI enables administrators to easily manage the NAS without extensive knowledge of complicated commands. Easy management tools like instant SMS / Email alert, the hard drive S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) feature and system resource monitor are included to keep administrators up-to-date on their NAS at all times.

High Performance

The Qnap TS-870U-RP Ghana features an Intel dual-core processor, 4GB DDR3 memory, 10 Gigabit network capability and a 6 Gbps SATA interface. The most demanding requirements in data center or corporate networks may be satisfied by this server. An exceptional data transfer rate of over 1,000 MBps throughput and1,00,000 IOPS 1allow intensive business applications and concurrent tasks to be fulfilled with ease. With RAID 5, the server boasts 1,826 MBps read and 1,319 MBps write speeds (throughput), as well as 185,538 IOPS read and 156,385 IOPS write speeds.

10GbE NAS + iSCSI/IP-SAN Solution for Server Virtualization

As IT resources become increasingly virtualized, the need for high performance storage becomes highly critical. The Qnap TS-870U-RP Ghana provides class-leading system architecture paired with 10 GbE networking performance engineered to meet the requirements of demanding server virtualization–including VMware, Citrix and Windows Hyper-V. With10 GbE network speeds, the server greatly enhances the ability of data transmission in a virtualized environment, improving NFS and iSCSI connection performance.

High Network Bandwidth

The server provides network expansion options, including dual-port 1 GbE and dual-port 10 GbE network expansion cards, to aggregate and improve network performance. The TS-870U-RP features 2 x Gigabit (GbE) LAN ports, expandable to 6 x GbE LAN, or 4 x 10 GbE LAN plus 2 x GbE ports.

Blazing-Fast Data Backup via USB 3.0

The server boasts USB 3.0 ports for fast backup to external hard drives. EXT3, EXT4, NTFS and HFS+ file systems are all supported, ensuring compatibility with Windows, Mac OS X and Linux operating systems.

Cross-Platform Sharing with Antivirus
The server supports SMB / CIFS, NFS and AFP protocols for file sharing across Windows, Mac and Linux / UNIX networks. User accounts and shared folders may be generated with the user-friendly web-based interface; no IT expertise is required. The integrated antivirus solution for the Turbo NAS ensures continuous business workflow by providing detection against the latest viruses, malware, worms and Trojan horses.

Windows Active Directory (AD) and LDAP Directory Service
Windows AD and LDAP (Lightweight Directory Access Protocol) directory service features allow the system administrator to retrieve user accounts from Windows AD or Linux LDAP server to the TS-870U-RP, reducing the time and effort needed in account setup. Users are permitted to use the same login name and password to access the TS-870U-RP.

Shared Folder Aggregation
As an added convenience, you can connect to the shared folders of other servers on Microsoft Networking via the “portal folder” on the Qnap TS-870U-RP. This minimizes the hassle of logging in to various servers one by one.

ISO File Archiving and Sharing
The Qnap TS-870U-RP Ghana supports the mounting of ISO images of CD / DVD discs for network sharing folders for data archiving, storage and sharing. This feature conserves way more space than otherwise used for storing physical discs, lowers the risk of data loss due to long-term use of the discs and improves the performance of data sharing on a business network.

Centralized Log Monitoring
A central repository of log data from different network devices enables efficient business management and security auditing. QNAP Syslog server permits the IT administrator to collect and store logs of other network devices in the Turbo NAS.

Windows ACL
The Windows ACL (access control list) feature offers sophisticated shared folder permission settings and thus simplifies IT management for businesses with a large number of users. By enabling the Windows ACL, basic permissions and 13 advanced permissions can be set up from the Windows Explorer and synchronized with the permission settings of the Turbo NAS. In addition, the same permissions apply to AFP, FTP, Web File Manager and Samba when “Advanced Folder Permissions” are enabled at the same time.

Advanced Folder Permissions
Advanced folder permissions allow users to configure folder/subfolder access to the Turbo NAS. This feature enables users to manage the folder permissions from Microsoft Windows or the web-based management interface of the Turbo NAS easily.

Backup Center for Business

The server delivers a total backup solution for businesses with QNAP QBack / NetBak Replicator, which supports real-time and scheduled data backup from Windows PCs, Apple Time Machine backup from Mac OS and 3rd party backup software, including Acronis True Image and Symantec Backup Exec.

Disaster Recovery Solution

Real-time Remote Replication (RTRR)
Offers real-time or scheduled data replication between the TS-870U-RP and a remote QNAP NAS, FTP server or external drive.

iSCSI LUN Backup and Restore
The Turbo NAS takes iSCSI LUN backup/ restore to an advanced level with snapshot technology. The IT administrator is now able to use the LUN snapshot to back up contents in the LUN to different storage destinations, such as Windows shared folders via SMB / CIFS, Linux shared folders via NFS or local shared folders on the Turbo NAS.

Cloud Storage Backup

 The Qnap TS-870U-RP Ghana provides support for Amazon S3, ElephantDrive and Symform cloud storage backup, which feature several backup modes, such as real-time, scheduled backup and versioning control. This allows data to be restored from any point in time. With ElephantDrive, cloud storage may be monitored via a web browser. An additional set of the stored data will always be available, making remote data recovery quick and easy.

iSCSI and Virtualization Deployment

The Qnap TS-870U-RP Ghana is fully VMware and Citrix ready and Windows Hyper-V compliant. Compared with a high-cost Fibre Channel SAN, the TS-870U-RP is an affordable system that can be deployed as a storage center for virtualized and clustered server environments, such as VMware and Microsoft Windows Failover Cluster.

SPC-3 Persistent Reservation Supported
The built-in iSCSI service supports enterprise-level features such as SPC-3 persistent reservation for clustering in VMware and Windows Server 2008. The administrator can set up Microsoft Failover Cluster environment, use Cluster Shared Volume for Hyper-V and execute Virtual Machine Live Migration between Hyper-V hosts.

Flexible Management
Offers support for numerous LUNs (Logical Unit Numbers) and iSCSI targets. LUNs may be flexibly mapped to, unmapped from and switched among various iSCSI targets.

Secure Deployment
Engineered with CHAP authentication and LUN masking, the sophisticated ACL (Access Control List) provides the ability to block unauthorized access from the initiators.

Advanced MPIO and MC/S Supported
With the support of MPIO (Multipath Input Output) and MC/S (Multiple Connections per Session) on the Turbo NAS, users are able to connect to the iSCSI targets on the Qnap TS-870U-RP using 2 or more network interfaces from their server with failover and load balancing. Furthermore, improved data transmission performance can be achieved with MC/S settings.

Qnap TS-870U-RP Specifications
