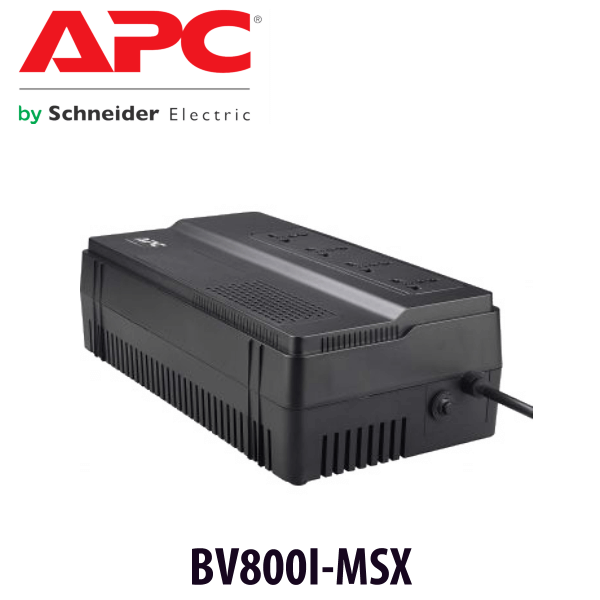

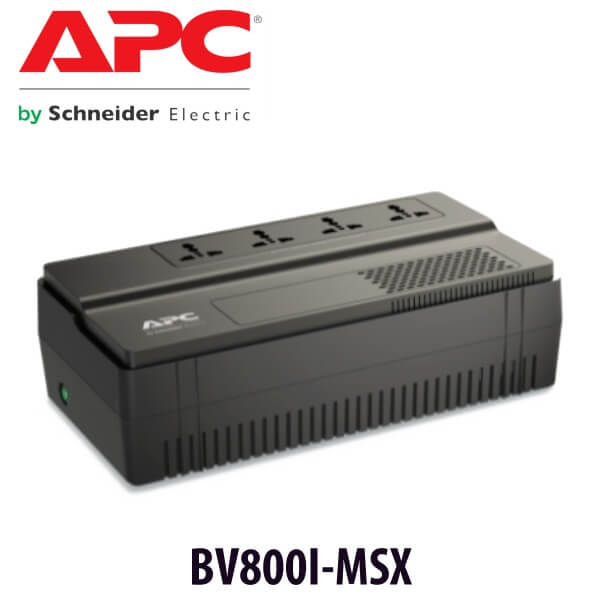

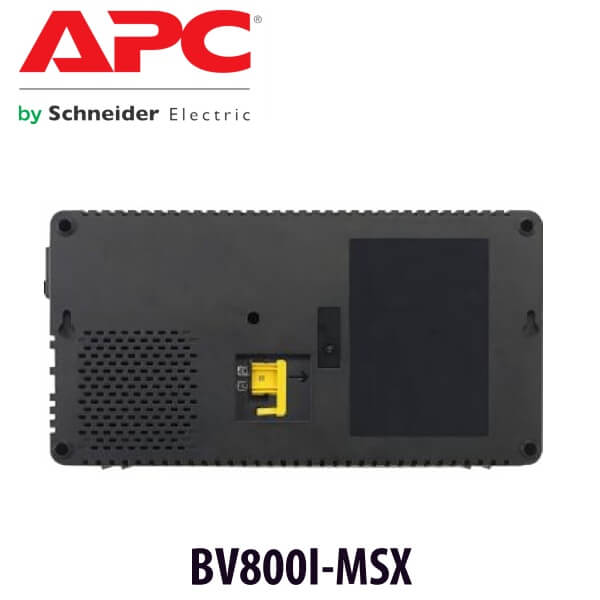

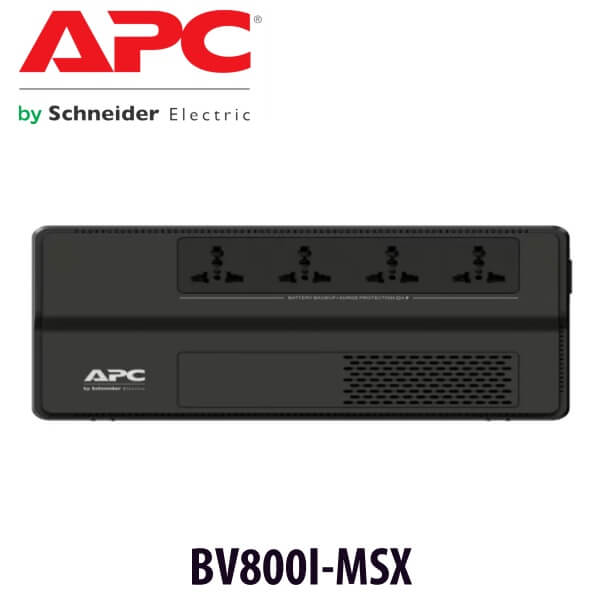

APC BV800I-MSX Ghana



APC BV800I-MSX Ghana

The APC BV800I-MSX Ghana provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments. It features a battery backup and surge protector for Electronics and Computers

Category:

Description

APC BV800I-MSX UPS Ghana

The APC BV800I-MSX Ghana provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments. Featuring a battery backup and surge protector for Electronics and Computers, APC BV800I-MSX is trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. APC BV800I-MSX Ghana automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment. Besides, it preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

 APC BV800I-MSX Ghana is an intelligent system providing an easy-to-read status of the unit and utility power conditions, issuing notification of changing utility power and UPS power conditions. Such crucial alerts include, battery failure notification whereby early-warning fault analysis on batteries allows timely preventive maintenance. Also, maximizes battery performance, life, and reliability through intelligent, precision charging. APC BV800I-MSX is easy to install, allowing flexibility for setup in tight locations and mounting on wall or other surfaces.

Key Features

Automatic Voltage Regulation (AVR)

APC BV800I-MSX Ghana automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment. Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

Protection for Electronics and Computers

Battery backup and surge protection: Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage. Battery and surge protected outlets: Back up and protect your hardware and data during power outages, surges and spikes.

Cold-start capable

APC BV800I-MSX Ghana provides temporary battery power when the utility power is out.
Sleek design

APC BV800I-MSX Ghana has slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.

Transformer-block spaced outlets

Protect equipment with input transformer blocks without blocking access to other receptacles.

Easy Installation

APC BV800I-MSX packs wall-mount holes allowing flexible for easy setup in tight locations and mounting on wall or other surfaces.

LED Indicators

APC BV800I-MSX is simple to operate as it is equipped with LED indicators providing easy-to-read status of the unit and utility power conditions.

Audible alarms

Provides notification of changing utility power and UPS power conditions. Battery failure notification by providing early-warning fault analysis on batteries enabling timely preventive maintenance

Intelligent battery management

APC BV800I-MSX Ghana maximizes battery performance, life, and reliability through intelligent, precision charging.

Advanced Safety Features

Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

APC BV800I-MSX Ghana benefits

  • Automatic self-test : Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Intelligent battery management : Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Battery failure notification : Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Battery and surge protected outlets : Back up and protect your hardware and data during power outages, surges and spikes.
  • Surge only outlets : Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage

Technical Specifications

Output

  • Max Configurable Power (Watts) : 450 Watts / 800VA
  • Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Unsynchronized
  • Topology : Line interactive
  • Waveform type : Stepped approximation to a sinewave
  • Transfer Time : 6 ms typical: 10 ms maximum

Input

  • Input frequency : 50/60 Hz +/- 5 Hz Auto-sensing
  • Input voltage range for main operations : 170 – 280V
  • Number of Power Cords : 1

Batteries & Runtime

  • Battery type : Lead-acid battery
  • Expected Battery Life (years) : 3 – 5
  • Efficiency : View Efficiency Graph

Communications & Management

  • Control panel : LED Status display with on line : on battery
  • Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
  • Surge Protection and Filtering
  • Surge energy rating : 156Joules

Physical

  • Maximum Height : 93MM, 9.25CM
  • Maximum Width : 161MM, 16.05CM
  • Maximum Depth : 305MM, 30.5CM
  • Net Weight :5.3KG
  • Shipping weight : 5.6KG
  • Shipping Height : 237MM, 23.7CM
  • Shipping Width :143MM, 14.3CM
  • Shipping Depth : 373MM, 37.3CM
  • Color : Black
  • SCC Codes : 10731304344084

Environmental

  • Operating Temperature : 0 – 40 °C
  • Operating Relative Humidity : 0 – 90 %
  • Operating Elevation : 0 – 2032.1meters
  • Storage Temperature : -20 – 50 °C
  • Storage Relative Humidity : 0 – 90 %
  • Storage Elevation : 0 – 15240meters
  • Audible noise at 1 meter from surface of unit : 40.0dBA
  • Protection Class : IP20

Conformance

  • Approvals : CE
  • Standard warranty : 2 years repair or replace

Sustainable Offer Status

  • RoHS : Compliant
