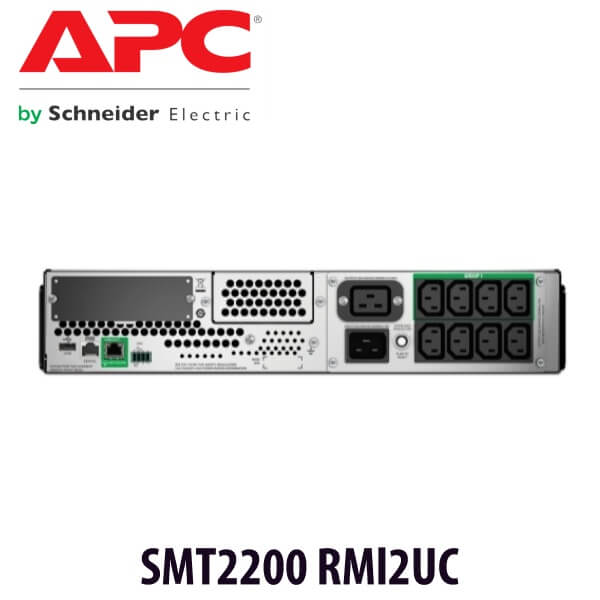

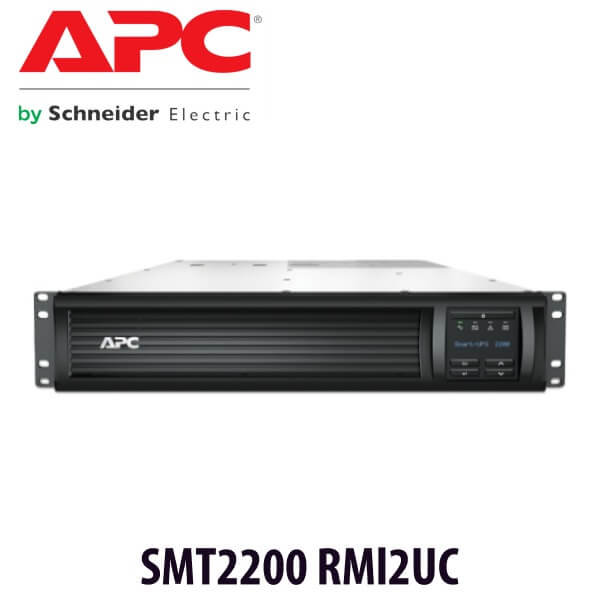

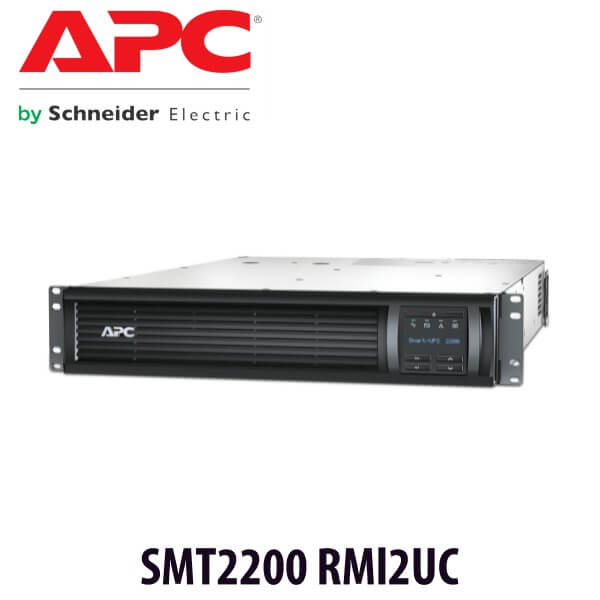

APC SMT2200 RMI2UC Ghana



APC SMT2200 RMI2UC Ghana

The APC SMT2200 RMI2UC Smart-UPS Ghana provides Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Category:

Description

APC SMT2200 RMI2UC Smart-UPS Ghana

The APC SMT2200 RMI2UC Smart-UPS Ghana provides Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. APC SMT2200 RMI2UC Ghana, provide pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards. APC SMT2200 RMI2UC Ghana is equipped with intuitive LCD interface to provide clear and accurate information in multiple languages with the ability to configure the UPS locally with easy.

The APC SMT2200 RMI2UC Smart-UPS Ghana has patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self-tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down

Avoid costly power problems by keeping your IT equipment and data safe and available. APC SMT2200 RMI2UC Smart-UPS features network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems. Save time with easy and convenient remote accessibility which is network manageable via serial, USB or optional Ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Key Features and Benefits

Cold-start capable

APC SMT2200 RMI2UC Smart-UPS Ghana provides temporary battery power when the utility power is out.

Energy meter

APC SMT2200 RMI2UC Ghana provides actual kilowatt hours of usage for energy conscious users.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Intelligent Card Slot

Customize UPS capabilities with management cards.

Intuitive LCD interface

APC SMT2200 RMI2UC Smart-UPS provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Pure sine wave output on battery

APC SMT2200 RMI2UC Smart-UPS Ghana simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Sequenced network shutdown and reboot

Customize network shutdown and reboot sequence of connected servers and UPSs.

Single switched outlet group

Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

StruxureWare Data Center Expert compatible

APC SMT2200 RMI2UC Smart-UPS enables centralized management via StruxureWare Data Center Expert.

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Resettable circuit breakers

Enables a quick recovery from overload events.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Serial connectivity

Provides management of the UPS via a serial port.

USB connectivity

rovides management of the UPS via a USB port (not available on all models).

LED status indicators

Quickly understand unit and power status with visual indicators.

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Audible alarms

APC SMT2200 RMI2UC Smart-UPS provides notification of changing utility power and UPS conditions.

Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Automatic restart of loads after UPS shutdown

APC SMT2200 RMI2UC Smart-UPS automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Disconnected battery notification

APC SMT2200 RMI2UC Smart-UPS Ghana warns when a battery is not available to provide backup power.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Technical Specifications

Output

  • Max Configurable Power (Watts) : 1.98kWatts / 2.2kVA
  • Output Voltage Note : Configurable for 220: 230 or 240 nominal output voltage
  • Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
  • Other Output Voltages : 220 V, 240 V
  • Topology : Line interactive
  • Waveform type : Sine wave
  • Transfer Time : 4 ms typical: 8 ms maximum

Input

  • Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
  • Input voltage range for main operations : 151 – 302 Adjustable, 160 – 286V
  • Number of Power Cords : 1
  • Other Input Voltages : 220 V, 240 V

Batteries & Runtime

  • Battery type : Lead-acid battery
  • Typical recharge time : 3hour(s)
  • Expected Battery Life (years) : 3 – 5
  • RBC Quantity : 1
  • Battery Charge Power (Watts) : 169 Watts

Communications & Management

  • Interface Port(s) : USB
  • Control panel : LED status display with on line: on battery: replace battery and overload indicators, Multifunction LCD status and control console
  • Audible Alarm : Alarm when on battery: distinctive low battery alarm: configurable delays

Available Smart-Slot™ Interface Quantity: 1

Surge Protection and Filtering

  • Surge energy rating : 375Joules

Physical

  • Maximum Height :86MM, 8.6CM
  • Maximum Width : 480MM, 48.0CM
  • Maximum Depth : 683MM, 68.3CM
  • Net Weight : 42.31KG
  • Shipping weight  : 49.73KG
  • Shipping Height : 254MM, 25.4CM
  • Shipping Width : 600MM, 60.0CM
  • Shipping Depth : 980MM, 98.0CM
  • Units per Pallet : 8.0

Environmental

  • Operating Temperature : 0 – 40 °C
  • Operating Relative Humidity : 0 – 95 %
  • Operating Elevation : 0 – 3048meters
  • Storage Temperature : -15 – 45 °C
  • Storage Relative Humidity : 0 – 95 %
  • Storage Elevation : 0 – 15240meters
  • Audible noise at 1 meter from surface of unit : 55.0dBA
  • Online thermal dissipation : 215.0BTU/hr

Conformance

  • Approvals : CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE
  • Standard warranty : 3 years repair or replace (excluding battery) and 2 years for battery
