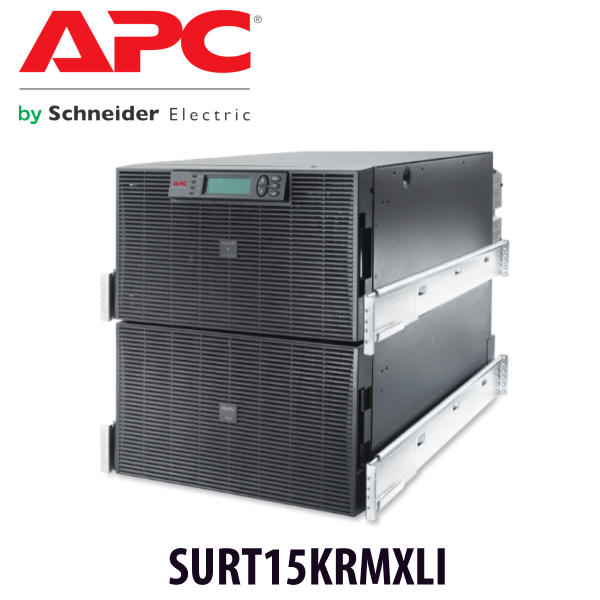

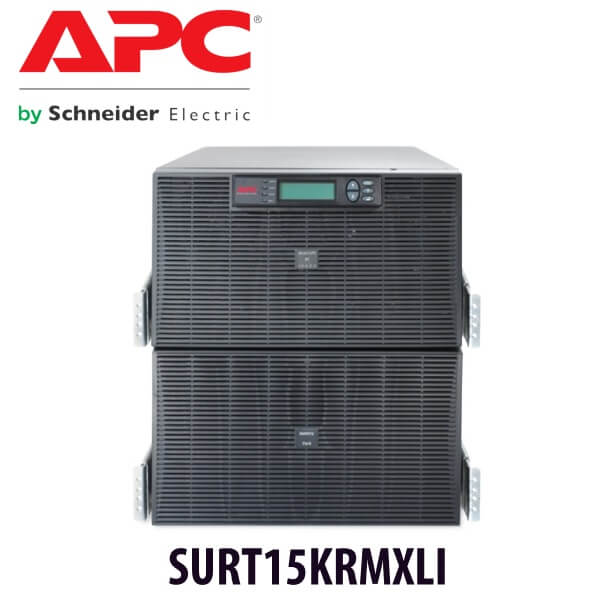

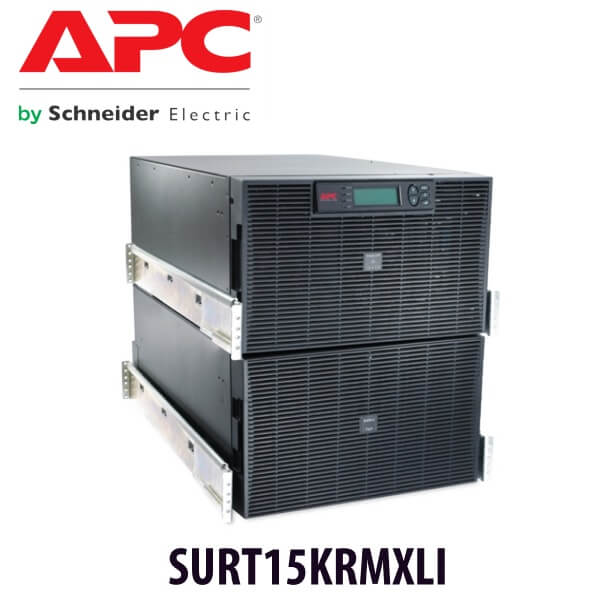

APC SURT15KRMXLI Ghana



APC SURT15KRMXLI Ghana

The APC SURT15KRMXLI Smart-UPS Ghana is a high density, double-conversion on-line power protection with scalable runtime. It provides low operating and maintenance costs with proven reliability and intelligent battery management.

Category:

Description

APC SURT15KRMXLI Smart-UPS Ghana

The APC SURT15KRMXLI Smart-UPS Ghana is a high density, double-conversion on-line power protection with scalable runtime. It provides low operating and maintenance costs with proven reliability and intelligent battery management. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self-tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

APC SURT15KRMXLI Smart-UPS provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards. Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation, and zero transfer time to battery during power events.

APC SURT15KRMXLI Smart-UPS saves time with easy and convenient remote/network accessibility. It is network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Key Features

Dual mains input

APC SURT15KRMXLI Smart-UPS Ghana increases availability by allowing the UPS to be connected to two separate power sources.

LCD display

Alpha-Numeric Display which displays system parameters and alarms.

Manageable external batteries

APC SURT15KRMXLI Smart-UPS Ghana reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.

Rack/Tower convertible

APC SURT15KRMXLI Smart-UPS Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

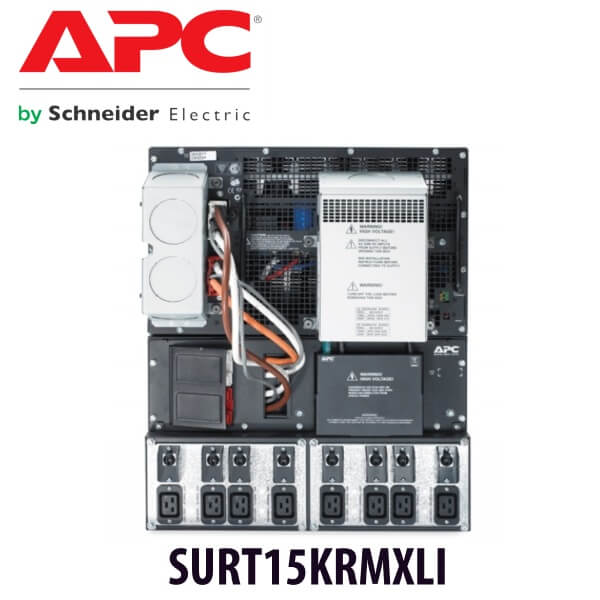

Removable input/output wiring tray

Allows quick and easy installation and maintenance of the UPS.

Single or three-phase input wire able

Provides flexibility for the UPS to be installed using either single or three-phase input wiring.

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Flash upgradeable firmware

Install maintenance releases of firmware remotely using FTP.

Plug-and-Play external batteries

APC SURT15KRMXLI Smart-UPS ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Automatic restart of loads after UPS shutdown

APC SURT15KRMXLI Smart-UPS automatically starts up the connected equipment upon the return of utility power.

Scalable runtime

Allows additional run time to be quickly added as needed.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Intelligent battery management

APC SURT15KRMXLI Smart-UPS maximizes battery performance, life, and reliability through intelligent, precision charging.

InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.

Intelligent Card Slot

Customize UPS capabilities with management cards.

Serial connectivity

APC SURT15KRMXLI Smart-UPS provides management of the UPS via a serial port.

LED status indicators

Quickly understand unit and power status with visual indicators.

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Cold-start capable

APC SURT15KRMXLI Smart-UPS provides temporary battery power when the utility power is out.

Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Audible alarms

APC SURT15KRMXLI Smart-UPS provides notification of changing utility power and UPS power conditions

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Technical Specifications

Output

  • Max Configurable Power (Watts): 12.0kWatts / 15.0kVA
  • Output Voltage Note: Configurable for 380: 400 or 415 V 3 Phase nominal output voltage
  • Output Voltage Distortion: Less than 5 %
  • Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz Sync to mains
  • Other Output Voltages: 220 V, 240 V
  • Load Crest Factor: 3: 1
  • Topology: Double conversion online
  • Waveform type: Sine wave
  • Overload Operation: 60 seconds at 125% and 30 seconds at 150%
  • Bypass: Built-in static bypass, Internal bypass (automatic and manual), Optional external bypass

Input

  • Input frequency: 40 – 70 Hz Auto-sensing
  • Input voltage range for main operations: 160 – 280V
  • Input Total Harmonic Distortion: Less than 5 % for full load
  • Other Input Voltages: 220 V, 240 V
  • Input Power Factor at Full Load: 0.95

Batteries & Runtime

  • Battery type: Lead-acid battery
  • Included Battery Modules: 4
  • Typical recharge time: 2.5hour(s)
  • Nominal Battery Voltage: +/- 192 V (split battery referenced to neutral)
  • Expected Battery Life (years): 3 – 5
  • RBC Quantity: 4
  • Battery Charge Power (Watts): 1.53kWatts
  • Extendable Run Time: 1
  • Efficiency in Battery Operation: 93.0 %

Communications & Management

  • Interface Port(s): DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot
  • Pre-Installed SmartSlot™ Cards: Control panel; Multifunction LCD status and control console
  • Audible Alarm: Audible and visible alarms: configurable delays
  • Emergency Power Off (EPO): Yes

Surge Protection and Filtering

  • Filtering: Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449

Physical

  • Maximum Height:533MM, 53.3CM
  • Maximum Width: 432MM, 43.2CM
  • Maximum Depth: 773MM, 77.3CM
  • Net Weight: 247.73KG
  • Shipping weight: 314.09KG
  • Shipping Height: 990MM, 99.0CM
  • Shipping Width: 610MM, 61.0CM
  • Shipping Depth: 1003MM, 100.3CM
  • Color: Black
  • Units per Pallet: 1.0

Environmental

  • Operating Temperature: 0 – 40 °C
  • Operating Relative Humidity: 0 – 95 (Non-condensing) %
  • Operating Elevation: 0 – 3048meters
  • Storage Temperature: -15 – 45 °C
  • Storage Relative Humidity: 0 – 95 (Non-condensing) %
  • Storage Elevation: 0 – 15240meters
  • Audible noise at 1 meter from surface of unit: 50.0dBA
  • Online thermal dissipation: 2800.0BTU/hr
  • Protection Class: IP20

Conformance

  • Approvals: EN/IEC 62040-1-1, EN/IEC 62040-2, VDE
  • Standard warranty: 2 years repair or replace

Sustainable Offer Status

  • RoHS: Compliant

Datasheet Download
