Cisco Catalyst9500-12Q Ghana



Cisco Catalyst9500-12Q Ghana

The Cisco Catalyst9500-12Q Ghana is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus. These switches deliver unmatched table scale (MAC/route/ACL) and buffering for enterprise applications.

Category:

Description

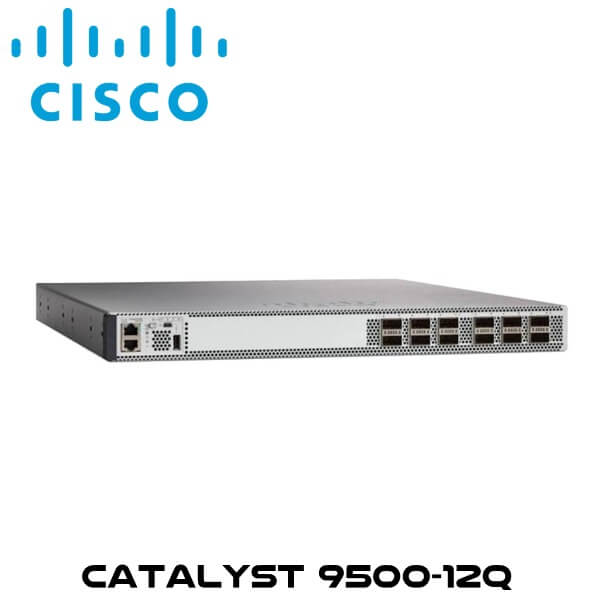

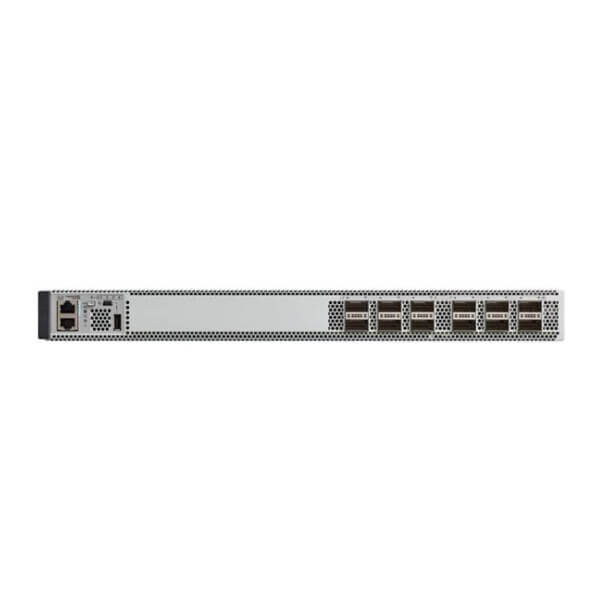

Cisco Catalyst9500-12Q Network Switch Ghana

Cisco Catalyst9500-12Q Ghana is a modern Ethernet switch that supports full serviceability and programmability. It is based on an x86 CPU and is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The C9500-12Q comes with a 4-core x86, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage.

The Cisco Catalyst9500-12Q Ghana is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus. These switches deliver unmatched table scale (MAC/route/ACL) and buffering for enterprise applications. The Catalyst 9500 Series includes nonblocking 40G Quad Small Form-factor Pluggable (QSFP) and 10G Small Form-factor Pluggable Plus (SFP+) switches with granular port densities that fit diverse campus needs. The switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT]); software-defined access border capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and network system virtualization with Cisco StackWise virtual technology that are critical for their placement in the campus core. The platform also supports all the foundational high-availability capabilities such as patching, Graceful Insertion and Removal (GIR), Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.

Features :

  • Up to 12.0 Tbps switching capacity with 8 Bpps forwarding rate
  • 80MB of dedicated low-latency buffer, with up to 8GB of HBM buffer
  • Up to 28 nonblocking 40/100 Gigabit Ethernet QSFP28 ports
  • Up to 8 nonblocking 40/100/200/400 Gigabit Ethernet QSFPDD ports
  • Intel 2.43-GHz x86 CPU with 8 cores and 32-GB of DDR4 memory
  • Up to 960 GB of SSD local storage for container-based application hosting (2x 10G KR ports)
  • Flexible routing (IPv4, IPv6, and multicast) tables, Layer 2 tables, ACL tables, and QoS tables.
  • ASIC tables for switching scale up to 256K MAC addresses and routing scale up to 2M routes.
  • Dual-stack IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration
  • Hardware support for Application Hosting1 (e.g. with Cisco ThousandEyes Enterprise Agent).
  • Hardware support for Precision Time Protocol (PTP, IEEE 1588v2)1with accurate clock synchronization and sub- microsecond accuracy, suitable for distribution and synchronization of time and frequency.
  • Hardware support for line-rate 256-bit 802.1ae MACsec and WAN-MACsec1 data encryption.
  • Platinum-rated (90% efficient) 1500 Watt AC and/or DC power supplies.
  • Field-replaceable fan-tray units, with an added flexibility to choose the direction of airflow.

Technical Specs

Product Name Catalyst 9500 12 Port 40G Switch Advantage
Manufacturer Part Number C9500-12Q-A
Product Type Layer 3 Switch
Manageable Yes
Ethernet Technology 40 Gigabit Ethernet
Number of Total Expansion Slots 12
Product Family Catalyst 9500
Media Type Supported Optical Fiber
Redundant Power Supply Supported Yes
Expansion Slot Type QSFPSFP+
Form Factor Rack-mountable
Power Source Power Supply
Layer Supported 3
Compatible Rack Unit 1U
Modular Yes
Uplink Port No
Port / Expansion Slot Details 12 x 40 Gigabit Ethernet Expansion Slot
Height 1.7″
Width 17.5″
Depth 21.5″
Product Series 9500
Product Model C9500-12Q
Network Technology 40GBase-X
Product Line Catalyst
