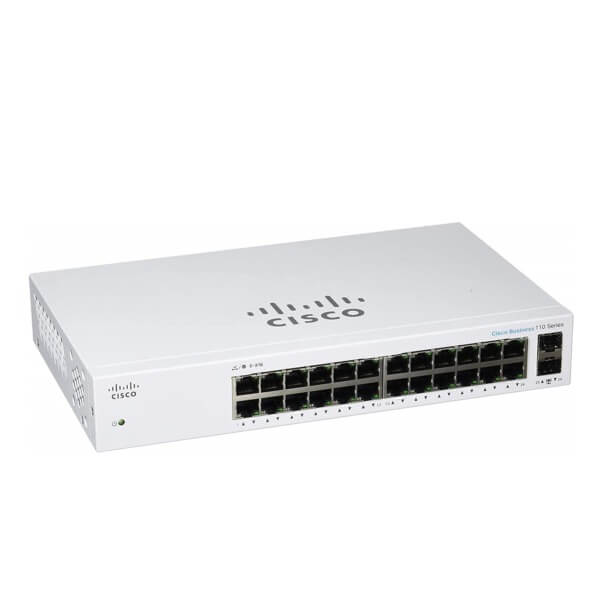

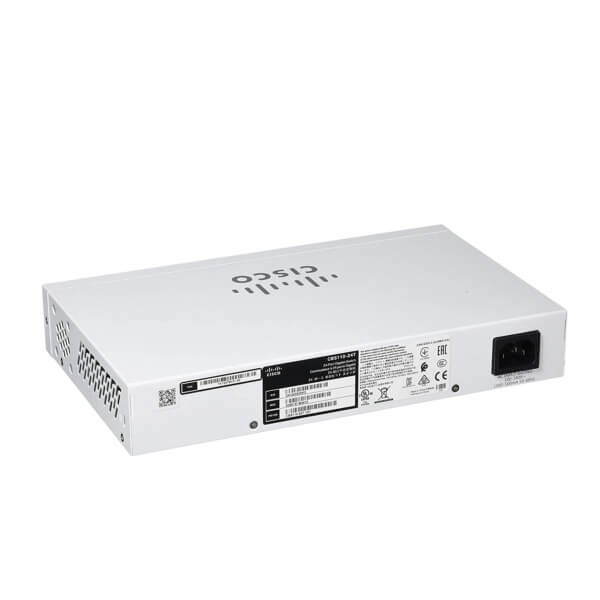

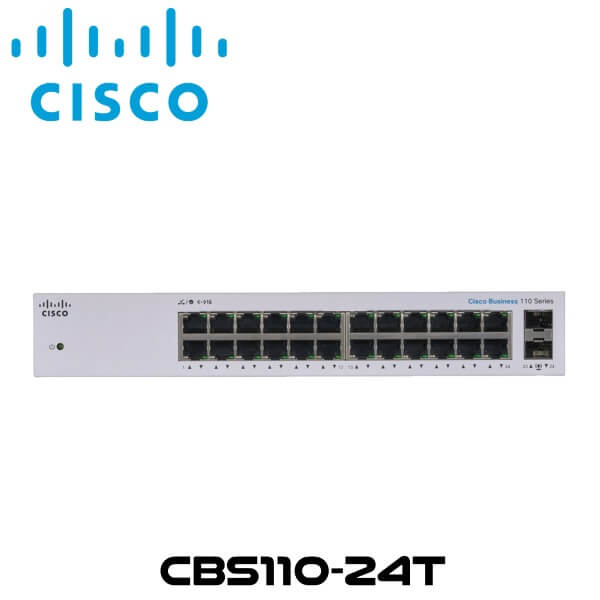

Cisco CBS110-24T Ghana switch offers 24 standard Gigabit Ethernet ports designed for traditional networking capabilities. Two additional SFP expansion slots allow you to plug in optional fiber-optic modules.

Category:

Description

Cisco CBS110-24T Switch Ghana

Cisco CBS110-24T Ghana switch offers 24 standard Gigabit Ethernet ports designed for traditional networking capabilities. Two additional SFP expansion slots allow you to plug in optional fiber-optic modules. Each port operates on Gigabit Ethernet and 10/100/1000Base-T technologies accompanied by layer 2 support, ensuring your devices properly send and receive information quickly and accurately. Expand your small business’s network footprint with Cisco CBS110-24T Ghana Unmanaged Ethernet Switch from Cisco. It is designed to give your business basic network connectivity without extensive IT knowledge or services. You can easily set your switch up with plug-and-play design, getting your business connected without the need for additional hardware or software. The included mounting brackets allow you to secure this switch in networking racks and cabinets.

Features

Built for Simplicity

You can use this device immediately out of the box without configuration. Cisco CBS110-24T Ghana unmanaged switch is designed to provide basic connection to the internet while optimizing network performance.

Gigabit Speeds

Whether you are a small business focusing on minimal network connections or repeatedly using cloud-based services, Cisco CBS110-24T Ghana switch provides you with stability suitable for online document management, streaming media, and live-chat conference calls.

Reduced Energy Cost

Cisco CBS110-24T Ghana switch supports the Energy Efficient Ethernet (IEEE 802.3az) standard, reducing energy consumption by monitoring traffic and putting specific links to sleep during quiet periods.

Advanced Technologies

Advanced Cisco traffic-handling features keep your applications running at maximum performance, streamlining your network efficiency. Integrated QoS, loop detection, cable diagnostics, and fast store-and-forward switching all work automatically without configuration, simplifying your network.

Specifications

Specifications Description
Performance
Switching capacity and forwarding rate

All switches are wire- speed and non-blocking

Model Capacity in millions of packets per second (mpps) (64-byte packets) Switching capacity in gigabits per second (Gbps)
CBS110-5T-D 7.4 mpps 10 Gbps
CBS110-8T-D 11.9 mpps 16 Gbps
CBS110-8PP-D 11.9 mpps 16 Gbps
CBS110-16T 23.8 mpps 32 Gbps
CBS110-16PP 23.8 mpps 32 Gbps
CBS110-24T 35.7 mpps 48 Gbps
CBS110-24PP 35.7 mpps 48 Gbps
General
Head-of-Line (HOL) blocking HOL blocking prevention
MAC table
  • 2K addresses for CBS110-5T-D
  • 8K addresses for all other models
Jumbo frame 9216 bytes
Quality of Service (QoS) 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection Helps discover loops in the network to avoid broadcast storms
Cable diagnostics Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Hardware
Ports Model name Total system ports RJ-45 ports Combo ports (RJ-45 + Small Form-factor Pluggable [SFP])
CBS110-5T-D 5 Gigabit Ethernet 5 Gigabit Ethernet
CBS110-8T-D 8 Gigabit Ethernet 8 Gigabit Ethernet
CBS110-8PP-D 8 Gigabit Ethernet 8 Gigabit Ethernet
CBS110-16T 16 Gigabit Ethernet 16 Gigabit Ethernet
CBS110-16PP 16 Gigabit Ethernet 16 Gigabit Ethernet
CBS110-24T 24 Gigabit Ethernet 24 Gigabit Ethernet 2 SFP (combo with 2 Gigabit Ethernet)
CBS110-24PP 24 Gigabit Ethernet 24 Gigabit Ethernet 2 SFP (combo with 2 Gigabit Ethernet)
Power over Ethernet (PoE) 802.3af Model Power dedicated to PoE Number of ports that support PoE
CBS110-8PP-D 32W 4
CBS110-16PP 64W 8
CBS110-24PP 100W 12
LEDs Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE*, Max PoE*

*if present

Cabling type Category 5e or better
Mounting options Desktop, wall-mount or rack mount
Physical security lock Kensington lock slot
Flash
  • 16 MB for CBS110-16T, CBS110-16PP
  • 8 MB for CBS110-24T, CBS110-24PP
CPU 400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP
CPU memory
  • 128 MB for CBS110-16T, CBS110-16PP
  • 64 MB for CBS110-24T, CBS110-24PP
Packet buffer All numbers are aggregate across all ports as the buffers are dynamically shared:
Model Name Packet Buffer
CBS110-5T-D 1 Mbit
CBS110-8T-D 2 Mbit
CBS110-8PP-D 2 Mbit
CBS110-16T 2 Mbit
CBS110-16PP 2 Mbit
CBS110-24T 2 Mbit
CBS110-24PP 2 Mbit
Supported SFP modules SKU Media Speed Maximum distance
MGBSX1 Multimode fiber 1000 Mbps 500 m
MGBLX1 Single-mode fiber 1000 Mbps 10 km
MGBLH1 Single-mode fiber 1000 Mbps 40 km
MGBT1 UTP cat 5e 1000 Mbps 100 m
Environmental
Unit dimensions
(W x D x H)
Model name Unit dimensions
CBS110-5T-D 110 x 75 x 30 mm (4.33 x 2.95 x 1.18 in)
CBS110-8T-D 160 x 104 x 30 mm (6.30 x 4.07 x 1.18 in)
CBS110-8PP-D 160 x 129 x 30 mm (6.30 x 5.06 x 1.18 in)
CBS110-16T 279 x 170 x 44 mm (11 x 6.7 x 1.73 in)
CBS110-16PP 279 x 170 x 44 mm (11 x 6.7 x 1.73 in)
CBS110-24T 279 x 170 x 44 mm (11 x 6.7 x 1.73 in)
CBS110-24PP 440 x 203 x 44 mm (17.32 x 7.97 x 1.73 in)
Unit weight Model name Unit weight
CBS110-5T-D 0.23 kg (0.52 lb)
CBS110-8T-D 0.43 kg (0.94 lb)
CBS110-8PP-D 0.55 kg (1.2 lb)
CBS110-16T 0.97 kg (2.14 lb)
CBS110-16PP 1.30 kg (2.87 lb)
CBS110-24T 1.56 kg (3.43 lb)
CBS110-24PP 2.98 kg (6.57 lb)
Power
  • 100 to 240V, 50 to 60 Hz, external, universal: CBS110-5T-D, CBS110-8T-D, CBS110-8PP-D
  • 100 to 240V, 50 to 60 Hz, internal, universal: CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP
Power consumption (worst case) Model System power consumption Power consumption (with PoE) Heat dissipation (BTU/hr)
CBS110-5T-D 110V=2.74W

220V=2.69W

N/A 9.34
CBS110-8T-D 110V=4.09W

220V=4.13W

N/A 14.09
CBS110-8PP-D 110V=5.1W

220V=5.29W

110V=38.02W

220V=38.2W

130.34
CBS110-16T 110V=11.33W

220V=11.53W

N/A 39.34
CBS110-16PP 110V=11.16W

220V=11.41W

110V=80.28W

220V=80.38W

274.27
CBS110-24T 110V=16.3W

220V=16.34W

N/A 55.75
CBS110-24PP 110V=17.21W

220V=17.29W

110V=135.67W

220V=133.82W

462.93
Green (power efficiency) Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Compliance/certifications UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B*

*select models

Operating temperature 32° to 104°F (0° to 40°C)
Storage temperature –4° to 158°F (–20° to 70°C)
Operating humidity 10% to 90%, relative, non-condensing
Storage humidity 5% to 90%, relative, non-condensing
Acoustic noise and Mean Time Between Failures (MTBF) Model name Fan (number) Acoustic noise MTBF at 25°C (hours)
CBS110-5T-D Fanless N/A 4,243,002
CBS110-8T-D Fanless N/A 2,066,844
CBS110-8PP-D Fanless N/A 465,437
CBS110-16T Fanless N/A 2,685,092
CBS110-16PP Fanless N/A 1,971,811
CBS110-24T Fanless N/A 524,296
CBS110-24PP Fanless N/A 340,703
Warranty Limited lifetime
Package contents
  • Cisco Business 110 Series switch
  • Power cord or adapter
  • Quick start guide
  • Mounting kit
Minimum requirements
  • Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet
  • Cat5e or better Ethernet cable
  • Network interface card for each computer
